Better Pipe Organ Database

M. P. Möller Opus 9515 (1961)

Christ Church of Hamilton & Wenham: Church
149 Asbury St.
South Hamilton, MA

Images

2022-11-07 - Church interior to rear (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

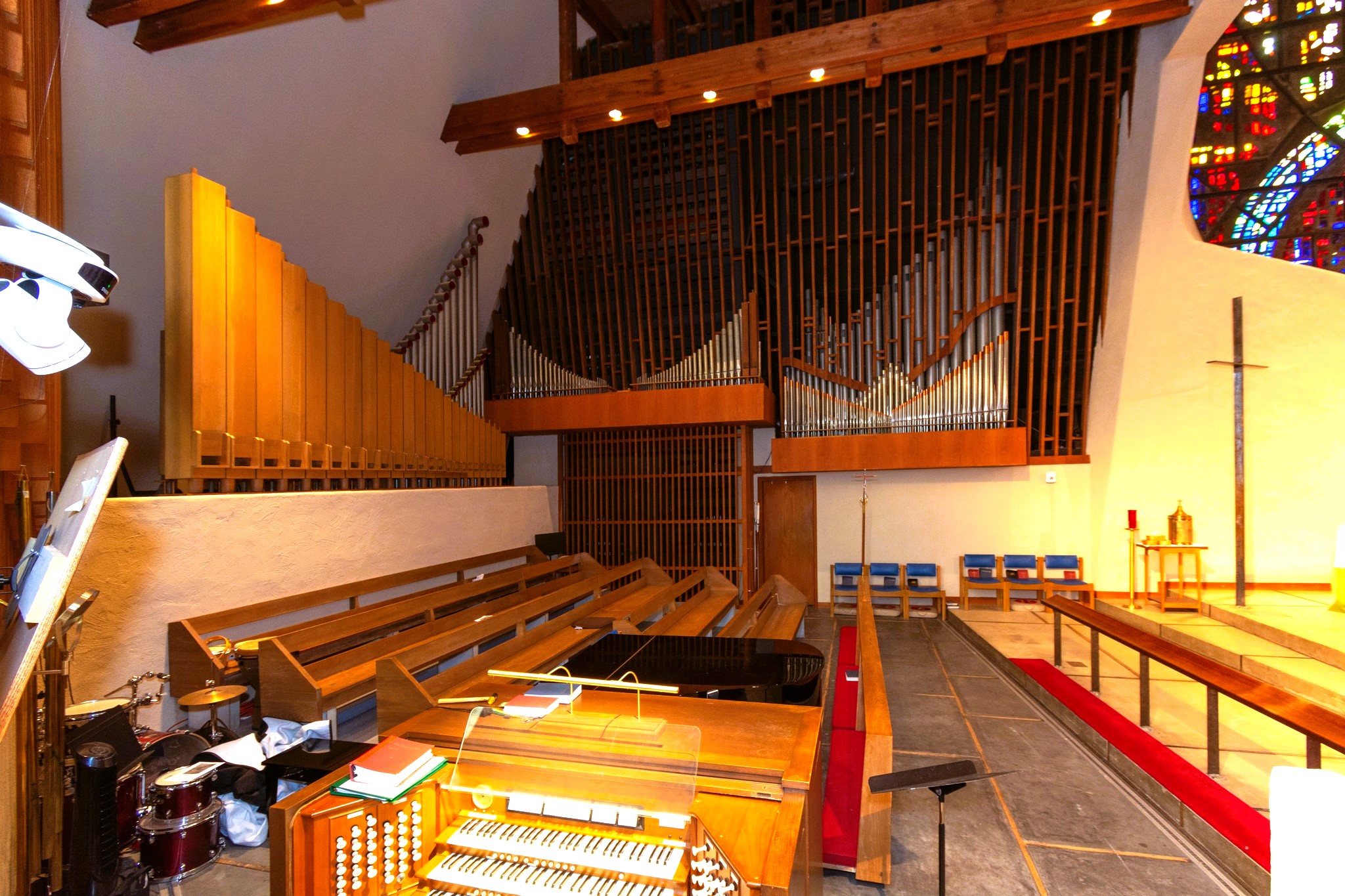

2022-11-20 - Church interior to front and organ chambers (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Church and chapel exteriors (Photograph by Church Facebook Page , submitted by Andrew Scanlon/Andrew Scanlon)

2015 - Pipework and chambers (Photograph by Church Facebook Page , submitted by Andrew Scanlon/Andrew Scanlon)

2015 - Console and chamber (Photograph by Church Facebook Page , submitted by Andrew Scanlon/Andrew Scanlon)

2020 - Console (Photograph by Church Facebook Page , submitted by Andrew Scanlon/Andrew Scanlon)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
3 manuals
32 stops
45 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-10-24 - Identified through online information from Don Belben. -- This organ was primarily designed by the (late) noted consultant, Edward (Ned) Gammons of Groton School, Groton, Massachusetts. The organ's five divisions are: Great, Swell, Choir, Positiv, and Pedal. The church has a modern design with a fairly high ceiling, which allows for a good acoustic. -Database Manager

2008-07-27 - Updated through online information from James R. Stettner. -Database Manager

2009-05-06 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

South Hamilton, Massachusetts
Christ Church of Hamilton and Wenham

Möller   Op. 9515   1961   3/40

       GREAT (exposed)            CHOIR
   16' Quintaton 61            8' Rohrflöte 68
    8' Principal 61            8' Gemshorn 68
    8' Hohlflöte 61            8' Gemshorn Celeste 61 GG
    4' Octave 61               4' Spitzflöte 68
    4' Quintflöte 24           2' Flageolet 61
    2' Waldflöte 61           II  Sesquialtera 122
   IV  Fourniture 244          8' Cromorne 68
       Chimes (pf)             8' Trumpet 68 (5" wind)
                                  Tremulant
       SWELL                      Sub
    8' Gedeckt 68                 Unison Off
    8' Viola Pomposa 68           Super
    8' Voix Celeste 61 GG
    4' Principal 68               PEDAL
    4' Koppelflöte 68         32' Resultant --
    2' Kleinflöte 12          16' Principal 32
  III  Plein Jeu 183          16' Sub Bass 32
   16' Basson-Hautbois 68     16' Quintaton GT
       (1-18 half-length)     16' Gemshorn 12 CH
    8' Trompette 68            8' Octave 12
    8' Hautbois 12             8' Holzflöte 12
    4' Rohrschalmei 68         8' Gemshorn CH
       Tremulant               4' Choralbass 32
       Sub                     4' Waldflöte 12
       Unison Off             II  Mixture 64
       Super                  16' Trombone 12 CH
                              16' Basson SW
       POSITIV (exposed)       8' Trumpet SW
    8' Nasonflöte 61           4' Hautbois SW
    4' Nachthorn 61
    2' Prestant 61
1 1/3' Larigot 61
   II  Cymbel 122
       Tremulant

 [Received on line from Jeff Scofield May 06, 2009.]

Documents

(1961-01-04) Factory specifications, OHS Archives via Jeff Scofield Stoplist and accessories -Jeff Scofield
