Estey Organ Co. (1930)

Collingswood Presbyterian: Sanctuary
30 Fern Ave
Collingswood, NJ

Images

2018-11-11 - Great Chamber (Photograph by Will Powell/Database Manager)

2018-11-08 - Builder's Nameplate (Photograph by Will Powell/Database Manager)

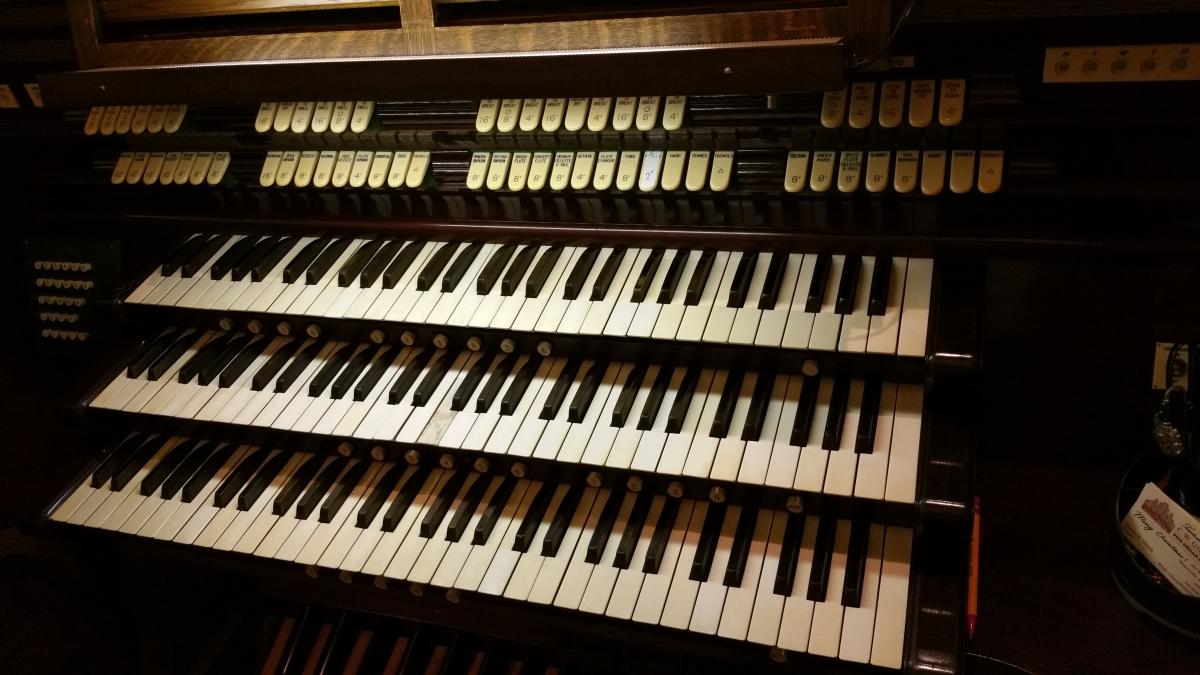

2018-11-08 - Console (Photograph by Will Powell/Database Manager)

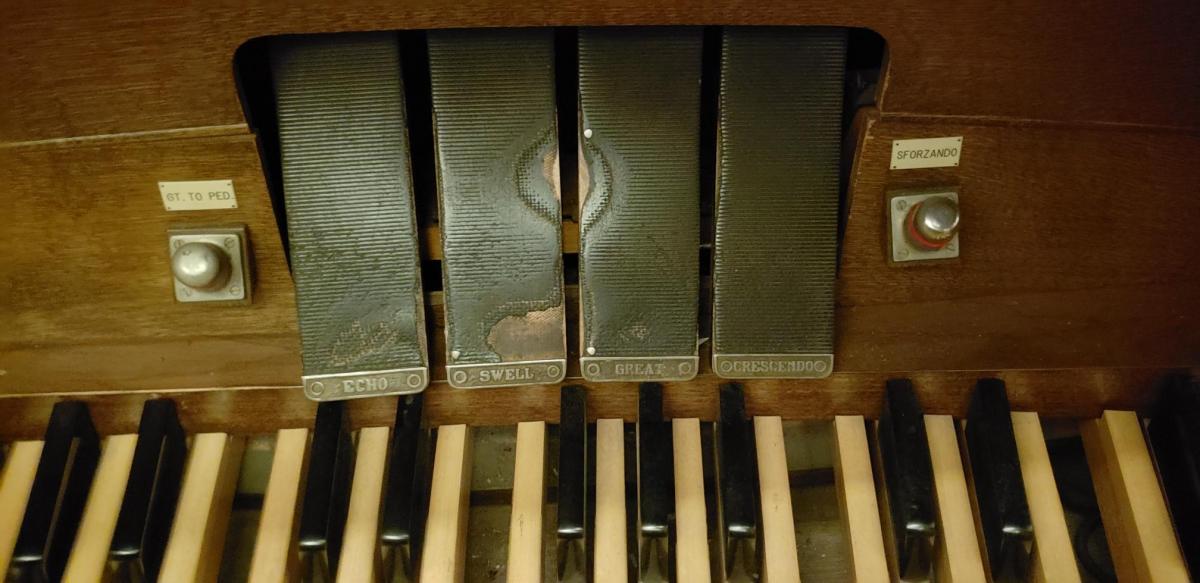

2018-11-08 - Pedals (Photograph by Will Powell/Database Manager)

2018-11-08 - Relay (Photograph by Will Powell/Database Manager)

2018-11-08 - Great / Swell Bellows (Photograph by Will Powell/Database Manager)

2018-11-08 - Windchest (Photograph by Will Powell/Database Manager)

2018-11-08 - Facade (Photograph by Will Powell/Database Manager)

2018-11-08 - Great/Swell Pipe Chamber (Photograph by Will Powell/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-10-25 - Identified by James R. Stettner through information from the Estey Opus List, published in The Boston Organ Club newsletter, 1973-1979. -Database Manager

2016-10-26 - Updated through online information from Will Powell. <br>Echo division in rear with separate wind motor and 2 octaves tubular bells. Echo division unusable. All of installation is original. -Database Manager

2018-12-07 - Updated by Will Powell, who maintains the organ. <br> <br>Echo Chamber in rear with separate wind motor -inopperable, outdated electrics. Visible facade pipes, <br>Fixed console is to the side near the facade pipes -Database Manager

Stoplist

Source: Stoplist courtesy of William Powell, Music Director Date not recorded

Collingswood, New Jersey
Collingswood Presbyterian Church

Estey Organ Co. Opus 2821 1930
3 Manual, 22 Rank

Great                         Swell
8’ Principal Diapason        16’ Bourdon
8’ Second Diapason            8’ Diapason
8’ Gross Flute                8’ Gedeckt
8’ Concert Flute              8’ Salicional
8’ Erzahler Celeste II RKS    8’ Voix Celeste
4’ Octave                     4’ Flute Harmonic
4’ Flute D’Amour              8’ Cornopean
8’ Tuba                       8’ Oboe
2’ Flute

SWELL to GREAT                   SWELL to SWELL
GREAT to GREAT                   ECHO to SWELL
ECHO to GREAT                    UNISON OFF
UNISON OFF

Echo (non-functioning)       Pedal
8' Unda Maris                32' Resultant
8' Spitz Flute Celeste II    16' Open Diapason
8' Clarinet                  16' Bourdon
8' Vox Humana                16' Lieblich Gedeckt
                              8' Major Flute
                              8' Gedeckt
                              8' Dolce Flute

                                 GREAT TO PEDAL
                                 SWELL TO PEDAL
                                 ECHO TO PEDAL

DEAGAN CHIMES (2 Octave in ECHO, functioning)
HARP (Non-Functioning)
TOWER CHIMES (Non-functioning)

[Received from William Powell November 11, 2018]
