Orgues Létourneau Ltée Opus 78 (2002)

Cathedral of St. Andrew: Church
265 Sheldon Blvd. SE
Grand Rapids, MI

Images

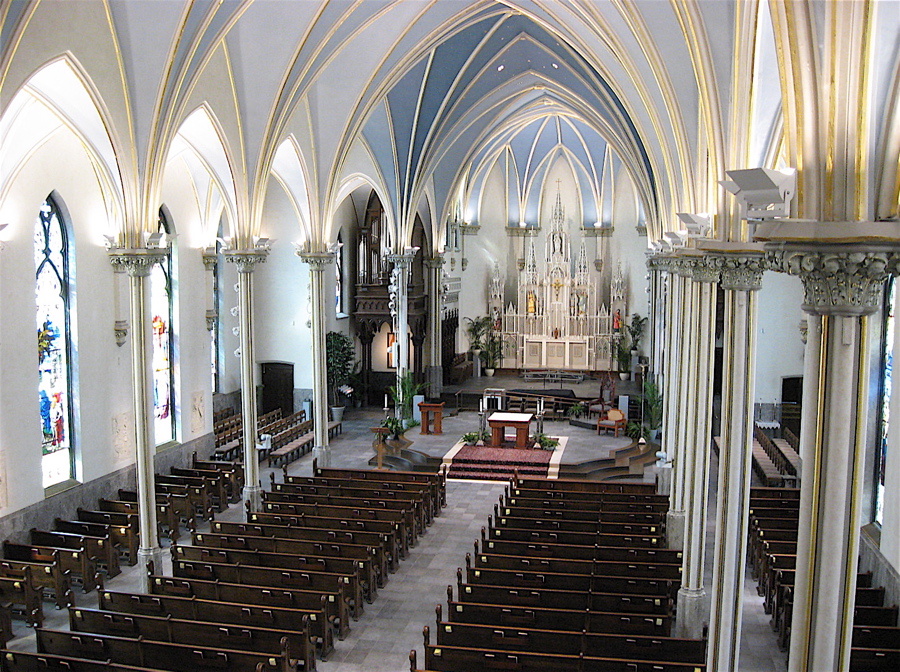

2010-08-10 - Cathedral Interior and Altar (Photograph by Chad Boorsma/Database Manager)

2010-08-10 - Console and Chancel (Photograph by Chad Boorsma/Database Manager)

2010-08-10 - Console (Photograph by Chad Boorsma/Database Manager)

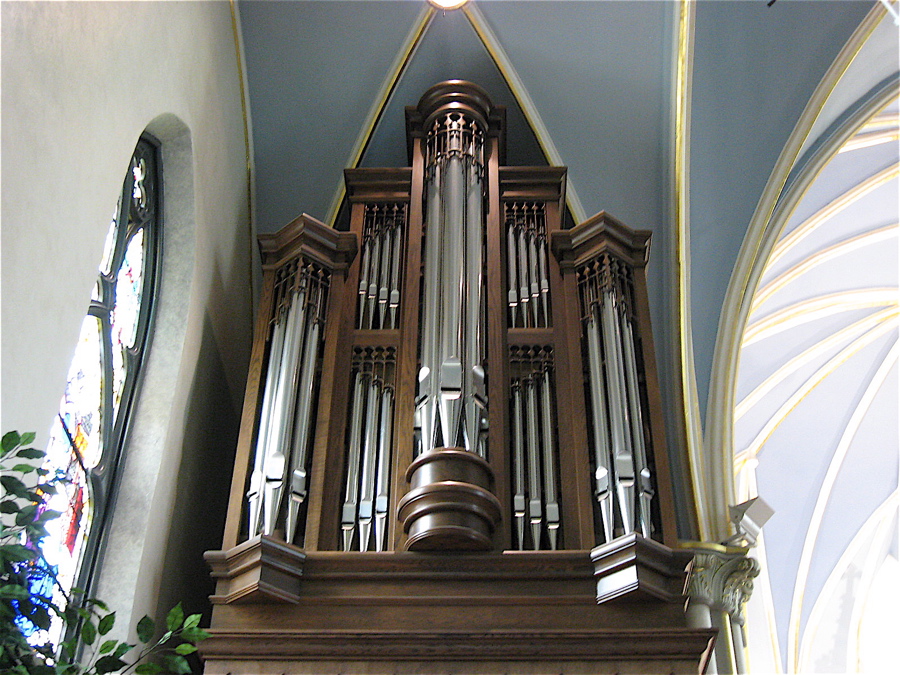

2010-08-10 - Right Organ Case (Great) (Photograph by Chad Boorsma/Database Manager)

2010-08-10 - Left Organ Case (Swell) (Photograph by Chad Boorsma/Database Manager)

2010-08-10 - Stained Glass Window (Photograph by Chad Boorsma/Database Manager)

2010-08-10 - Cathedral Exterior (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
15 stops
21 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2007-11-08 - Identified through online information from Stephen Hall. -- The organ may be played from its own console, or from the console of the larger Gallery Organ (Opus 77). The organ is in regular use for services (2007). -Database Manager

2010-08-11 - Updated through online information from Chad Boorsma. -- The Great is in a case to the right of the chancel, while the Swell is in a case to the left of the Sanctuary. The Trompeta Real from the Gallery organ can also be played from this console. -Database Manager

Stoplist

Stoplist taken from the console (August 10, 2010) Source: Source not recorded Date not recorded

Grand Rapids, Michigan
CATHEDRAL OF ST. ANDREW
CHANCEL ORGAN

Orgues Létourneau Limitée    Opus 78    2002    18 ranks
______________________________________________________________________________

GREAT:                   SWELL:                     PEDAL:
  8' Open Diapason         16' Bourdon                16' Subbass
  8' Chimney Flute          8' Viola de Gamba         16' Bourdon [SW]
  4' Principal              8' Voix Celeste            8' Principal
  2' Block Flute            8' Stopped Diapason        8' Bass Flute
 IV  Mixture                4' Open Flute              4' Bass Flute [from 8']
  8' Trompeta Real [GAL]    2' Spitz Principal        16' Trombone
                            8' Trumpet                 8' Trompeta Real [GAL]
                            8' Trompeta Real [GAL]

[Received online from Chad Boorsma • August 10, 2010]
