Better Pipe Organ Database

Hellmuth Wolff & Associés Opus 22 (1979)

Trinity Episcopal Cathedral
121 W. 12th Street
Davenport, IA

OHS convention: 1986

Images

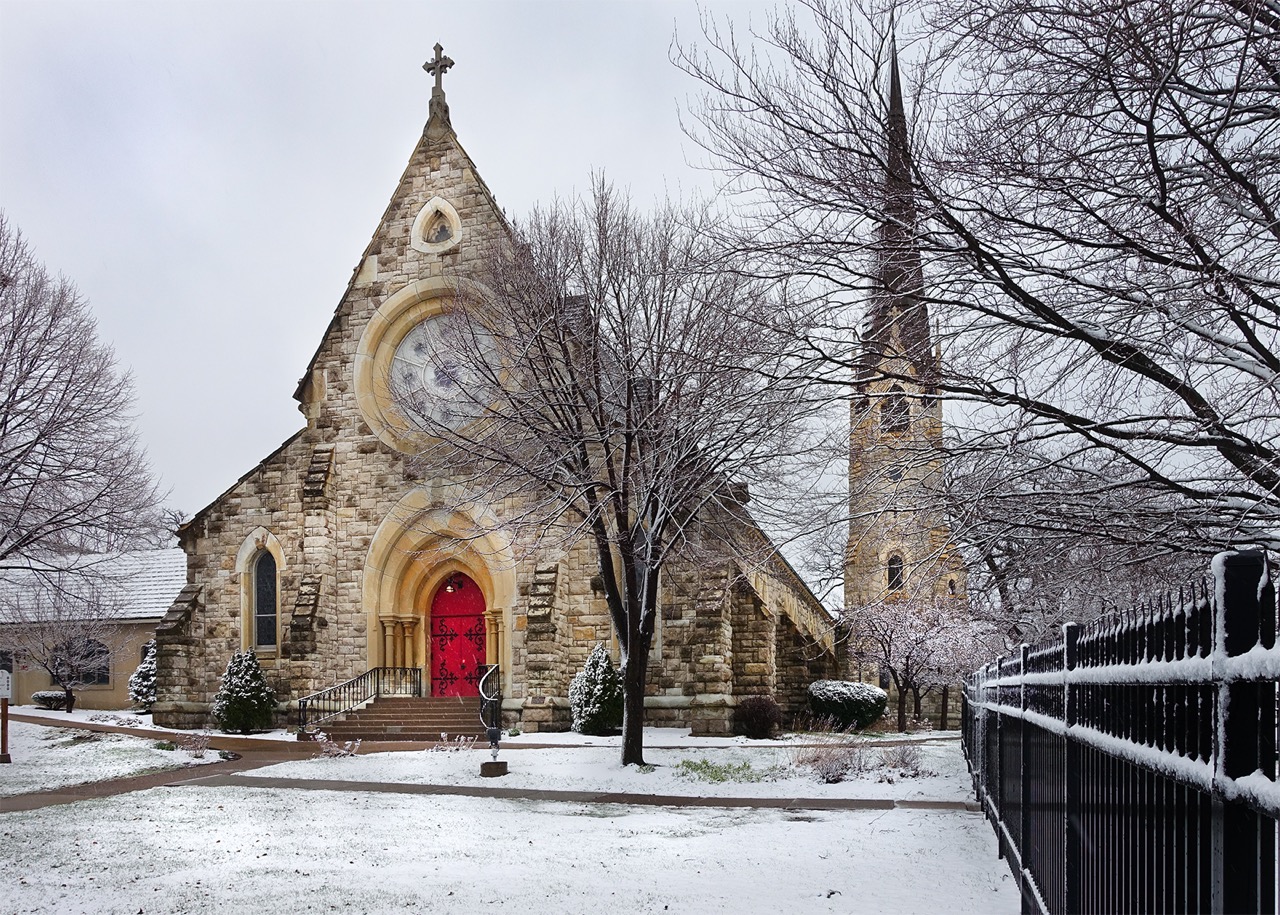

2016-06-05 - Church exterior (Church Facebook page/Jim Stettner)

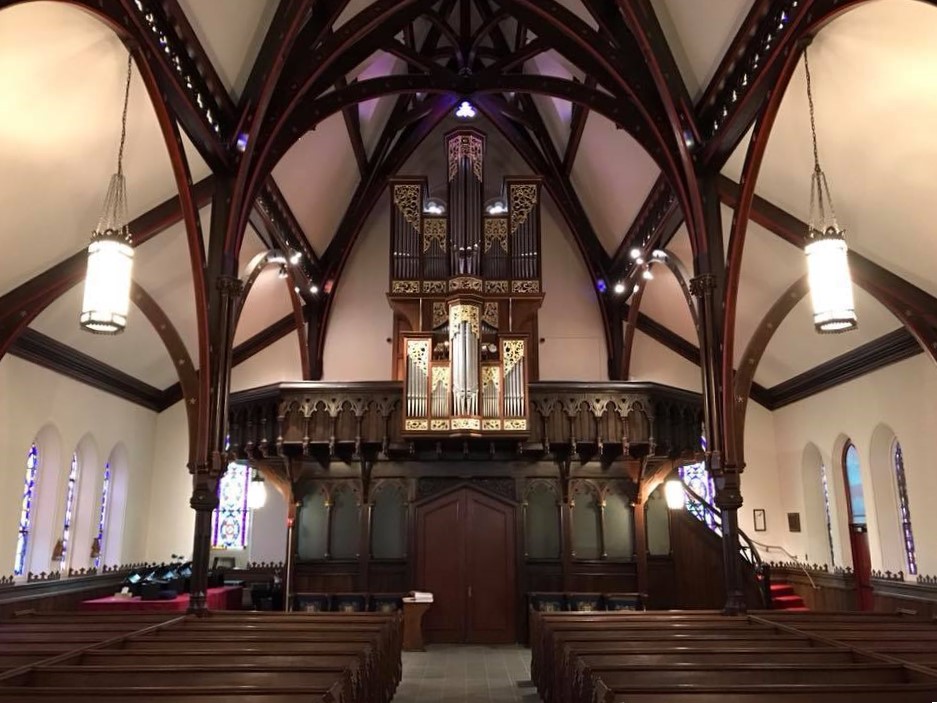

2018-02-19 - Nave interior with organ case in rear gallery (Church Facebook page/Jim Stettner)

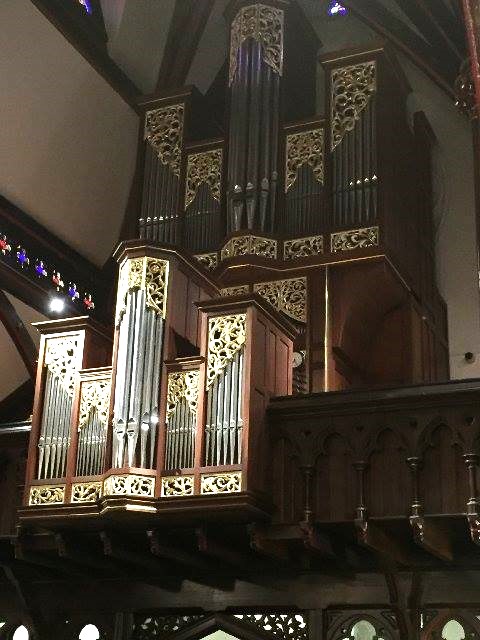

2017-03-02 - Organ case from below, right (Church Facebook page/Jim Stettner)

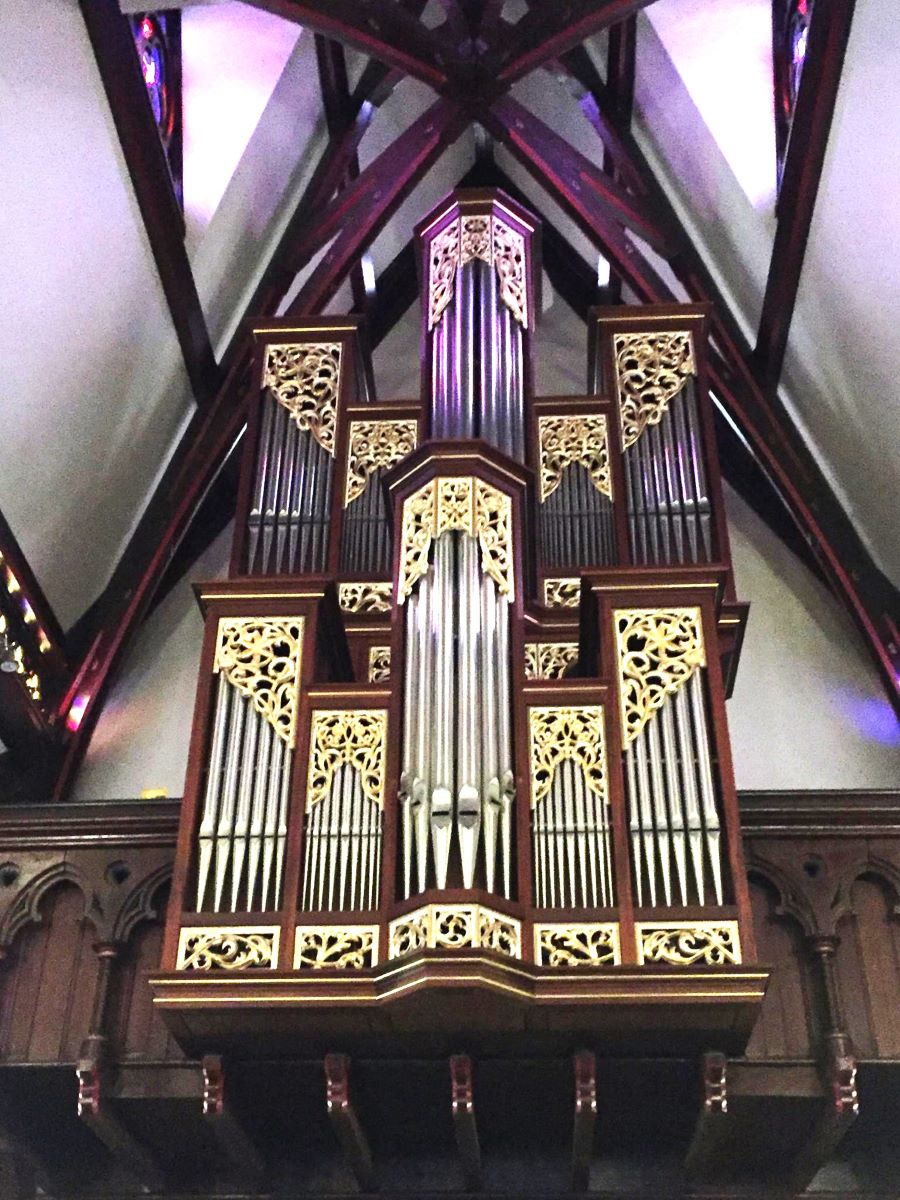

2016-03-14 - Organ case/facade from below (Church Facebook page/Jim Stettner)

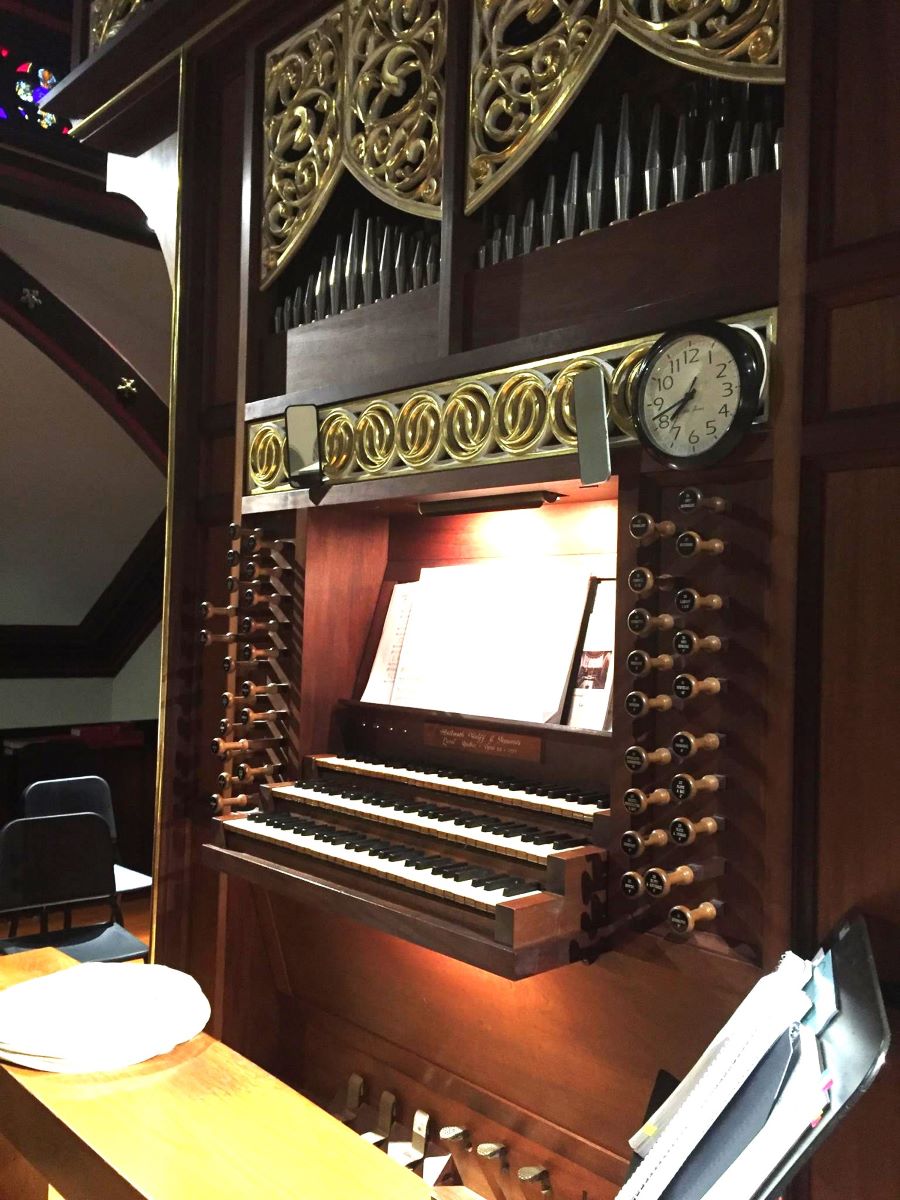

2016-02-29 - Organ case pedestal and keydesk (Church Facebook page/Jim Stettner)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
3 manuals
36 stops
40 registers
4 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Flat Straight
Expression Type: No Enclosed Divisions
Combination action: Ventils

Notes

2004-10-30 - Status Note: There 1993. -Database Manager

2004-10-30 - Suspended action. Flat pedalboard. -Database Manager

Stoplist

Information from Wolff et Associes Source: Source not recorded Date not recorded

Davenport, Iowa
Trinity Episcopal Cathedral

Wolff dt Associes (Opus 22, 1979)

GRAND ORGUE
16 Bourdon
8 Montre
8 Flute a Cheminee
8 Viol di Gamba
4 Prestant
2 Doublette
2-2/3 Nazard*
III Cornet*
IV*/III*Fourniture
III Cymbale
8 Trompette
4 Clarion

POSITIF
8 Montre
8 Flute a Cheminee
8 Quintaton
4 Prestant
4 Flute a Fuseau
2-2/3 Quinte*
II Sesquiltera*
2 Flute a Bec
2 Doublette*
IV Fourniture*
8 Cromonrne

ECHO ORGAN
8 Bourdon
4 Prestant
2 Doublette
1-1/3 Larigot
II-III Cymbale
16 Servelas
8 Voix Humaine

PEDALE
16 Contrebasse (added by Wahl)
16 Soubasse
8 Montre
4 Prestant
2 Flute*
III Fourniture
16 Bombarde
8 Trompette
4 Clarion
2 Cornet*



*pairs indicate half hitch


 [Received from Richard C Greene 2013-10-28.]

Related Pipe Organ Database Entries

#49237 - Wahl Organbuilders (2004)
