Better Pipe Organ Database

Wahl Organbuilders (2004)

Trinity Episcopal Cathedral: Sanctuary
121 West Twelfth Street
Davenport, IA

Images

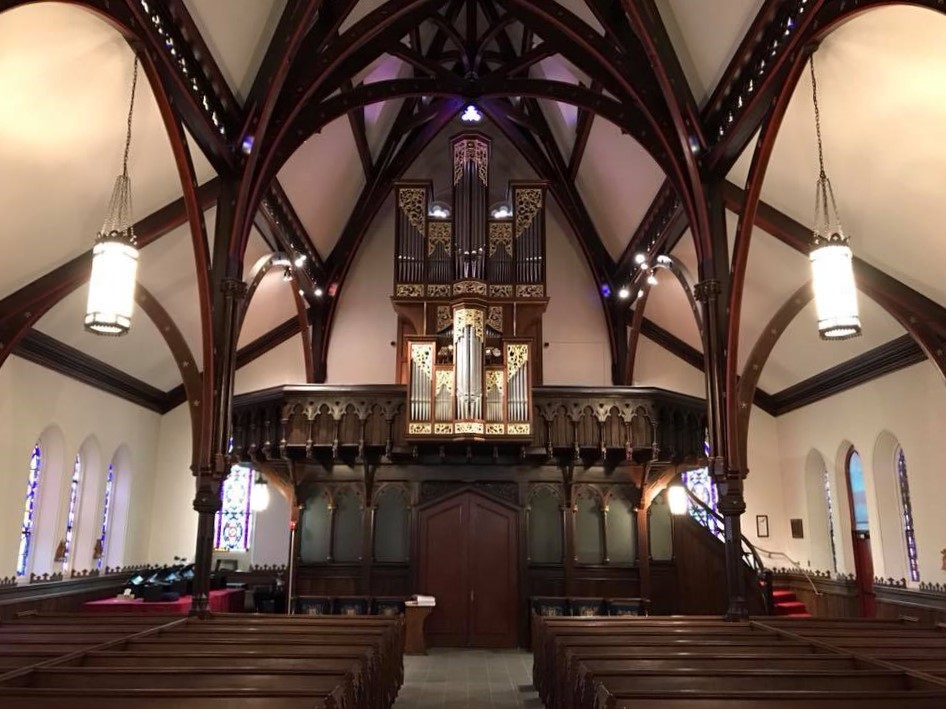

2023 - Nave interior with organ case in rear gallery (Ben Owen/Jim Stettner)

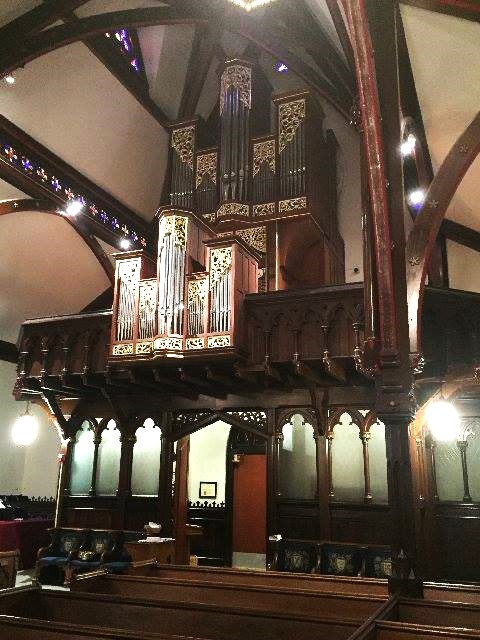

2017-03-02 - Orgn case/facade in rear gallery from below, right (Church Facebook page/Jim Stettner)

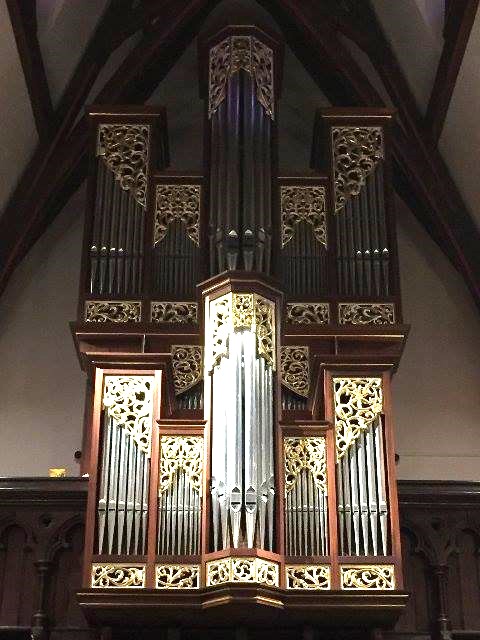

2017-03-02 - Organ case/facade from below (Church Facebook page/Jim Stettner)

Autumn 2022 - Church exterior (Church Facebook page/Jim Stettner)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
3 manuals
40 stops
40 registers
4 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Flat Straight
Combination action: Ventils

Notes

2012-02-19 - Identified through online information from Richard C Greene. This was a project of tonal additions to the Pedale, revision of a Pedale rank, new Pedale windchests and revised winding along with various pipe repairs. -Database Manager

Stoplist

Stoplist from the Church Source: Source not recorded Date not recorded

Davenport, Iowa
Trinity Episcopal Cathedral

Wolff et Associés (1979, Opus 22). Wahl Organbuilders (2004)

GRAND ORGUE
16 Bourdon
8 Montre
8 Flute a Cheminee
8 Viol di Gamba
4 Prestant
2 Doublette
2-2/3 Nazard*
III Cornet*
IV*/III*Fourniture
III Cymbale
8 Trompette
4 Clarion

POSITIF
8 Montre
8 Flute a Cheminee
8 Quintaton
4 Prestant
4 Flute a Fuseau
2-2/3 Quinte*
II Sesquiltera*
2 Flute a Bec
2 Doublette*
IV Fourniture*
8 Cromonrne

ECHO ORGAN
8 Bourdon
4 Prestant
2 Doublette
1-1/3 Larigot
II-III Cymbale
16 Servelas
8 Voix Humaine

PEDALE
16 Contrebasse (added by Wahl)
16 Soubasse
8 Montre
4 Prestant
2 Flute*
III Fourniture
16 Bombarde
8 Trompette
4 Clarion
2 Cornet*

*pairs indicate half hitch

Websites

Wahl Organbuilders - Trinity Episcopal Cathedral - Photograph, description, stoplist (Check Internet Archive, archive.is)

Related Pipe Organ Database Entries

#3188 - Hellmuth Wolff & Associés Opus 22 (1979)
