Holy Trinity Episcopal Church
3217 Guthrie Road
Garland, TX
Images

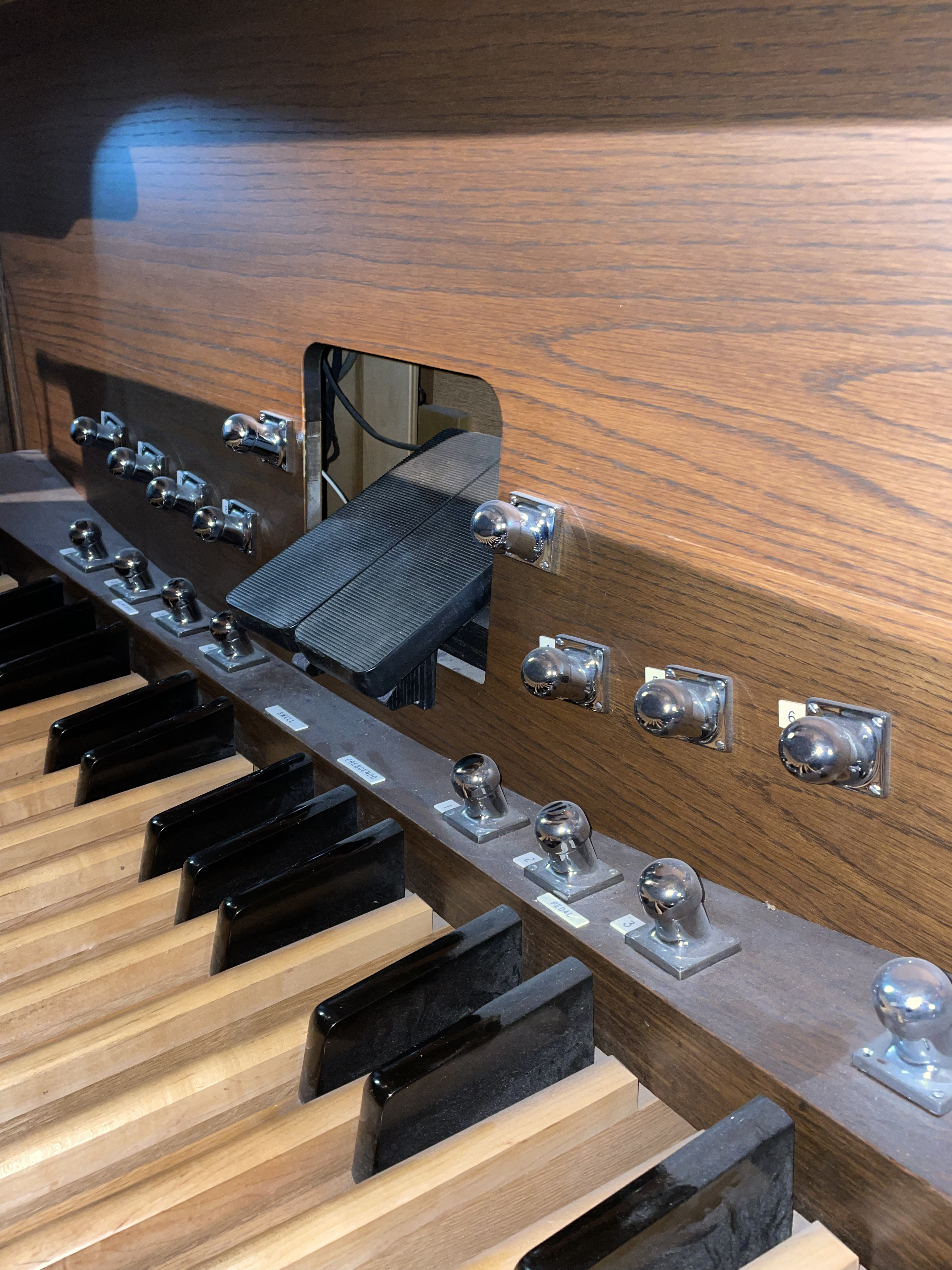

2023-02-19 - Pedalboard/Foot Pistons/Crescendo Pedals (Photograph by Jacob Royle/Jacob Royle)

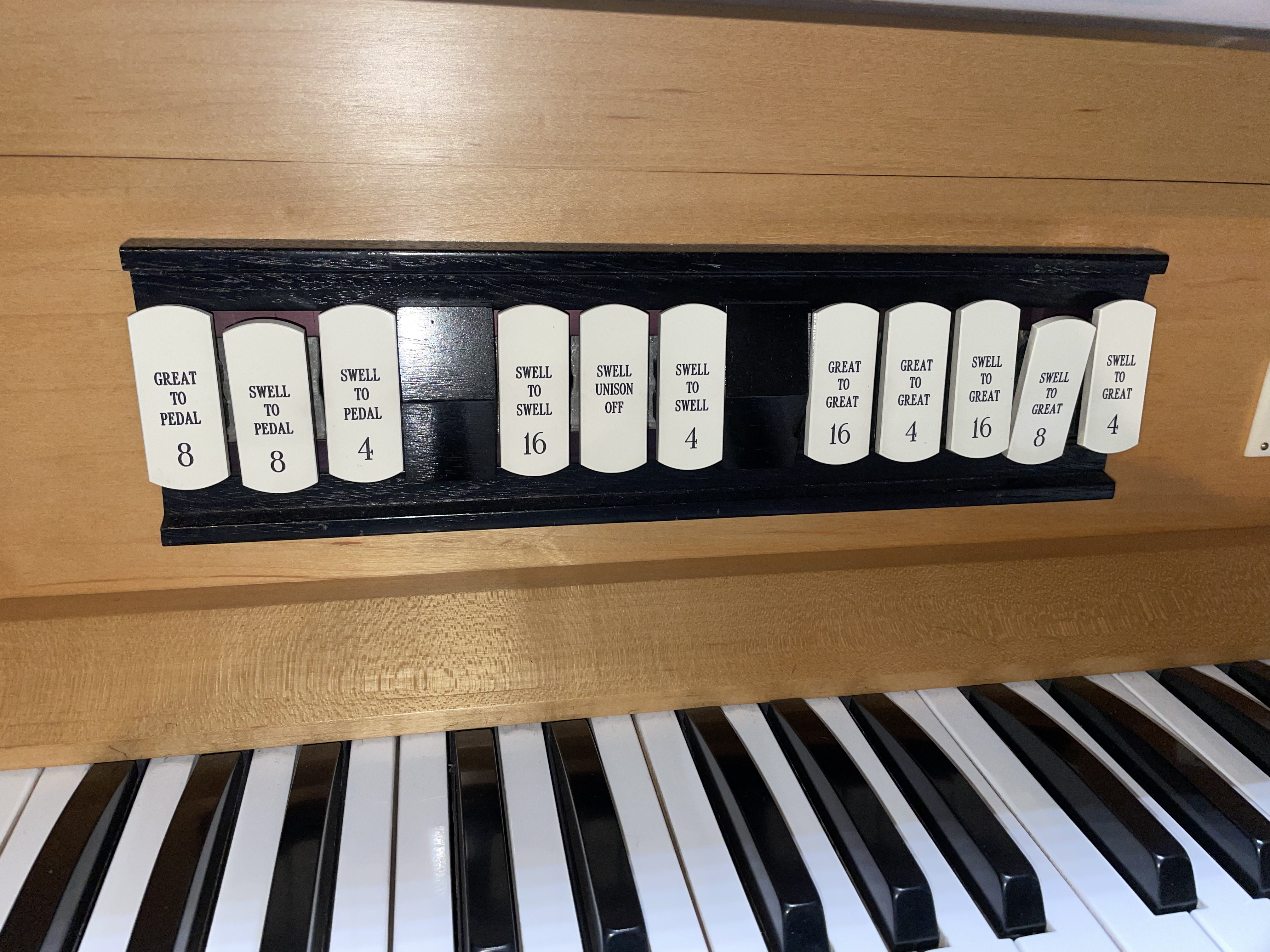

2023-02-19 - Couplers (Photograph by Jacob Royle/Jacob Royle)

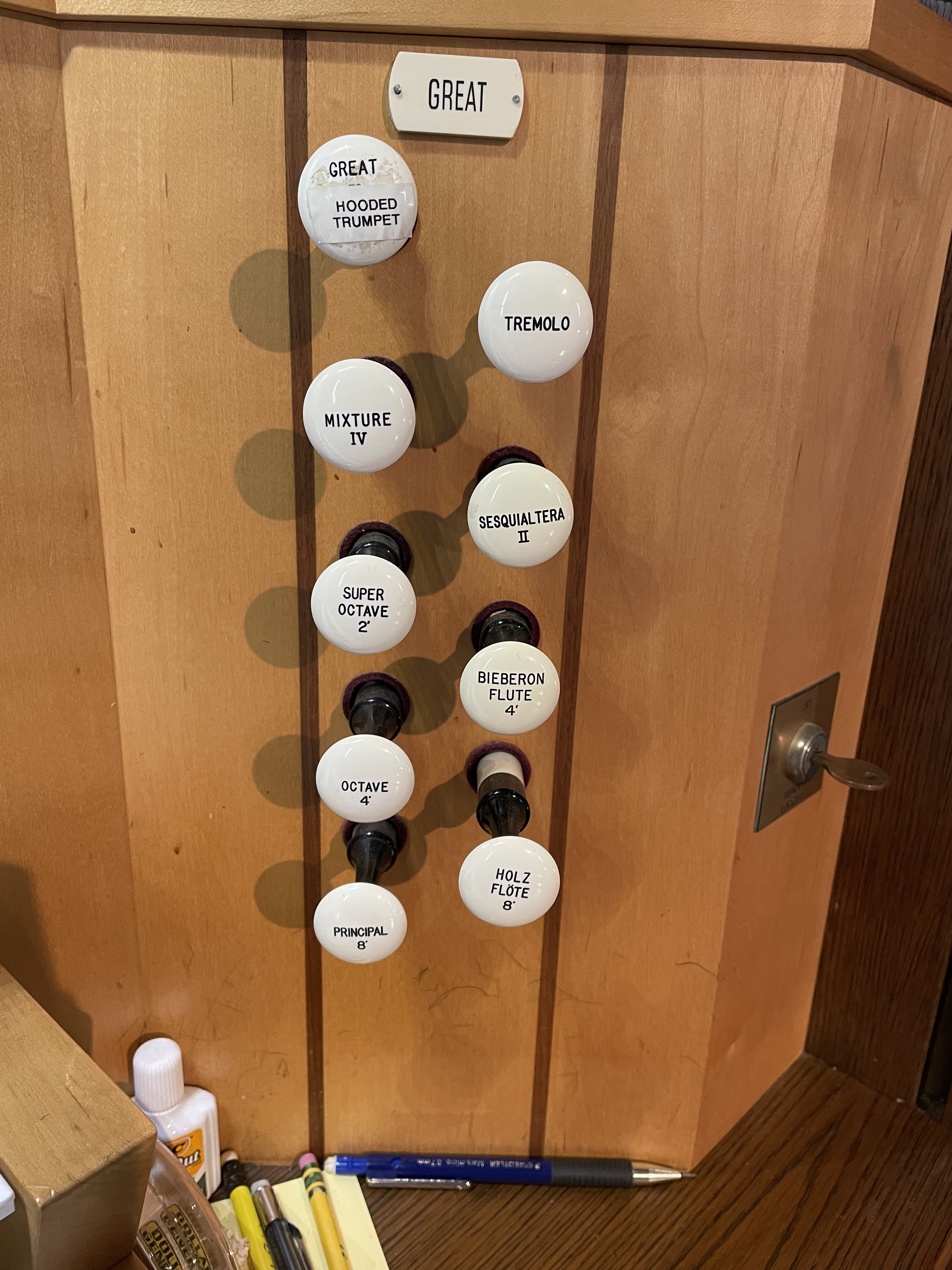

2023-02-19 - Right stop jamb - Great stops (Photograph by Jacob Royle/Jacob Royle)

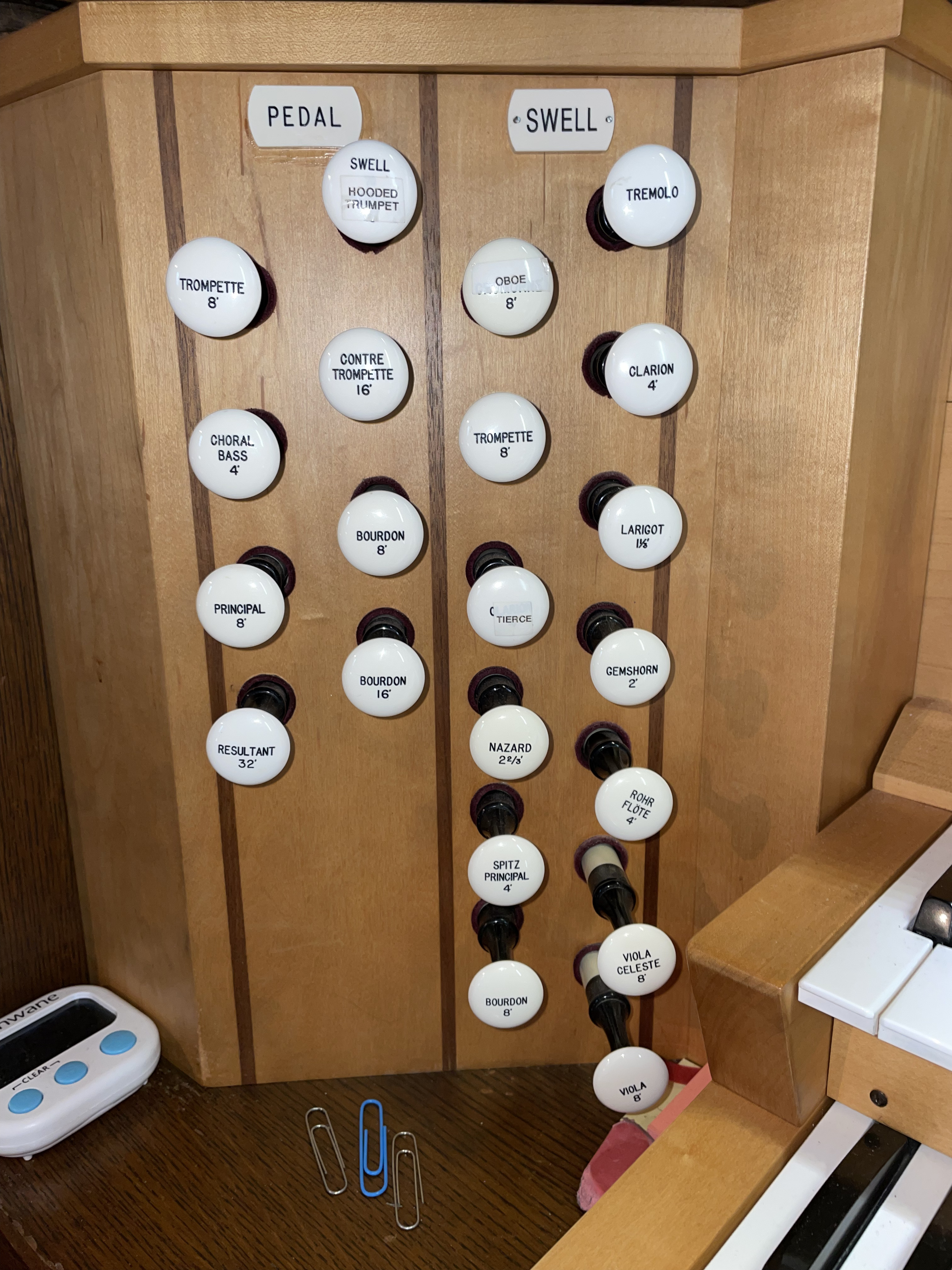

2023-02-19 - Left stop jamb - Pedal and Swell stops (Photograph by Jacob Royle/Jacob Royle)

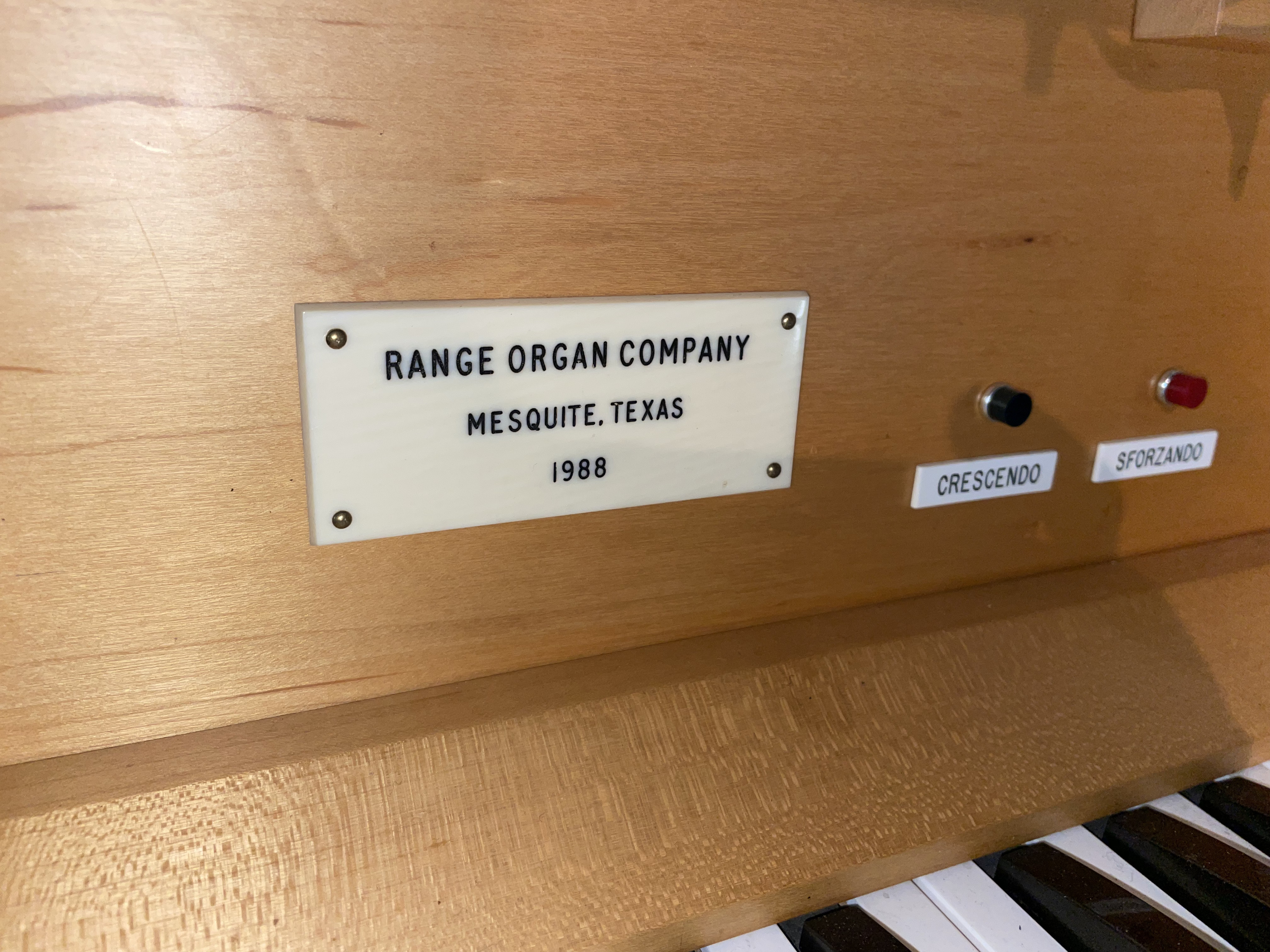

2023-02-19 - Builder's nameplate (Photograph by Jacob Royle/Jacob Royle)

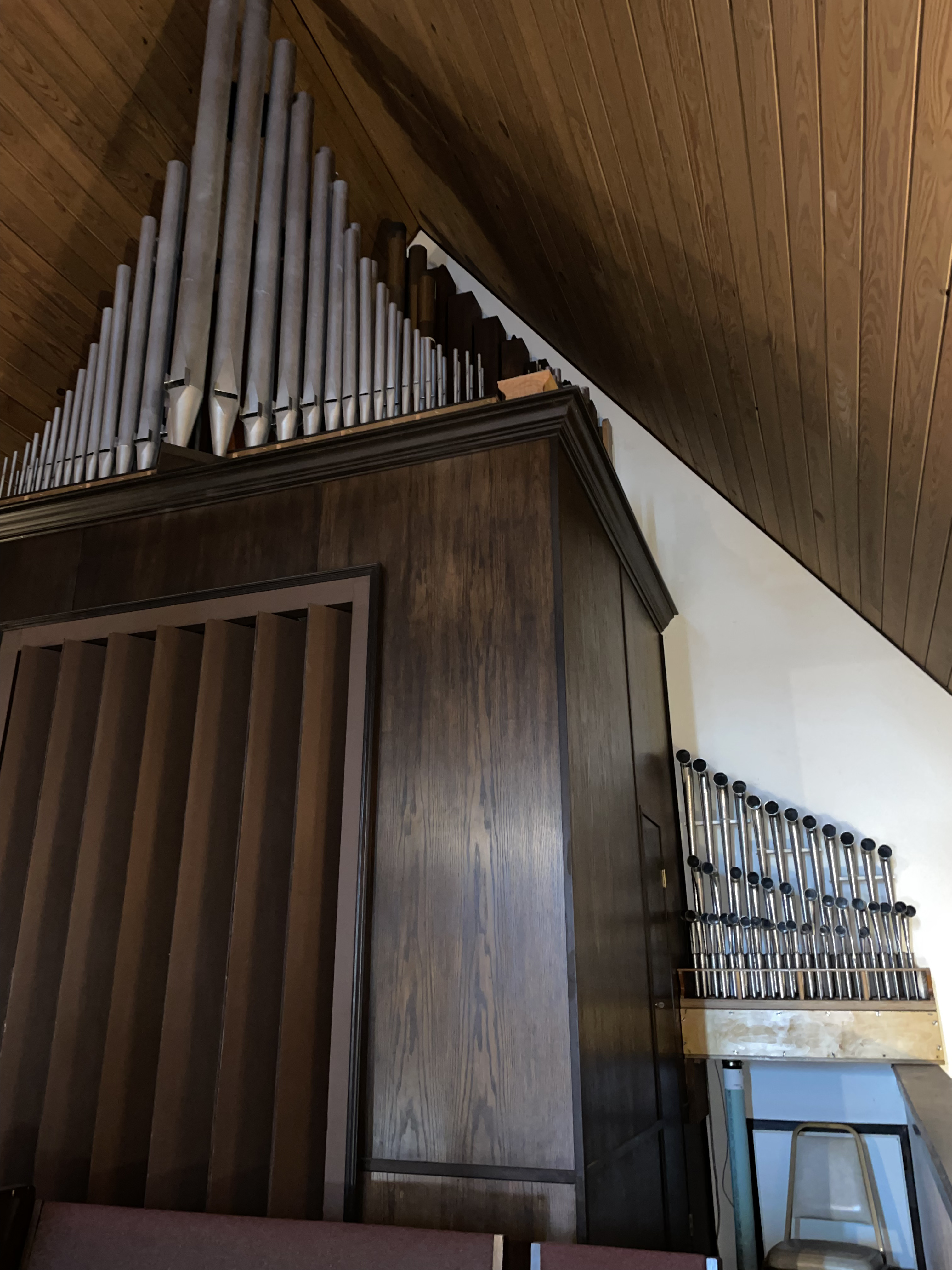

2023-02-19 - Right (South) side of Facade with Hooded Trumpet adjacent to Swell Box (Photograph by Jacob Royle/Jacob Royle)

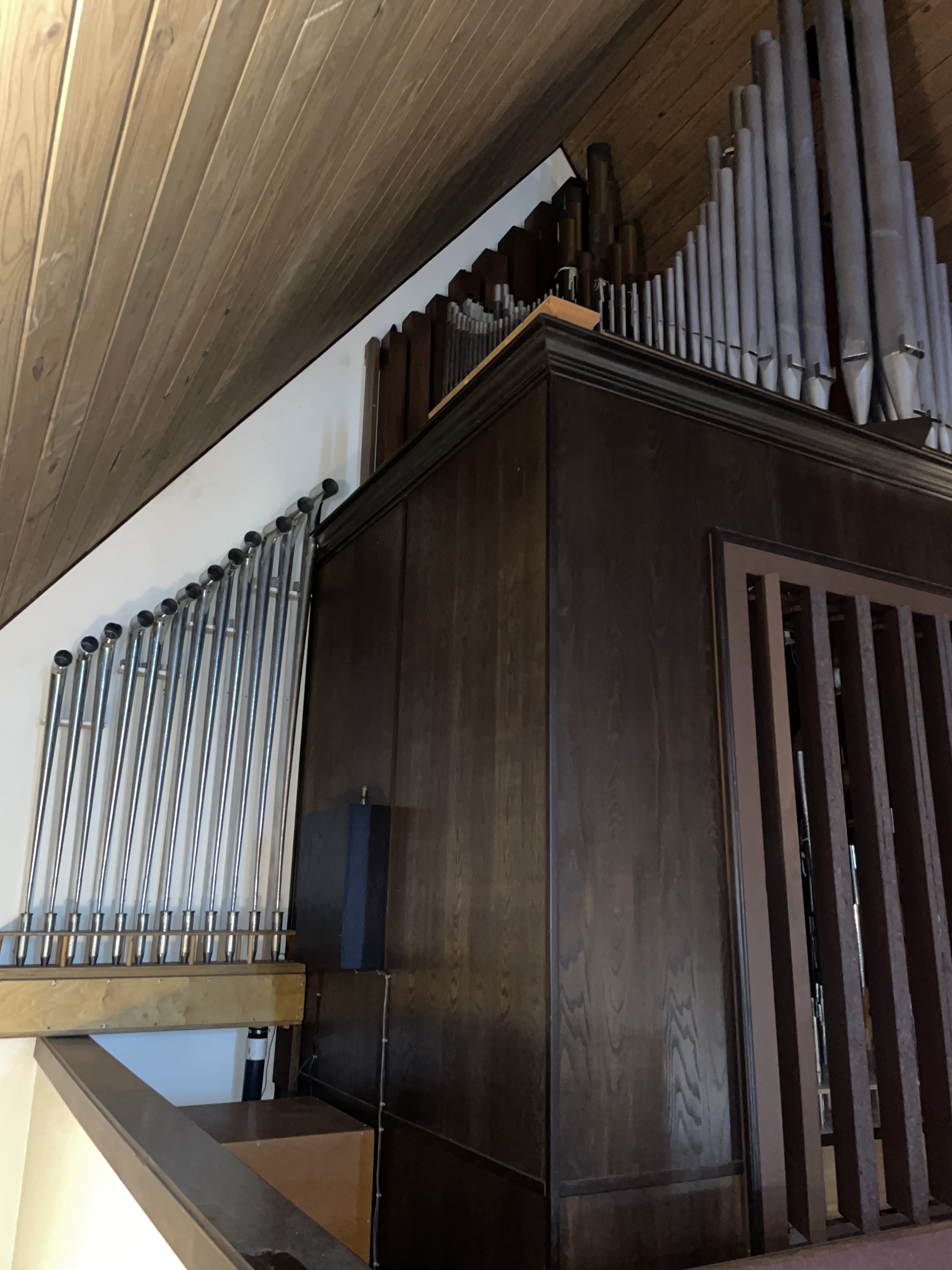

2023-02-19 - Left (North) side of Facade with Hooded Trumpet adjacent to Swell Box (Photograph by Jacob Royle/Jacob Royle)
2023-02-19 - Organ in gallery (Photograph by Jacob Royle/Jacob Royle)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 2 manuals
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Has combination thumb pistons
- Has combination toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2008-01-22 - Identified through online information from David M. Boothe. -- Hooded Trumpet and Zimbelstern added after original installation. -Database Manager
2011-09-18 - Updated through online information from David Boothe. -- Swell Tierce made playable again in 2009. Pedal Carion (from Swell Trompette) no longer available. -Database Manager
2013-09-07 - Updated through online information from David Boothe. -- 2012 - Swell Krummhorn replaced by Oboe -Database Manager
2018-07-11 - Updated by David Boothe, who has heard or played the organ. <br>\r\n2018 - Bottom octave of Pedal 16\' Contre Trompette replaced by analog electronic extension. -Database Manager
Stoplist
Source: Source not recorded Date not recorded
PEDAL (Unenclosed, 32 Notes)
32' Resultant
16' Bourdon (wood, 32 pipes, built by Pilcher)
8' Principal (32 pipes)
8' Bourdon (12 pipes, ext. 16' Bourdon)
4' Choral Bass (12 pipes, ext. 8' Principal)
16' Contre Trompette (12 pipes, ext. SW 8' Trompette)
8' Trompette (SW)
4' Clarion (SW)
GREAT (Unenclosed, 61 Notes)
8' Principal (61 pipes)
8' Holz Flöte (wood, 61 pipes, built by Pilcher)
4' Octave (61 pipes)
4' Bieberon Flute (metal, 61 pipes)
Sesquialtera II (122 Pipes)
2' Super Octave (61 pipes)
Mixture IV (244 pipes)
8' Hooded Trumpet* (61 pipes)
Tremelo
SWELL (Enclosed, 61 Notes)
8' Viola (61 pipes)
8' Bourdon (wood, 61 pipes, built by Pilcher)
8' Viola Celeste (49 pipes)
4' Spitz Principal (61 pipes)
4' Rohr Flöte (wood, 61 pipes, built by Pilcher)
2 2/3' Nazard (61 pipes)
2' Gemshorn (61 pipes)
1 3/5' Tierce
1 1/3' Larigot (12 pipes, ext 2 2/3' Nazard)
8' Trompette (61 pipes)
4' Clarion (12 pipes, ext. 8' Trompette)
8' Oboe (61 pipes)
8' Hooded Trumpet (GT)
Tremelo
Zimbelstern (On unmarked reversible toe stud)
COUPLERs (In rail above Swell manual)
8' Great to Pedal
8' Swell to Pedal
4' Swell to Pedal
16' Swell to Swell
Swell Unison Off
4' Swell to Swell
16' Great to Great
4' Great to Great
16' Swell to Great
8' Swell to Great
4' Swell to Great
CONSOLE CONTROLS
Crescendo Pedal (currently disabled)
Sforzando on reversible thumb piston, duplicated on toe stud
8 General Pistons (Duplicated on toe studs)
6 Great Divisional Pistons
6 Swell Divisional Pistons
6 Pedal Divisional Pistons (Duplicated on toe studs)
Electropneumatic chests
Swell Mutations on direct electric chest
NOTES
* Hooded Trumpet is available on Great and Swell. Unaffected
by couplers and tremolos.
[Received from David M. Boothe 2013-09-07.]Typed stoplist from David Boothe Source: Source not recorded Date not recorded
Church of the Holy Trinity (Episcopal)
Garland, Texas
Range Organ Company
1988
2 Man + Ped
25 Ranks
PEDAL (Unenclosed, 32 Notes)
32' Resultant
16' Bourdon (wood, 32 pipes)
8' Principal (32 pipes)
8' Bourdon (12 pipes, ext. 16' Bourdon)
4' Choral Bass (12 pipes, ext. 8' Principal)
16' Contre Trompette (12 pipes, ext. SW 8' Trompette)
8' Trompette (SW)
4' Clarion (SW)
GREAT (Unenclosed, 61 Notes)
8' Principal (61 pipes)
8' Holz Flöte (wood 61 pipes)
4' Octave (61 pipes)
4' Bieberon Flute (metal, 61 pipes)
Sesquialtera II (122 Pipes)
2' Super Octave (61 pipes)
Mixture IV (244 pipes)
8' Hooded Trumpet* (61 pipes)
Tremelo
SWELL (Enclosed, 61 Notes)
8' Viola (61 pipes)
8' Bourdon (wood, 61 pipes)
8' Viola Celeste (49 pipes)
4' Spitz Principal (61 pipes)
4' Rohr Flöte (wood, 61 pipes)
2 2/3' Nazard (61 pipes)
2' Gemshorn (61 pipes)
1 3/5' Tierce**
1 1/3' Larigot (12 pipes, ext 2 2/3' Nazard)
8' Trompette (61 pipes)
4' Clarion (12 pipes, ext. 8' Trompette)
8' Krummhorn (61 pipes)
8' Hooded Trumpet (GT)
Tremelo
Zimbelstern (On unmarked reversible toe stud)
COUPLERs (In rail above Swell manual)
8' Great to Pedal
8' Swell to Pedal
4' Swell to Pedal
16' Swell to Swell
Swell Unison Off
4' Swell to Swell
16' Great to Great
4' Great to Great
16' Swell to Great
8' Swell to Great
4' Swell to Great
CONSOLE CONTROLS
Crescendo Pedal
Sforzando on reversible thumb piston, duplicated on toe stud
8 General Pistons (Duplicated on toe studs)
6 Great Divisional Pistons
6 Swell Divisional Pistons
6 Pedal Divisional Pistons (Duplicated on toe studs)
Electropneumatic chests
Swell Mutations on direct electric chest
NOTES
* Hooded Trumpet is available on Great and Swell. Unaffected
by couplers and tremolos.
** Swell Tierce is installed, but unavailable at the console.
Stoplist compiled from console and interview with organ builder Mac Range.
Compiled by David M. Boothe, January 2008.
