Trinity Episcopal Church: Nave
501 S. Cincinnati Ave
Tulsa, OK
Images
Unknown - Church exterior (Photograph by tulsapeople.com, submitted by Jeff Scofield/Jeff Scofield)
2023-06-26 - Toe stud terrace and swell shoes (Photograph by Jeff Scofield/Jeff Scofield)
2023-06-26 - Coupler rail (Photograph by Jeff Scofield/Jeff Scofield)
2023-06-26 - Console center (Photograph by Jeff Scofield/Jeff Scofield)

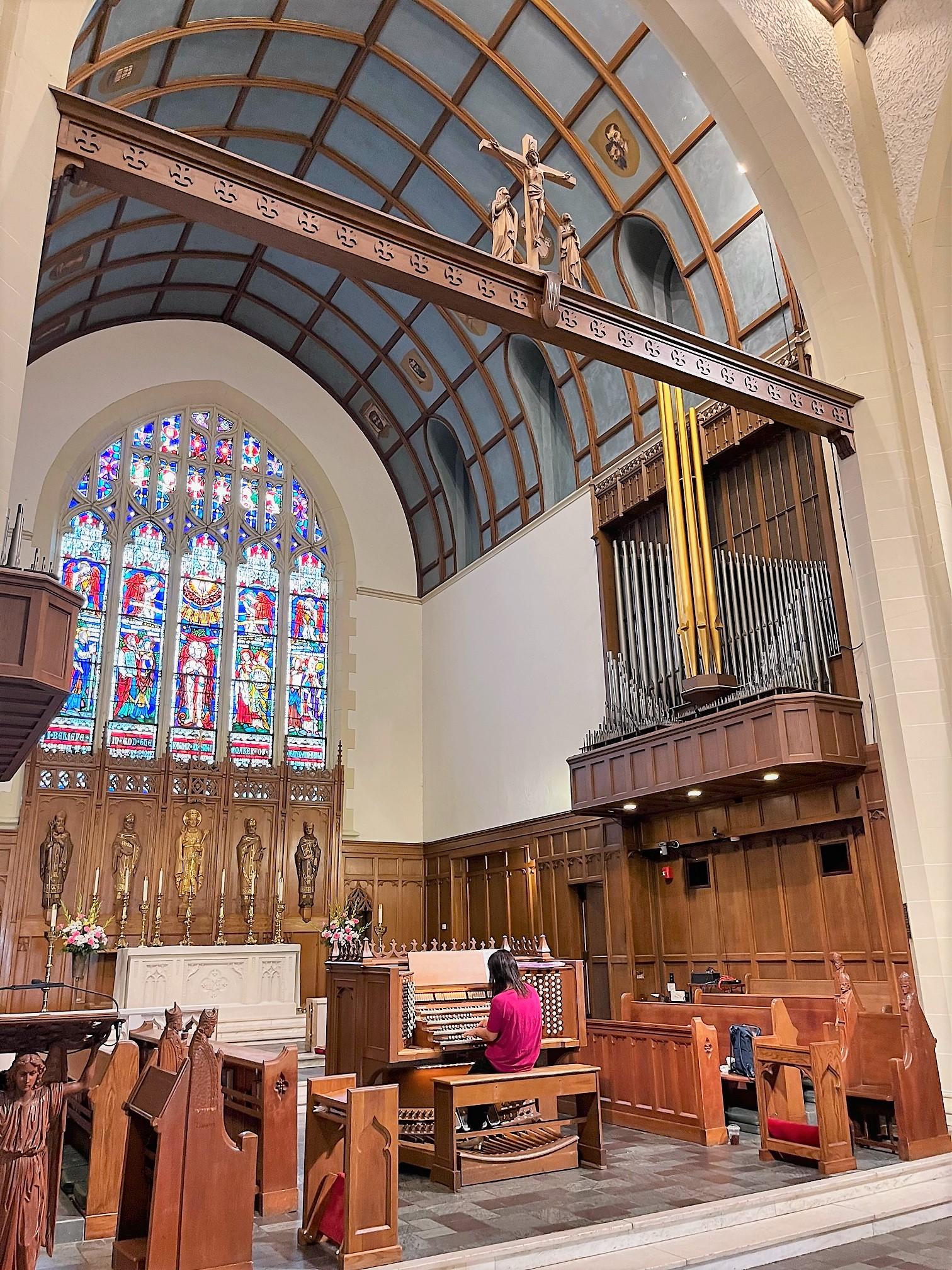

2023-06-26 - Chancel, console and organ chamber (Photograph by Jeff Scofield/Jeff Scofield)
2023-06-26 - Trompette Fanfare and Antiphonal (Photograph by Jeff Scofield/Jeff Scofield)
2023-06-26 - Church interior (Photograph by Jeff Scofield, submitted by Jeff Scofield/Jeff Scofield)
2022-01-07 - Builder nameplate (Photograph by Joshua P. Miller, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2022-01-07 - Chancel (Photograph by Joshua P. Miller, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2022-01-07 - Trompette Fanfare (Photograph by Joshua P. Miller, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2023-06-26 - Right stopjamb (Photograph by Joshua P. Miller, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2022-01-07 - Left stopjamb (Photograph by Joshua P. Miller, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2022-01-07 - Console (Photograph by Joshua P. Miller, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
Unknown - Altar and Pipe Displays (Möller Promotional Photograph; image from collection of Jeff Scofield (1961)/Database Manager)
Unknown - Trompette Fanfare (Möller Promotional Photograph; image from collection of Jeff Scofield (1961)/Database Manager)
2023-06-26 - Console (Photograph by Jeff Scofield/Database Manager)
1989-11-23 - Console (Photograph by Jeff Scofield/Database Manager)
2023-06-26 - Nave, Gallery, and Antiphonal Pipe Display (Photograph by Jeff Scofield/Database Manager)
2023-06-26 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)
1989-11-23 - Grillework and Pipe Display (Photo by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 75 stops
- 60 registers
- 8 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2008-01-23 - Identified through on-line information from Philippe Beaudette. -- The organ was designed by Dr. Thomas Matthews (formerly of the Cathedral Church of St. John the Divine and St. Luke's, Evanston and long time organist at Trinity). Combination action replaced 2007 by Roger Banks Pipe Organ Company with a Matters system. Organ console made moveable in 2007. -Database Manager
2008-08-13 - Updated through on-line information from Jeff Scofield. -- Console converted to SSL by Möller 1989, with new knobs. II Flute Celeste added to Antiphonal upon the death of longtime Organist/Choirmaster Thomas Matthews in 1999. One of the finest Möllers built, two of the organ's more noteworthy stops are the full-length 32' Bombarde and the very powerful Trompette Fanfare, mounted horizontally below the gallery window. -Database Manager
2009-05-11 - Updated through on-line information from Jeff Scofield. -Database Manager
2012-08-29 - Updated through online information from Harry Spring. -- The 2 rank Flute Celeste in the Antiphonal Division was installed in 1995 as a surprise birthday gift from Mrs. Matthews to Dr. Matthews. It was installed in 1995 with physical work on chests, winding, etc. by Mr. Philip Judkins, and pipe supply, voicing by Mr. Tom Farrell of San Antonio, TX. This work was done just prior to the regional AGO convention held in Tulsa in 1995. The stop was originally on a "Blank" drawknob on the Choir division which was not connected until just prior to the birthday celebration for Dr. Matthews. -Database Manager
2016-08-28 - Updated through online information from G. Mark Caldwell. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Tulsa, Oklahoma
Trinity Episcopal Church
Möller Op. 9606 1961 4/81
GREAT POSITIV
16' Spitzflöte 61 8' Nasonflöte 61
8' Principal 61 4' Spitzoctav 61
8' Rohrflöte 61 4' Spillpfeife 61
8' Gemshorn 61 2' Prinzipal 61
4' Octave 61 II Sesquialter 122
4' Koppelflöte 61 III Zimbel 183
2 2/3' Quinte 61 4' Schalmey 61
2' Super Octave 61 Tremulant
IV Fourniture 244 Zimbelstern
III Scharf 183
Sub BOMBARDE
Unison Off 8' Doppelflöte 61
Super III Harmonics 183
Chimes 8' Trompette Harmonique 61
Carillon 8' Bombarde Harmonique 61
8' English Horn 61
SWELL 4' Clairon Harmonique 61
16' Gedacktpommer 61 Tremulant
8' Viola Pomposa 61 8' Trompette Fanfare FA
8' Viola Celeste 61 8' Trumpet PED
8' Gedackt 61 Chimes 25 (Deagan D)
8' Flauto Dolce 61
8' Flute Celeste 49 FANFARE
4' Principal 61 8' Trompette Fanfare 61
4' Flute Harmonique 61
2' Doublette 61 PEDAL
IV Plein Jeu 244 32' Sub Bourdon 32
16' Fagotto 61 16' Contrebass 32
8' Trompette 61 16' Bourdon 12
8' Fagotto 12 16' Violone 32
8' Vox Humana 61 16' Spitzflöte GT
4' Clarion 61 16' Gedacktpommer SW
Tremulant 16' Erzähler CH
Sub 8' Oktavbass 32
Unison Off 8' Rohrbordun 32
Super 8' Gedackt SW
Blank 8' Erzähler CH
4' Montre 32
CHOIR 4' Rohrbordun 12
16' Erzähler 61 2' Waldflöte 32
8' Geigenprincipal 61 III Harmonics 96
8' Gedacktflöte 61 III Mixture 96
8' Erzähler 12 32' Contre Bombarde 32 (F/L)
8' Erzähler Celeste 49 16' Trombone 12
4' Praestant 61 16' Fagotto SW
4' Lochgedackt 61 8' Trumpet 12
2' Nachthorn 61 4' Clarion 12
1 1/3' Larigot 61 4' Schalmey PO
8' Cromorne 61 Chimes BO
Tremulant Blank
Sub Blank
Unison Off Blank
Super
8' Flute Celeste II 122 *
(* installed with ANT)
8' Trompette Fanfare FA
[Received on line from Jeff Scofield May 11, 2009.]
