Better Pipe Organ Database

Pipe Organ Sales & Service, Inc. (1987)

First Presbyterian Church
114 West Main Street
Lincolnton, NC

Images

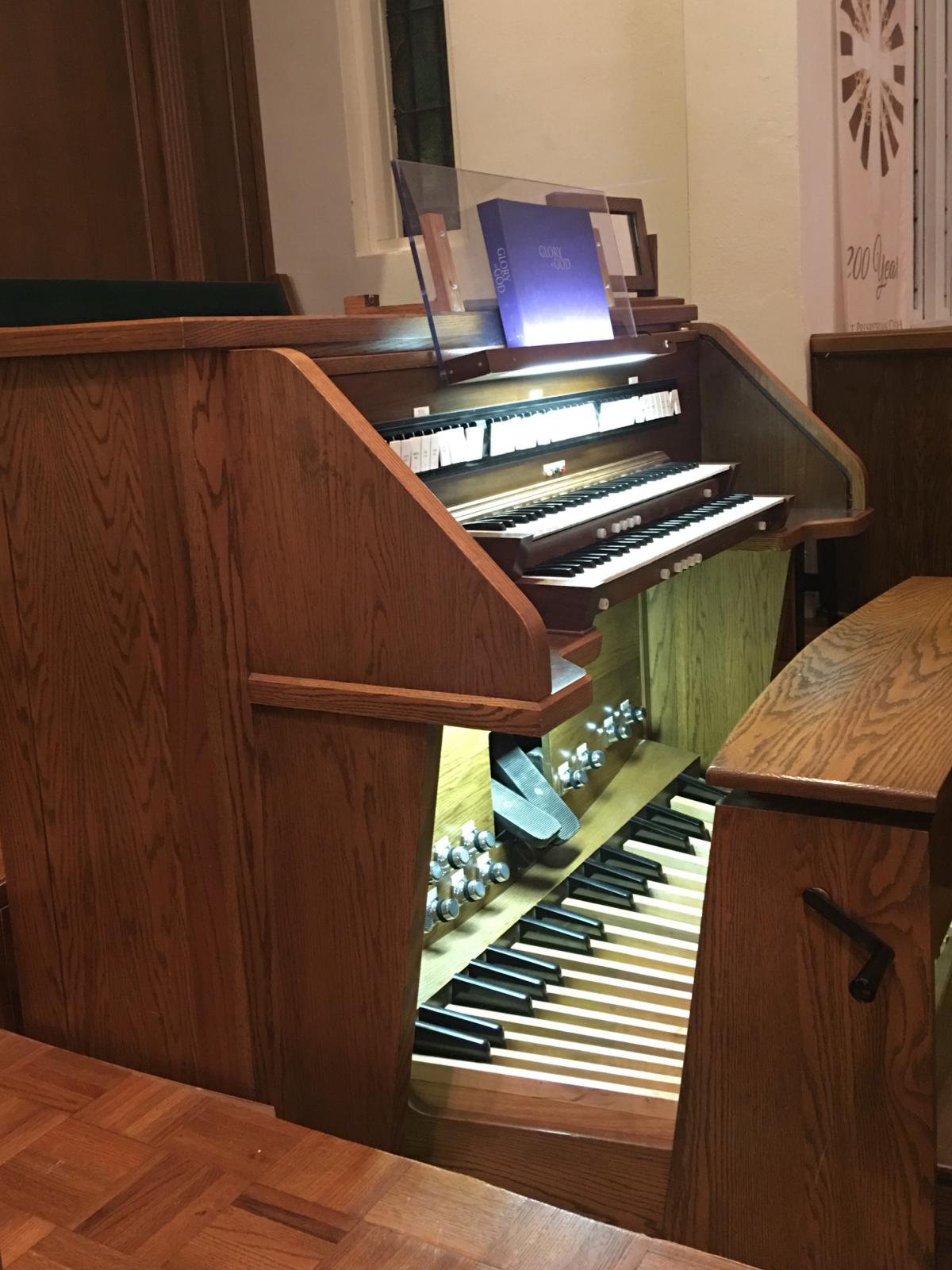

2016-05-21 - Console (Photograph by John M. Lineberger/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
24 registers
3 divisions
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Has combination thumb pistons
Has combination toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-02-19 - The Pilcher Organ was rebuilt by Greenwood Organ Service of Charlotte, North Carolina in the early 1960s. At that time the orginal facade pipes were removed and placed behind a modern facade on a new wind chest. The orignal Pilcher Console was replaced with a Reisner Console. In 1987 the organ was again failing, and the organ was rebuilt and enlarged by Pipe Organ Sales and Service of Lithonia, Georgia. The organ is now 13 ranks. -Database Manager

2017-01-04 - Updated by John M. Lineberger, who has heard or played the organ. <br> <br> -Database Manager

Stoplist

Typed stoplist from Phillip Warren Source: Source not recorded Date not recorded

Unsupported filetype 19txt, view here.

Second typed stoplist Source: Source not recorded Date not recorded

Lincolnton, North Carolina
Presbyterian Church

1987 Pipe Organ Sales and Service Instrument -
     (now A. E. Schleuter Pipe Organs) of Lithonia Georgia

Great
8' Principal (new)
8' Bourdon (new)
8' Salicional (swell)
4' Flute (ext of 8' Bourdon)
2' Super Octave (new)
II Sesquialtera (new)
III Mixture (New)
8' Trumpet (Swell)

Swell
8' Geigen Principal (Pilcher)
8' Gedeckt (Pilcher)
8' Salicional (Estey)
8' Vox Celeste (Esty)
4' Kopple Flute
2 2/3 Nazard (from 8' Gedeckt)
2' Piccolo (new from Kopple Flute)
1 1/3 Larigot (new ext of 8' Gedeckt)
16' Contra Trumpet (new)
8' Trumpet (new)
4' Clarion (new)

Pedal
32' Resultant
16' Bourdon (Pilcher)
16' Lieblich Gedeckt (Pilcher)
8' Octave (Great)
8' Gedeckt (swell)
8' Salicional (swell)
4' Choral Bass (Great)
16' Contra Trumpet (12 note extension 8' Trumpet (Swell))
8' Trumpet (Swell)
4' Clarion (Swell)

Manuals are 61 notes, Pedal is 32
Six General Pistons - 2 level Peterson Memory System Duplicated toe studs
Digitial Chimes
Zimberstern operated by Toe Stud
Swell shoe and Cresendo Shoe
SFZ piston
Couplers:
   Swell to Swell 16, and 4 with Swell Unison Off,
   Swell to Great 16, 8 and 4,
   Swell to Pedal and Great to Pedal

Related Pipe Organ Database Entries

#17290 - Henry Pilcher's Sons Opus 1062 (1920)
