Better Pipe Organ Database

M. P. Möller Opus 6566 (1937)

Annunciation Roman Catholic Church
New Orleans, LA

Note: Not extant. Not playable. (in this location)

Images

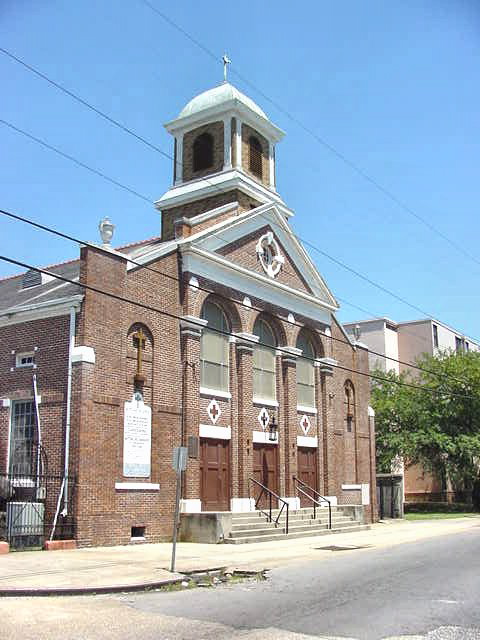

2005-08-11 - Church Exterior (Photograph by John G. DeMajo/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
11 stops
20 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2008-02-26 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2013-12-08 - Removed before 1968 and replaced by Conn electronic; parish closed in 2001. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    New Orleans, Louisiana
    Annunciation R. C. Church

    Möller   Op. 6566   1937   2/11
    ___________________________________________________

    Entire organ under single expression

    GREAT                         SWELL
 8' Open Diapason    73       16' Bourdon            61
 8' Melodia          73        8' Violine Diapason   73
 8' Dulciana         73        8' Gedeckt            12
 4' Octave           73        8' Violin d'Orchestre 73
 4' Flute d'Amour    SW        8' Vox Celeste        61
    Tremolo                    4' Flute Dolce        12
    Sub                    2 2/3' Nazard              7
    Super                      2' Piccolo             5
                               8' Oboe               73
    PEDAL                      8' Vox Humana         61
16' Bourdon          32           Tremolo
16' Lieblich Gedeckt SW           Sub
 8' Flute            12           Super
 8' Flute Dolce      SW

   [Received online from Jeff Scofield December 9, 2013]

Documents

(1937-05-14) Factory Documentation Factory Documentation courtesy of the OHS Archives -Roman Lizak
