Better Pipe Organ Database

M. P. Möller Opus 10738 (1972)

Trinity Episcopal Church, Long Green: Church
12400 Manor Road
Glen Arm, MD

Images

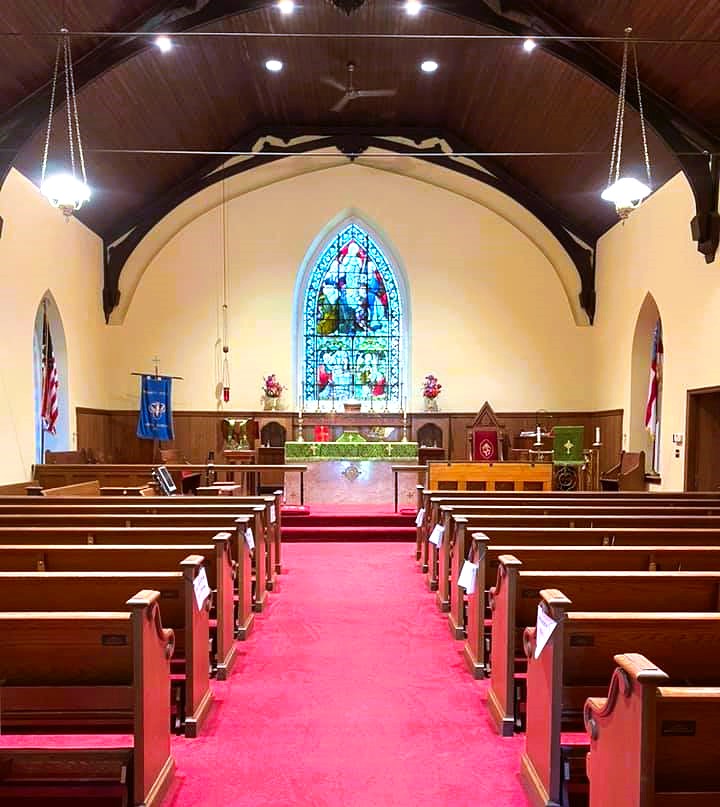

2021-08-08 - Church interior (Church Facebook via Jeff Scofield/Jeff Scofield)

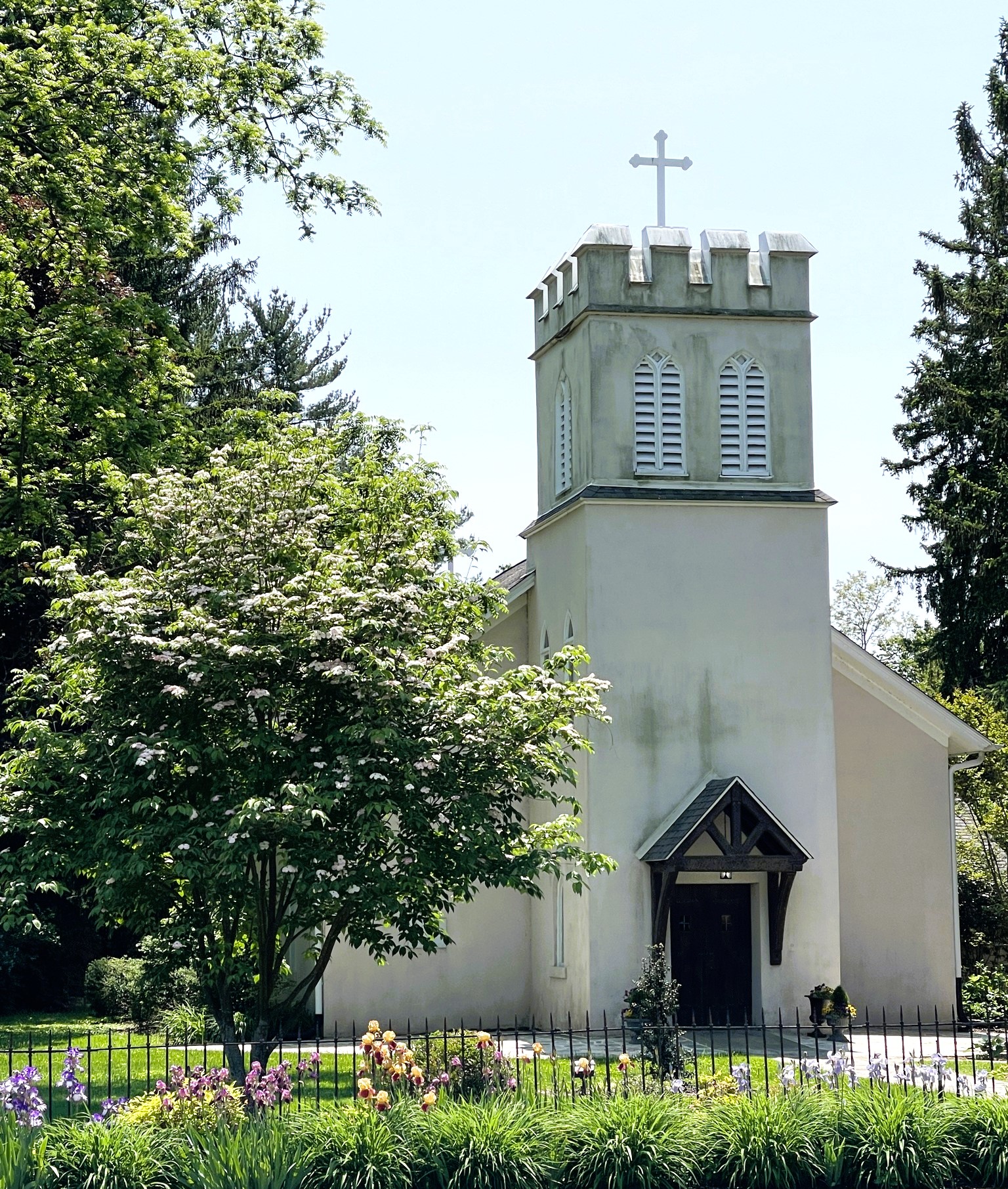

2023-06-27 - Church exterior (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

2 manuals
12 stops
2 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2009-02-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-09-29 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

           Long Green, Maryland
           Trinity Episcopal Church

           Möller  Op. 10738   1972   2/2

           Entire organ on 2½" wind

           MANUAL I
1.      8' Rohrflöte   80 pipes
2.      4' Principal   73 pipes
3.      2' Rohflöte    from #1, repeat 5 top notes
4.     II  Mixture     from #2 and #8

           MANUAL II
5.      8' Rohrflöte   from #1
6.      4' Rohrflöte   from #1
7.      2' Principal   from #2
8.  1 1/3' Larigot     30 pipes, 20-61 incl, repeat top octave

           PEDAL
9.     16' Gedeckt     12 pipes, 20 from #1
10.     8' Rohrflöte   from #1
11.     4' Principal   from #2
12.    II  Mixture     from #2 and #8

[Received on line from Jeff Scofield September 29, 2009.]

Documents

(1970-07-24) Factory specifications via Jeff Scofield -Jeff Scofield
