Better Pipe Organ Database

M. P. Möller Opus 10739 (1972)

Eastminster Presbyterian Church: Sanctuary
1700 Woodward Ave. SE
Grand Rapids, MI

Images

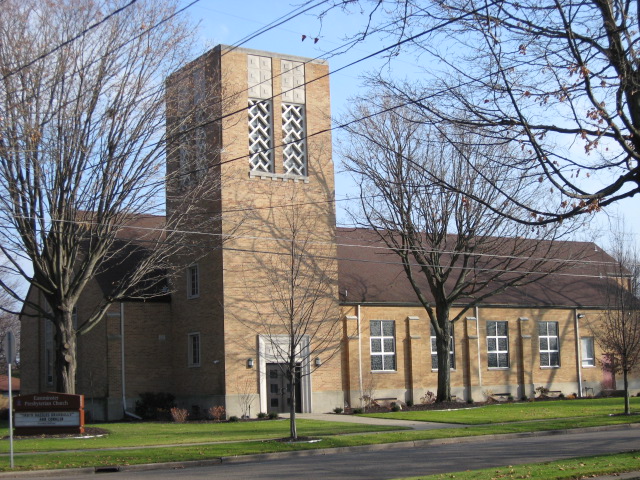

2009-11-24 - Church Exterior (Photograph by Chad Boormsa/Database Manager)

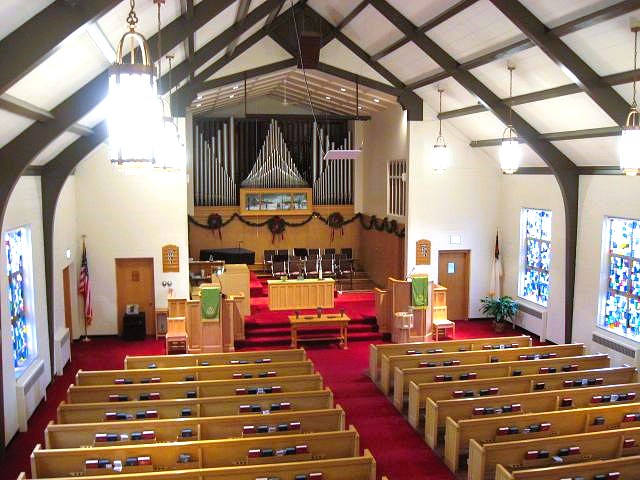

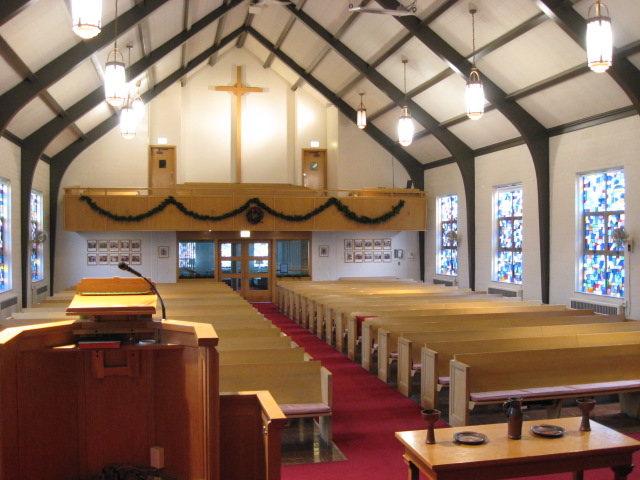

2009-11-24 - Nave and Balcony (Photograph by Chad Boormsa/Database Manager)

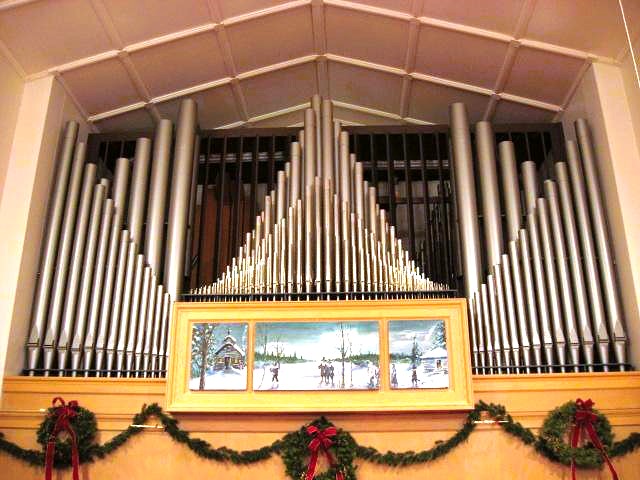

2009-11-24 - Pipe Display (Photograph by Chad Boormsa/Database Manager)

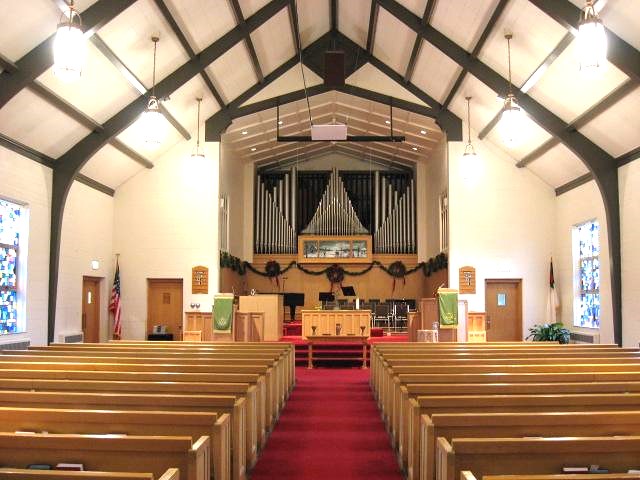

2009-11-24 - Sanctuary Interior, Chancel, & Pipe Display (Photograph by Chad Boormsa/Database Manager)

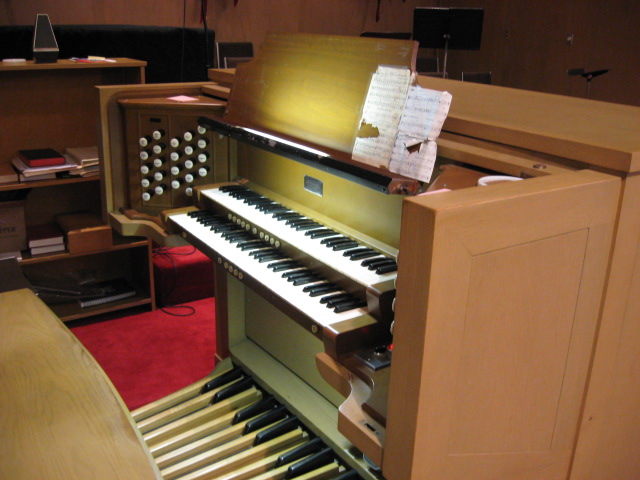

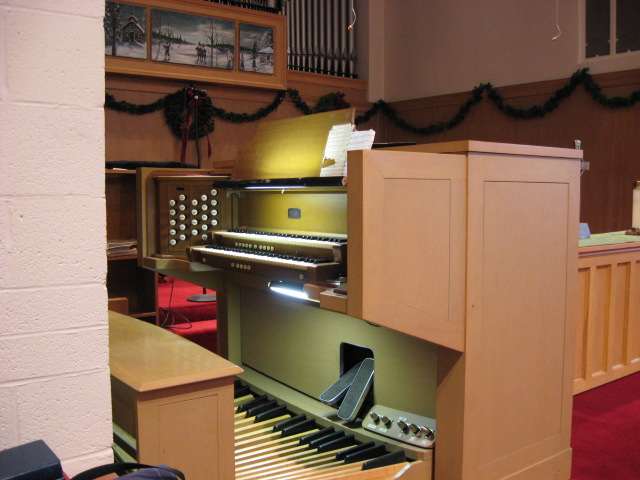

2009-11-24 - Console (Photograph by Chad Boormsa/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
14 stops
24 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons

Notes

2009-02-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-09-29 - Updated through online information from Jeff Scofield. -Database Manager

2009-11-26 - Updated through online information from Chad Boorsma. -- The Great and Pedal divisions are exposed with the Swell box located behind these two divisions. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

 Grand Rapids, Michigan
 Eastminster Presbyterian Church

 Möller   Op. 10739   1972   2/19

 Unenclosed pipework of the Great and pedal divisions shall be
 displayed in functional design in upper rear level of the chancel.

     GREAT (3 1/2" wind)    SWELL (4")             PEDAL (3 1/2")
     8' Principal 61      8' Bordun 68           16' Contra Bass 32
     8' Rohrflšte 61      8' Spitzgambe 68       16' Bourdon 12 SW
     8' Spitzgambe SW     8' Spitzgambe Cel. 61   8' Principal 12
     4' Octave 61         4' Gemshorn 68          8' Gedeckt SW
     2' Doublette 61      2' Blockflšte 61        4' Octave 12
III-IV  Fourniture 220  III  Scharf 183           4' Gedeckt SW
     8' Trompette SW     16' Double Trumpet 68*  16'Double Trumpet SW
        Tremolo           8' Trompette 12         4' Clarion SW
        Super             4' Trichter Regal 68
        Chimes 21            Tremolo                 *  half-length
                             Sub
                             Unison Off
                             Super

[Received on line from Jeff Scofield September 30, 2009.]

Documents

(1972-03-15) Factory specifications via Jeff Scofield -Jeff Scofield
