M. P. Möller Opus 10902 (1973)

Trinity Episcopal Church: Church
300 South 5th Street
Atchison, KS

Images

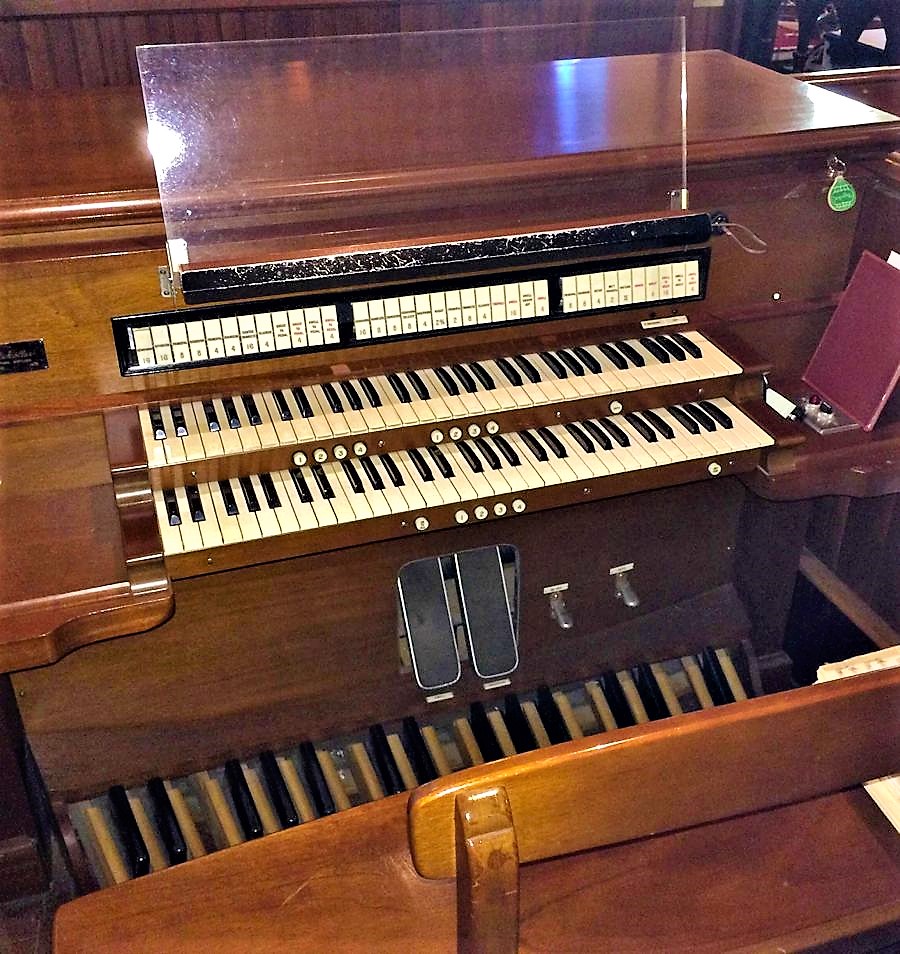

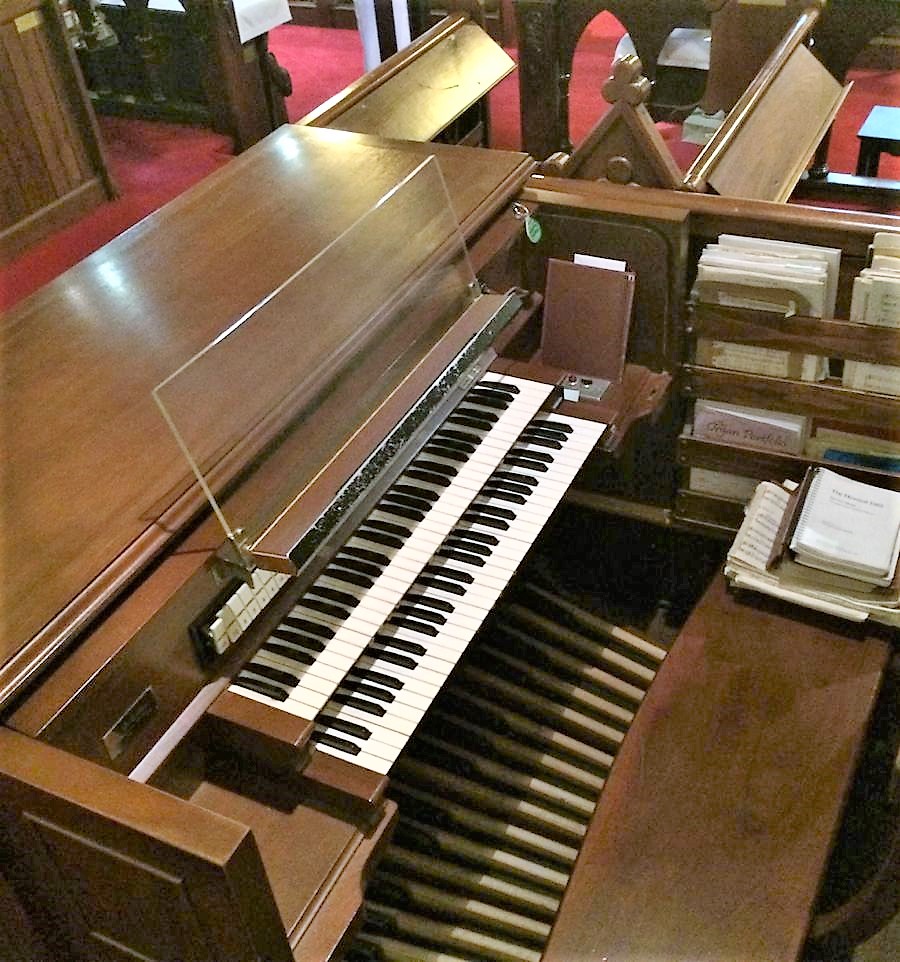

2016-06-15 - Console (Photograph by Jennifer Stammers/Database Manager)

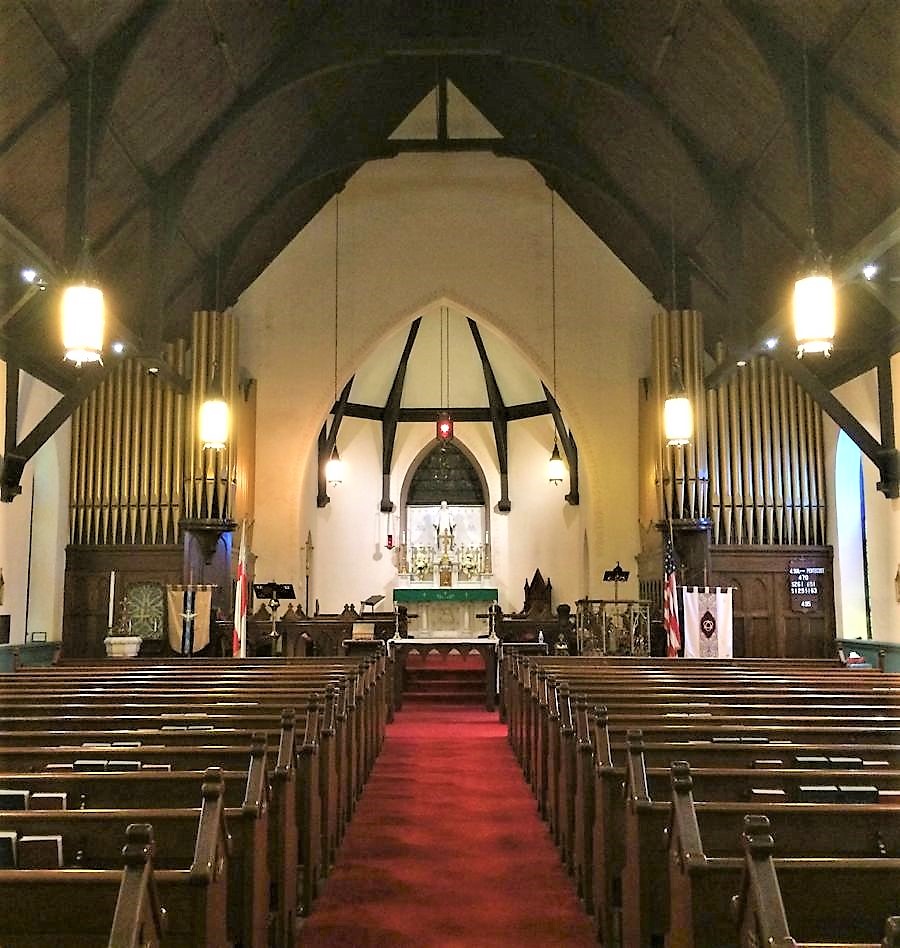

2016-06-15 - Sanctuary Interior, Altar, and Pipe Facades (Photograph by Jennifer Stammers/Database Manager)

2016-06-15 - Nave (Photograph by Jennifer Stammers/Database Manager)

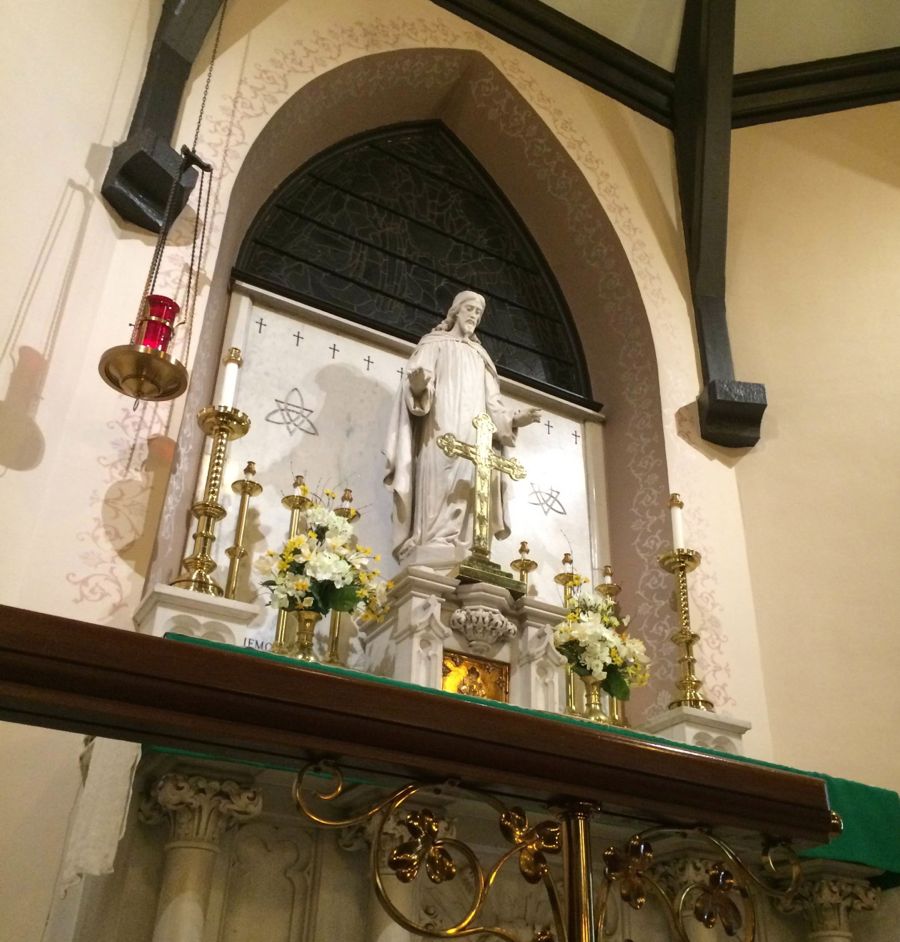

2016-06-15 - Altar (Photograph by Jennifer Stammers/Database Manager)

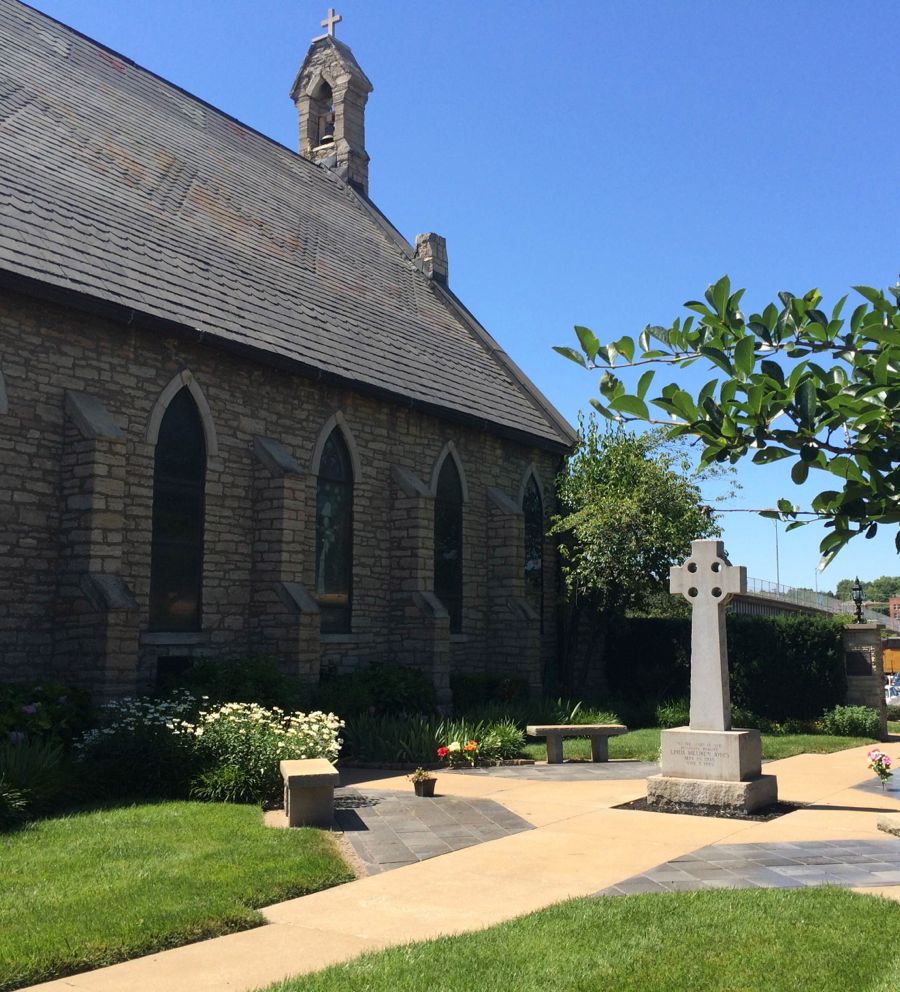

2016-06-15 - Church Exterior (Photograph by Jennifer Stammers/Database Manager)

2016-06-15 - Stained Glass Window (Photograph by Jennifer Stammers/Database Manager)

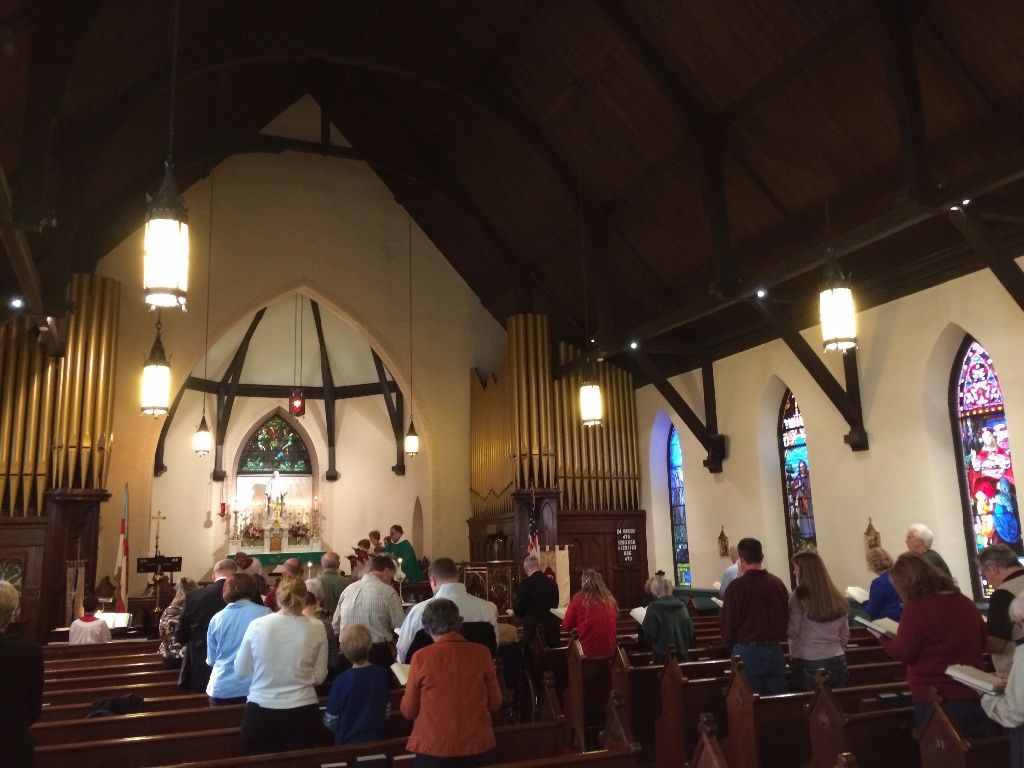

Unknown - Sanctuary Interior and Organ Cases (Photograph courtesy of Jennifer Stammers/Database Manager)

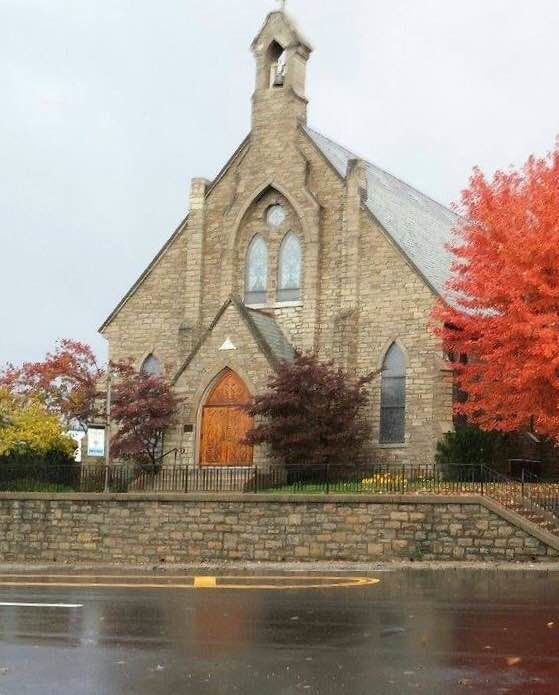

Unknown - Church Exterior (Photograph courtesy of Jennifer Stammers/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
22 stops
14 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler thumb pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-10-28 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

     Atchison, Kansas
     Trinity Episcopal Church

     Möller   Op. 10902   1973   2/16

     GREAT                        SWELL
  8' Principal 61             16' Gemshorn 61
  8' Bourdon 61                8' Rohrflöte 61
  4' Octav 61                  8' Gemshorn 12
  2' Weitprincipal 61          8' Gemshorn Celeste 49 tc
III  Mixture 183               4' Nachthorn 61
     Super                 2 2/3' Nasat 61
     Chimes                    2' Principal 61
                               8' Trompette 61
     PEDAL                     4' Clairon 12
 16' Bourdon 32                   Tremulant
 16' Gemshorn SW                  Sub
  8' Principal 32                 Unison Off
  8' Bourdon 12                   Super
  4' Principal 12
  4' Bourdon 12
 16' Contre Trompette 12 SW
    (half-length)
  4' Clairon SW

[Received on line from Jeff Scofield October 28, 2009.]

Documents

(1973-05-23) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
