M. P. Möller Opus 10903 (1973)

Redeemer Episcopal Church
213 N. Seminole Ave.
Okmulgee, OK

Images

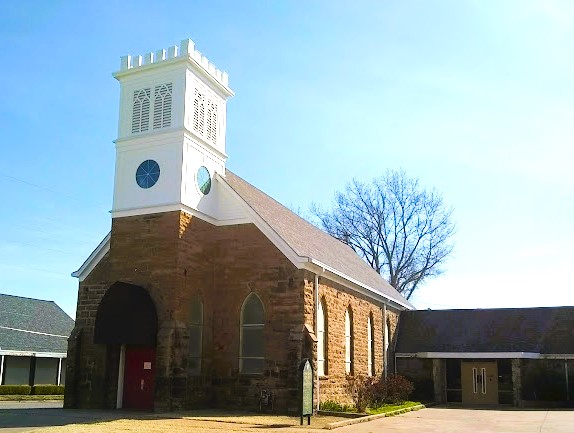

2019 - Church exterior (Rose Lynch/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
2 manuals
8 stops
28 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2009-03-01 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-10-28 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

            Okmulgee, Oklahoma
            Church of the Redeemer, Episcopal

            Möller   Op. 10903   1973   2/10

            GREAT
 1.     16' Bourdon            97 pipes
 2.      8' Principal          73 pipes
 3.      8' Gedeckt            from #1
 4.      4' Octave             from #2
 5.      4' Gedeckt            from #1
 6.      2' Flute              from #1
 7.    III  Mixture            183 pipes
 8.      4' Trichter Regal     61 pipes
 9.         Tremolo
10.         Chimes

            SWELL
12.      8' Spitzflöte         73 pipes   low octave from #13
13.      8' Gemshorn           85 pipes
14.      8' Gemshorn Celeste   49 pipes   tc
15.      4' Spitzflöte         from #12
16.      2' Spitzflöte         from #12
17.  1 1/3' Larigot            from #13   repeat 7 top notes
18.     16' Contre Trompette   85 pipes   1-6 half-length
19.      8' Trompette          from #18
20.      4' Clarion            from #18
21.         Tremolo

            PEDAL
22.     16' Bourdon            from #1
23.      8' Principal          from #2
24.      8' Gedeckt            from #1
25.      8' Gemshorn           from #13
26.      4' Octave             from #2
27.    III  Mixture            from #7
28.     16' Contre Trompette   from #18
29.      8' Trompette          from #18
30.      4' Clarion            from #18
31.      4' Trichter Regal     from #8

The is no stop #11 in the specifications - clerical oversight, perhaps

[Received on line from Jeff Scofield October 28, 2009.]

Documents

(1972-12-01) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
