Noack Opus 151 (2008)
Church of the Good Shepherd: Sanctuary; rear gallery
504 N Roxbury Drive
Beverly Hills, CA
Images
2023-06-04 - Great Division pipework (Photograph by Terry Hicks/Terry Hicks)
2023-06-04 - Great action (Photograph by Terry Hicks/Terry Hicks)
2023-06-04 - Facade carving detail (Photograph by Terry Hicks/Terry Hicks)

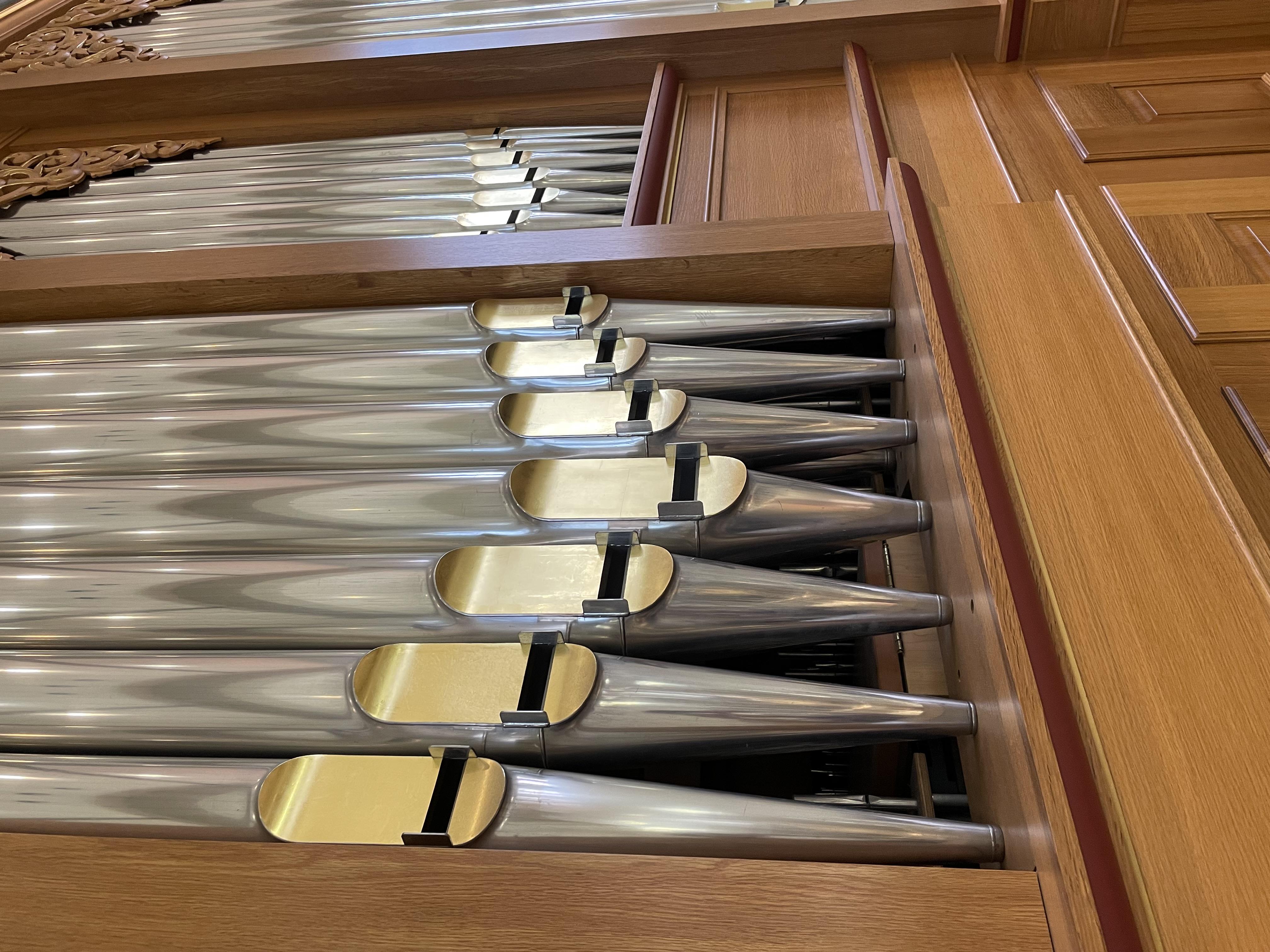

2023-06-04 - Facade pipes (Photograph by Terry Hicks/Terry Hicks)

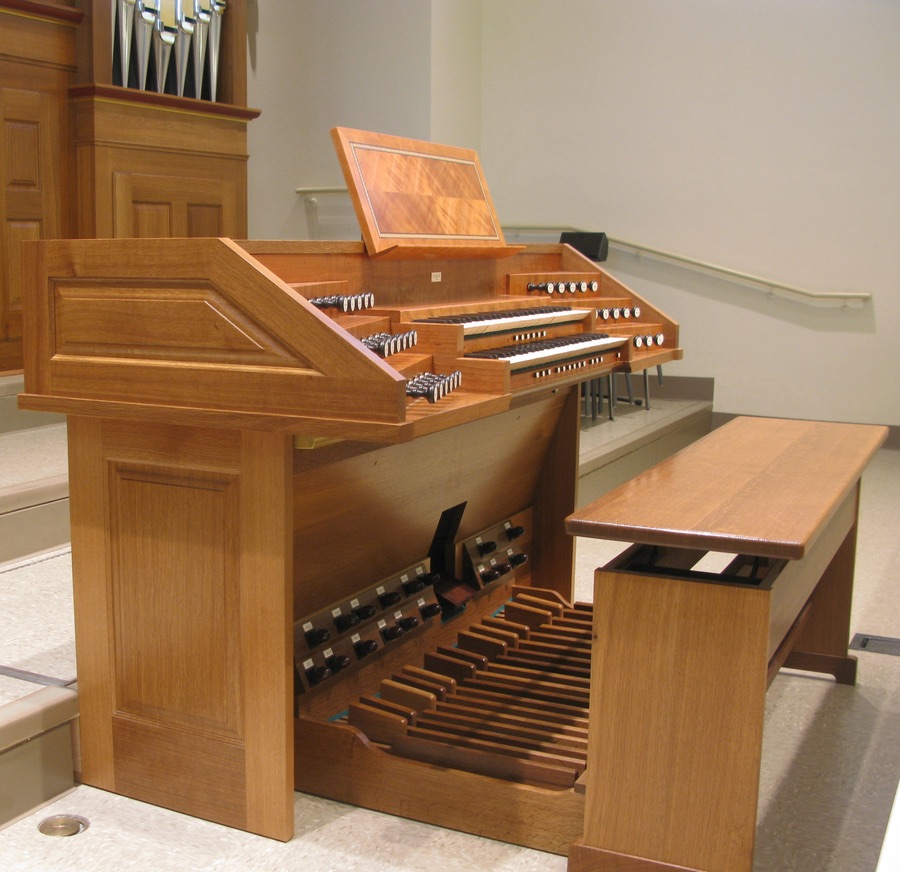

2009-06-30 - Console; left profile (Photograph by Photograph by Terry Hicks, submitted by Jim Stettner/Jim Stettner)
2012-08-08 - Nave interior (Photograph by Stephen Schnurr/Database Manager)
2012-08-08 - Sanctuary interior to rear (Photograph by Stephen Schnurr/Database Manager)

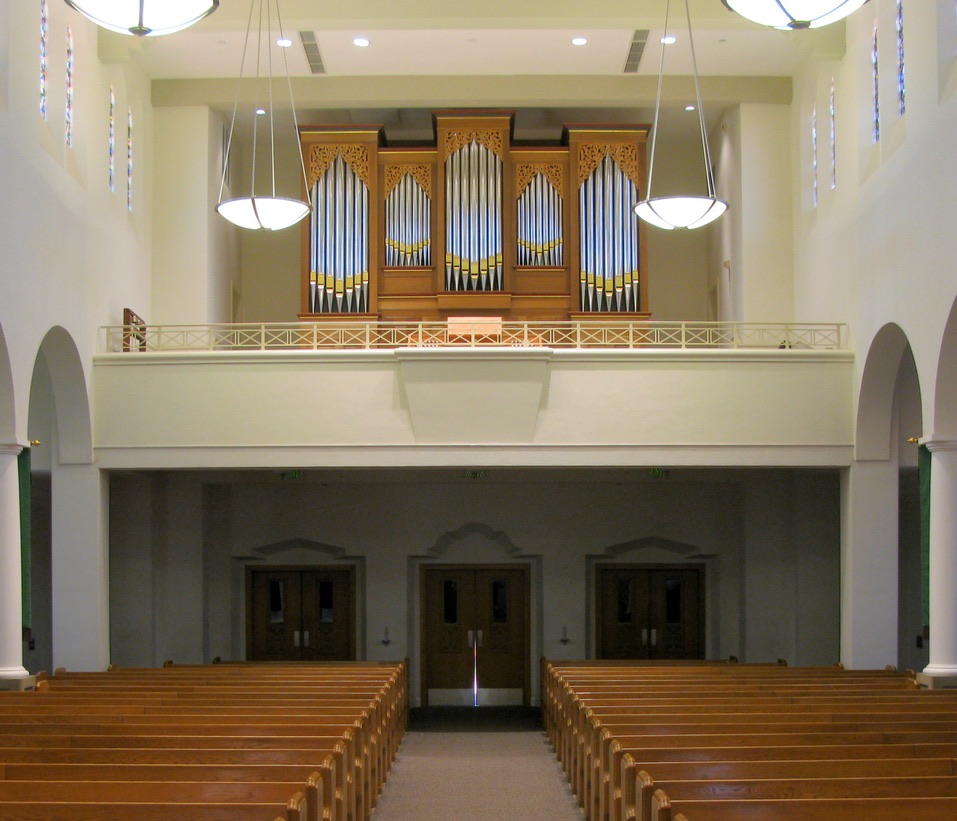

2009-06-30 - Gallery and organ case (Photograph by Terry Hicks/Database Manager)
2012-08-08 - Builder name plate (Photograph by Stephen Schnurr/Database Manager)

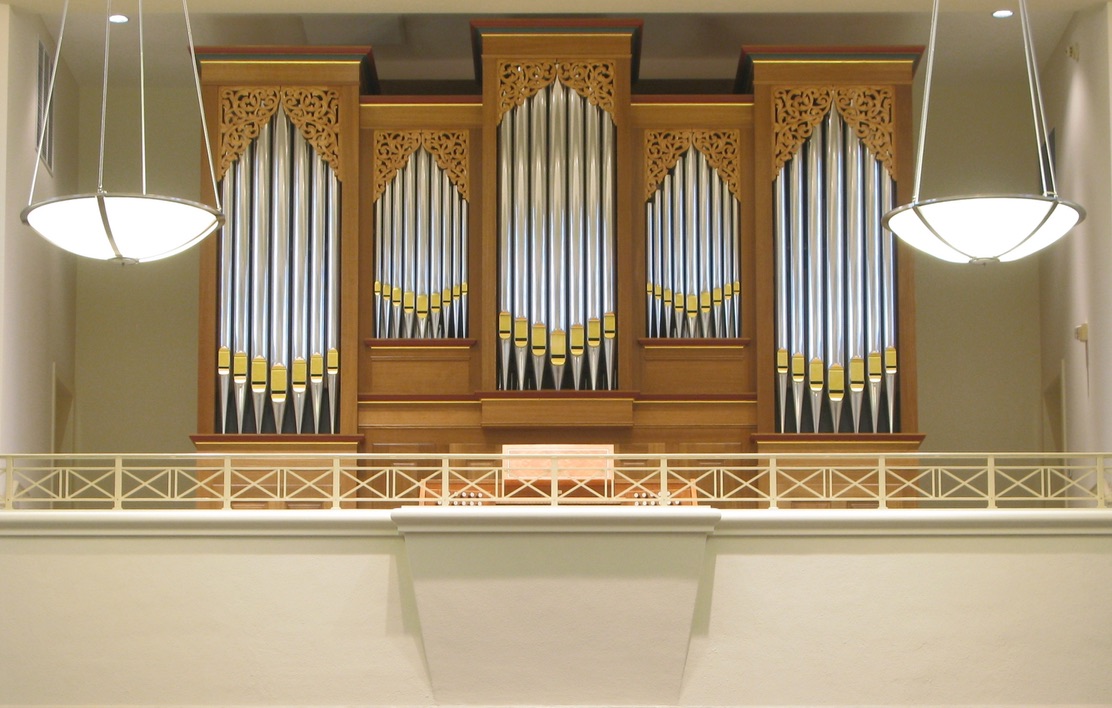

2009-06-30 - Organ case (Photograph by Terry Hicks/Database Manager)
2012-08-08 - Console (Photograph by Stephen Schnurr/Database Manager)
2012-08-08 - Left Stopjamb (Photograph by Stephen Schnurr/Database Manager)
2012-08-08 - Right Stopjamb (Photograph by Stephen Schnurr/Database Manager)
2012-08-08 - Church exterior (Photograph by Stephen Schnurr/Database Manager)
Consoles
Gallery
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Center
- 2 manuals
- 27 stops
- 29 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 58 notes
- Pedal compass: 30 notes
- Pedal Type: Concave Straight
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- SSOS
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler toe pistons
- Has tutti toe pistons
Notes
2009-06-02 - Listed in "New Organs," *The American Organist*, April 2009. -Database Manager
2021-09-09 - Updated through online information from church Music Director, Terry Hicks. -Jim Stettner
2023-06-22 - CHANGES TO NOTES
**No thumb piston coupler reversibles**
- Electric Swell Shoe
- Pedalboard is straight and **concave**
- 256 levels of combination memory plus sequencer
- Thumb & toe pistons for sequencer
- Bluetooth toe and thumb pistons for iPad
- Reversible toe pistons for Tremulant & Cymbal Bells
-All pistons now generals: 1-12 thumb, 13-22 toe
Valloti Temperament, Flexible Winding,
Technical/tonal enhancements provided by Rosales Organ Builders
Changes to Swell Reeds & 16’ Trombone provided by Gober Organs
Further upgrades/enhancements by the current Noack Organ Company -Terry Hicks
2023-06-24 - - Original mechanical Swell shoe linkage changed to electric action.
- Pedalboard is straight/concave with radiating sharps
- 256 levels of combination memory
- Toe and thumb pistons for sequencer
- Bluetooth toe and thumb pistons for iPad
- Reversible toe pistons for Tremulant & Cymbal Bells
- All pistons are generals: 1-12 thumb, 13-22 toe -Terry Hicks
2024-08-06 - Swell to Great, Great to Pedal, Swell to Pedal, Cymbal Bells, Tremulant, Valotti Temperament, Flexible Winding, Straight/Concaved Pedalboard, Detached Console, Mechanical Key Action, Electric Stop Action with 256 Levels of Memory plus Sequencing, Bluetooth for iPad Page Turns Technical/tonal enhancements provided by Rosales Organ Builders, changes to Swell Reeds & 16’ Trombone provided by Gober Organs, further upgrades/enhancements by the current Noack Organ Company.
Information received online from Terry Hicks on 2024-07-27 -Paul R. Marchesano
Stoplist
Thumb pistons are Generals 1-12, Toe pistons are Generals 13-22 Source: From Noack website & console photos
Beverly Hills, California
Church of the Good Shepherd,
Noack Organ Company, Opus 151, 2008
GREAT COUPLERS (Drawknob)
Gr 16' Bourdon Swell to Pedal
Gr 8' Diapason Great to Pedal
Gr 8' Chimney Flute
Gr 8' Spire Flute (1-12 from #3) Swell to Great
Gr 4' Octave
Gr 4' Harmonic Flute
Gr 2 2/3' Twelfth FINGER PISTONS
Gr 2' Fifteenth Undocumented
Gr 1 3/5' Seventeenth
Gr IV Mixture [1-1/3']
Gr 8' Trumpet TOE STUDS
Undocumented
SWELL (Expressive)
Sw 8' Stopt Flute
Sw 8' Viola PEDAL MOVEMENTS
Sw 8' Celeste (from A) Swell Expression (bal.)
Sw 4' Principal
Sw 4' Recorder
Sw 2' Gemshorn
Sw 1 1/3' Larigot
Sw II Cornet (from f°)
Sw III Mixture [2']
Sw 8' Cremona
Sw 8' Oboe
Tremulant
PEDAL
Pd 16' Stopt Bass
Pd 16' Bourdon (Gr) --
Pd 8' Open Bass
Pd 8' Gedackt (1-18; #3) 12
Pd 4' Octave (1-12; #5) 18
Pd 16' Trombone
Pd 8' Trumpet (Gr) --
[Received from Connor Annable 2011-09-18.]
[Corrected/Update by James R. Stettner 2021-09-21.]
