Better Pipe Organ Database

Casavant Frères Opus 3799 (2001)

Piedmont College: Center for Worship and Music, Sanctuary
165 Central Ave.
Demorest, GA

Images

2002 - Trompette-en-Chamade (Organ dedication booklet/Jeff Scofield)

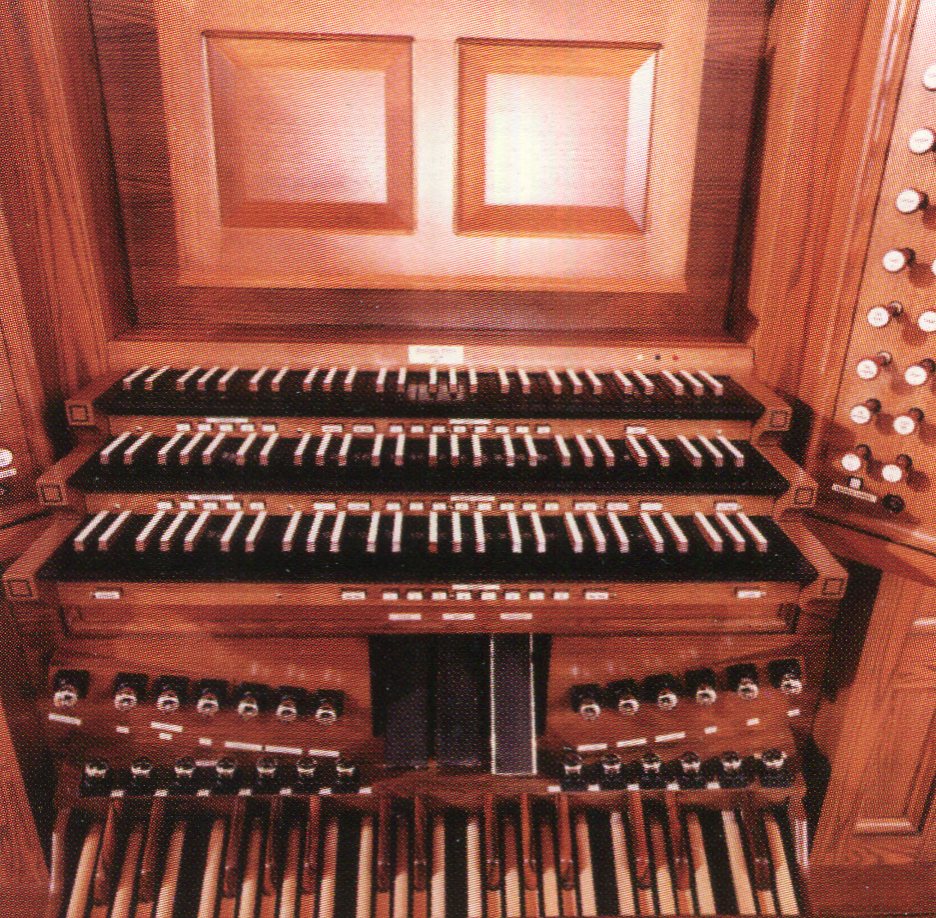

2002 - Console (Organ dedication booklet/Jeff Scofield)

2002 - Organ Case (Organ dedication booklet/Jeff Scofield)

2002 - Console (Organ dedication booklet/Jeff Scofield)

2002 - Organ and case (Organ dedication booklet/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
3 manuals
50 stops
63 registers
4 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-06-29 - Identified through online information from Jeff Scofield. -Database Manager

2011-05-02 - Updated through online information from Taylor Sexton. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Demorest, Georgia
       Piedmont College

       Casavant   Op. 3799   2001   3/67

       Stoplist courtesy of Casavant Frères

       GRAND ORGUE                        POSITIF EXPRESSIF
   16' Violonbasse 61                 16' Bourdon 61 (stopped wood)
    8' Montre 61                       8' Principal étroit 61
    8' Flûte à cheminée 61             8' Voce umana 49 tc
    8' Flûte harmonique 49 *           8' Cor de nuit 61
    4' Prestant 61                     4' Octave 61
    4' Flûte ouverte 61                4' Cor de nuit 61
2 2/3' Quinte majeure 61               2' Principal 61
    2' Doublette 61                1 1/3' Quinte 61
  III  Cornet 183                     II  Sesquialtera 122
 IV-V  Fourniture 293                 IV  Cymbale 244
   16' Douçaine 61                     8' Trompette 61
    8' Trompette 61                    8' Cromorne 61
       Tremblant                          Tremblant
   16' Bombarde-en-chamade PO         16' Bombarde-en-chamade *
    8' Trompette-en-chamade PO         8' Trompette-en-chamade 61
    4' Clairon-en-chamade PO           4' Clairon-en-chamade 12

    *  1-12 common with No. 3          *  1-12 from Pédale Bombarde

       RÉCIT                              PÉDALE
    8' Diapason 61                    32' Contrebasse dg
    8' Flûte majeure 61               32' Contra bourdon dg
    8' Viole de gambe 61              16' Contrebasse
    8' Voix céleste 54 GG             16' Soubasse 32
    4' Octave 61                      16' Violonbasse GO
    4' Flûte douce 61                  8' Octavebasse 32
2 2/3' Nazard 61                       8' Flûte bouchée 32
    2' Quarte de nazard 61             4' Octave 32
1 3/5' Tierce 61                       4' Flûte 32
    V  Plein jeu 305                  IV  Mixture 128
   16' Basson 61 (1-12 L/2)           32' Contre bombarde 12  L/2
    8' Trompette harmonique 61        16' Bombarde 32
    8' Hautbois 61                    16' Basson RE
    8' Voix humaine 61                 8' Trompette 32
    4' Clairon harmonique 61           4' Chalumeau 32
       Tremblant                       8' Trompette-en-chamade PO
                                       4' Clairon-en-chamade PO

[Received on line from Jeff Scofield June 30, 2009.]

Documents

(2003-02-01) Dedication booklet, pages 1-9, via Jeff Scofield -Jeff Scofield
(2003-02-07) Dedication concert, pages 10-13, via Jeff Scofield -Jeff Scofield
