Casavant Frères Ltée. Opus 2748 (1963)

Trinity Anglican Church
1230 Bank Street
Ottawa, ON, CA

Images

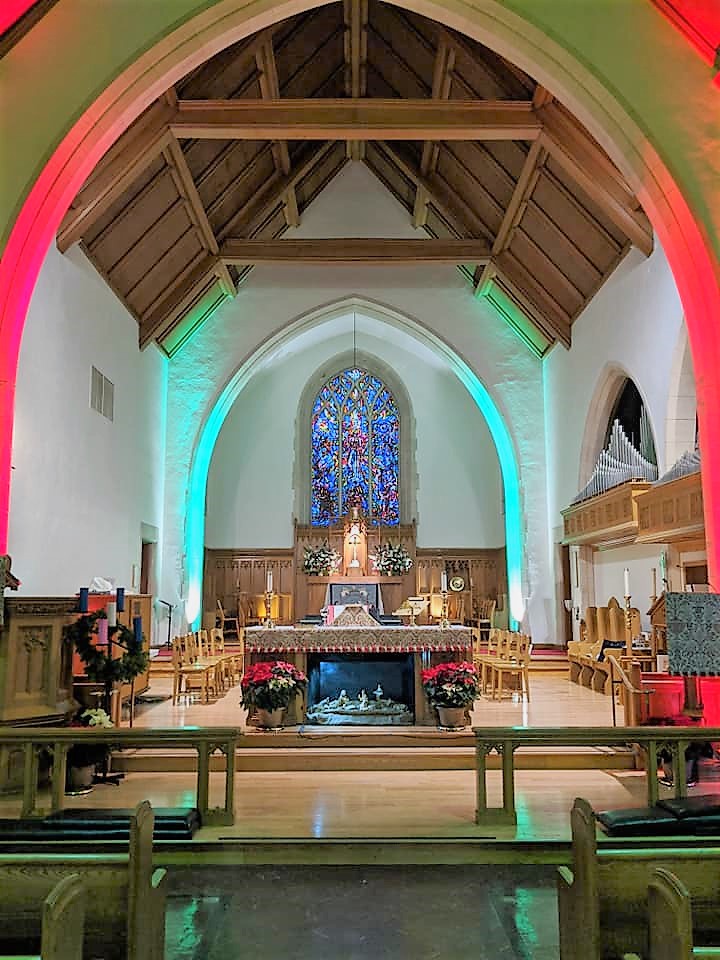

2019-12-24 - Chancel and exposed pipes (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

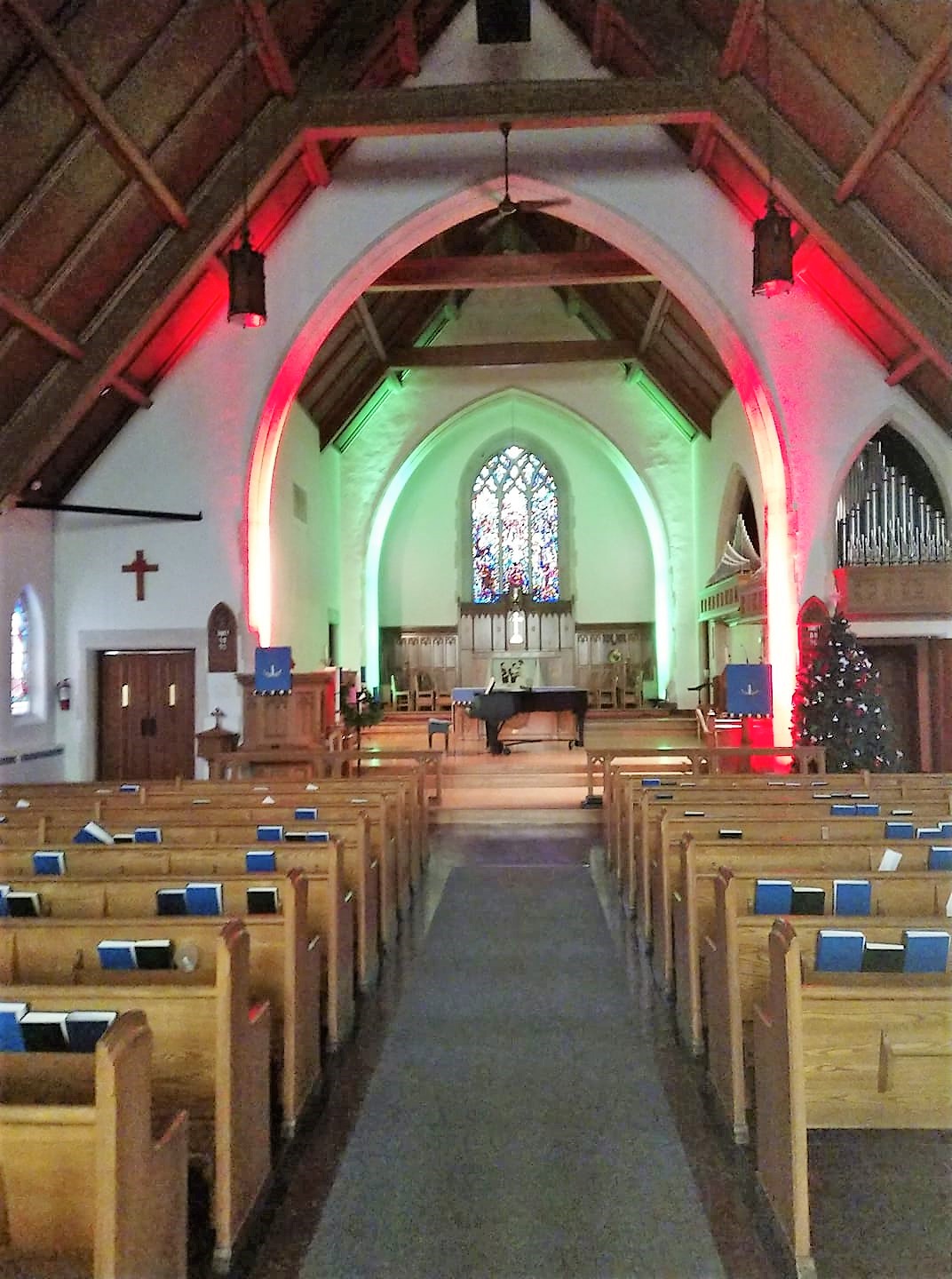

2019-12-06 - Church interior (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Left
2 manuals
20 stops
22 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons

Notes

2009-10-12 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2021-01-20 - Chest coverings and an explosion-proof frame for the blower motor were added in 1963; the originally prepared-for stops were added by Casavant in 1976. -Jeff Scofield

Stoplist

Source: Courtesy of the Casavant Frères Archives

    Ottawa, Ontario
    Trinity Anglican Church

    Casavant   Op. 2748   1963   2/28
    ______________________________________________________________________

    GREAT                    SWELL                       PEDAL

 8' Principal   61 a      8' Gedeckt         61      16' Subbass        32
 8' Rohrflöte   61        8' Viole de Gambe  61       8' Spitzprincipal 32
 8' Erzähler    61        8' Voix Céleste    54 b     4' Nachthorn      32
 4' Principal   61        4' Gemshorn        61     III  Mixture        96 b
 4' Koppelflöte 61 a      2' Principal       61      16' Fagott         SW b
 2' Blockflöte  61    1 1/3' Quintflöte      61       4' Fagott         SW b
IV  Mixture    244       IV  Scharf         244 b
    Chimes               16' Fagott    L/2   61 b
                          8' Trompette       61
 a  added 1967               Tremulant                b  added 1976

                [Received from Jeff Scofield January 19, 2021]
