Casavant Frères Ltée. Opus 2749 (1963)

Xavier University: Robert Bellarmine Chapel
3800 Victory Parkway
Cincinnati, OH

Images

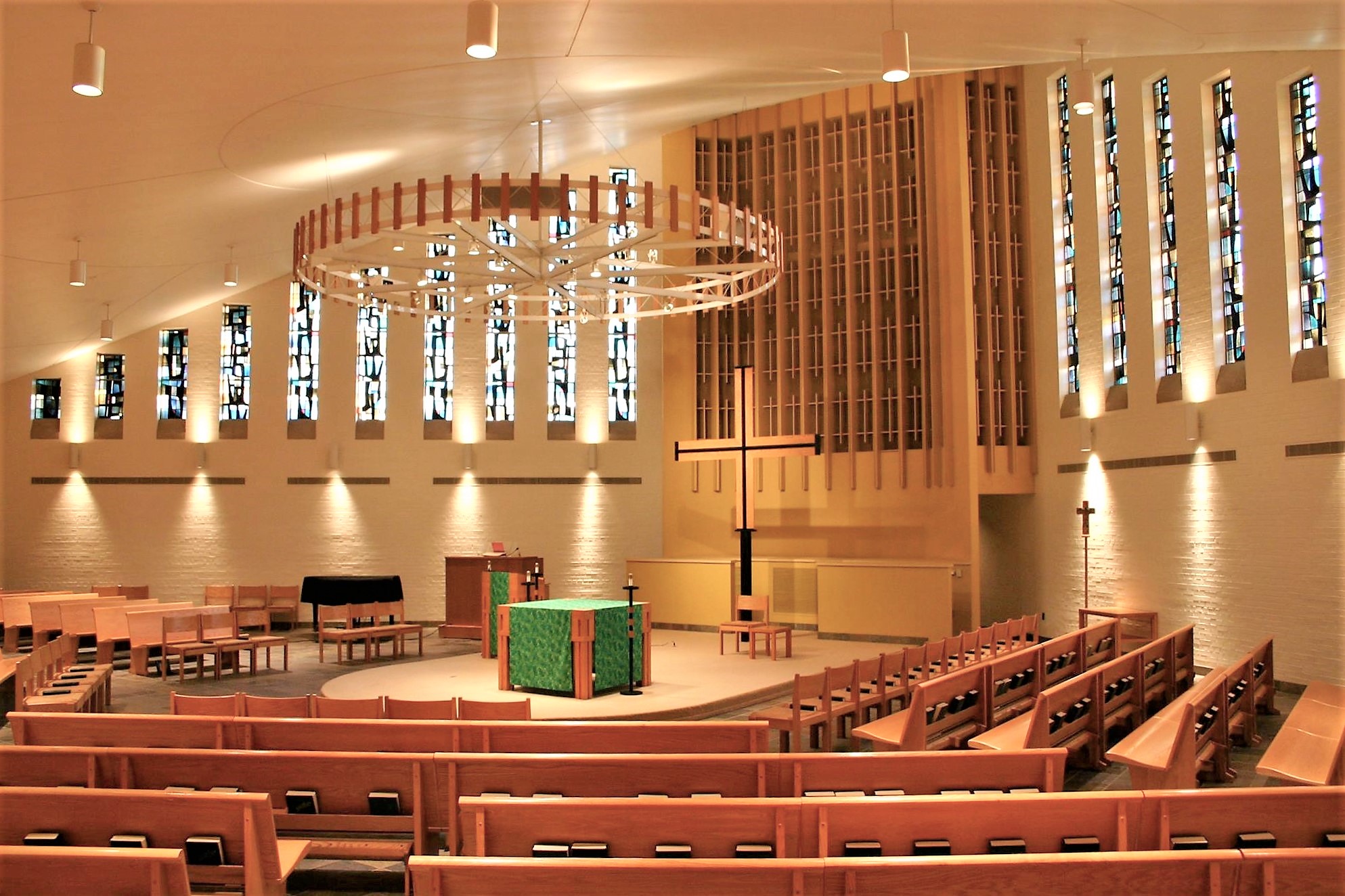

2015 - Chapel interior and organ chamber (Photograph from an archival source: Chapel Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Console position: Movable Console
2 manuals
19 stops
20 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has tutti toe pistons

Notes

2009-10-12 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2011-07-20 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Cincinnati, Ohio
    Xavier University
    St. Robert Bellarmine Chapel

    Casavant   Op. 2749   1963   2/27

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    ________________________________________________________________

    GREAT                  SWELL                 PEDAL
16' Quintaton  61       8' Salicional  61    16' Subbass          32
 8' Principal  61       8' Gedackt     61    16' Quintaton        GT
 8' Rohrflöte  61       4' Koppelflöte 61     8' Principal Etroit 32
 4' Octave     61       2' Principal   61     4' Nachthorn        32
 4' Spitzflöte 61   1 1/3' Quinte      61    IV  Mixture         128
 2' Blockflöte 61     III  Cymbel     183    16' Fagott    L/2    32
IV  Mixture   244       8' Trompette   61
                           Tremulant

   [Received online from Jeff Scofield  January 16, 2011]
