Better Pipe Organ Database

Casavant Frères Ltée. Opus 2750 (1963)

St. Paul the Apostle Roman Catholic Church: Church
235 Dwight Road
Springfield, MA

OHS convention: 2015

Images

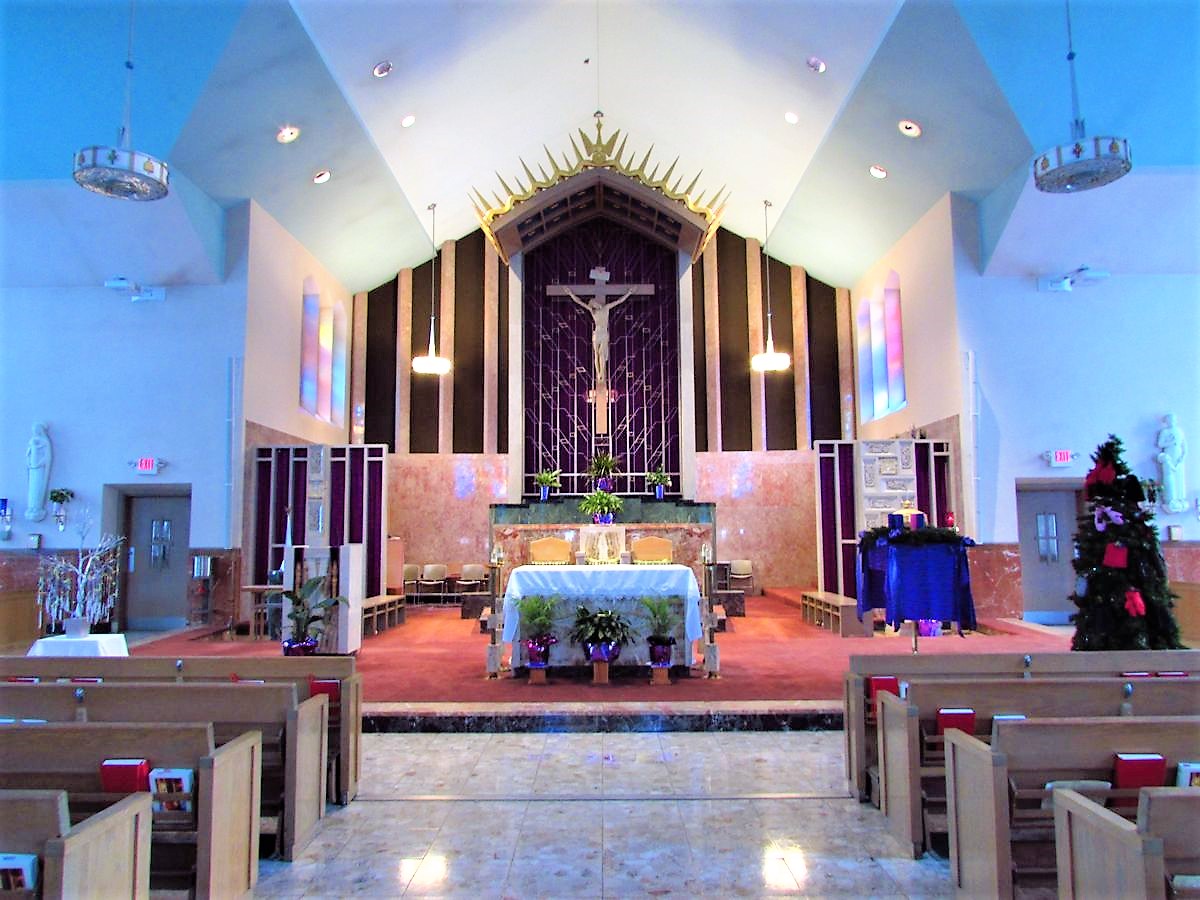

2014-12-12 - Church Interior, Altar, and Chamber Grillework (Photograph courtesy of William F. Czelusniak/Database Manager)

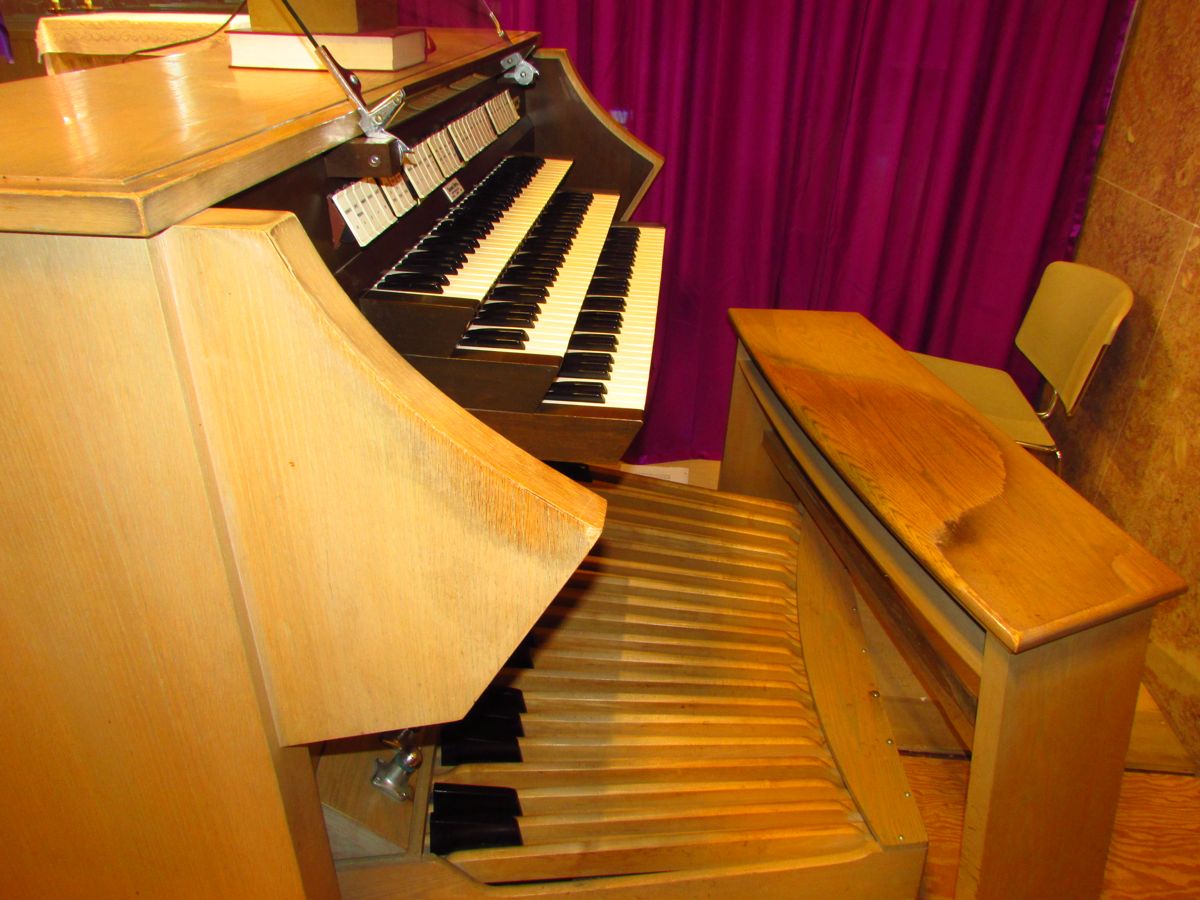

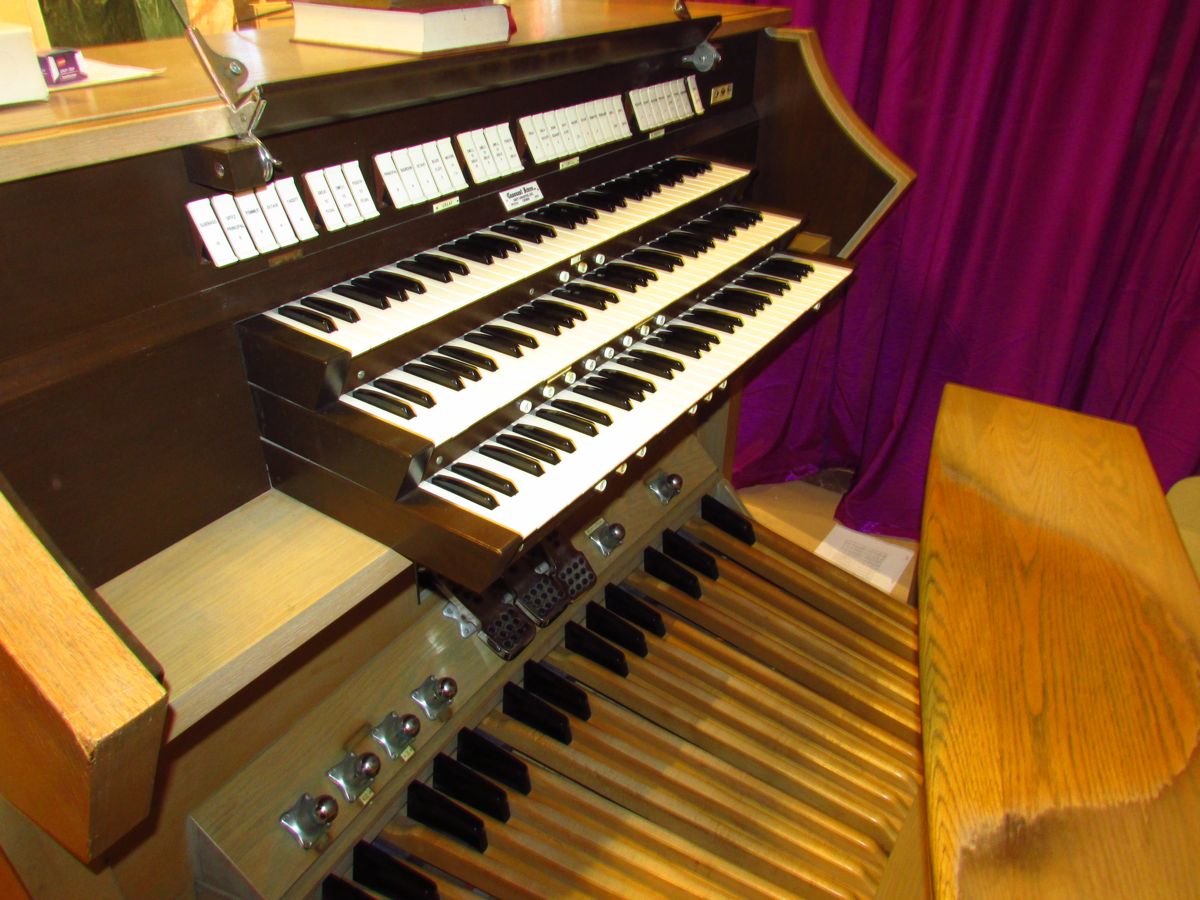

2014-12-12 - Console (Photograph courtesy of William F. Czelusniak/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
3 manuals
24 stops
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons

Notes

2009-10-12 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-12-16 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Specification from OHS Convention Handbook, 2015 Source: Source not recorded Date not recorded

Springfield, Massachusetts
St. Paul the Apostle R.C. Church

Casavant Frères, Ltée.   Opus 2750   1963   3 manuals, 24 stops, 29 ranks
_________________________________________________________________________

         GREAT ORGAN                            SWELL ORGAN (enclosed)
      8' Principal        61                 8' Viola            61
      8' Bourdon          61                 8' Viola Celeste    61
      4' Octave           61                 8' Rohrgedackt      61
      2' Blockflöte       61                 4' Spitzflöte       61
         Mixture IV      244             2 2/3' Nazard           61
                                             2' Octave           61
         POSITIV ORGAN (enclosed)            8' Trompette        61
      8' Erzähler         61                    Tremulant
      8' Gedackt          61                    Swell to Swell 16'
      4' Nachthorn        61                    Swell to Swell 4'
      2' Principal        61
  1 1/3' Quintflöte       61                    PEDAL ORGAN
         Cymbel III      183                16' Subbass          32
      8' Krummhorn        61                 8' Spitzprincipal   32
                                             8' Pommer           32
         COMBINATIONS                        4' Octave           32
         Swell      3    (thumb)            16' Fagott           32
         Great      3    (thumb)
         Positiv    3    (thumb)                COUPLERS
         Pedal      3    (thumb)                Great to Pedal       8'
         General    4    (thumb & toe)          Swell to Pedal       8'
         General Cancel  (thumb)                Positiv to Pedal     8'
         Adjuster        (thumb)                Swell to Great   16' 8' 4'
                                                Positiv to Great     8'
         REVERSIBLES                            Swell to Positiv     8'
         Great to Pedal  (thumb & toe)
         Full Organ      (toe)

         EXPRESSION
         Balanced Pedal - Swell
         Balanced Pedal - Positiv
         Crescendo Pedal


[Received from Steven E. Lawson  2015-06-05]
