Better Pipe Organ Database

Casavant Frères Ltée. Opus 3053 (1969)

University of Rochester: Interfaith Chapel
500 Wilson Blvd.
Rochester, NY

Images

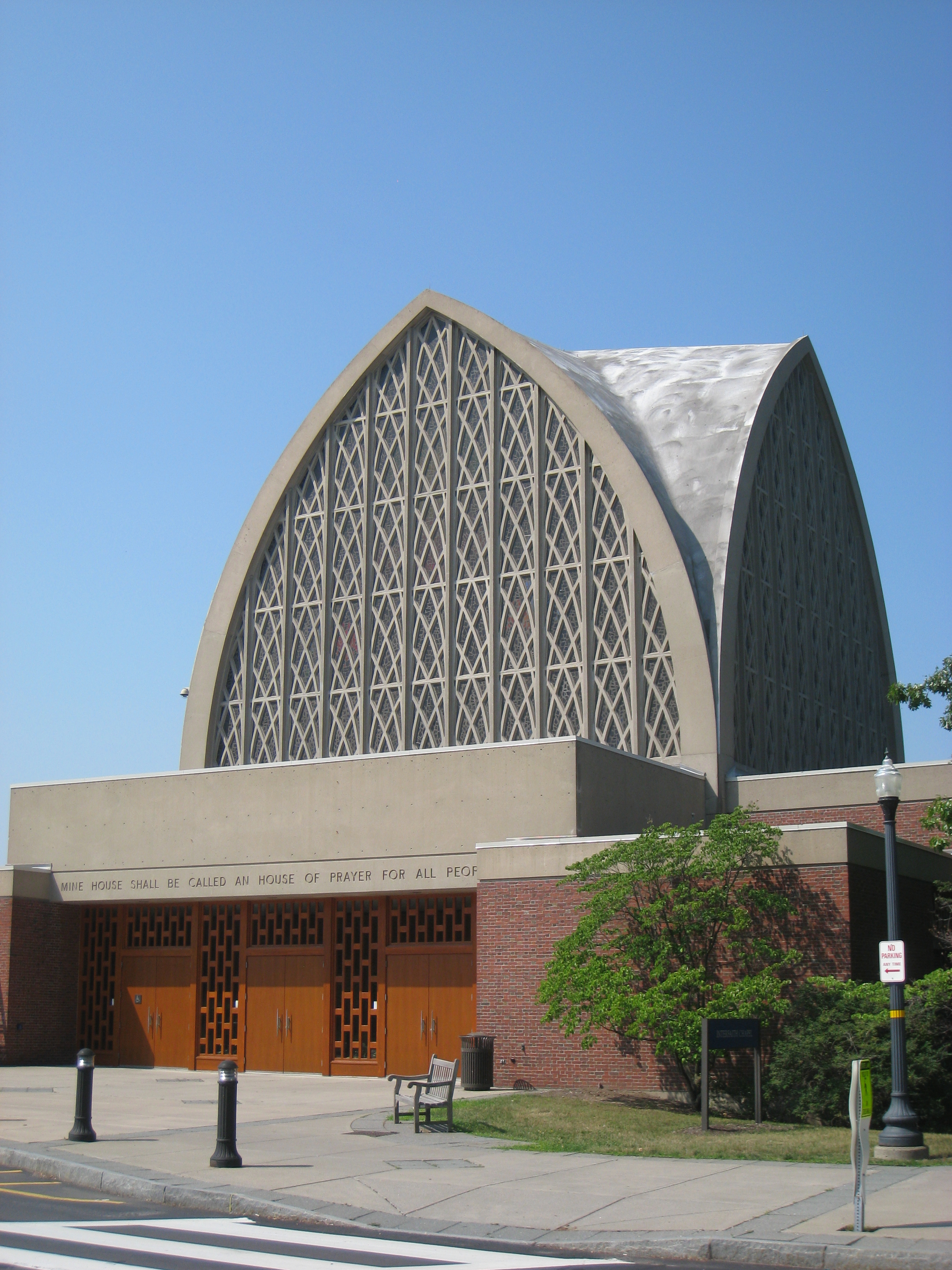

2008-07-07 - Chapel exterior (Photograph by Wikipedia, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Chapel interior to rear (Photograph by University of Rochester website, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Chapel interior (Photograph by University of Rochester website, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Console (Photograph by Eastman School of Music, University of Rochester, submitted by Jeff Scofield/Jeff Scofield)

Unknown - Console and organ screen (Photograph by Eastman School of Music, University of Rochester, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
37 stops
35 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-01-17 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-08-30 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Rochester, New York
    University of Rochester
    Interfaith Chapel

    Casavant   Op. 3053   1969   3/46

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    ______________________________________________

    GREAT                        POSITIV
16' Quintaden        61       8' Gedackt        61
 8' Prinzipal        61       8' Stillflöte     61
 8' Rohrflöte        61       4' Prinzipal      61
 4' Oktav            61       4' Koppelflöte    61
 4' Hohlflöte        61       2' Oktav          61
 2' Waldflöte        61   1 1/3' Quintflöte     61
II  Kornett          74     III  Zimbel        183
IV  Mixtur          244       8' Krummhorn      61 (French)
 8' Trompete         61          Tremulant
                                 Sub
    SWELL                        Unison Off
 8' Spitzgamba       61
 8' Vox coelestis tc 49
 8' Bordun           61          PEDAL
 4' Prinzipal        61      16' Contrabass     32
 2' Gemshorn         61      16' Subbass        32
IV  Scharf          244      16' Quintaden      GT
16' Fagott    L/2    61       8' Prinzipal      32
 8' Trompete         61       8' Gedacktpommer  32
 4' Oboe             61       4' Choralbass     32
    Sub                     III  Mixtur         96
    Unison Off               16' Posaune        32
    Super                    16' Fagott         SW
                              8' Trompete       32
                              4' Schalmei       32

[Received online from Jeff Scofield  August 31, 2010]
