Collierville United Methodist Church: Sanctuary
454 W. Poplar
Collierville, TN
Images

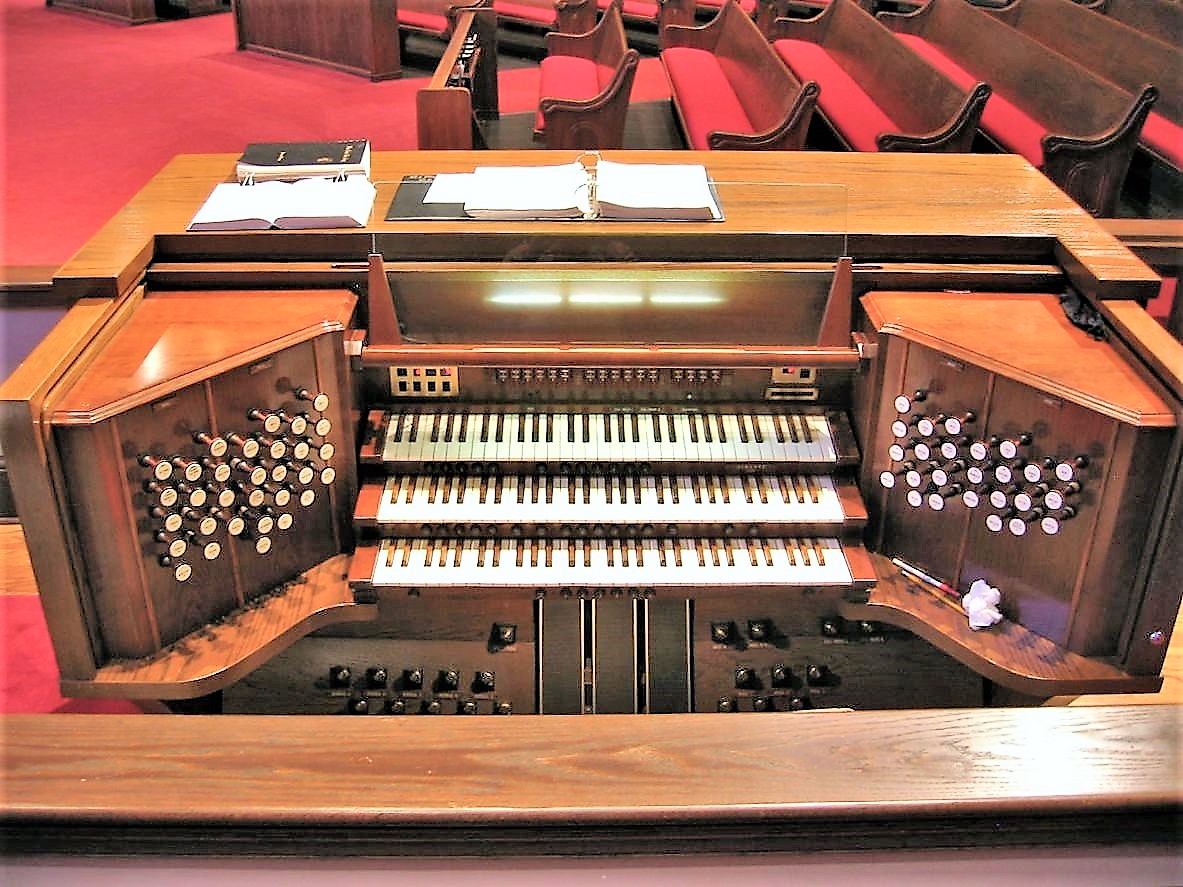

2012-07-27 - Console (Photograph by Jeff Scofield/Database Manager)

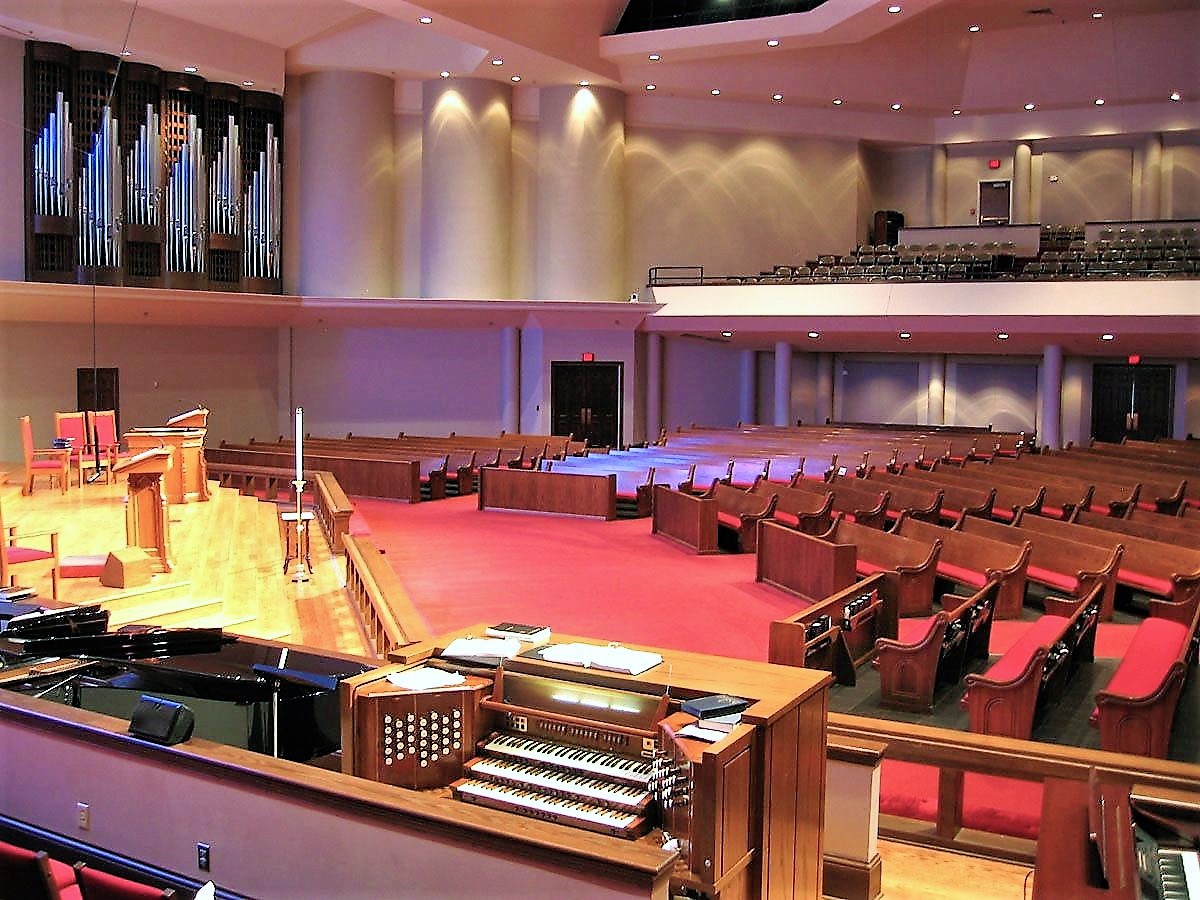

2012-07-27 - Console, Nave, and Pipe Façade (Photograph by Jeff Scofield/Database Manager)

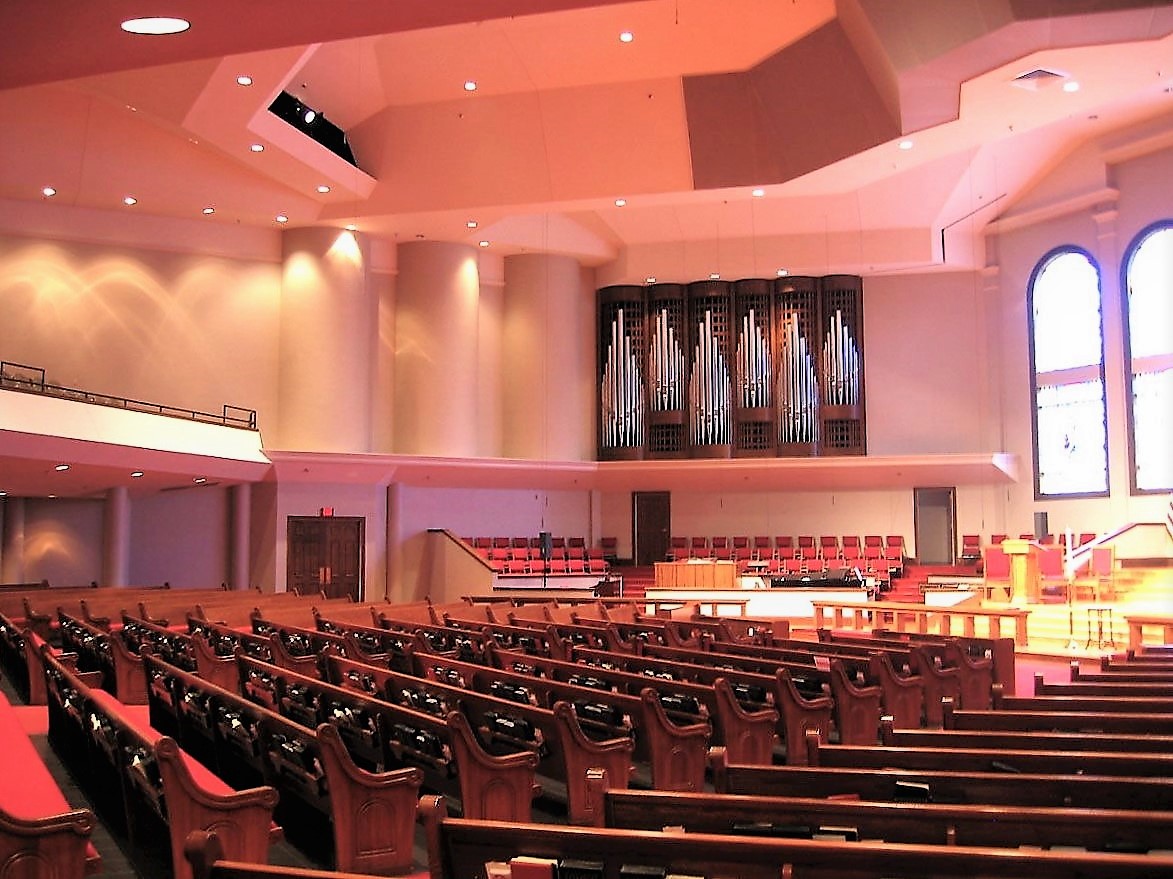

2012-07-27 - Sanctuary Interior, Chancel, and Pipe Façade (Photograph by Jeff Scofield/Database Manager)

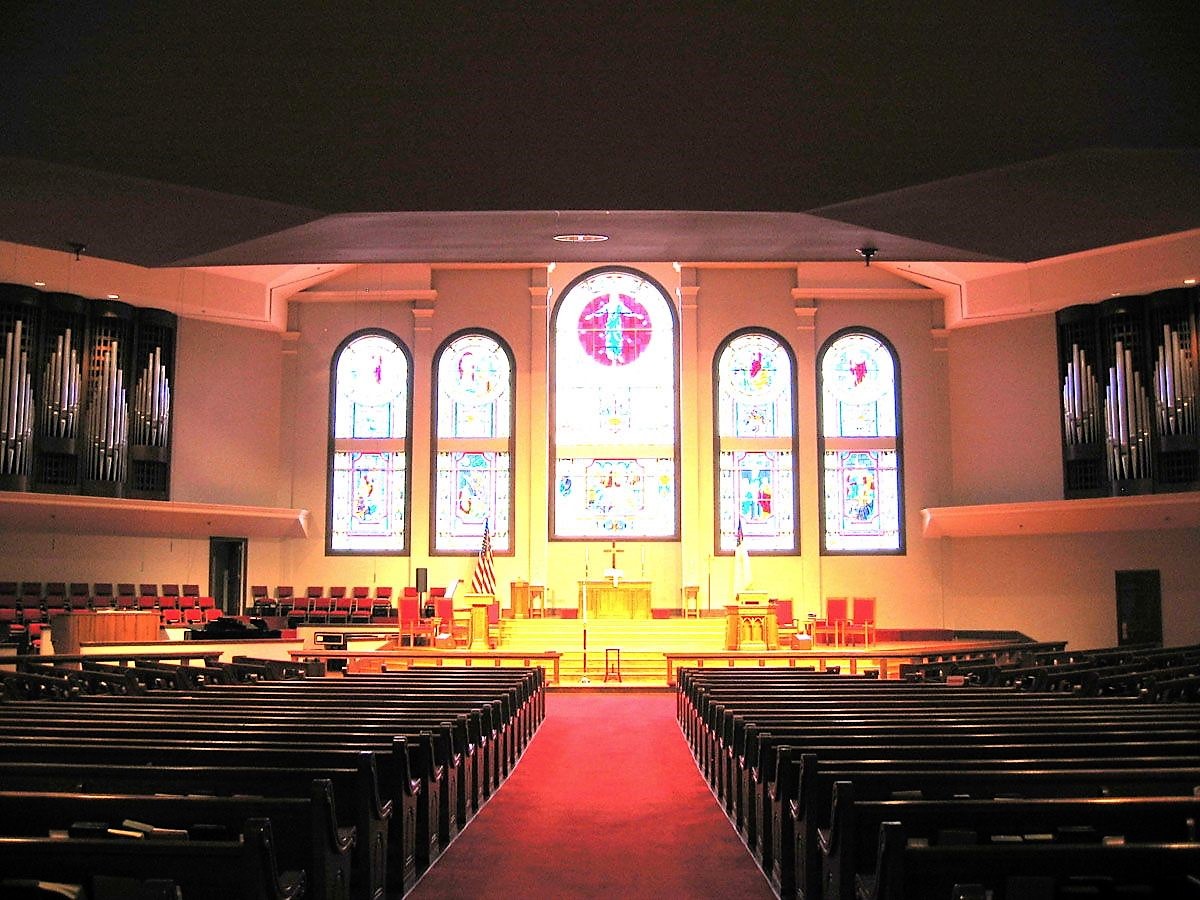

2012-07-27 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)

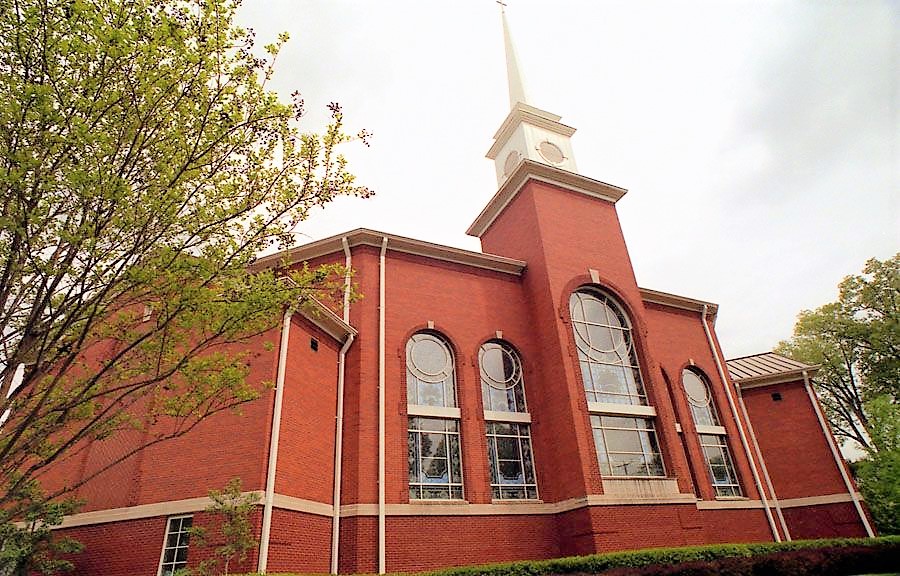

Unknown - Church Exterior (Image Courtesy of PhotographybyKlein.com and submitted by Jeff Scofield/Database Manager)

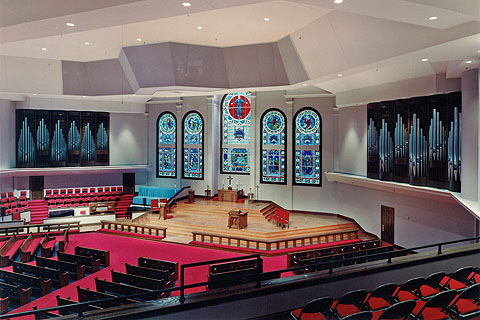

1996-06-01 - Sanctuary (Image courtesy of Schantz Organ Company; used with permission/Database Manager)

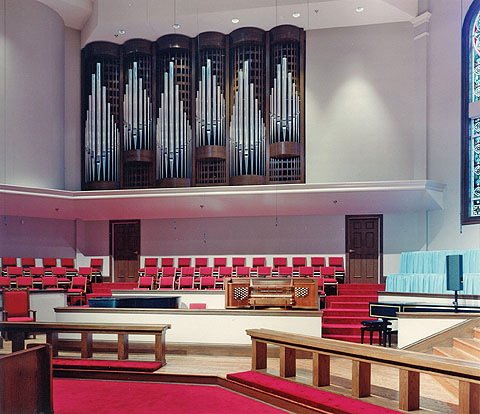

1996-06-01 - Choir Loft, Console, and Pipe Facade (Image courtesy of Schantz Organ Company; used with permission/Database Manager)

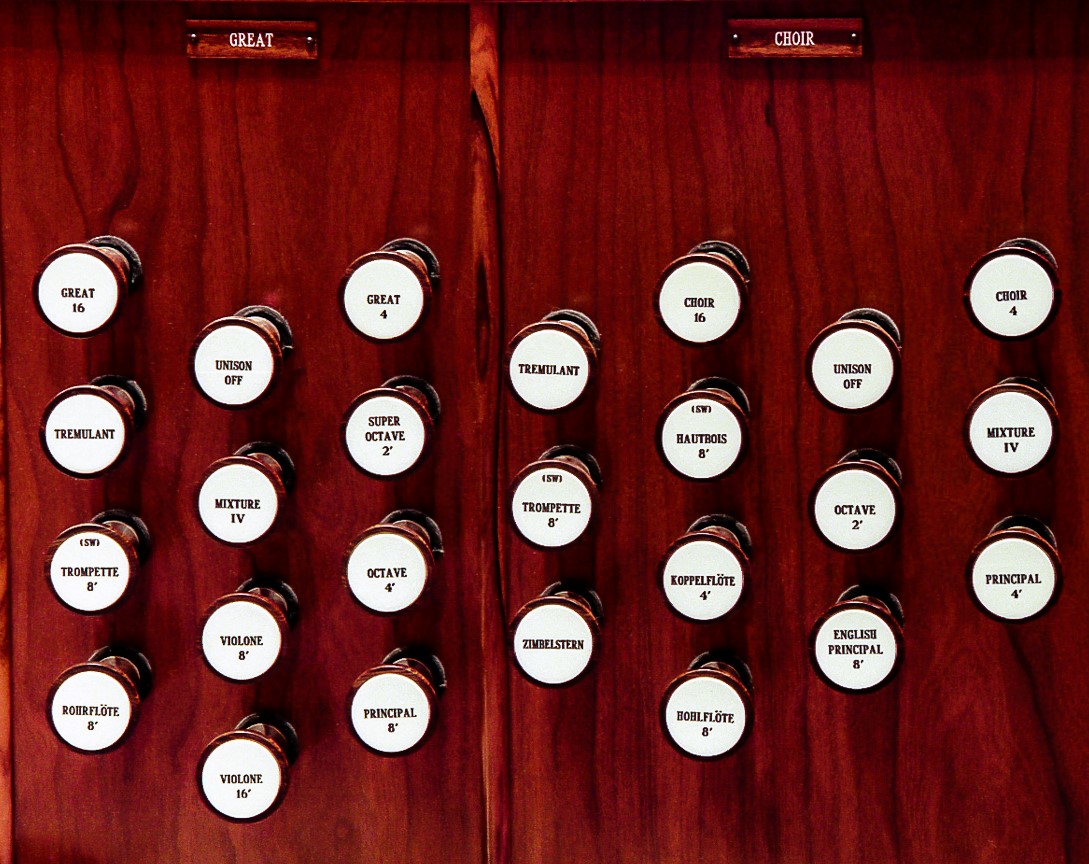

2007-04-02 - Right stopjamb (photographybystein.com, via Jeff Scofield/Jeff Scofield)

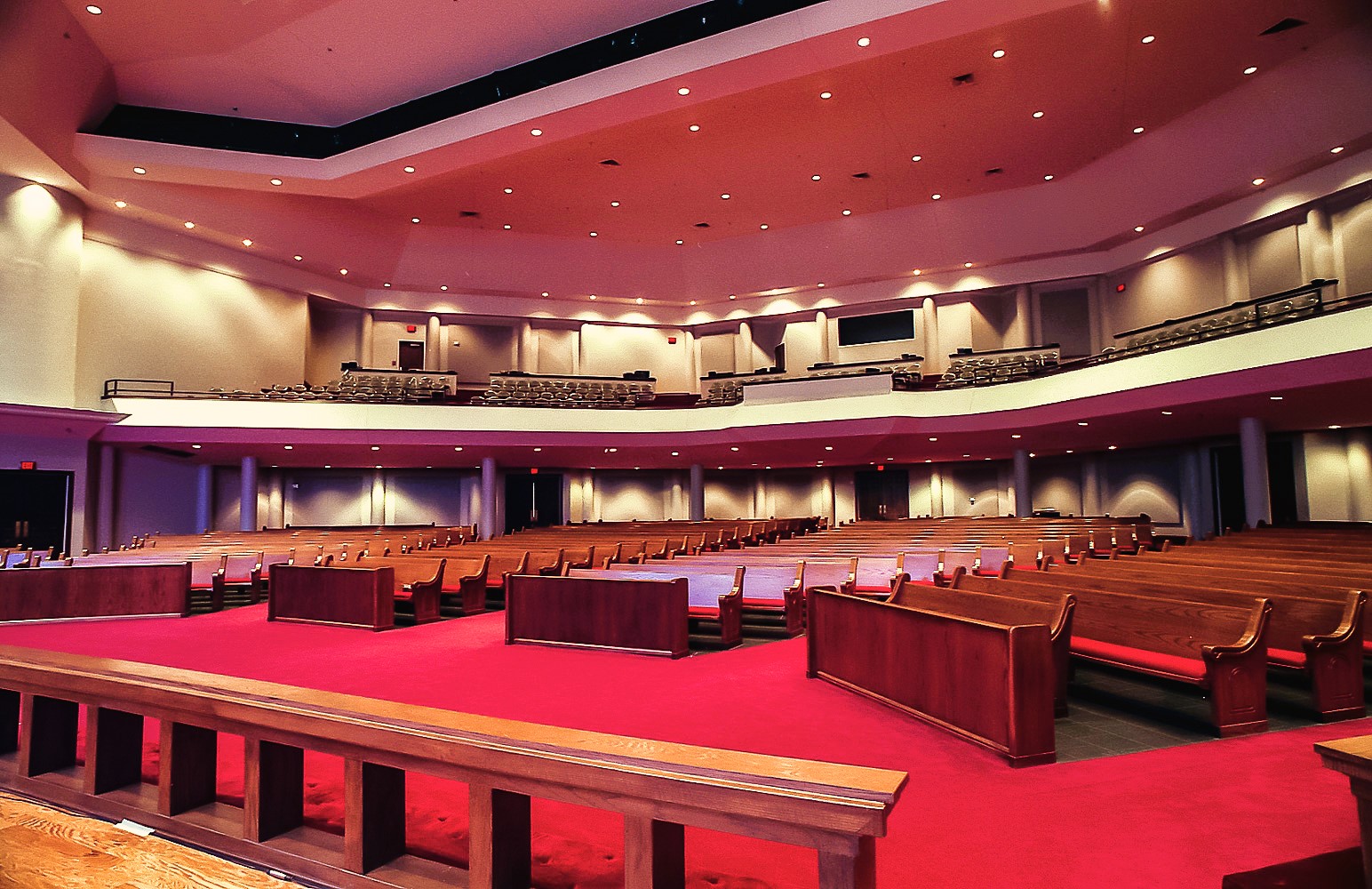

2007-04-02 - Church interior to rear (photographybystein.com, via Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- 3 manuals
- 40 stops
- 4 divisions
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2010-01-21 - Identified through on-line information from Chad Boorsma. -- The organ was installed with the console prepared for 37 additional stops. -Database Manager
Stoplist
Stoplist from Schantz factory specifications Source: Source not recorded Date not recorded
Collierville, Tennessee
COLLIERVILLE UNITED METHODIST CHURCH
Schantz Organ Company Opus 2119 38 ranks 1996
____________________________________________________________________
GREAT: SWELL:
16' Violone 73 16' Bourdon prep
8' Principal 61 8' Geigen Principal 61
8' Violone 8' Gedackt 61
8' Rohrflöte 61 8' Viola 61
8' Harmonic Flute prep 8' Viola Celeste [TC] 54
4' Octave 61 4' Principal 61
4' Nachthorn prep 4' Traversflöte 61
IV Mixture 244 2 2/3' Nasard 61
III Scharf prep 2' Waldflöte 61
16' Dulzian prep 1 3/5' Tierce 61
8' Trompette [SW] III-IV Plein Jeu 247
Tremulant III Cymbale prep
8' Festival Trumpet prep 16' Basson-Hautbois 73
Chimes prep 8' Trompette 73
MIDI prep 8' Hautbois
Carillon/Bells prep 4' Clarion
8' Voix Humaine prep
PEDAL: Tremulant
32' Bourdon prep 8' Festival Trumpet prep
32' Resultant MIDI
16' Principal 32
16' Violone [GT] CHOIR:
16' Subbass 44 16' Erzähler prep
16' Bourdon prep 8' English Principal 61
16' Erzähler prep 8' Voce Umana prep
8' Octave 32 8' Hohlflöte 61
8' Subbass 8' Erzähler prep
8' Gedackt [SW] 8' Erzähler Celeste prep
8' Erzähler prep 4' Principal 61
4' Choralbass 32 4' Koppelflöte 61
4' Spitzflöte prep 2' Octave 61
IV Mixture prep 1 1/3' Quinteflöte prep
32' Contre Bombarde prep IV Mixture 244
16' Bombarde prep 8' Trompette prep
16' Contre Trompette 12 8' Hautbois [SW]
16' Basson [SW] 8' Cromorne prep
8' Bombarde prep 8' English Horn prep
8' Trompette [SW] 8' Festival Trumpet prep
4' Dulzian prep Tremulant
8' Festival Trumpet prep Zimbelstern 5 bells
Chimes prep MIDI prep
MIDI prep Harp prep
[Received on line from Chad Boorsma January 31, 2010.]
