St Michael's Episcopal Church
8706 Quaker Lane
Bon Air, VA
Images

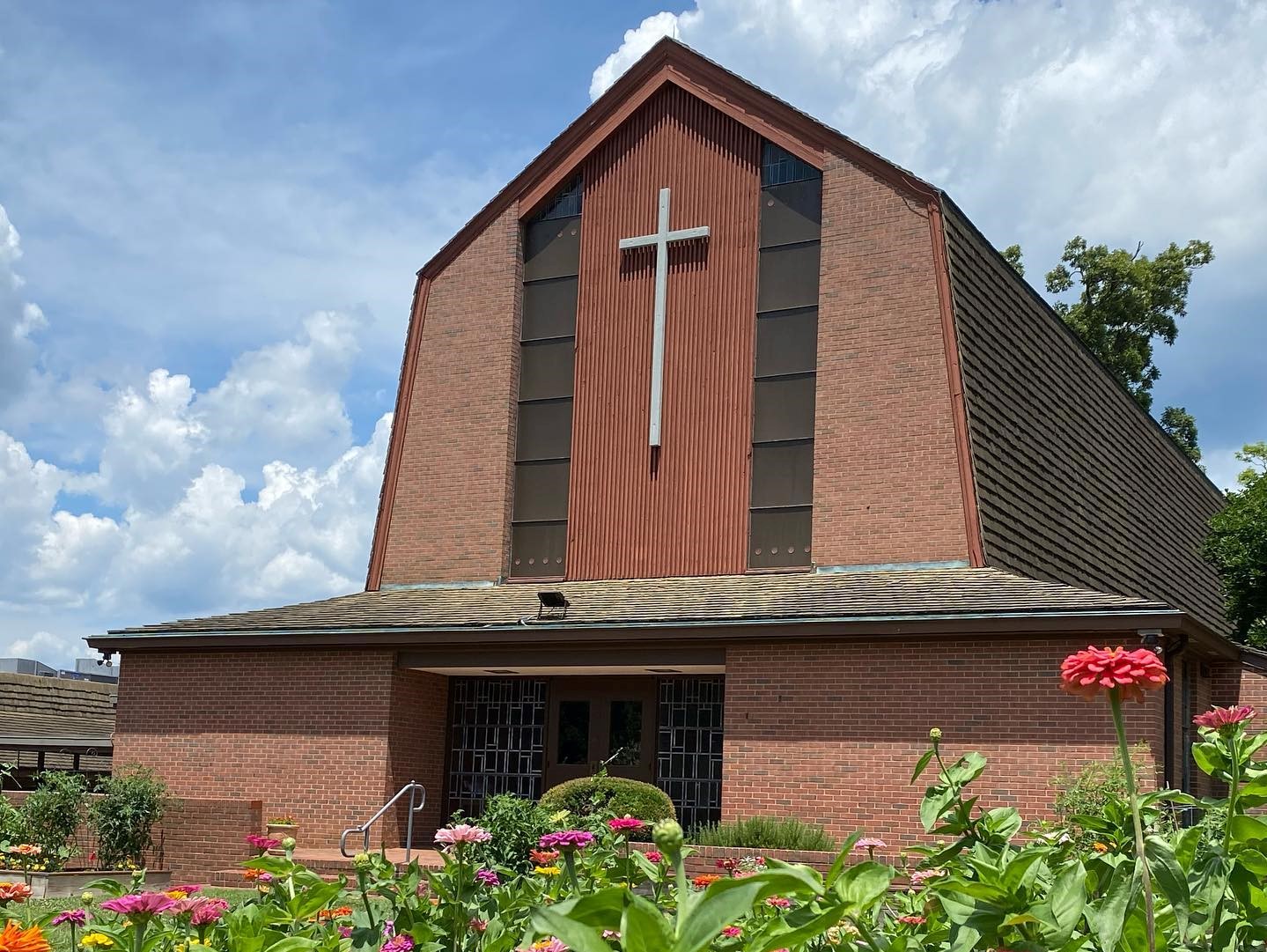

2021-07-01 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

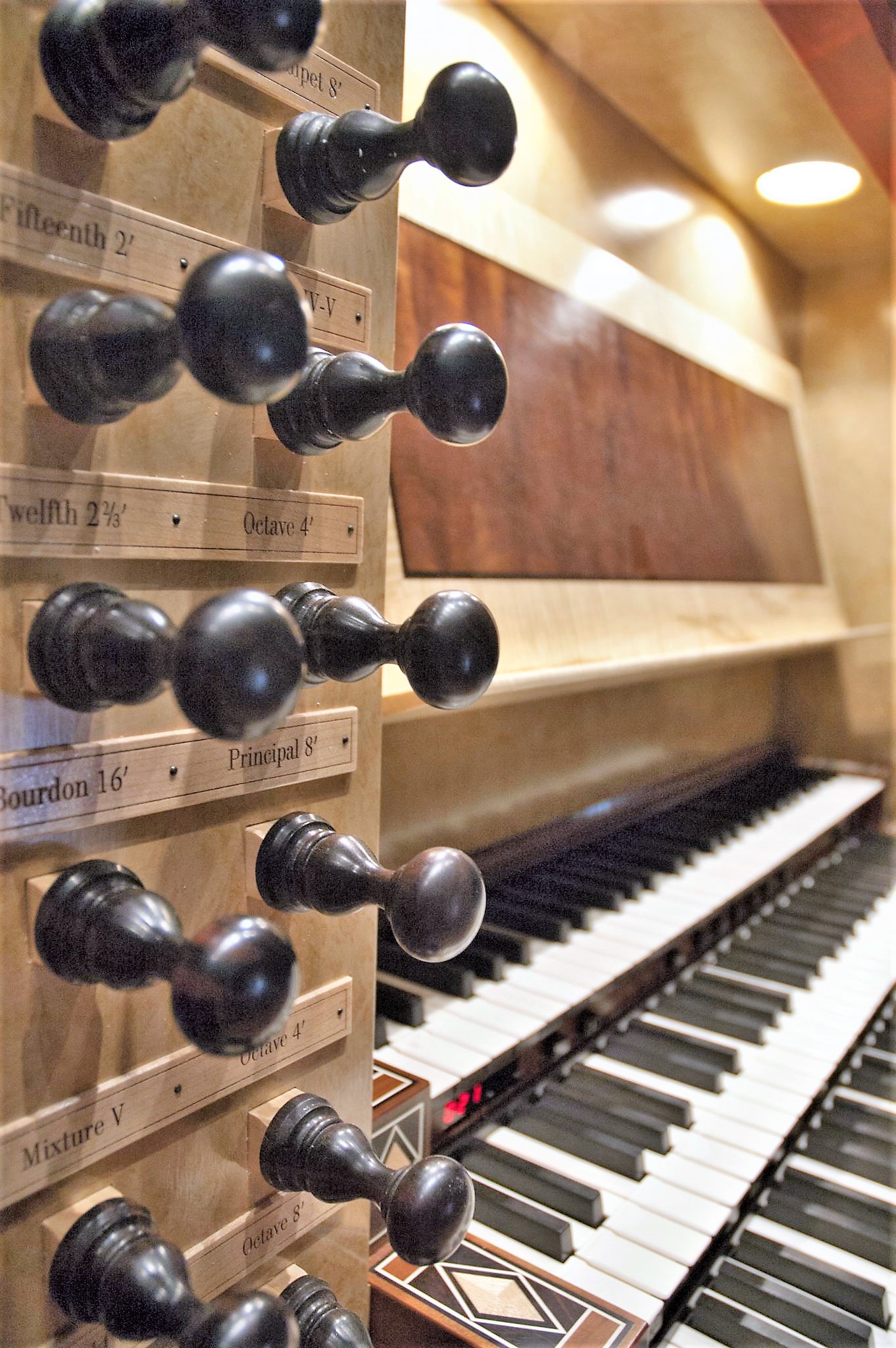

2010 - Drawstops (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)
2010 - Console (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)

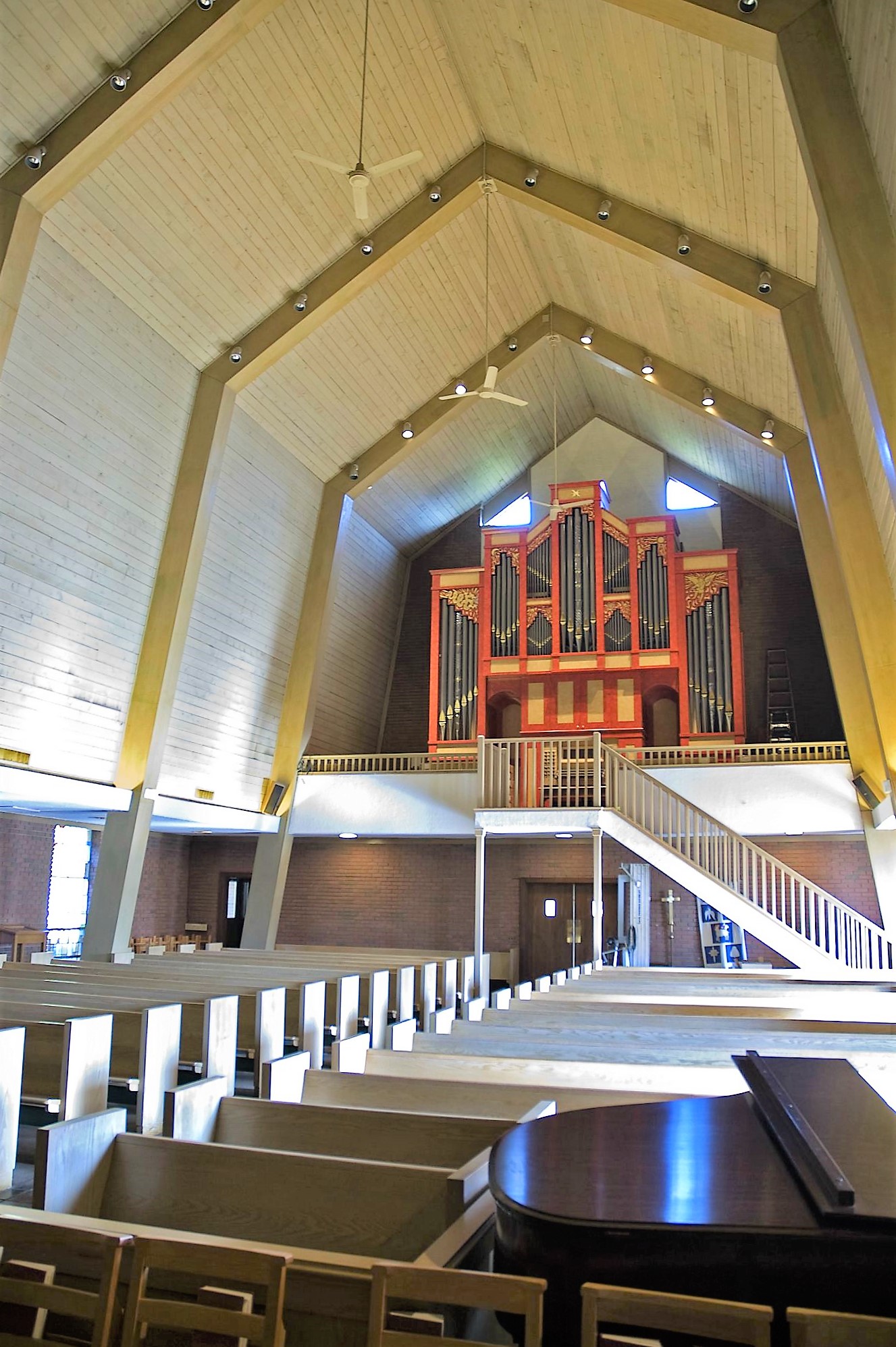

2010 - Church interior to rear and organ case (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)

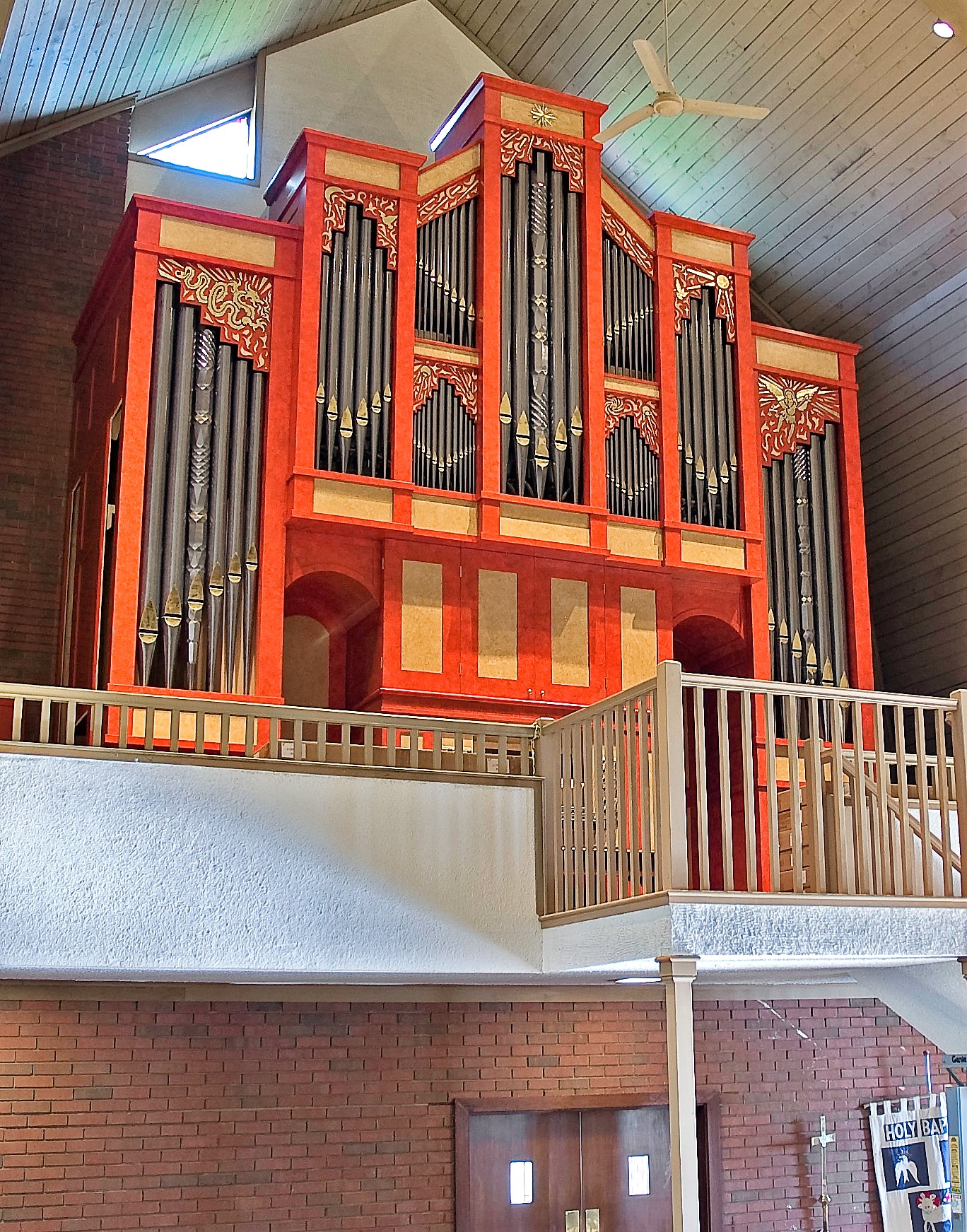

2010 - Organ case (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)

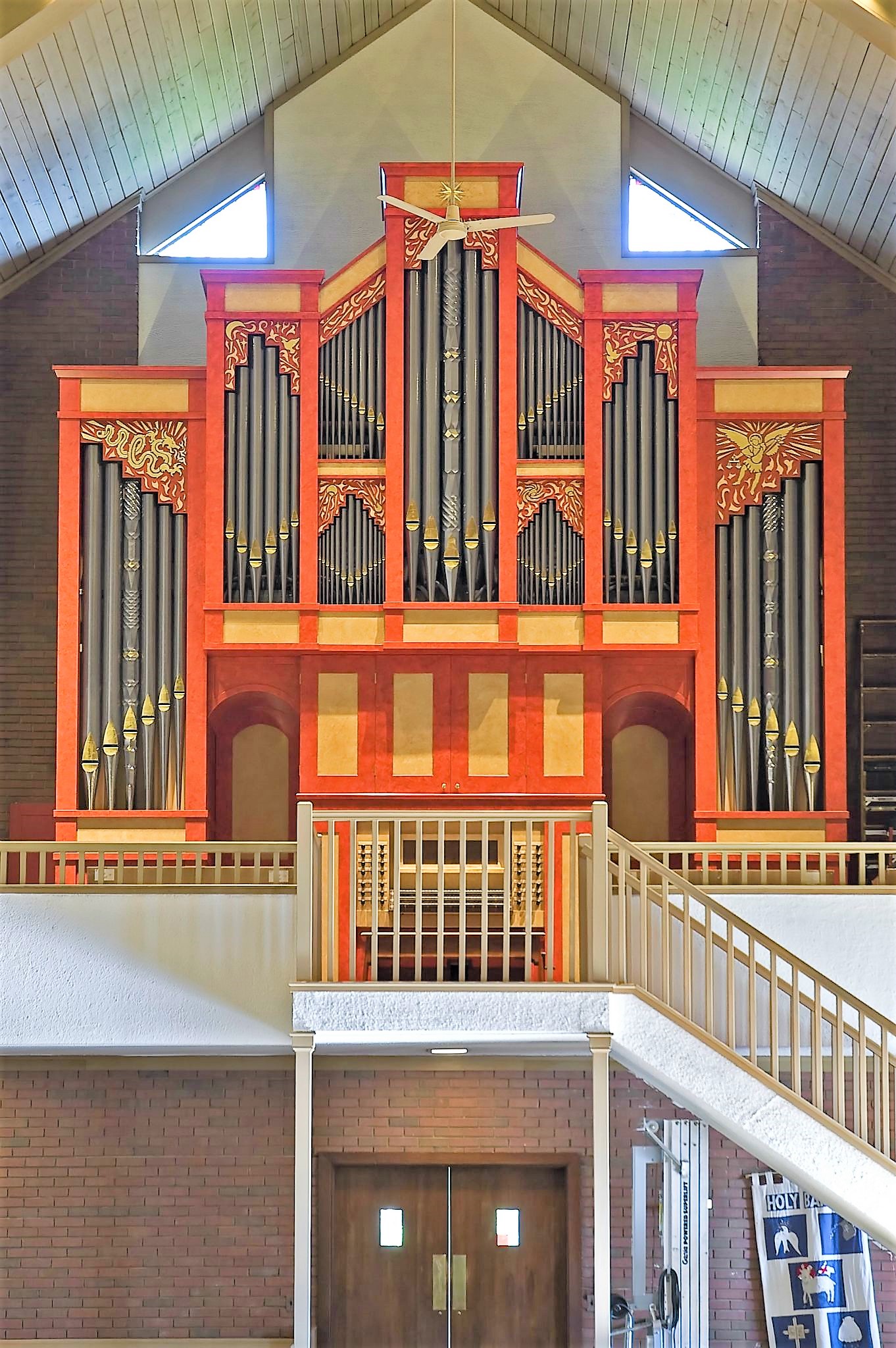

2010 - Gallery and organ case (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached, Manuals Set Into Case
- 3 manuals
- 36 stops
- 36 registers
- 4 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 58 notes
- Pedal compass: 30 notes
- Pedal Type: Flat Straight
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2010-11-14 - Identified through online information from Stephen Hall. -Database Manager
Stoplist
Metal pipes of hammered lead-tin alloys; Natural keys of polished cow bone; Sharps and stop knobs of ebony; Case and pipe shades of solid poplar, painted and faux finished; Mechanical key action, electric stop and combination action; Temperament: Kellner; Pitch: a' = 440; Stops: 36; Wind Stabilizer
Source: Taken from console and builder's website 07/13/2024
GREAT Bourdon 16, Principal 8, Spire Flute 8, Octave 4, Gedackt 4, Fifteenth 2, Cornet V (Descant from Middle C), Mixture IV-V, Twelfth 2 2/3, Trumpet 8
SWELL Viol Celeste 8, Chimney Flute 8, Principal 4, Viol da Gamba 8, Spitz Flute 4, Tierce 1 3/5, Gemshorn 2, Nasard 2 2/3, Bassoon 16, Trumpet 8, Oboe 8, Zimbelstern, Tremulant (affects entire organ)
CHOIR (In reality, this is a Brustwerk division with doors.) Stopped Diapason 8, Chimney Flute 4, Fifteenth 2, Larigot 1 1/3, Sesquialtera II, Dulcian 8
PEDAL Violonbass 16 (wood), Subbass 16, Flute 8, Octave 8, Octave 4, Mixture V, Trombone 16, Trumpet 8
CHOIR to GREAT 8, SWELL to GREAT 8, GREAT to PEDAL 8, SWELL to PEDAL 8, CHOIR to PEDAL 8
