Lauck Pipe Organ Co. (1991)

St. Mary Catholic Church: Church
939 Charlotte Ave.
Kalamazoo, MI

Images

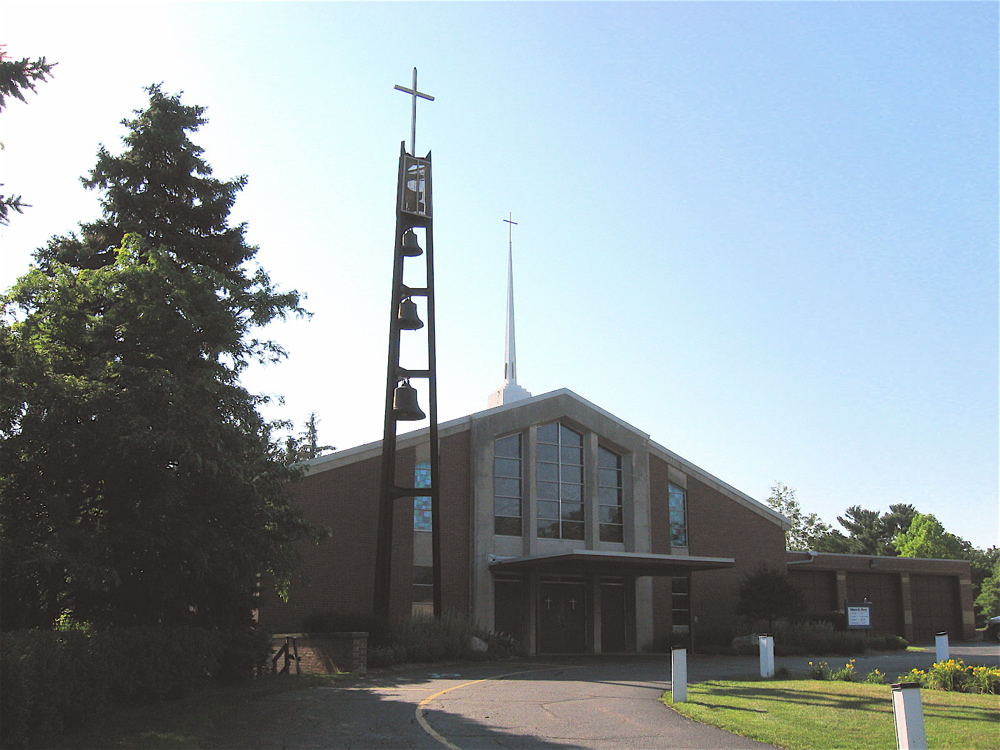

2011-06-30 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

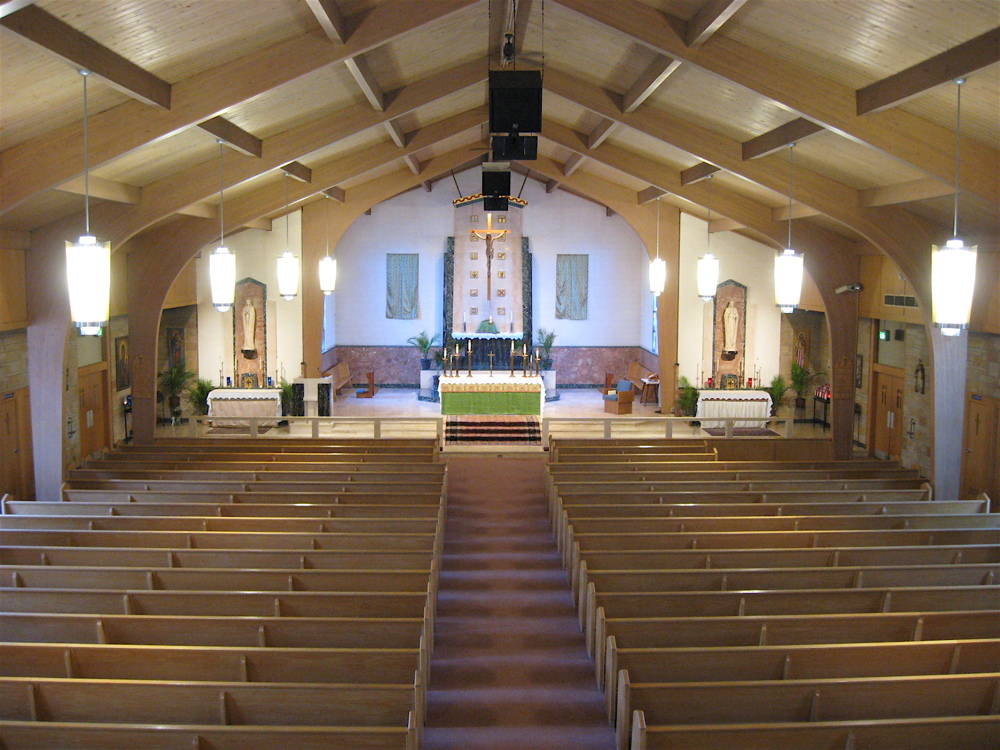

2011-06-30 - Church Interior and Altar (Photograph by Chad Boorsma/Database Manager)

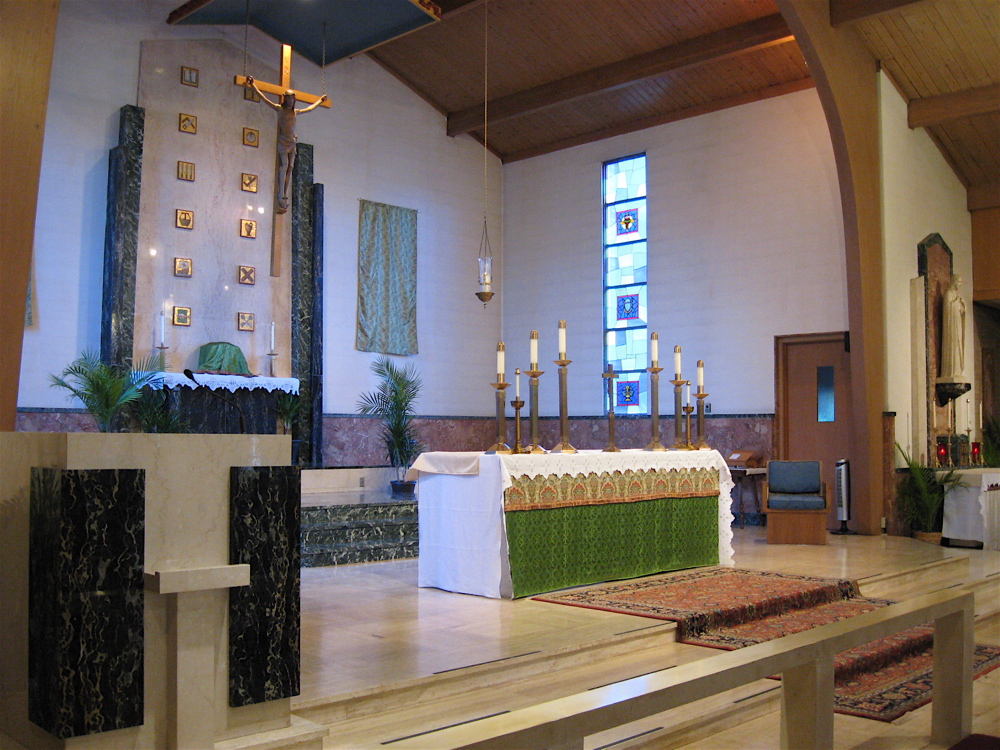

2011-06-30 - Altar (Photograph by Chad Boorsma/Database Manager)

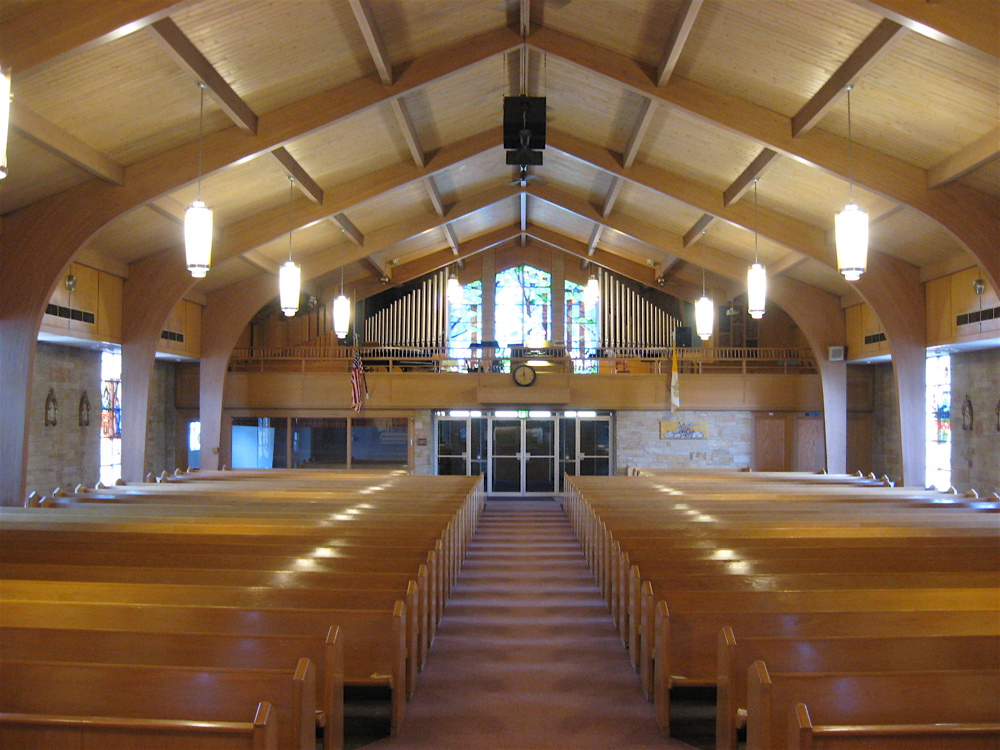

2011-06-30 - Nave, Balcony, and Pipe Facades (Photograph by Chad Boorsma/Database Manager)

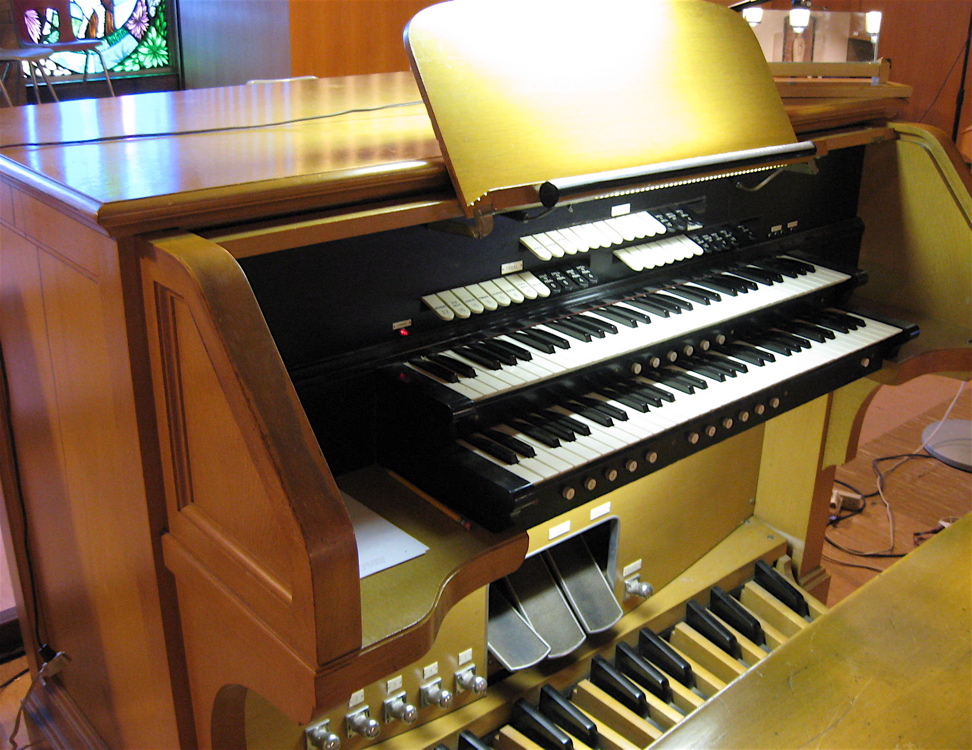

2011-06-30 - Console (Photograph by Chad Boorsma/Database Manager)

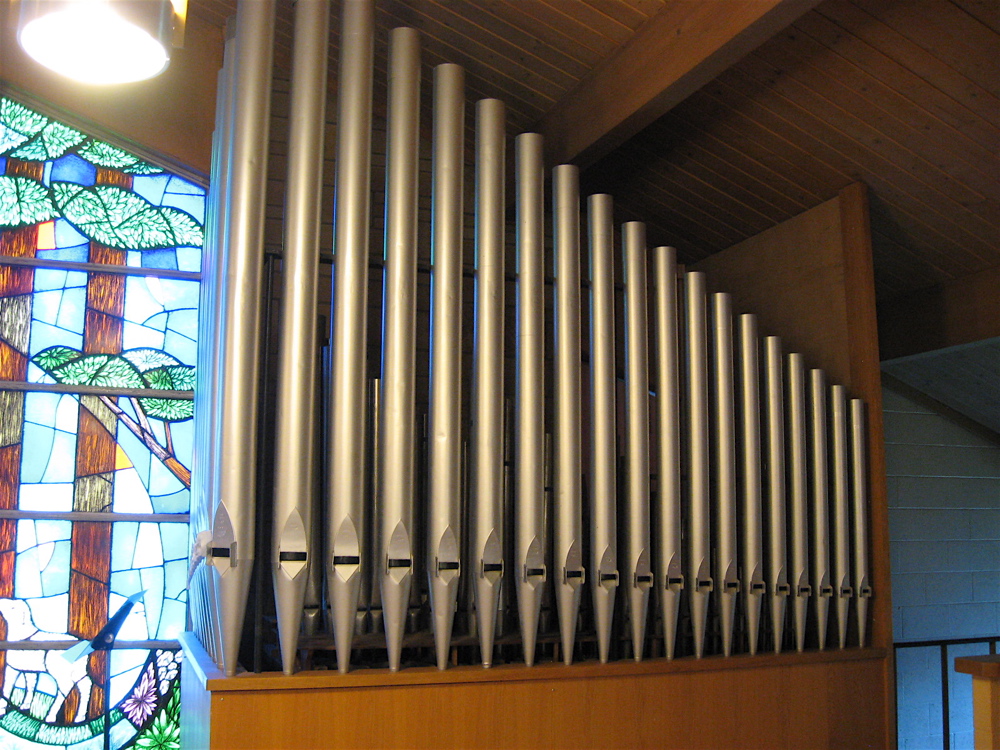

2011-06-30 - Right Pipe Facade (Photograph by Chad Boorsma/Database Manager)

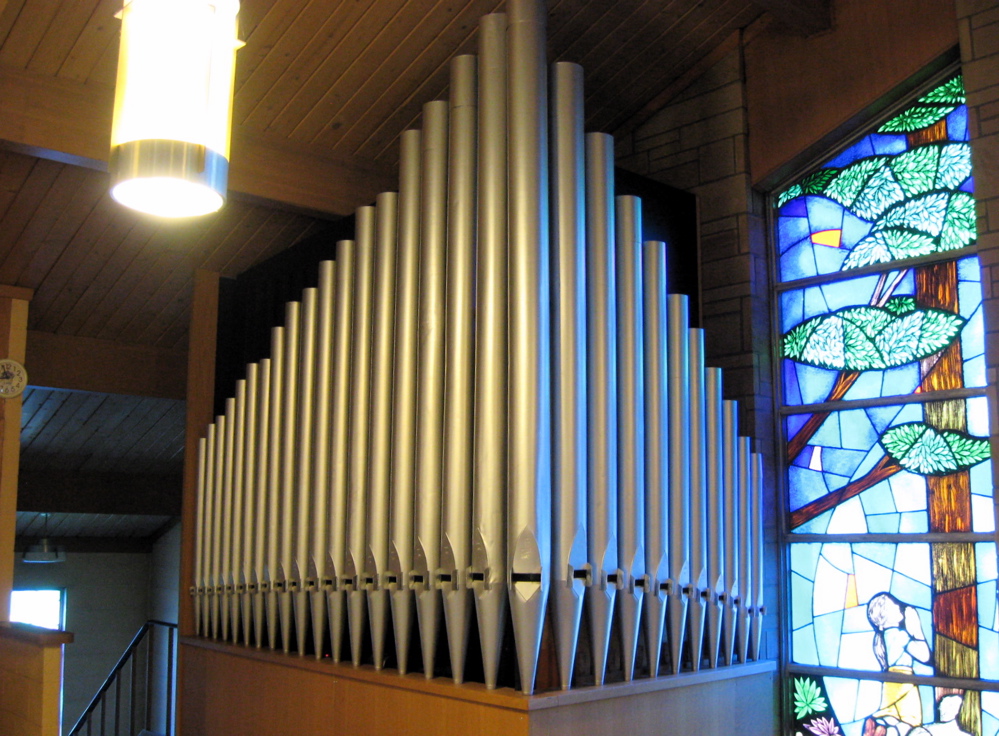

2011-06-30 - Left Pipe Facade (Photograph by Chad Boorsma/Database Manager)

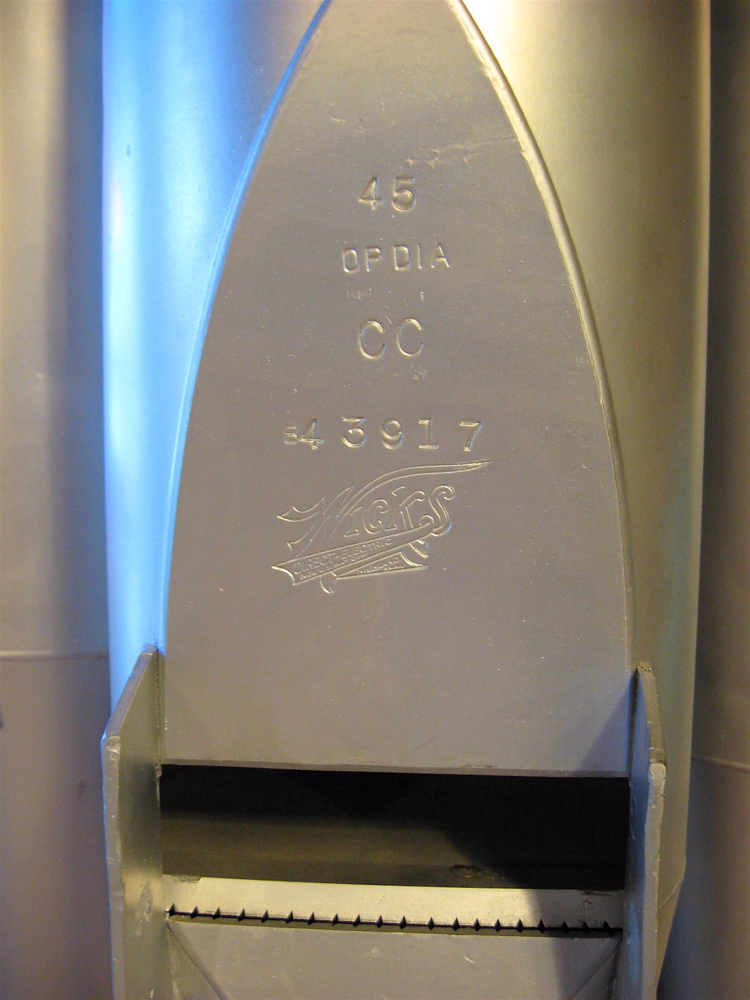

2011-06-30 - Inscription on Facade Pipe (Photograph by Chad Boorsma/Database Manager)

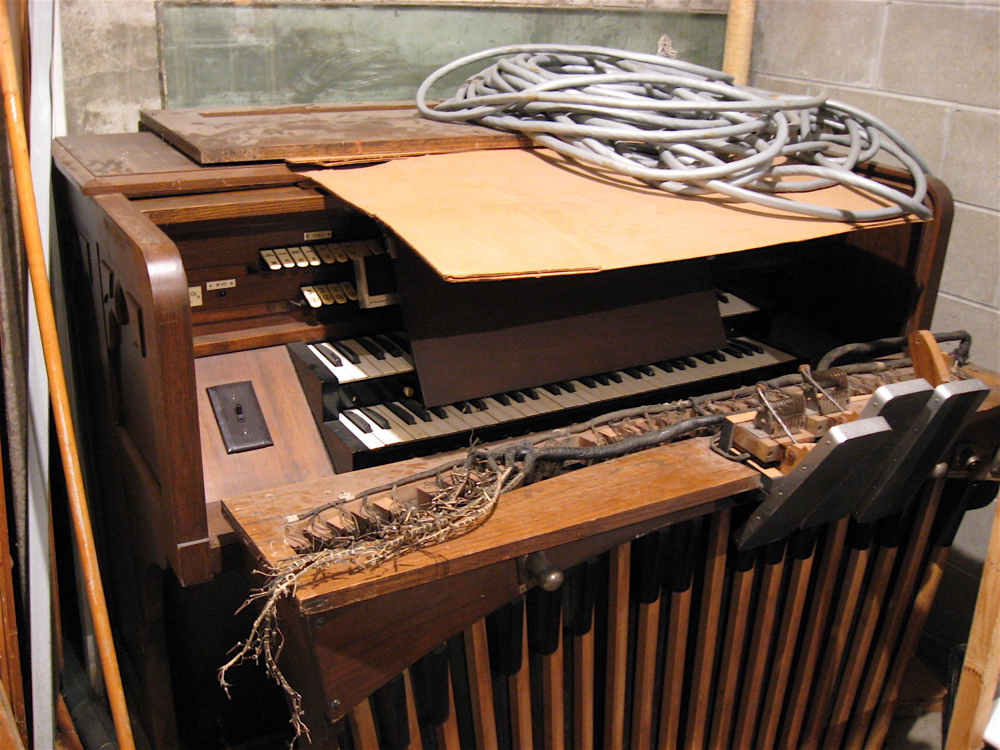

2011-06-30 - Wicks Console in Storage (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
25 stops
3 divisions
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has tutti toe pistons

Notes

2011-07-05 - The organ is a combination of pipes from a Wicks instrument at Cadillac UMC, new and used pipes from Lauck Pipe Organ Company, and pipes that were already at St. Mary's. The console is a Klann and was part of an Electro-Voice organ the church installed in 1977. -Database Manager

Stoplist

Stoplist taken from the console (June 30, 2011) Source: Source not recorded Date not recorded

Kalamazoo, Michigan
SAINT MARY CATHOLIC CHURCH

Lauck Pipe Organ Company    1991    18 ranks
______________________________________________________________________________

GREAT:                   SWELL:                        PEDAL:
   8' Principal 61         8' Gedeckt 61                32' Untersatz
   8' Rohrflute 61         8' Gemshorn 61               16' Subbass 32
   4' Octave 61            8' Gemshorn Celeste 49 [TC]  16' Gedeckt 12 [SW]
   4' Koppelflute 61       4' Principal 61               8' Principal [pf]
   2' Super Octave 12      4' Gedeckt 12                 8' Bourdon 12
 III  Mixture 183          2' Octave 12                  8' Gedeckt [SW]
  II  Sesquialtera 96     II  Plein Jeu 122              4' Choral Bass [pf]
                          16' Bassoon 12                16' Bassoon [SW]
                           8' Trumpet 61
                           8' Oboe 61
                              Tremulant

[Received online from Chad Boorsma • July 6, 2011]
