Better Pipe Organ Database

Schantz Organ Co. Opus 2054 (1993)

First Reformed Episcopal/St. Albans Church
317 E. 50th Street
New York City: Manhattan, NY

Images

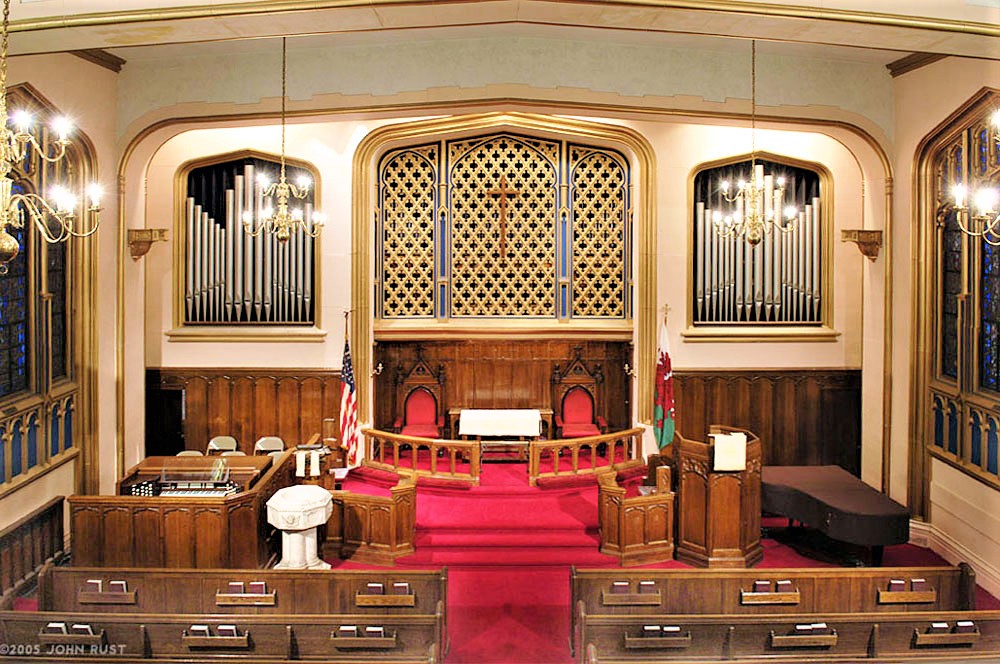

2002-09-09 - Chapel Interior (Photograph by John Rust via Steven E. Lawson/Database Manager)

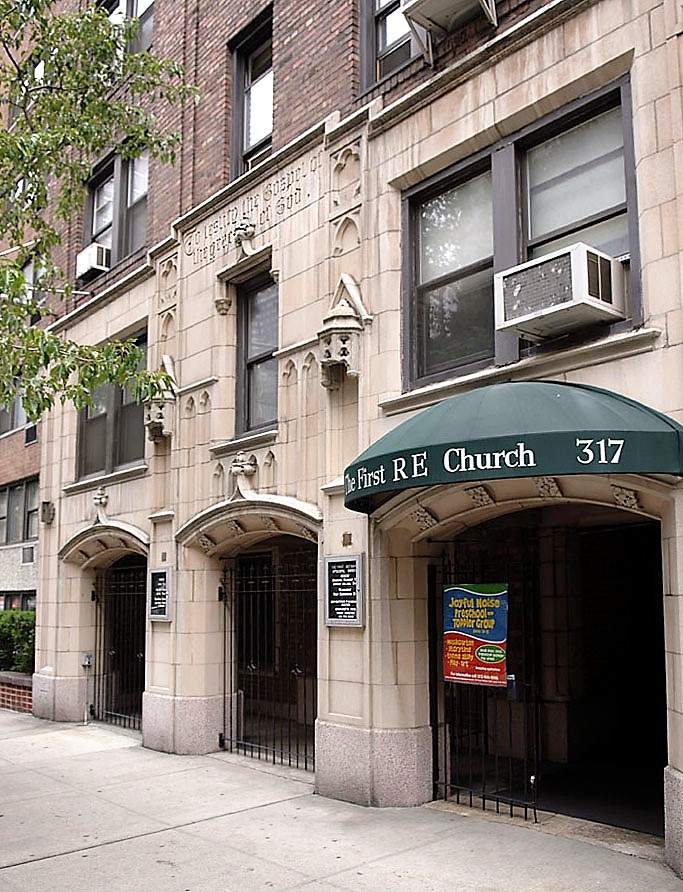

2002-09-09 - Church exterior (Photograph by John Rust via Steven E. Lawson/Database Manager)

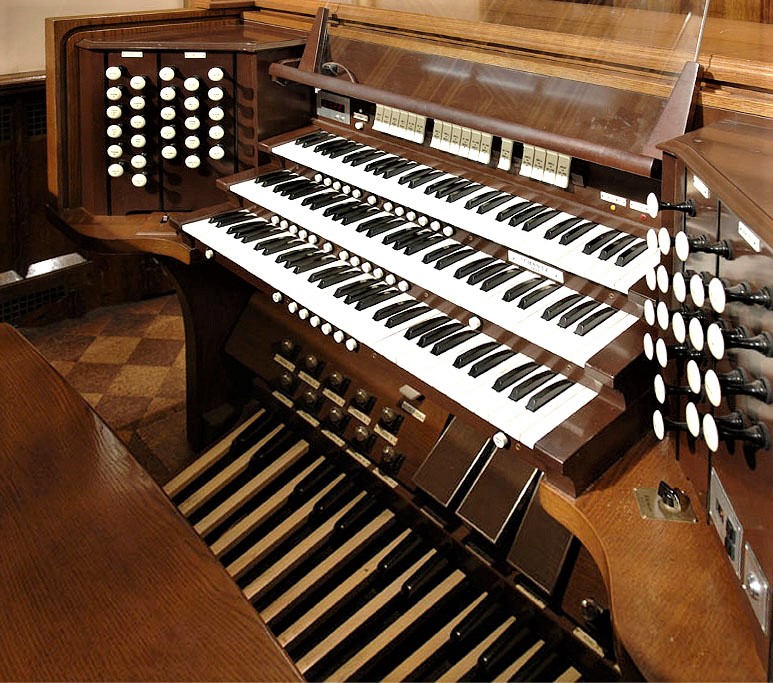

2002-09-09 - Console (Photograph via Steven E. Lawson/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
3 manuals
26 stops
37 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-08-04 - Identified through online information from Jeff Scofield. -- Retained the Chimes from 1931 3/27 Pilcher Op. 1525 -Database Manager

Stoplist

Stoplist from nycago.org Source: Source not recorded Date not recorded

     New York, New York
     First Reformed Episcopal Church

     Schantz   Op. 2054   1993   3/31
     _______________________________________________

     GREAT                         CHOIR
  8' Principal        61        8' Cor de Nuit    61
  8' Bourdon          61        4' Prestant       61
  4' Octave           61        4' Koppelflöte    61
  4' Waldflöte        61    2 2/3' Nazard         61
  2' Super Octave     12        2' Gemshorn       61
 IV  Fourniture      244    1 3/5' Tierce         61
  8' Trumpet          61        8' Schalmei       61
     Sub                           Tremulant
     Unison Off                    Sub
     Super                         Unison Off
     Chimes                        Super

     SWELL                         PEDAL
  8' Rohrflöte        61       16' Principal      12 GT
  8' Salicional       61       16' Subbass        32
  8' Voix Celeste     49       16' Bourdon        12 SW
  4' Principal        61        8' Principal      32
  4' Harmonic Flute   61        8' Bass Flute     12
  2' Harmonic Piccolo 12        4' Choralbass     32
III  Plein Jeu       183        4' Stopped Flute  12
 16' Basson           61       II  Mixture        64
  8' Trompette        61       16' Trombone       12 GT
  8' Hautbois         12       16' Basson         SW
  4' Clairon          12        8' Trumpet        GT
     Tremulant                  4' Hautbois       SW
     Sub
     Unison Off
     Super

    [Received online from Jeff Scofield August 4, 2011]
