Madison Avenue Presbyterian Church: Sanctuary
921 Madison Ave. at 73rd St.
New York City: Manhattan, NY
Images

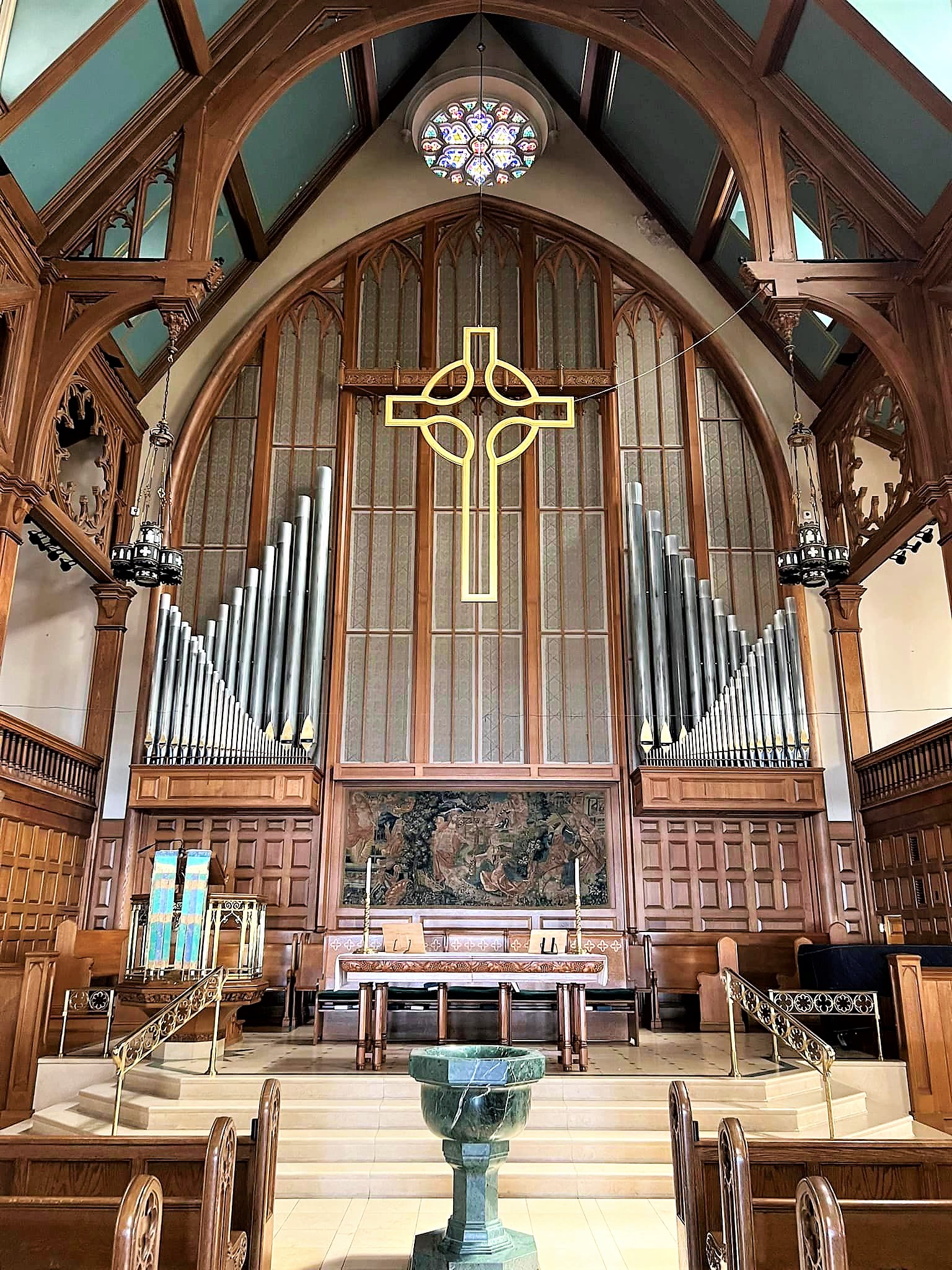

2023-08-01 - Chancel, organ chamber and exposed pipes (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

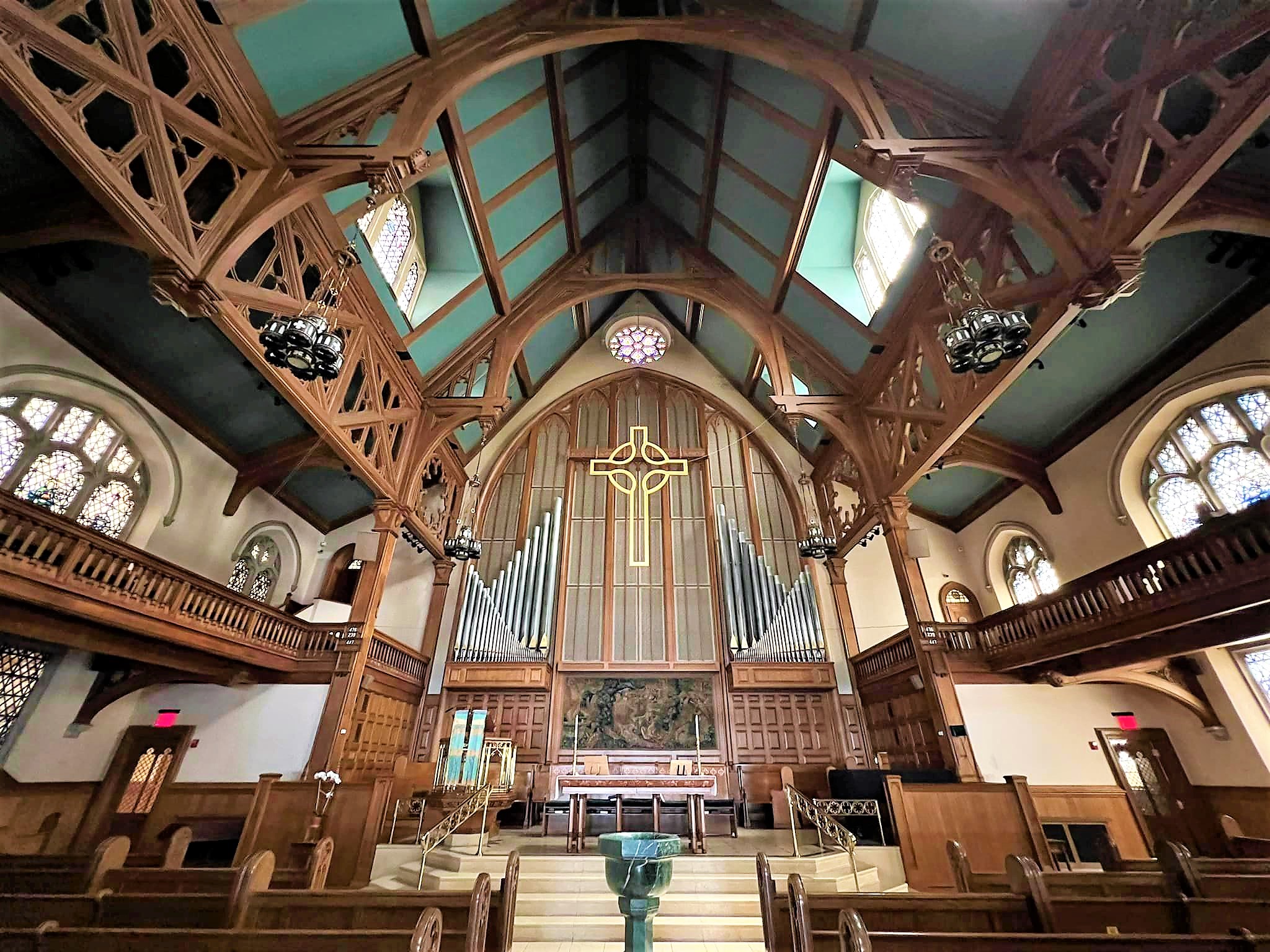

2023-08-01 - Front of church interior (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

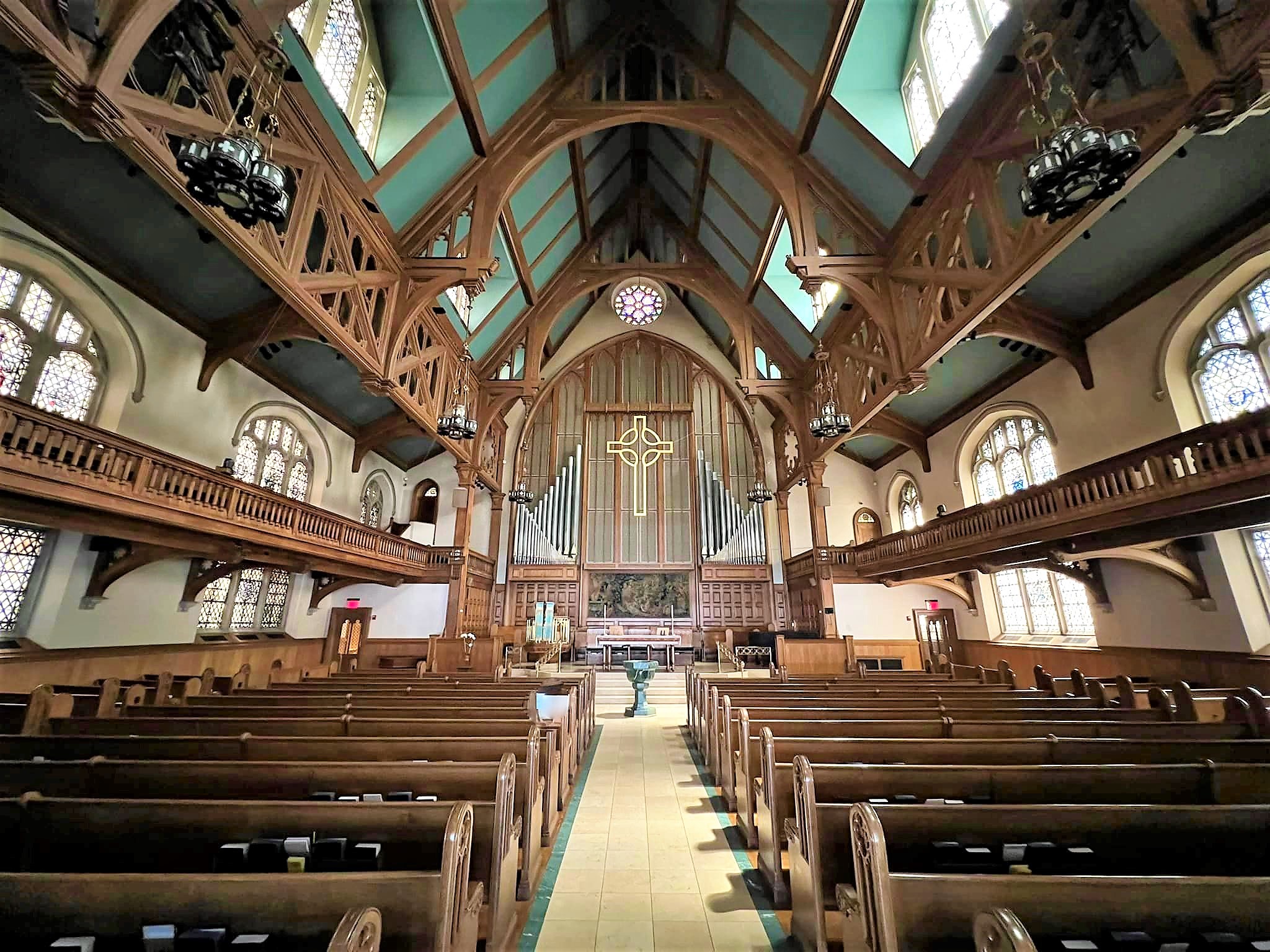

2023-08-01 - Church interior from floor (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

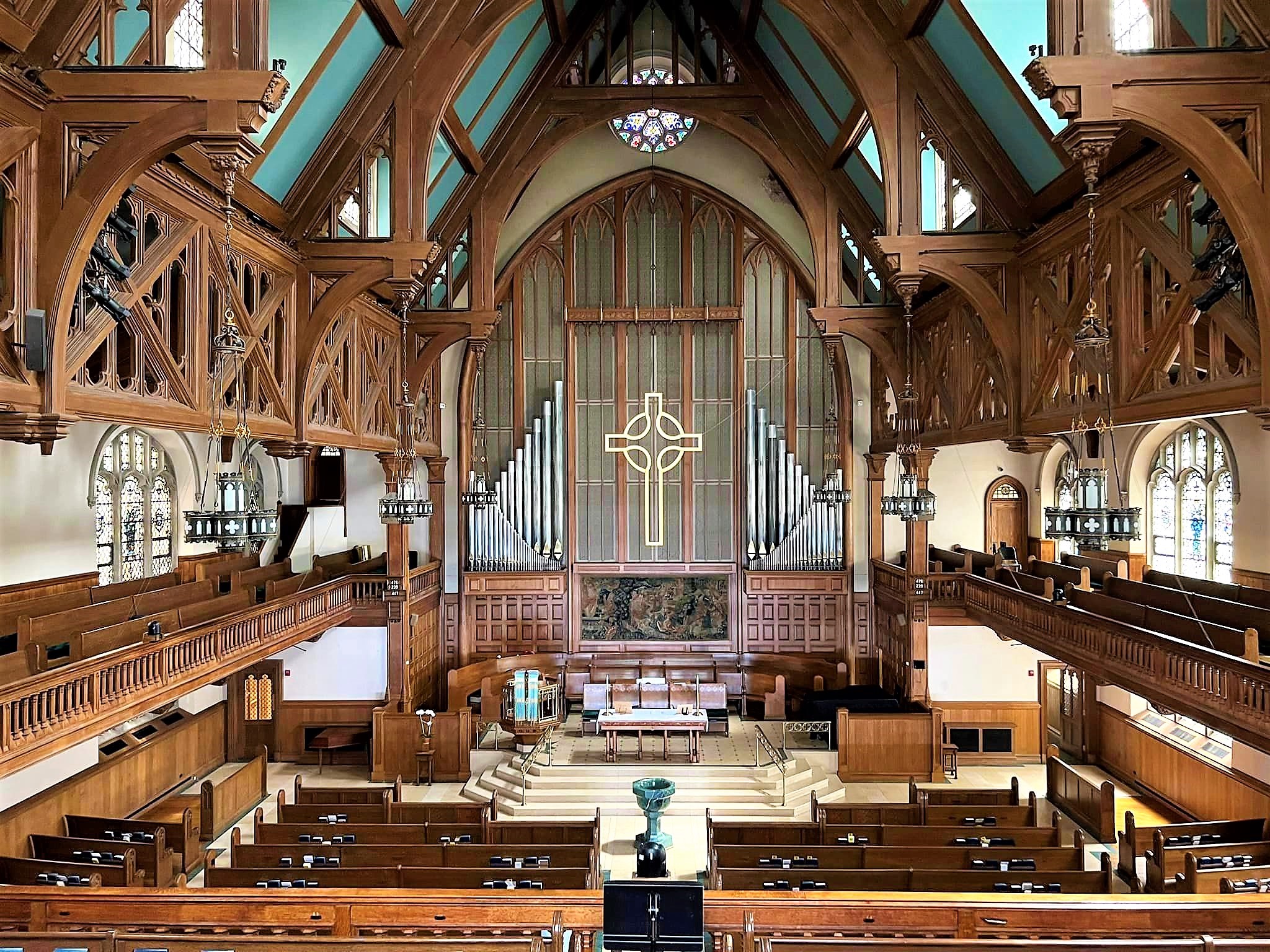

2023-08-01 - Church interior from balcony (Photograph by Kevin R. Cartwright, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

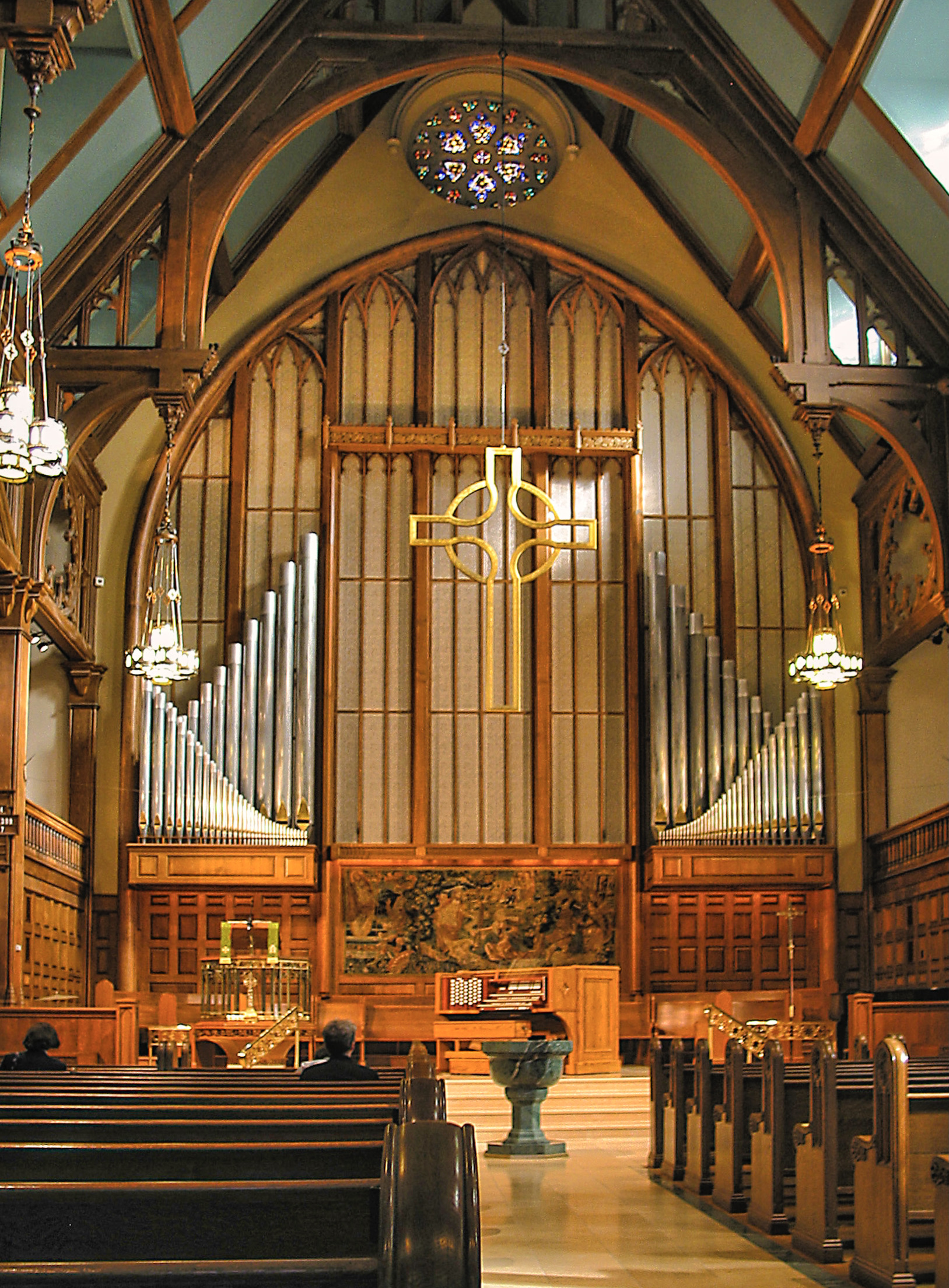

2004-08-21 - Facade and console (Photograph by Joe Routon/Brad Engelland)

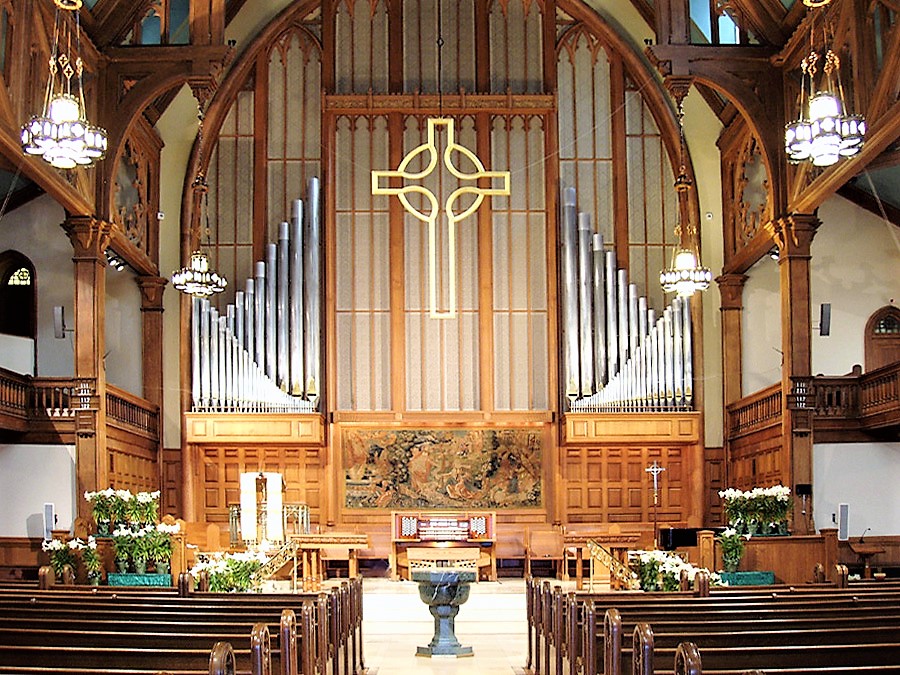

2002-09-09 - Sanctuary interior (Photograph by Steven E. Lawson/Database Manager)

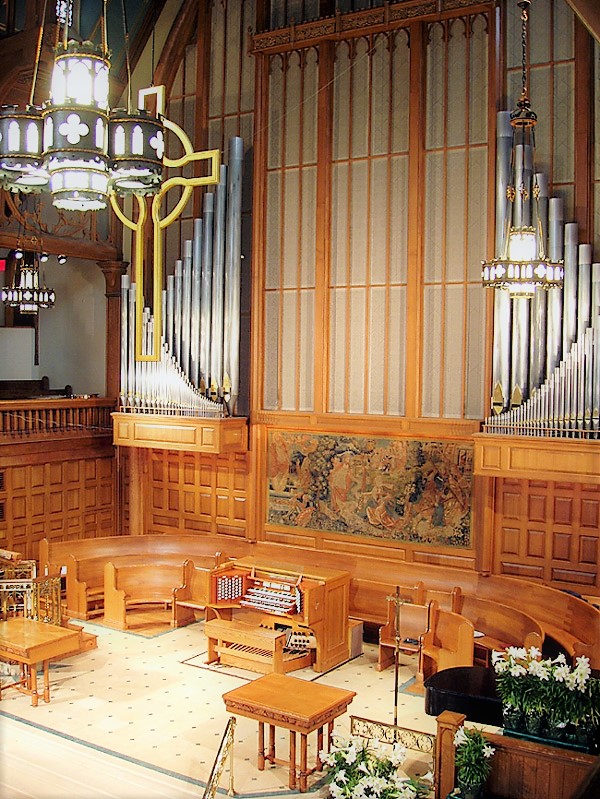

2002-09-09 - Chancel, console and exposed pipes (Photograph by Steven E. Lawson/Database Manager)

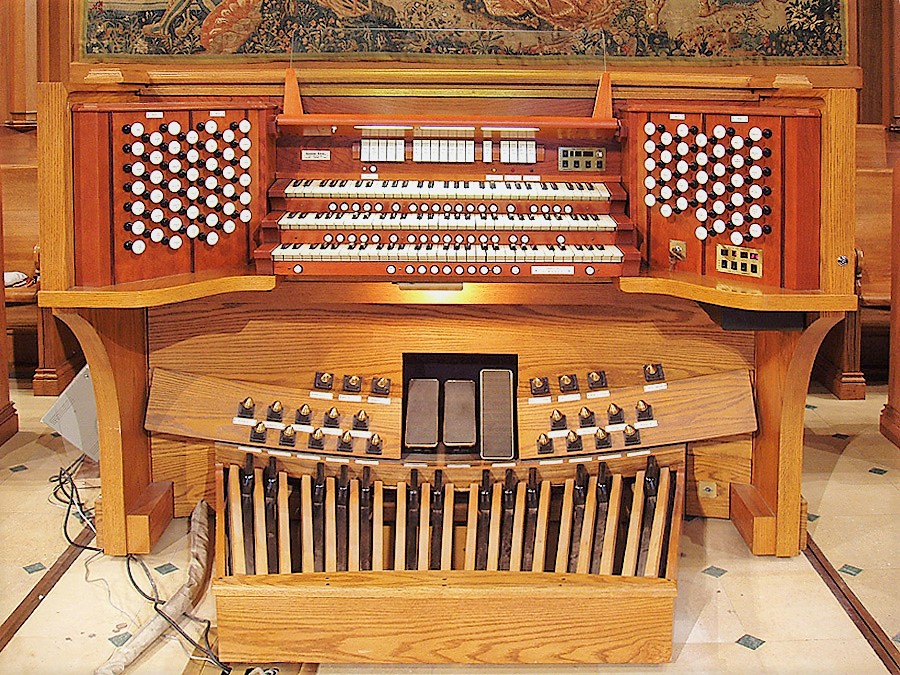

2002-09-09 - Console (Photograph by Steven E. Lawson/Database Manager)

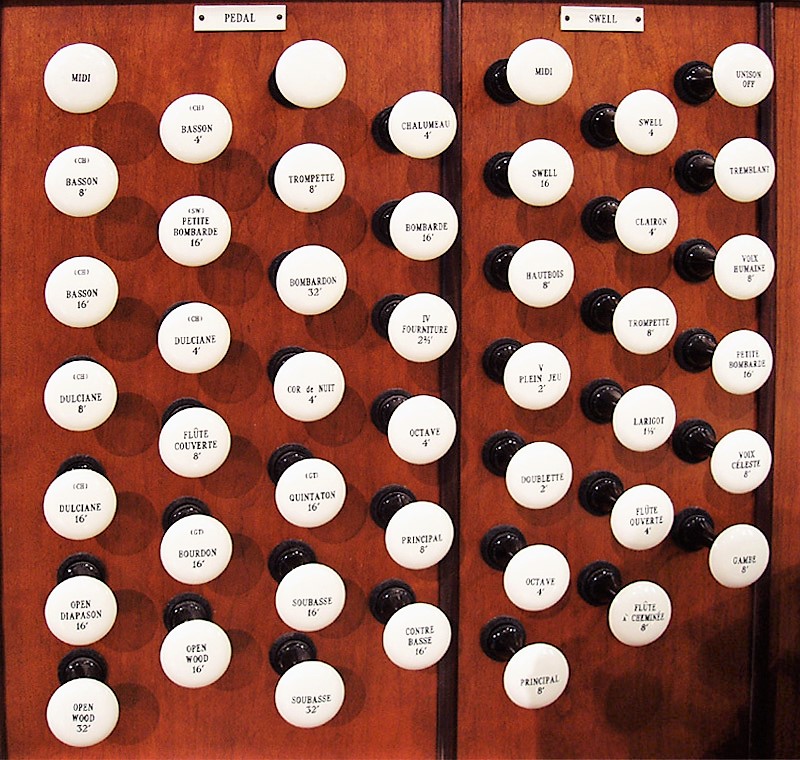

2002-09-09 - Left Stopjamb (Photograph by Steven E. Lawson/Database Manager)

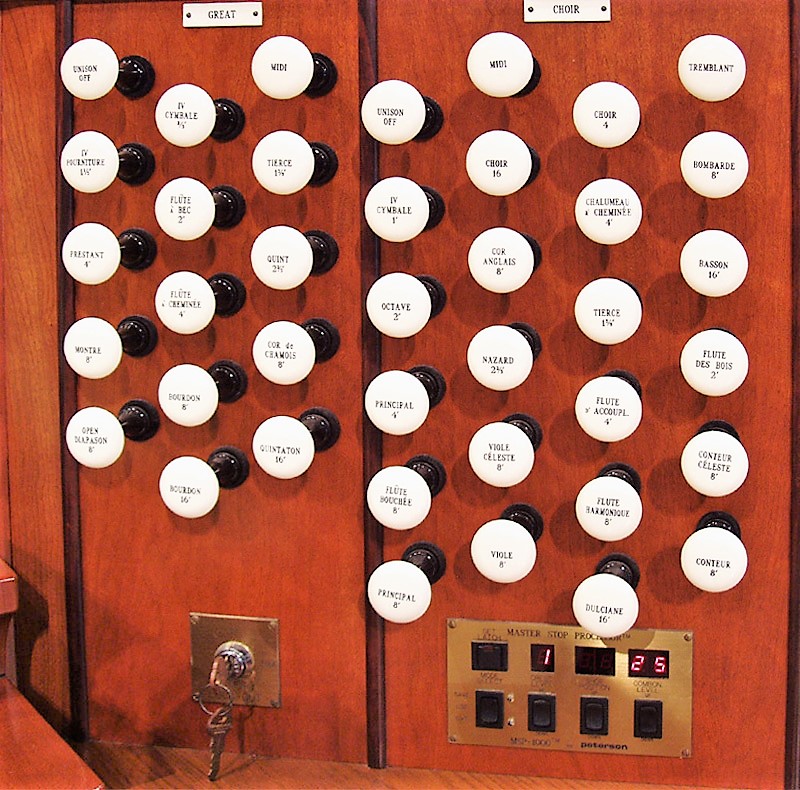

2002-09-09 - Right Stopjamb (Photograph by Steven E. Lawson/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 3 manuals
- 67 stops
- 57 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2011-08-04 - Identified through online information from Jeff Scofield. -- The contract was for a new console, two additional pipe stops and three additional digital stops. -Database Manager
Stoplist
Stoplist from nycago.org Source: Source not recorded Date not recorded
New York, New York
Madison Avenue Presbyterian Church
Schantz Op. 2186 2000 3/73
New console and additional stops for
Casavant Op. 2660, installed in 1961
_____________________________________________________
* added by Schantz
GREAT SWELL
* 16' Bourdon dg 8' Principal 68
16' Quintaton 61 8' Flûte à Cheminée 68
* 8' Open Diapason 61 8' Gambe 68
8' Montre 61 8' Voix Céleste 68
8' Bourdon 61 4' Octave 68
8' Cor de Chamois 61 4' Flûte Ouverte 68
4' Prestant 61 2' Doublette 61
4' Flûte à Cheminée 61 1 1/3' Larigot 61
2 2/3' Quinte 61 V Plein Jeu 305
2' Flûte à Bec 61 16' Bombarde 68
1 3/5' Tierce 57 8' Trompette 68
IV Fourniture 244 8' Hautbois 68
IV Cymbale 244 8' Voix Humaine 68
Unison Off 4' Clairon 68
MIDI Tremblant
Sub
PEDAL Unison Off
* 32' Open Wood dg Super
32' Soubasse 32 MIDI
* 16' Open Wood dg
16' Open Diapason 32 CHOIR
16' Contrebasse 32 16' Dulciane 68
16' Soubasse 12 * 8' Principal (unencl) 61
16' Quintaton GT 8' Flûte Harmonique 68
* 16' Bourdon GT 8' Viole 68
16' Dulciane CH 8' Viole Céleste 68
8' Principal 32 8' Flûte Bouchée 68
8' Flûte Couverte 32 8' Conteur 68
8' Dulciane CH 8' Conteur Céleste 68
4' Octave 32 4' Principal 68
4' Cor de Nuit 32 4' Flûte d'Accouplement 68
4' Dulciane CH 2 2/3' Nazard 61
IV Fourniture 128 2' Octave 61
32' Bombardon L/2 32 2' Flûte des Bois 61
16' Bombarde 32 1 3/5' Tierce 61
16' Petite Bombarde SW IV Cymbale 244
16' Basson CH 16' Basson 68
8' Trompette 32 8' Cor Anglais 68
8' Basson CH 4' Chalumeau à Cheminée 68
4' Chalumeau 32 Tremblant
4' Basson CH 8' Bombarde (unencl) 68
Blank Sub
MIDI Unison Off
Super
MIDI
[Received online from Jeff Scofield August 4, 2011]
