Lauck Pipe Organ Co. (2012)

Pillar Church: Sanctuary
57 East 10th Street
Holland, MI

Images

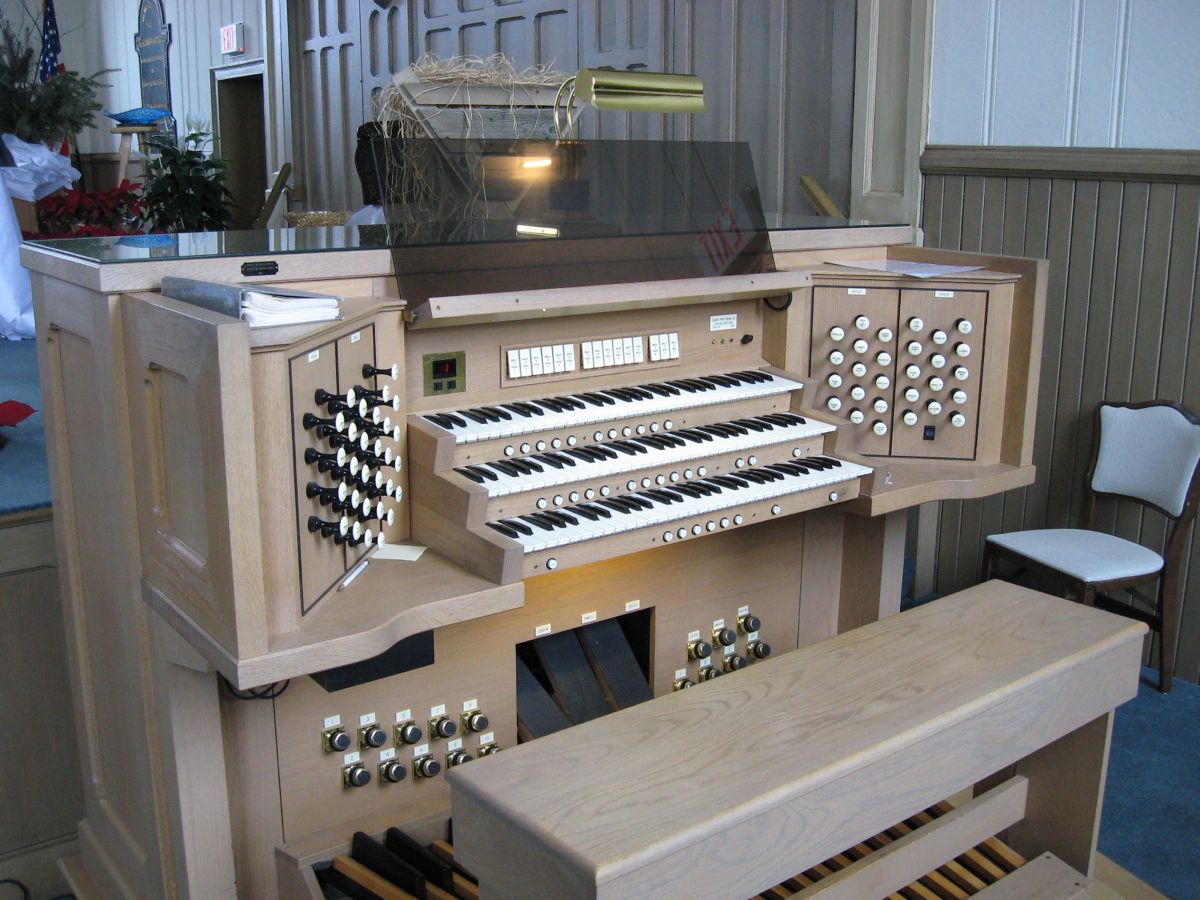

2012-12-28 - Console (Photograph by Chad Boorsma/Database Manager)

2009-07-09 - Sanctuary Interior, Chancel, and Pipe Facade (Photograph by Chad Boorsma/Database Manager)

2009-07-09 - Pipe Facade (Photograph by Chad Boorsma/Database Manager)

2012-12-28 - Sanctuary Interior, Chancel, and Pipe Facade (Photograph by Chad Boorsma/Database Manager)

2012-12-28 - Nave and Balcony (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
3 manuals
36 stops
49 registers
40 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2013-01-06 - Lauck Pipe Organ Company completed some tonal revisions at this time with many of the reed stops; three ranks were also added. Lauck previously completed work on the organ in 1996, 1999, and 2003. The organ also contains some pipework from the church's 1928 Hinners organ and from work done in 1966 by the Stoltz Piano and Organ Company. The instrument's beautiful facade was created in 1996 and resembles the church's 1900 Barkhoff organ. -Database Manager

Stoplist

Stoplist taken from the console (December 28, 2012) Source: Source not recorded Date not recorded

Holland, Michigan
PILLAR CHURCH

Lauck Pipe Organ Company     Opus 52     44 ranks     2012

Work also completed by Lauck in 1996, 1999, and 2003
_______________________________________________________________

GREAT:                          SWELL:
   16' Lieblich Gedeckt 61          8' Diapason 61
    8' Principal 61                 8' Rohrflute 61
    8' Spitzflute 61                8' Viola Pomposa 61
    4' Octave 61                    8' Viola Celeste [TC] 49
    4' Hohlflute 61                 4' Principal 61
2 2/3' Nazard 61                    4' Flute Harmonique 61
    2' Super Octave 61              2' Octave 12
    2' Blockflute 61               IV  Plein Jeu 220
1 3/5' Tierce 61                   16' Bassoon 12
  III  Mixture 183                  8' Trompette 61
    8' Trumpet 61                   8' Hautbois 61
       Tremulant                    4' Clairon 12
       Chimes                          Tremulant
    8' Hooded Trumpet [CH]
                                PEDAL:
CHOIR:                             32' Untersatz
    8' Gedeckt 61                  32' Contra Bourdon
    8' Salicional 61               16' Principal 32
    8' Voix Celeste [TC] 49        16' Bourdon 32
    4' Principal 61                16' Gedeckt [GT]
    4' Koppelflute 61               8' Octave 32
    2' Doublette 61                 8' Bourdon 12
1 1/3' Larigot 61                   8' Gedeckt [GT]
  III  Scharf 183                   4' Choralbass 12
    8' Clarinette 61               II  Mixture 64
    8' Orchestral Oboe 61          16' Trombone 32
       Tremulant                   16' Bassoon [SW]
    8' Hooded Trumpet 61            8' Trompette 12
                                    4' Clairon 12

[Received online from Chad Boorsma • January 6, 2013]
