Lauck Pipe Organ Co. (2003)

Pillar Church: Sanctuary
57 E. 10th Street
Holland, MI

Images

2009-07-09 - Church exterior (Photograph by Chad Boorsma/Database Manager)

2009-07-09 - Church interior (Photo by Chad Boorsma/Database Manager)

2009-07-09 - Church interior from rear gallery (Photo by Chad Boorsma/Database Manager)

2009-07-09 - Facade (Photo by Chad Boorsma/Database Manager)

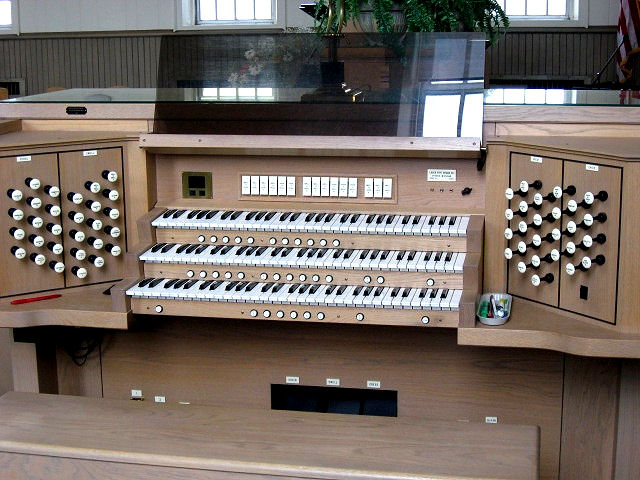

2009-07-09 - Console (Photo by Chad Boorsma/Database Manager)

2009-07-09 - Keys and stopjambs (Photo by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Right
3 manuals
33 stops
48 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-07-11 - Identified through online information from Chad Boorsma -- Nine new ranks were also added at this time, included two 32' electronic stops, bringing the organ to 41 ranks. Lauck had completed work previously on the organ in 1996 and 1999. Three additional ranks were added by Lauck in 2012. -Database Manager

Stoplist

Stoplist taken from the console (July 9, 2009) and from organ brochure Source: Source not recorded Date not recorded

Holland, Michigan
PILLAR CHRISTIAN REFORMED CHURCH

Lauck Pipe Organ Company
Opus 52  1999
Organ expanded to 41 ranks by Lauck in 2003

GREAT: (12 ranks)                     SWELL: (12 ranks)
   16' Lieblich Gedeckt                   8' Diapason
    8' Principal                          8' Rohrflute
    8' Spitzflute                         8' Viola Pomposa
    4' Octave                             8' Viola Celeste
    4' Hohlflute                          4' Principal
2 2/3' Nazard                             4' Koppelflute
    2' Superoctave                        2' Octave
    2' Blockflute                        IV  Plein Jeu
1 3/5' Tierce                            16' Bassoon
  III  Mixture                            8' Trompette
    8' Festival Trumpet                   8' Oboe
       Chimes                             4' Clarion
       Tremulant
                                      PEDAL: (6 ranks)
CHOIR: (11 ranks)                        32' Contra Bourdon
    8' Gedeckt                           32' Untersatz
    8' Salicional                        16' Principal
    8' Voix Celeste                      16' Subbass
    4' Principal                         16' Lieblich Gedeckt
    4' Flute Harmonique                   8' Octave
    2' Doublette                          8' Bourdon
1 1/3' Larigot                            8' Gedeckt
  III  Scharff                            4' Choralbass
    8' Krummhorn                         II  Mixture
       Tremulant                         16' Bombarde
                                         16' Bassoon
COMBINATION FEATURES:                     8' Trumpet
   10 General Pistons                     4' Clarion
   10 General Toe Studs
    5 Divisional Pistons               OTHER FEATURES:
    4 Pedal Toe Studs                     64 Levels of Memory
                                          Playback Capability

[Received on line from Chad Boorsma July 12, 2009.]
