Better Pipe Organ Database

M. P. Möller Opus R-828 (1970)

St. John's Lutheran Church: Sanctuary
141 S. Potomac St.
Hagerstown, MD

Images

1990-01-20 - Console (Photograph by Jeff Scofield/Database Manager)

1990-01-20 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)

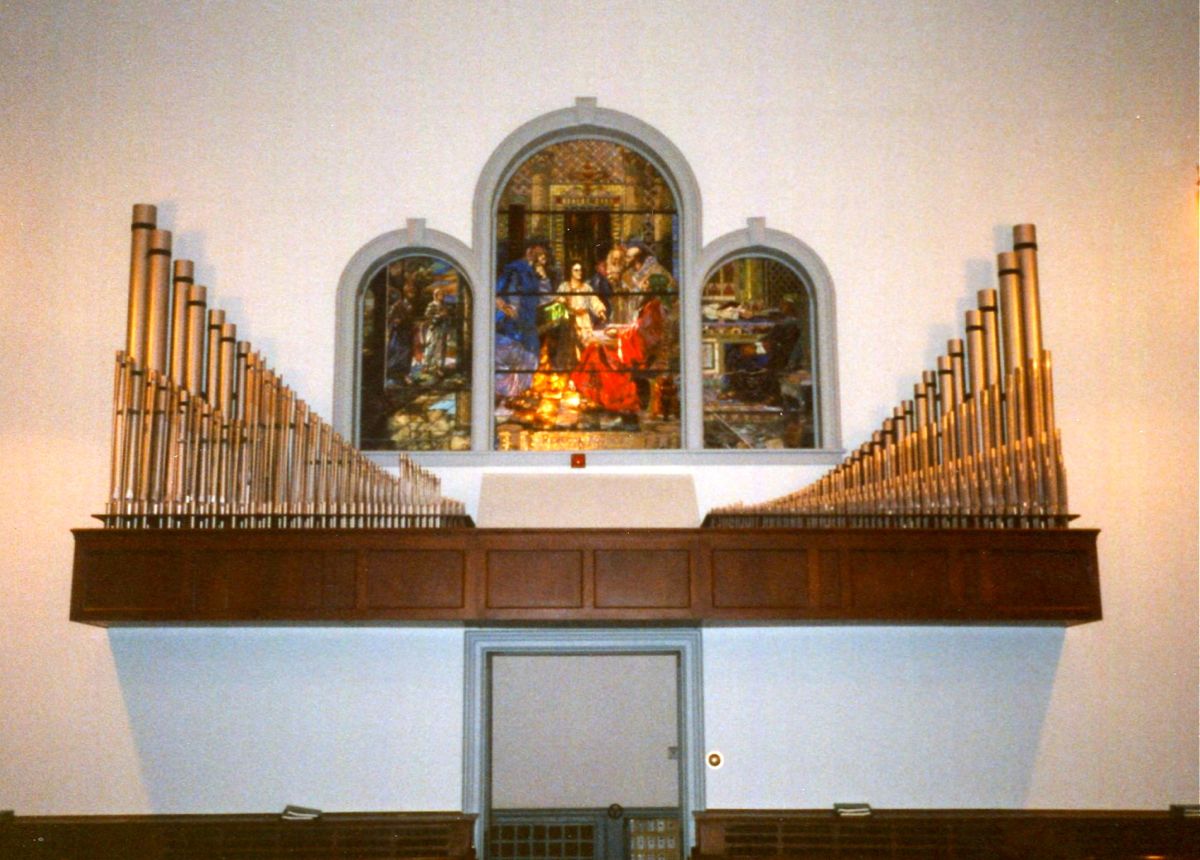

1990-01-20 - Antiphonal Pipe Display (Photograph by Jeff Scofield/Database Manager)

2022-07-11 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
4 manuals
68 stops
46 registers
6 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2013-02-10 - This is a rebuild of an existing organ. Identified by Jeff Scofield, using information found in Factory specifications. -- The console was updated in 1996, at which time the Swell Trompette was replaced; in 2003, a "new ornamental façade" was installed by Eastern Organ Pipes, Inc., to replaced the screens; the organ was renovated by the Hagerstown Organ Company 2005-2007, assisted by Steiner Murphy Organ Co.; some of the reed stops were refurbished by Trivo. -Database Manager

2013-02-11 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Hagerstown, Maryland
       St. John's Evangelical Lutheran Church

       Möller   Op. 6000    1931   4/51
       Möller   Op. R-828   1970   4/57
       ___________________________________________________

       GREAT                            CHOIR
   16' Quintaton         73 *       16' Dulciana        61
    8' Principal         61 *        8' Viola Pomposa   73 b
    8' Holzgedeckt       73          8' Viola Celeste   61
    8' Quintaton         12 *        8' Concert Flute   73
    8' Gemshorn          73          8' Dulciana        12
    4' Octave            61 *        8' Unda Maris      61
    4' Spitzflöte        61 *        8' Quintadena      73
    2' Super Octav       61 *        4' Principal       61
    2' Blockflöte        61 *        4' Flute           12
   IV  Fourniture       244 *    2 2/3' Dulciana Quinte 19
  III  Cymbel           183 *        2' Piccolo         61
    8' Trompet           73          1' Sifflöte        61 c
       Tremulant                     8' Krummhorn       73
       Chimes            25             Tremulant
       Harp              EL             Sub
       Celesta           EL             Unison Off
       Carillonic Bells                 Super
       Zimbelstern                      Chimes GT
       Blank                            Harp            EL
                                        Celesta         EL
       SWELL                            Zimbelstern
   16' Lieblich Gedeckt  73
    8' Geigen            73             PEDAL
    8' Rohrflöte         73         32' Resultant       --
    8' Gedeckt           12         16' Principal       32
    8' Salicional        73         16' Bourdon         32
    8' Voix Celeste      61         16' Violone         32
    8' Aeoline           73         16' Quintaton       GT
    4' Principal         61 *       16' Lieblich        SW
    4' Flute             73         16' Dulciana        CH
2 2/3' Nasard            61 *        8' Octave          12
    2' Principal         12 *        8' Major Flute     12
    2' Flute             61 *        8' Violoncello     12
1 3/5' Terz              61 *        4' Octave          12
1 1/3' Larigot           61 *        4' Flute           SW
  III  Scharf           183 *      III  Mixture         96
   16' Fagotto 1-18 L/2  61 *       16' Posaune         12 GT
    8' Trompette         73 *       16' Fagotto         SW
    8' Fagotto           12 *        8' Posaune         GT
    8' Vox Humana        61          4' Fagotto         SW
    4' Fagotto           12 *
       Tremulant                        ANTIPHONAL PEDAL
       Sub                          16' Pedal Gedeckt   AN
       Unison Off
       Super                            BLANK DIVISION NAME
       Carillonic Bells  GT             Blank
                                        Blank
       ANTIPHONAL (exposed)             Blank
    8' Gedeckt           61 *           Blank
    8' Erzähler          61 *           Blank
    4' Principal         61 *           Blank
  III  Mixture          183 *           Blank
    8' Petite Trompette  61 *a          Blank
   16' Pedalgedeckt      12 *           Blank
       Blank
       Blank
       Blank

    *  new pipework
    a  1-12 half-length
    b  1-12 new pipes; 13-73 present SW 4 Geigen
    c  1-49 present 2 2/3; 50-61 new pipes

      [Received online from Jeff Scofield February 9, 2013]

Documents

(1969-11-06) Factory specifications, OHS Archives via Jeff Scofield Stoplist and accessories -Jeff Scofield
