Better Pipe Organ Database

Noack Opus 156 (2013)

Baptist Church of the Covenant: Sanctuary
2117 University Blvd.
Birmingham, AL

Images

2022-01-11 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

2022-01-11 - Builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

2022-01-11 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2022-01-11 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2022-01-11 - Console (Photograph by Jeff Scofield/Jeff Scofield)

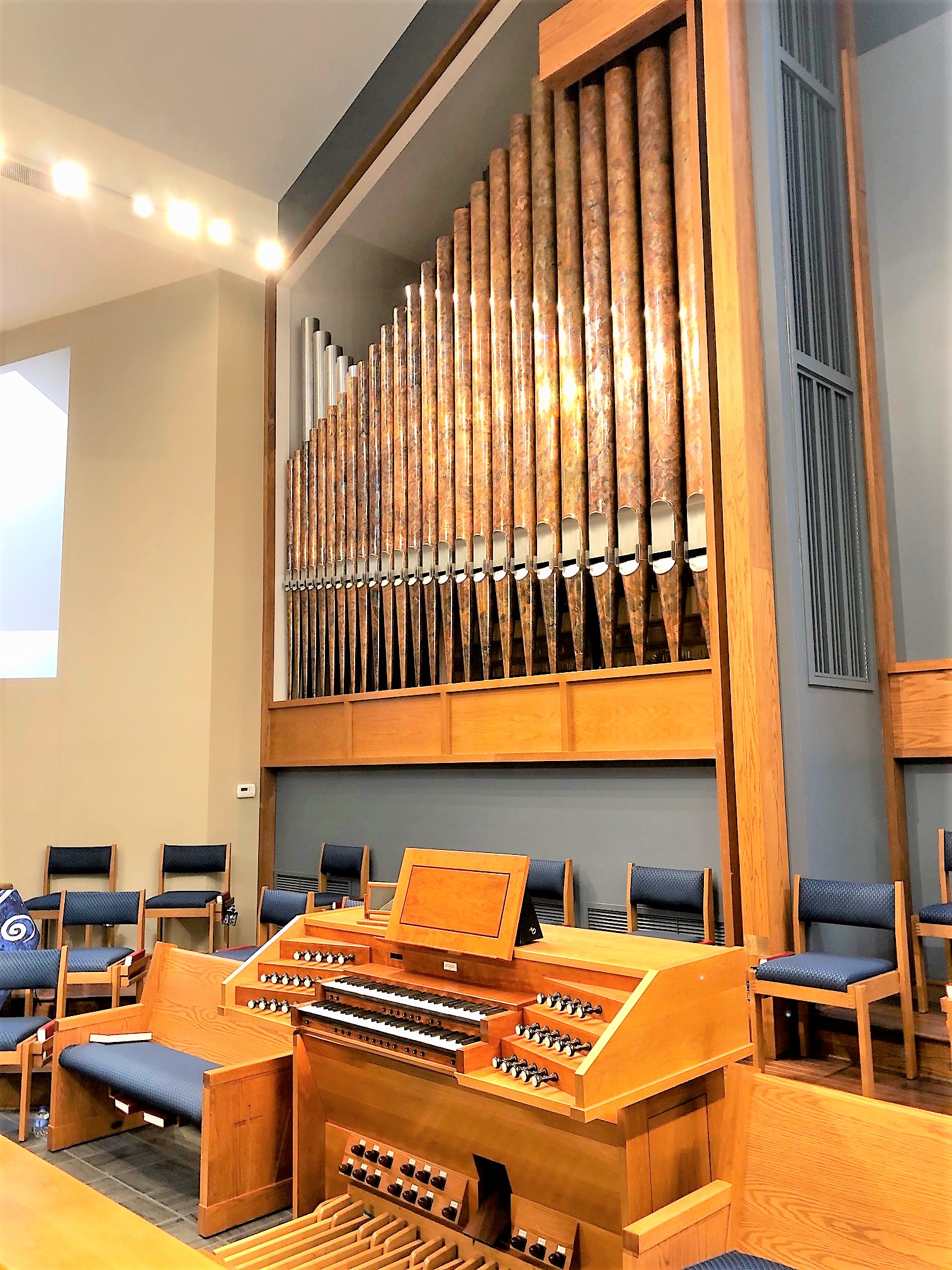

2022-01-11 - Console and organ case (Photograph by Jeff Scofield/Jeff Scofield)

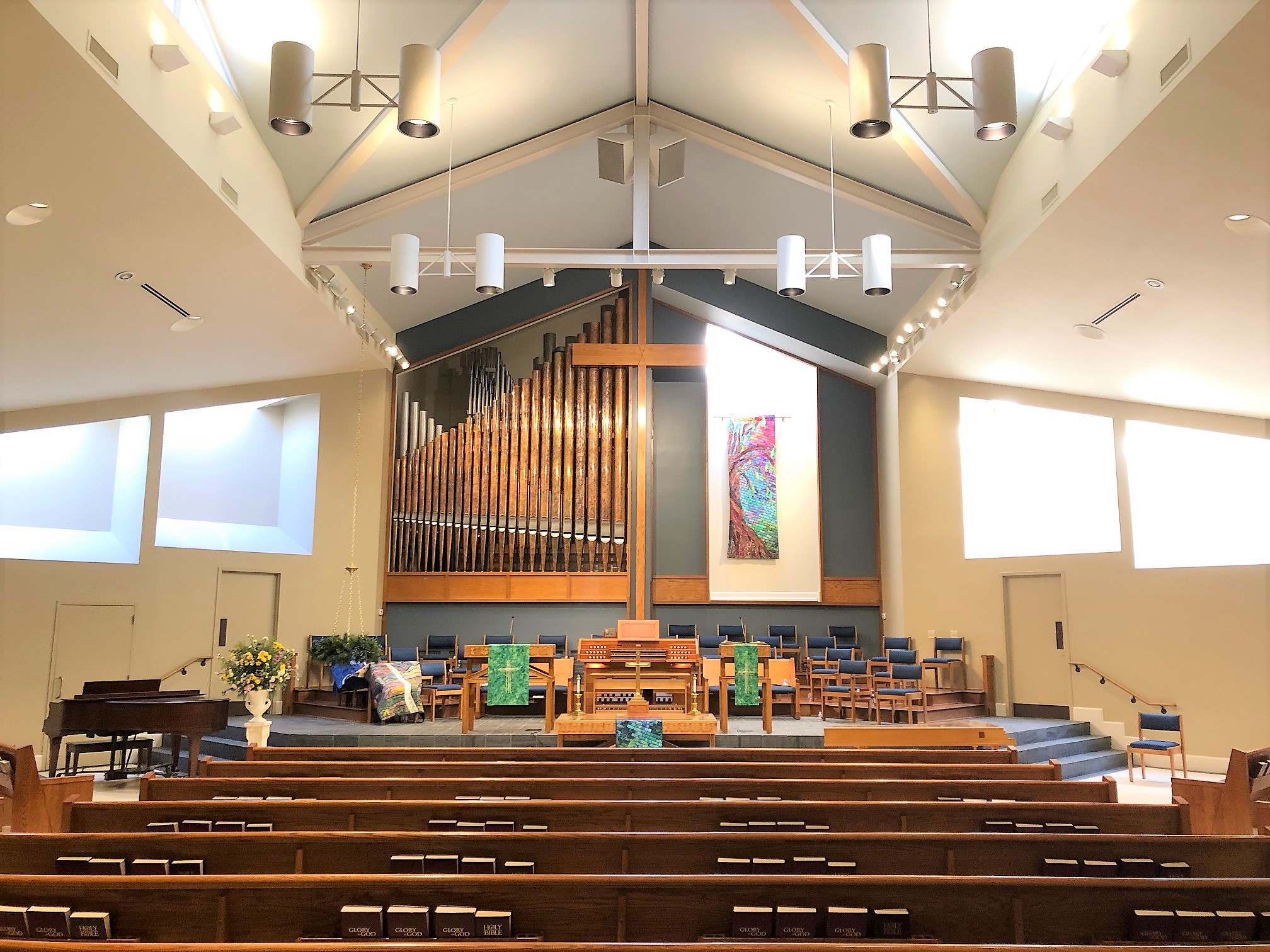

2022-01-11 - Church interior and organ case (Photograph by Jeff Scofield/Jeff Scofield)

2022-01-11 - Church interior from floor (Photograph by Jeff Scofield/Jeff Scofield)

2022-01-11 - Church interior from balcony (Photograph by Jeff Scofield/Jeff Scofield)

Unknown - Pipe Facade and Console (Photograph by Egress Photography/Database Manager)

Consoles

Main

Organ type: Horseshoe
Console position: Detached Keydesk (Mechanical Action)
2 manuals
27 stops
28 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 58 notes
Pedal compass: 32 notes
Pedal Type: Concave Straight
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons

Notes

2013-05-10 - A new organ installation. -Database Manager

2013-05-11 - Updated through online information from Dan lawhon. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Great
   Bourdon 16'
   First Diapason 8' (hammered lead in facade)
   Second Diapason 8'
   Chimney Flute 8'
   Octave 4'
   Harmonic Flute 4'
   Twelfth 2 2/3'
   Fifteenth 2'
   Seventeenth 1 3/5'
   Mixture IV  1 1/3'
   Trumpet 8'

Swell
   Diapason 8'
   Viola 8'
   Celeste 8'
   Gedackt 8'
   Prestant 4'
   Recorder 4'
   Gemshorn 2'
   Cornet III 2 2/3'
   Mixture III 2'
   Oboe 8'

Pedal
   Diapason 16'  (Flamed copper in facade)
   Bourdon 16'
   Open Bass 8'
   Gedackt 8'
   Octave 4'
   Trombone 16'
   Trumpet 8' (from Great)

 [Received from Dan Lawhon 2013-05-23.]
