Plymouth Congregational Church
3429 Devon Road
Miami, FL
Images

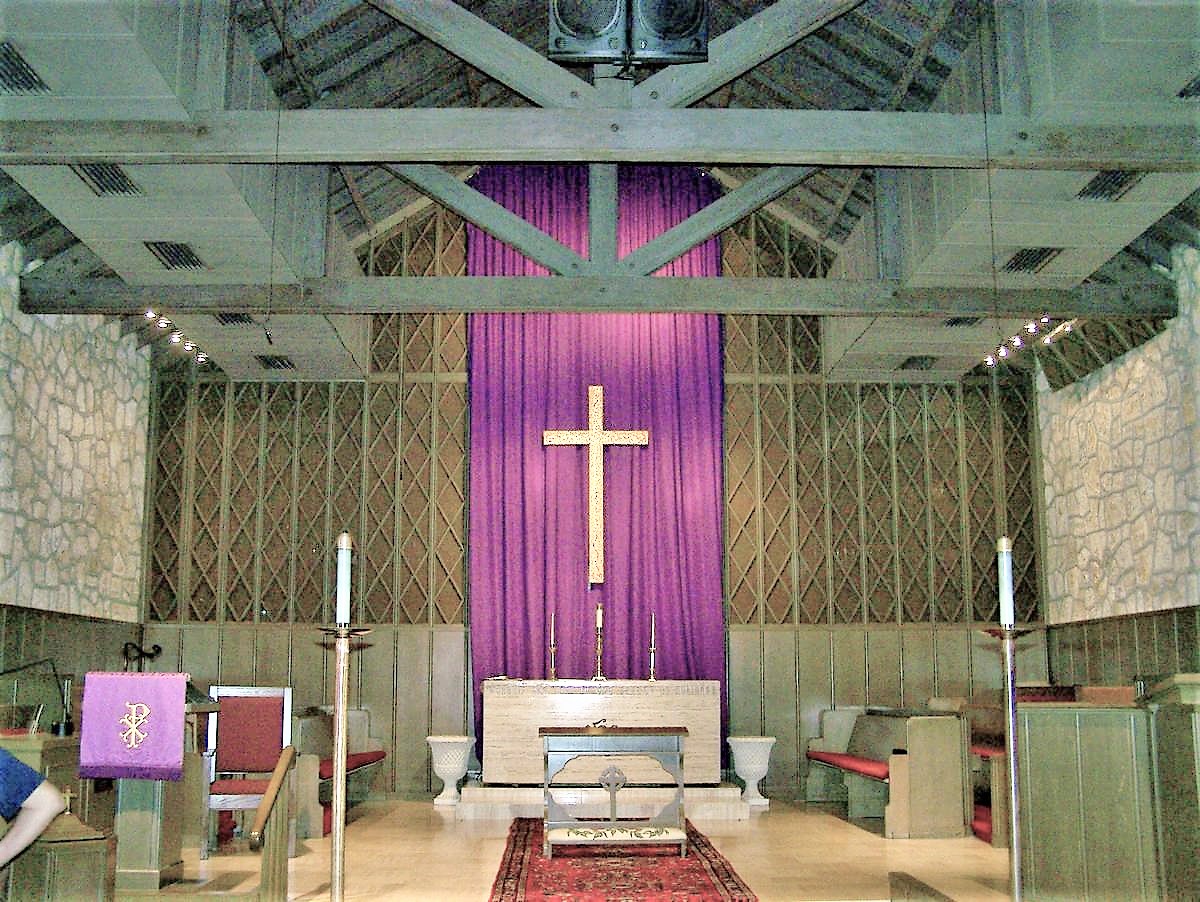

2007-03-29 - Chancel Before Facade Addition (Photograph by Douglas H. Cable/Jeff Scofield)

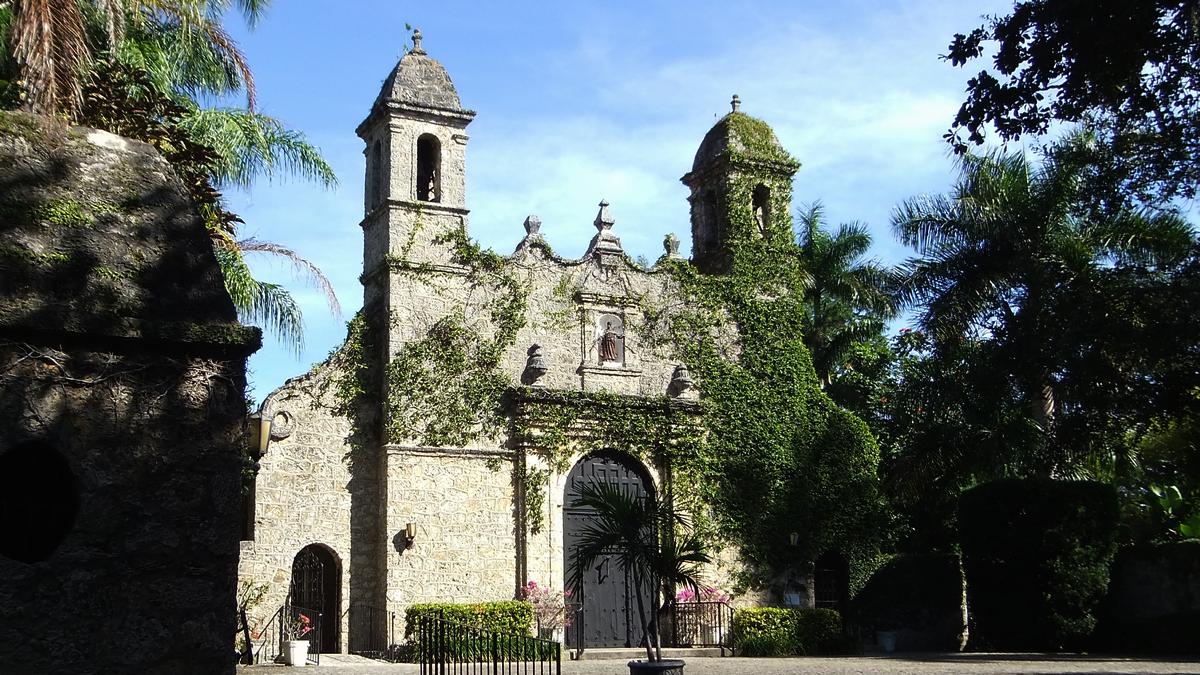

2012-01-18 - Church Exterior (Photograph by Douglas H. Cable/Database Manager)

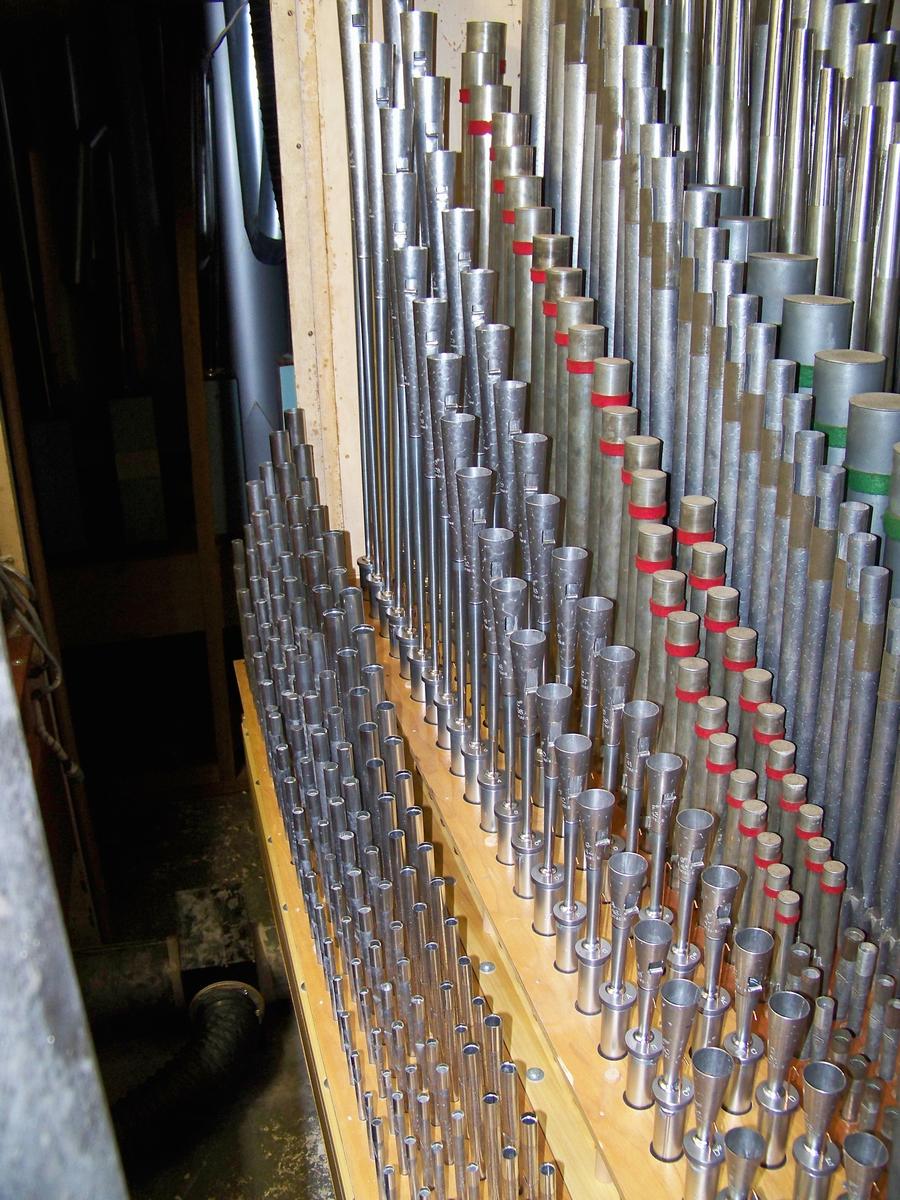

2007-03-29 - Swell Mixture Before Renovation (Photograph by Douglas H. Cable/Database Manager)

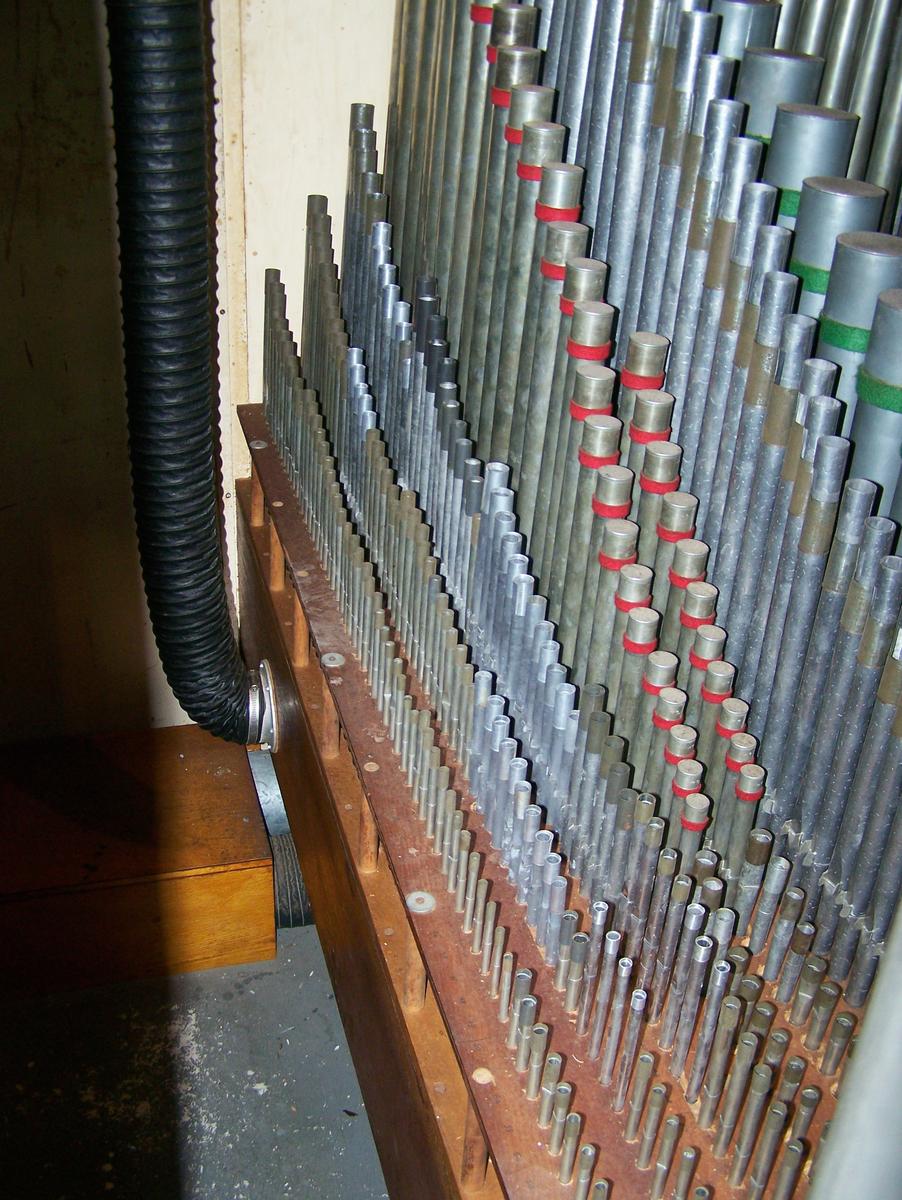

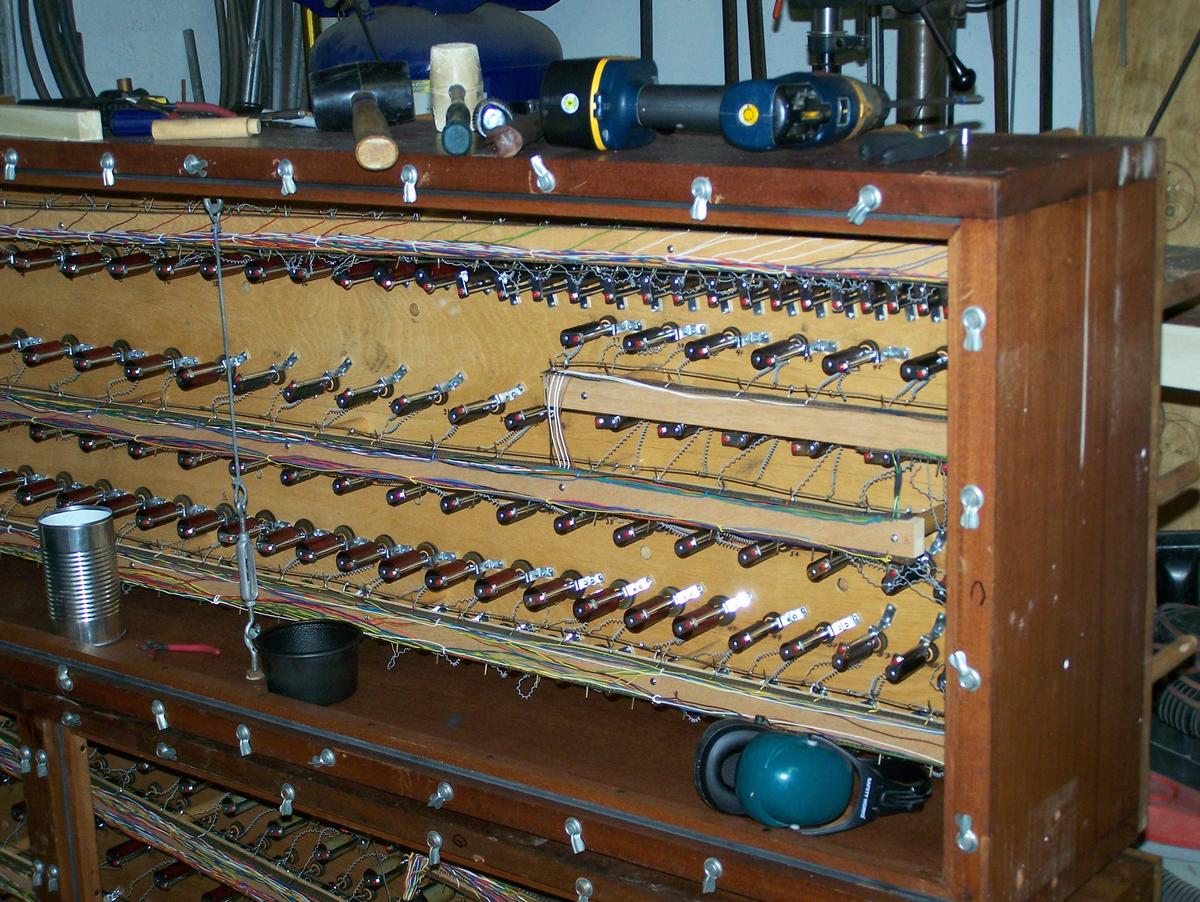

2008-08-27 - Positif Chest with Original Magnets (Photograph by Douglas H. Cable/Database Manager)

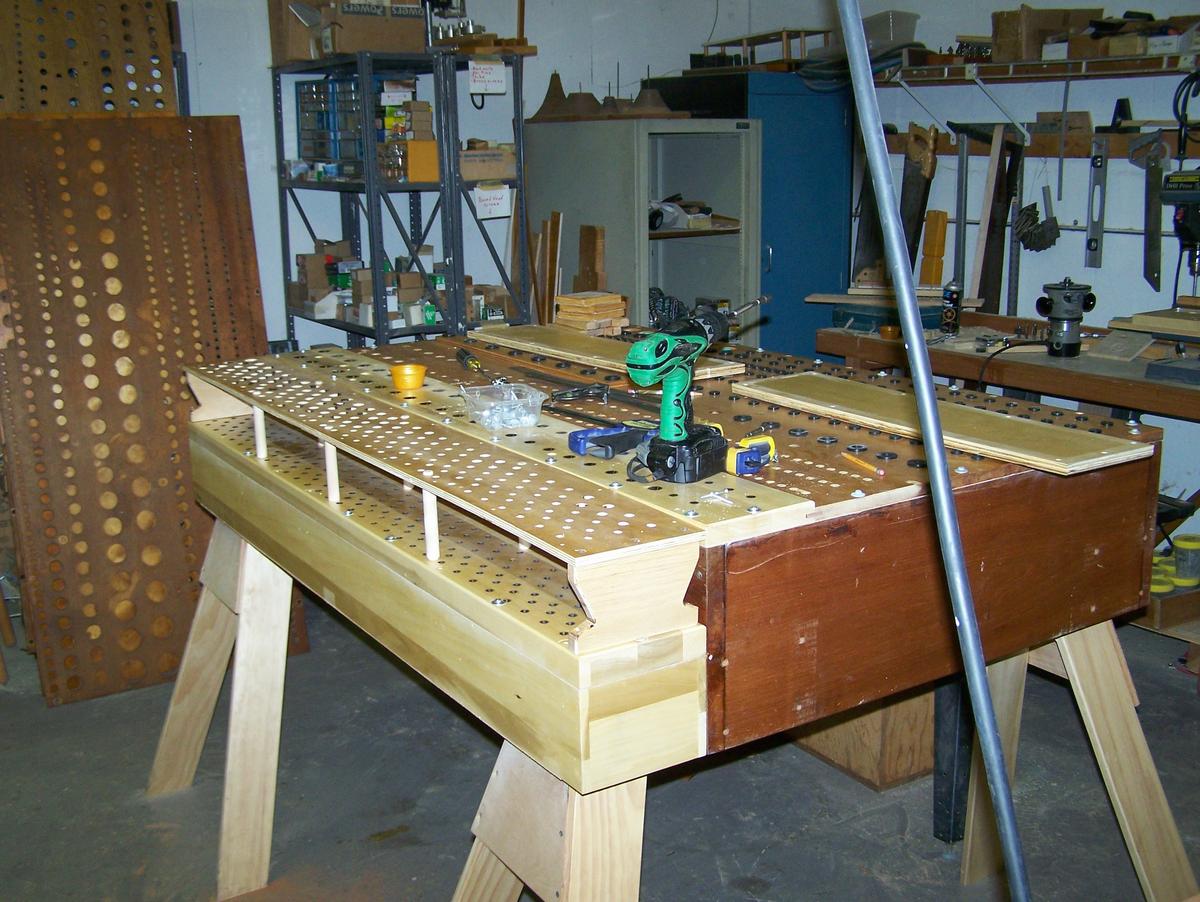

2008-08-27 - Swell Main Chest with Mixture chest and Oboe toe-board (Photograph by Douglas H. Cable/Database Manager)
2009-04-20 - Swell Main Chest Installed (Photograph by Douglas H. Cable/Database Manager)

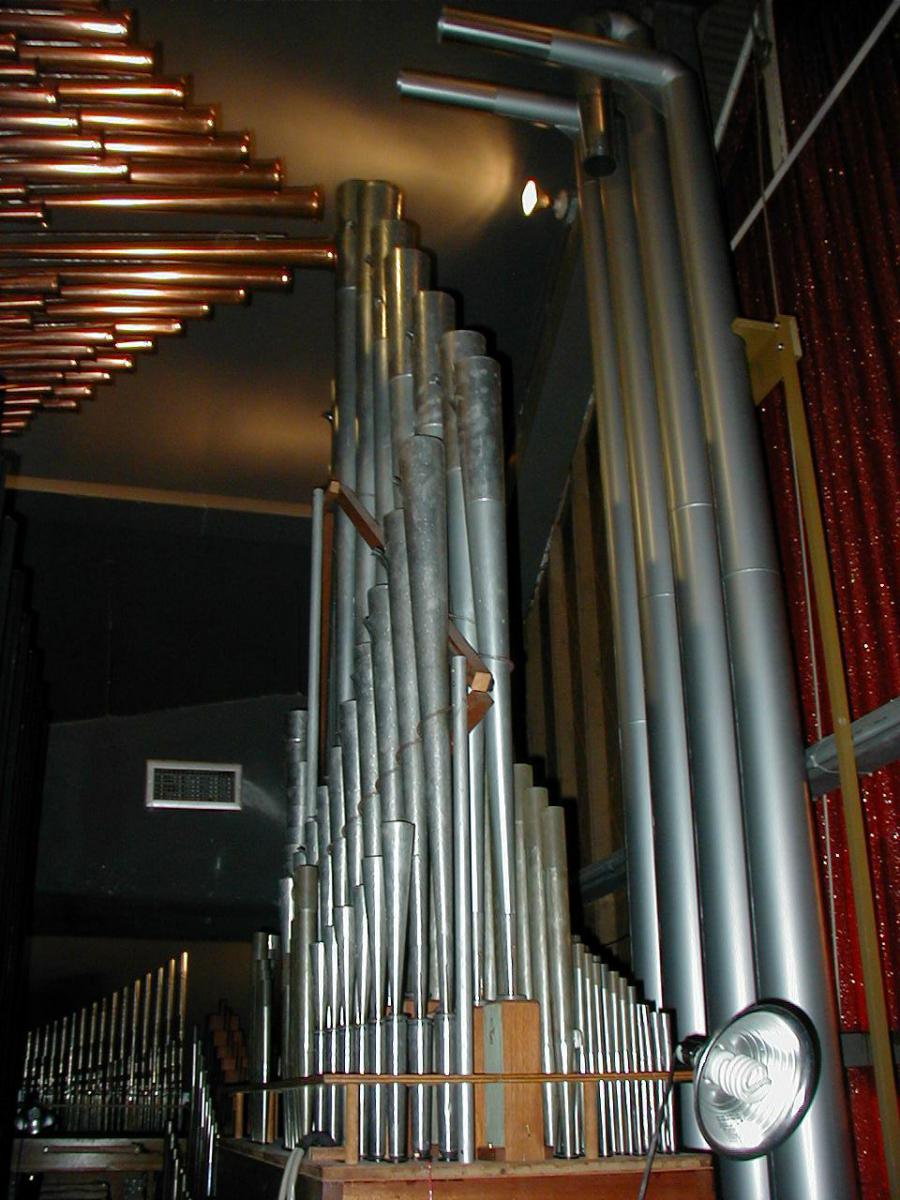

2009-05-28 - Pedal Upperwork, Gemshorn basses, & Chamade (Photograph by Douglas H. Cable/Database Manager)

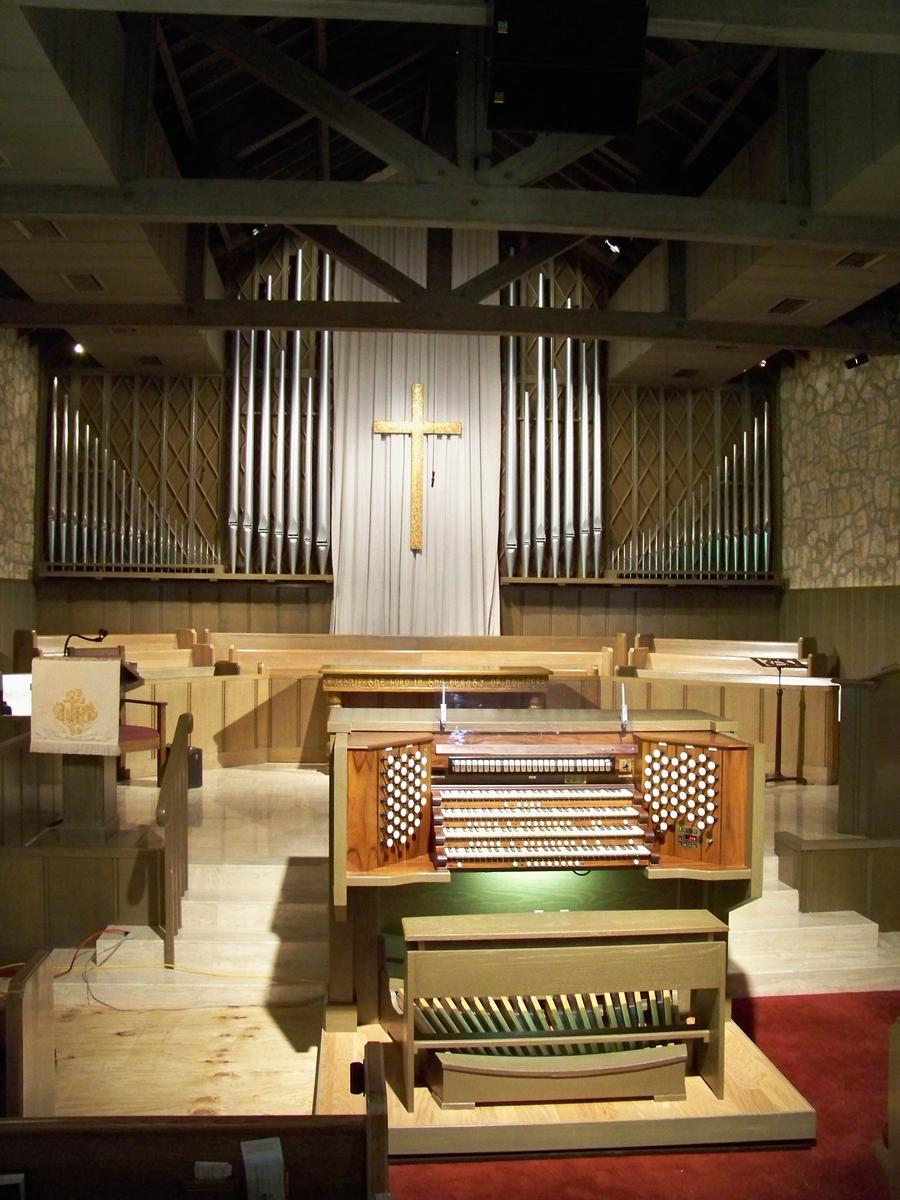

2009-05-28 - Console, Chancel, and Pipe Facade (Photograph by Douglas H. Cable/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Movable Console
- 4 manuals
- 43 stops
- 60 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2013-10-24 - This is a rebuild of an existing organ.
Identified by Douglas H. Cable, based on personal knowledge of the organ.
-- -Database Manager
2013-10-25 - Updated through online information from Douglas H. Cable. -Database Manager
Stoplist
Stoplist from builders file Source: Source not recorded Date not recorded
Coconut Grove, Miami, Florida
Plymouth Congregational Church
Guzowski & Steppe Organbuilders, Inc. 1990, 2007
Angell Organ Company Opus 115, 1965
4 Manuals, 52 Ranks, 3,156 Pipes
Great 3 1/4" WIND
16' Gemshorn 61 pipes (New Pipes & Chest)
8' Principal 61 "
8' Holzbourdun 61 "
4' Octave 61 "
4' Spitzflöte 61 "
2 2/3' Nazard 61 "
2' Principal (1990) 61 "
2' Waldflöte 61 "
1 3/5' Tierce 61 "
IV Fourniture 2' 244 "
8' Trompette en Chamade 61 "
Chimes
Tremulant
Great to Great 16' – U/O – 4'
SWELL (Expressive)3 1/2" WIND
16' Lieblich Gedeckt (1990) 12 pipes
8' Rohrflöte 61 " (1-6 New Pipes & Chest)
8' Salicional 61 "
8' Voix Céleste (T.C.) 49 "
4' Spitz Principal 61 "
4' Nachthorn 61 "
2' Zauberflöte 61 "
III Plein Jeu 11/3' 183 " (New Pipes & Chest)
16' Basson (New) 61 "
8' Trompette (New) 61 "
8' Hautbois 61 " (New Pipes, Toe-board & 12 note Offset chest)
4' Clarion (New) 61 "
Tremulant
Swell to Swell 16' – U/O – 4'
POSITIV 2 3/4" WIND
8' Nasonflöte 61 pipes
8' Gemshorn 61 "
8' Gemshorn Céleste (T.C.) 49 "
4' Prestant 61 "
4' Koppelflöte 61 "
2' Gemshorn 61 "
1 1/3' Larigot 61 "
1' Sifflote 61 "
II Sesquialtera 122 " (Moved from Swell)
III Cymbale 2/3' (1990) 183 "
8' Rohr Schalmei 61 "
Tremulant
Positiv to Positiv 16' – U/O – 4'
ANTIPHONAL 3 1/4" WIND
8' Rohrflöte 61 pipes
8' Erzähler (1-12 Electronic) 49 "
8' Erzähler Céleste (T.C.) 49 "
4' Principal 61 "
2' Octave (New) 61 "
II Mixture 11/3' 122 "
8' Trompette en Chamade (GRT)
Ant. to Ant. 16' – U/O – 4'
16' Violone (PED) Electronic 32 notes
PEDAL 4" WIND
32' Resultant 32 notes
16' Principal 56 pipes
16' Subbass 56 "
16' Gemshorn (GRT) 32 notes
16' Lieblich Gedeckt (SW) 32 "
10 2/3' Quint (Ext Prin) 32 "
8' Octave 32 "
8' Bourdon 32 "
8' Gemshorn (POS) 32 "
4' Choralbass 32 "
4' Gedeckt Pommer 32 "
III Mixture 22/3' 96 pipes (re-formulated)
32' Contre Posaune (1990) 56 pipes
16' Posaune 32 notes (New resonators 1-12)
16' Basson (SW) 32 "
8' Trompette 32 "
8' Trompette en Chamade 32 "
4' Schalmei (POS) 32 "
4 Manual Drawknob Console (Skinner style) installed 1990
COUPLERS
Great to Pedal 8'
Great to Pedal 4'
Swell to Pedal 8'
Swell to Pedal 4'
Positiv to Pedal 8'
Positiv to Pedal 4'
Antiphonal to Pedal 8'
Antiphonal to Pedal 4'
Swell to Great 16'
Swell to Great 8'
Swell to Great 4'
Positiv to Great 16'
Positiv to Great 8'
Positiv to Great 4'
Antiphonal to Great 16'
Antiphonal to Great 8'
Antiphonal to Great 4'
Swell to Positiv 16'
Swell to Positiv 8'
Swell to Positiv 4'
Antiphonal to Positiv 16'
Antiphonal to Positiv 8'
Antiphonal to Positiv 4'
Antiphonal to Swell 16'
Antiphonal to Swell 8'
Antiphonal to Swell 4'
THUMB PISTONS AND TOE STUDS
Solid State Organ Systems Combination Action with 99 levels of Memory, Programmable Sforzando, 3 Programmable Crescendos.
General 1-2-3-4-5-6-7-8-9-10-11-12 (Thumb & Toe)
General Cancel (Thumb)
Set (Thumb)
Pedal 1-2-3-4-5-6-7-8-0 (Toe)
Choir 1-2-3-4-5-6-7-8-0
Great 1-2-3-4-5-6-7-8-0
Swell 1-2-3-4-5-6-7-8-0
Antiphonal 1-2-3-4-0
Sforzando Reversible (Thumb & Toe)
Swell to Pedal Reversible (Thumb & Toe Spoon)
Great to Pedal Reversible (Thumb &Toe Spoon)
Positiv to Pedal Reversible (Thumb &Toe Spoon)
Antiphonal to Pedal Reversible (Thumb)
Swell to Great Reversible (Thumb)
Positiv to Great Reversible (Thumb)
Zimbelstern Reversible (Thumb & Toe Spoon)
32' Contre Posaune Reversible (Toe Spoon)
32' Resultant (Toe Spoon)
ACCESSORIES
Blower Key Switch
Adjustable Bench
Swell Expression Shoe
Crescendo Shoe
Pedal Light
Lighted Glass Music Rack
Combination Lock
Current Indicator Light (Green)
Sforzando Indicator Light (Red)
32' Contre Posaune Indicator Light
32' Resultant Indicator Light
Organist Signal Indicator Light
SSOS Control Panel in Right Drawjamb
[Received from Douglas H. Cable 2013-10-26.]
