Better Pipe Organ Database

Cornel Zimmer Organ Builders Opus 57 (2001)

Village Chapel: Sanctuary
10 Azalea Road
Pinehurst, NC

Images

Unknown - Console (Cornell Zimmer Website courtesy of Colton Barber/Colton Barber)

Unknown - Console (Online photo courtesy of Colton Barber/Colton Barber)

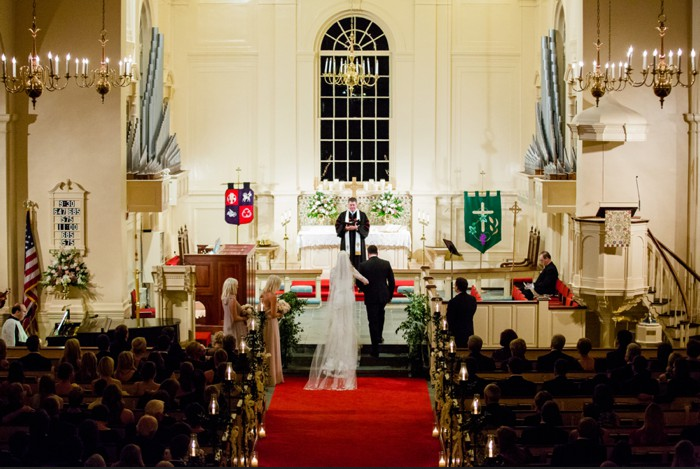

Unknown - Facade (Online photo courtesy of Colton Barber/Colton Barber)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
4 manuals
38 stops
49 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2014-06-08 - Originally installed in 1970 as 3/42 Austin Op. 2518. -Database Manager

2016-04-14 - Updated through online information from Scott Robelot. -Database Manager

Stoplist

Stoplist from Cornel Zimmer website Source: Source not recorded Date not recorded

       Pinehurst, North Carolina
       The Village Chapel

       Cornel Zimmer   Op. 57   2001   4/47
       ___________________________________________________

       GREAT                           CHOIR
   16' Gemshorn         61         16' Dulciana         dg
    8' Principal        61          8' Principal        61 *
    8' Bourdon          61          8' Gedeckt          61
    8' Gemshorn         12          8' Dulciana         dg
    4' Octave           61 *        8' Dulciana Celeste dg
    4' Waldflöte        61 *        8' Flauto Dolce     61
    2' Doublette        61          8' Flute Celeste    49
   IV  Fourniture      244 *        4' Spitz Principal  61 *
  III  Cymbal           dg          4' Koppelflöte      61
    8' Trompette        dg      2 2/3' Nazard           61
       Unison Off                   2' Fifteenth        61
    8' Bombarde         CH          2' Blockflöte       dg
       Carillon                 1 3/5' Tierce           61
       Zimbelstern              1 1/3' Larigot          dg
       Cymbelstern                  1' Sifflöte         dg
       MIDI on Great A            III  Cymbel          183
       MIDI on Great B              8' Krummhorn        61
                                       Tremulant
       SWELL                        8' Bombarde         68
   16' Rohrhourdon      12             Sub
    8' Geigen Principal 68             Unison Off
    8' Geigen Celeste   dg             Super
    8' Rohrflöte        68             Harp             dg
    8' Viole de Gambe   68             Celesta          49
    8' Voix Celeste     56 a           MIDI on Choir A
    8' Erzähler         dg             MIDI on Choir B
    8' Unda Maris       dg
    4' Principal        68             PEDAL
    4' Spitzflöte       68         32' Diapason         dg
    2' Flute            61         32' Bourdon          dg
1 1/3' Quint            61         32' Resultant        --
    V  Plein Jeu        dg         16' Diapason         32
  III  Cymbale         183         16' Soubass          dg
   16' Basson           68         16' Bourdon          dg
    8' Trompette        68         16' Gemshorn         GT
    8' Basson           12         16' Rohrbourdon      SW
    8' Hautbois         dg         16' Dulciana         CH
    8' Vox Humana       61          8' Principal        32
    4' Clairon          68          8' Bourdon          32
       Tremulant                    8' Gemshorn         GT
       Sub                          8' Rohrflöte        SW
       Unison Off                   8' Dulciana         CH
       Super                        4' Choralbass       32
       Chimes           dg          4' Koppelflöte      CH
       MIDI on Swell A              2' Nachthorn        32
       MIDI on Swell B            III  Mixture          96
                                   32' Bombarde         dg
       SOLO (digital)              16' Bombarde         dg
    8' Cello                       16' Trompette        dg
    8' Cello Celeste               16' Basson           SW
    8' Flute Harmonique             8' Trompette        GT
    8' Tuba Major                   8' Trompette        SW
    8' Bombarde                     8' Basson           SW
    8' French Horn                  8' Krummhorn        CH
    8' English Horn                 8' Clarinet         SO
    8' Clarinet                     4' Clairon          SW
       Tremulant                    4' Clarinet         SO
       MIDI on Solo A               4' Krummhorn        CH
       MIDI on Solo B                  MIDI on Pedal A
                                       MIDI on Pedal B
    *  new pipework
    a  plus 1-12 digital

      [Received online from Jeff Scofield June 8, 2014]

Websites

Opus 57 - Pictures/stoplist (Check Internet Archive, archive.is)

Related Pipe Organ Database Entries

#11437 - Austin Organs, Inc. Opus 2518 (1970)
