St. Paul University Catholic Center: Sanctuary
723 State Street
Madison, WI
Images
Unknown - Building exterior (Photograph by newliturgicalmovement.org, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2018 - Interior to front (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)
2018 - Console (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)
2018 - Interior to rear and organ case (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)
2018 - Organ case (Photograph by Taylor & Boody website, submitted by Jeff Scofield/Jeff Scofield)
2021 - Builder's plaque of all employees who worked on the organ (Photograph from an archival source: Still capture from Organ Media Foundation video, submitted by Jim Stettner/Jim Stettner)

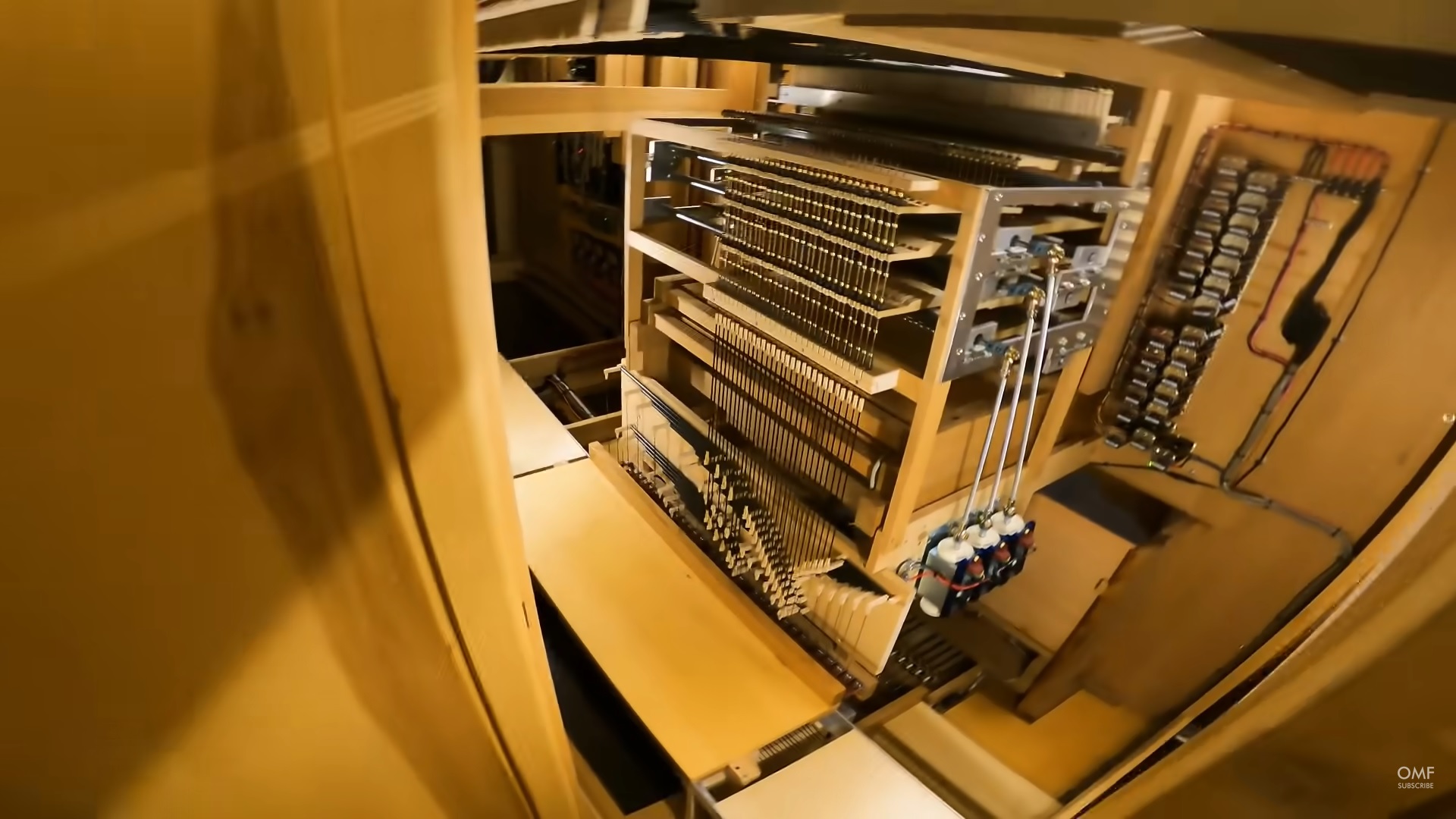

2021 - Back of keydesk inside the case (Photograph from an archival source: Still capture from Organ Media Foundation video, submitted by Jim Stettner/Jim Stettner)

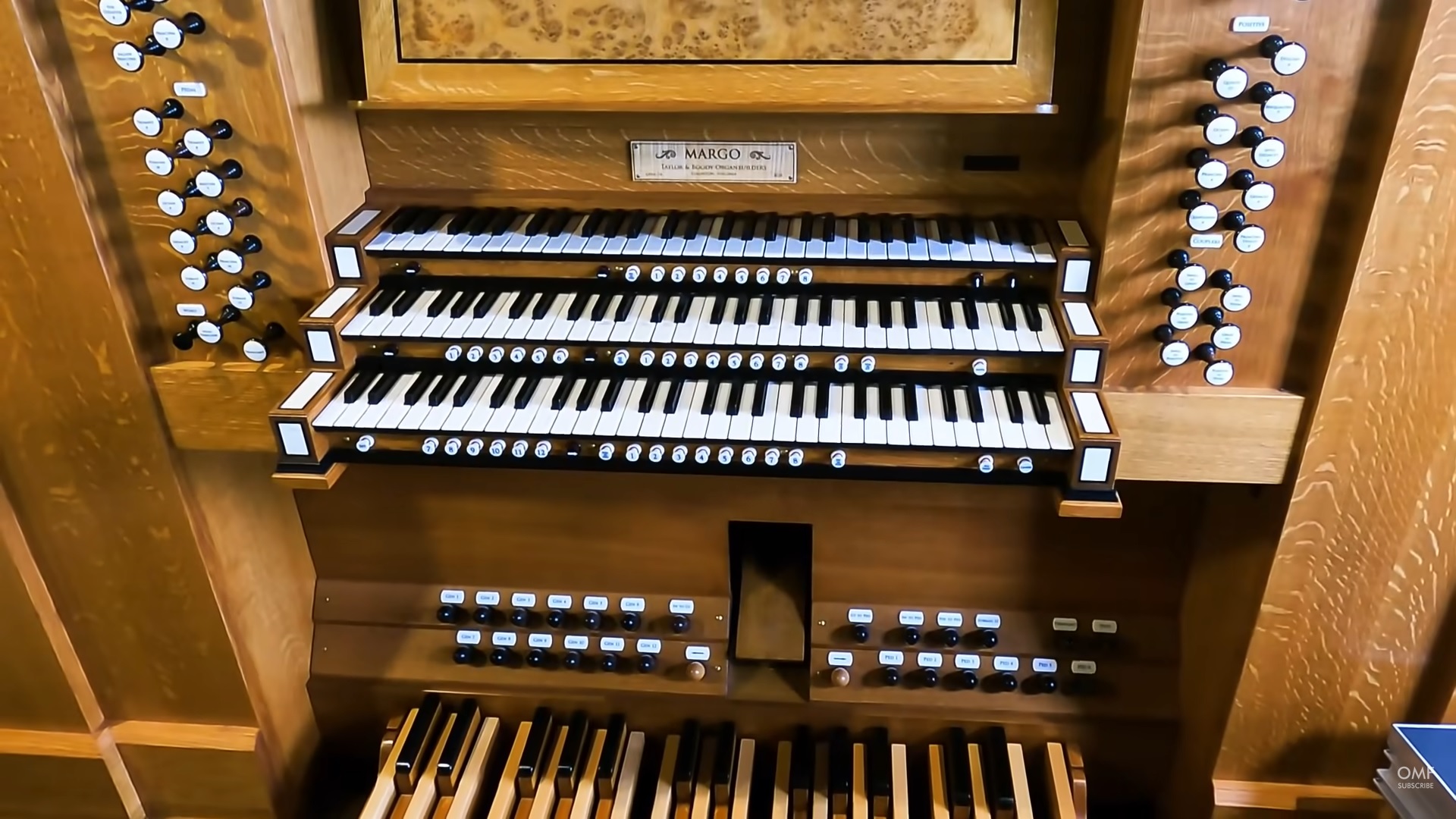

2021 - Keydesk (Photograph from an archival source: Still capture from Organ Media Foundation video, submitted by Jim Stettner/Jim Stettner)

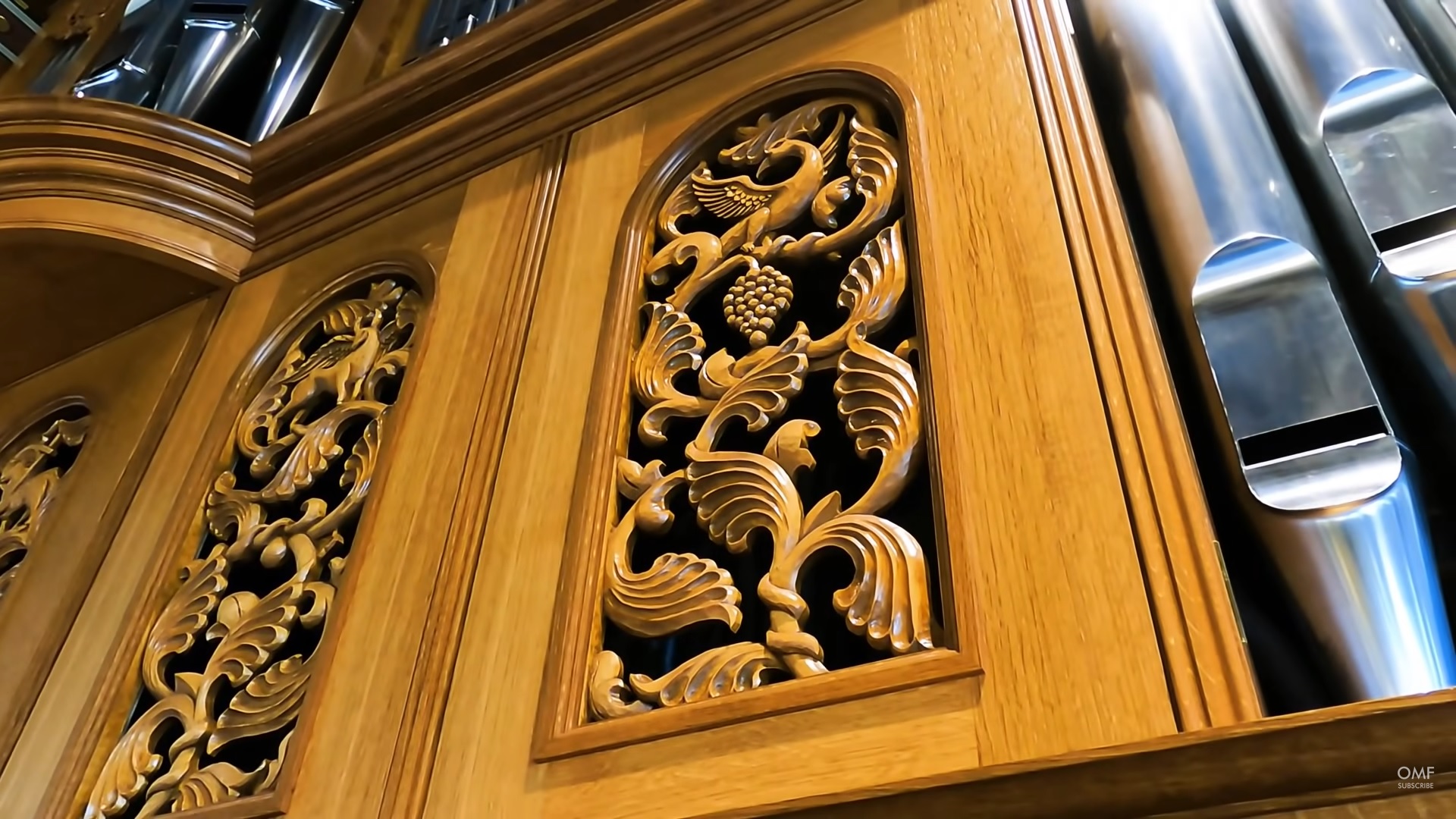

2021 - Detail of some case panels (Photograph from an archival source: Still capture from Organ Media Foundation video, submitted by Jim Stettner/Jim Stettner)

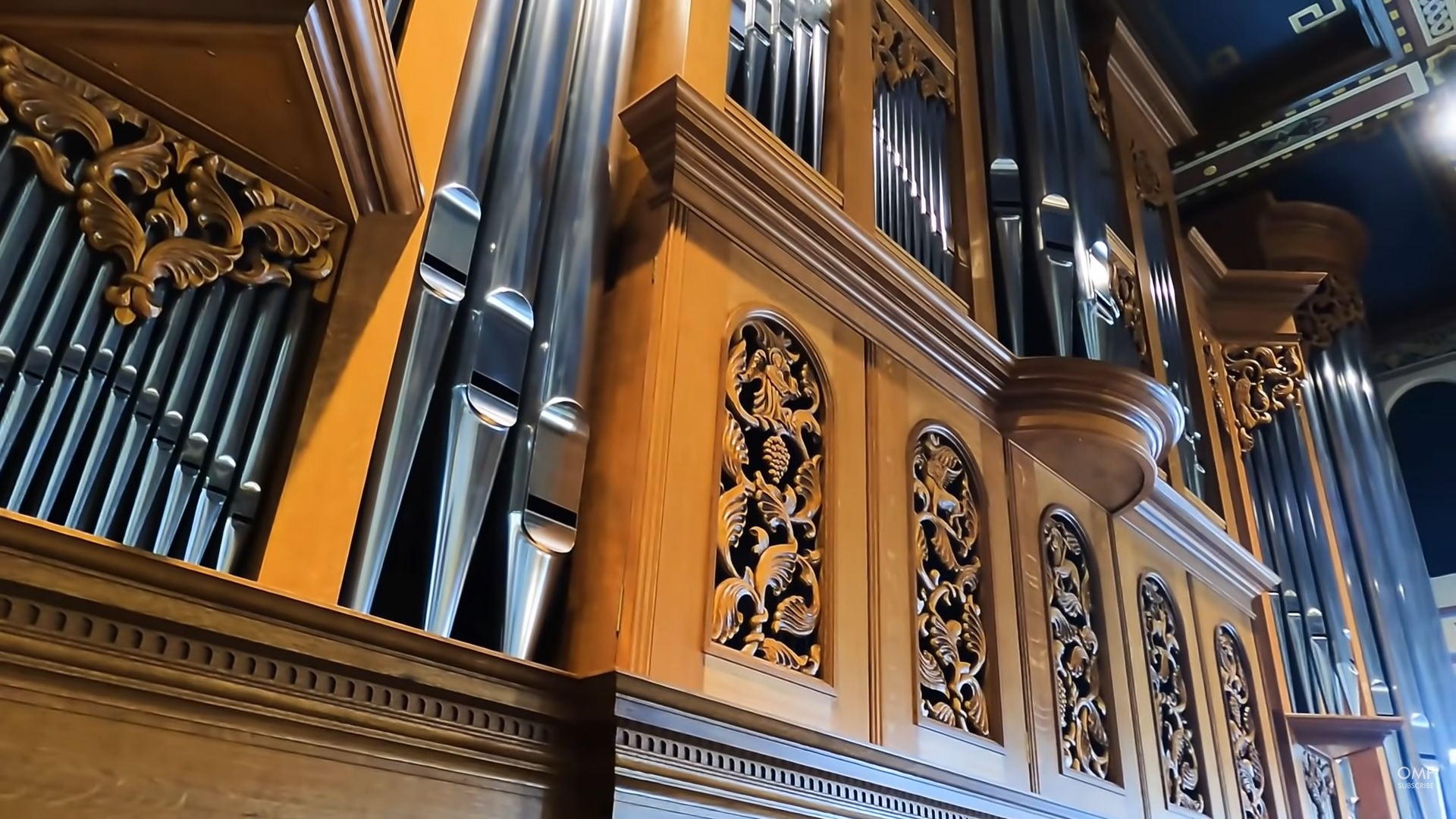

2021 - Facade in profile (Photograph from an archival source: Still capture from Organ Media Foundation video, submitted by Jim Stettner/Jim Stettner)

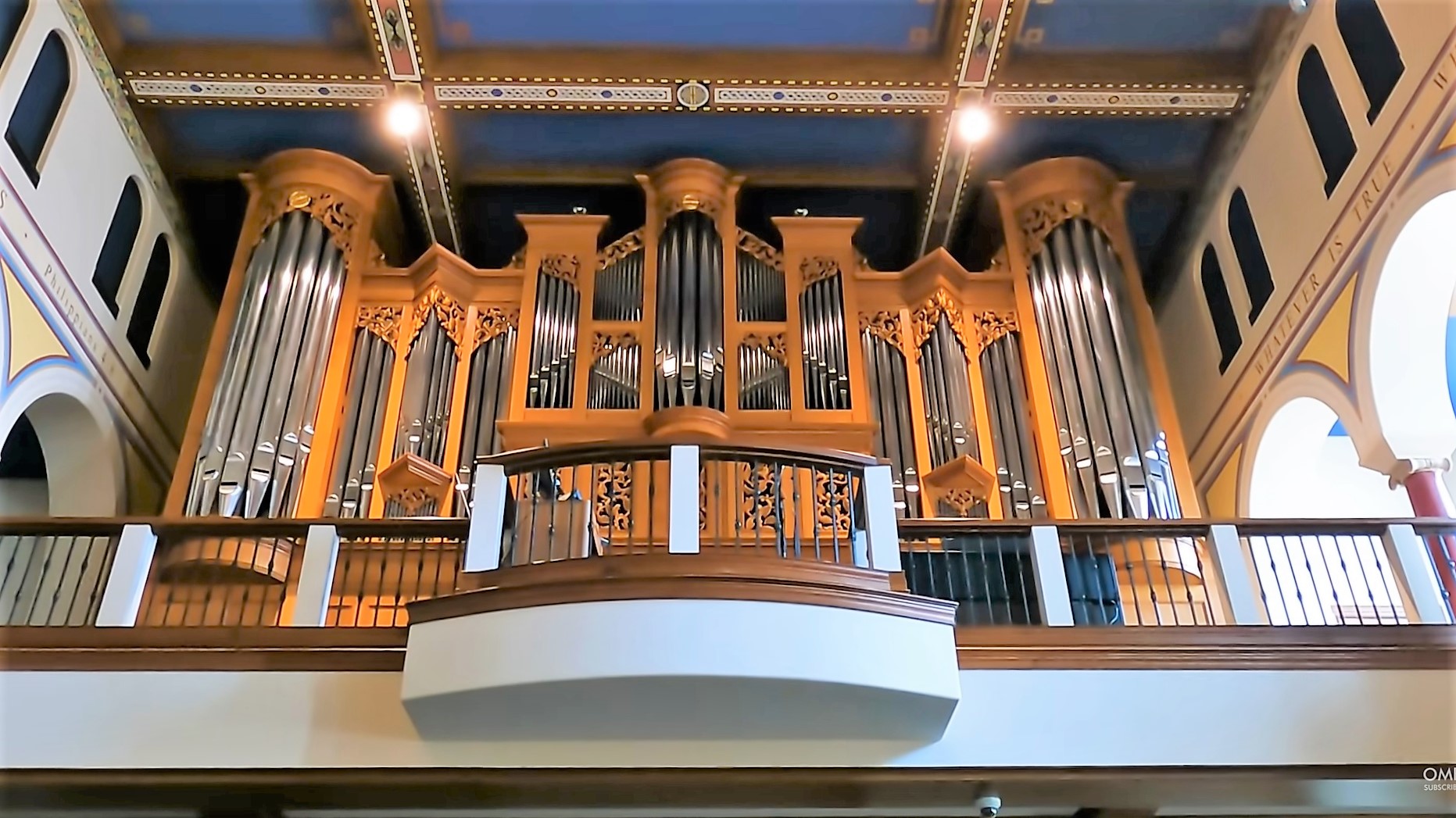

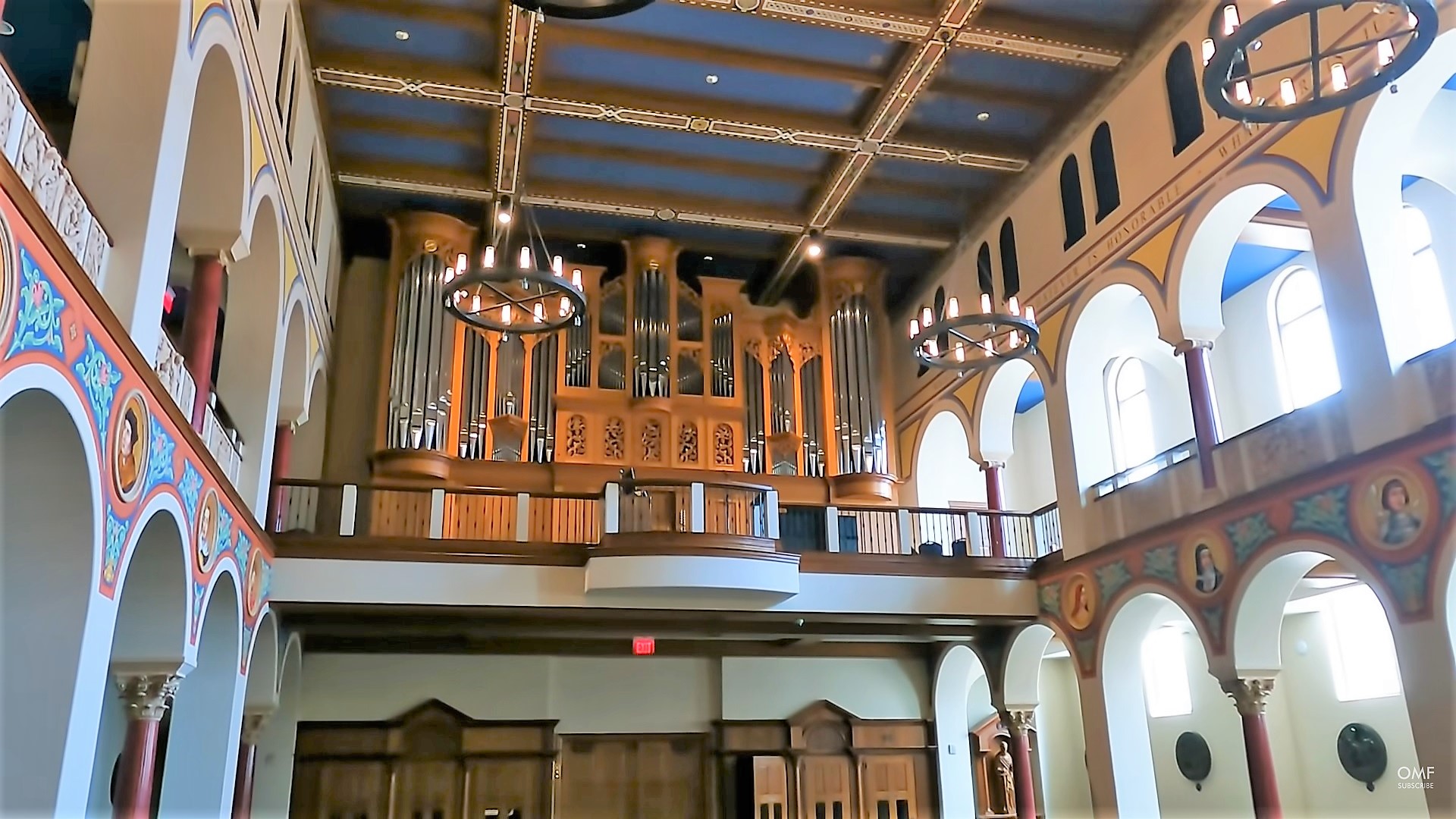

2021 - Organ in rear gallery (Photograph from an archival source: Still capture from Organ Media Foundation video, submitted by Jim Stettner/Jim Stettner)
2021 - Organ in rear gallery (Photograph from an archival source: Still capture from Organ Media Foundation video, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- 3 manuals
- 41 stops
- 4 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Electrical
- Manual compass: 58 notes
- Pedal compass: 30 notes
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2017-01-19 - Completion in June 2018 -Database Manager
2017-01-20 - Updated by Steven E. Lawson <br>Completion scheduled for June 2018 -Database Manager
2019-06-06 - Updated by Andrew Schaeffer, who has heard or played the organ. The organ was finished in late 2018. University of Wisconsin organ professor, Dr. John Chappell Stowe, served as the consultant and also played the dedication recital on Sunday, May 19, 2019. -Database Manager
Stoplist
Original document from Steven E. Lawson. Source: Stoplist from builder's website 2017-01-17
Madison, Wisconsin
University of Wisconsin - St. Paul University Catholic Center
Taylor & Boody Organbuilders Opus 74 2017 3 manuals, 40 stops, 55 ranks
________________________________________________________________________________
GREAT ORGAN SWELL ORGAN
16' Bourdon 58 8' Principal (TC) 46 *
8' Principal 58 8' Gedackt 58
8' Hohlflöte 58 8' Viol da Gamba 58
8' Salicional 58 8' Celeste (TC) 46
4' Octave 58 4' Octave 58
4' Flute 58 4' Spielflöte 58
2 2/3' Quint 58 2 2/3' Nasat 58
2' Super Octave 58 2' Gemshorn 58
Mixture V 290 Mixture IV 232
Cornet IV 232 16' Bassoon 58
8' Trumpet 58 8' Trumpet 58
8' Oboe 58
* 1-12 common with Ged. + VdG
POSITIVE ORGAN PEDAL ORGAN
8' Gedackt (oak) 58 32' Subbass (result. C-E) 7
8' Quintadena 58 16' Principal 30
4' Principal 58 16' Subbass 30
4' Rohrflöte 58 8' Octave 30
2' Octave 58 8' Spitzgedackt 30
1 1/3' Quint 58 4' Octave 30
Sesquialtera II 116 Mixture V 150
8' Dulcian 58 16' Posaune 30
8' Trumpet 30
ACCESSORIES COUPLERS
Tremulant Great to Pedal
Mechanical swell pedal Swell to Pedal
Mechanical key action Swell to Great
Electric stop action with Positive to Great
solid state combination action
and sequencer
[Received from Steven E. Lawson 2017-01-17]
