St. Andrew's Episcopal Church [now SS. Andrew and Matthew]
719 N. Shipley Street
Wilmington, DE
Images

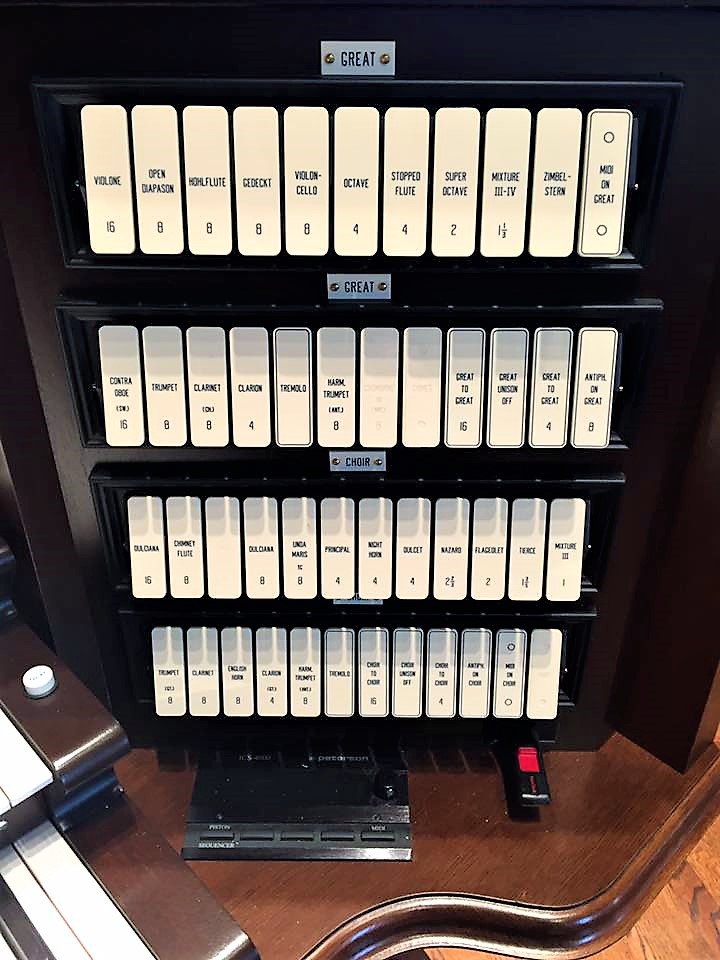

2016-12-05 - Right stopjamb (Photograph by Katherine Esterly Organ, Quimby Pipe Organs Op. 72, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

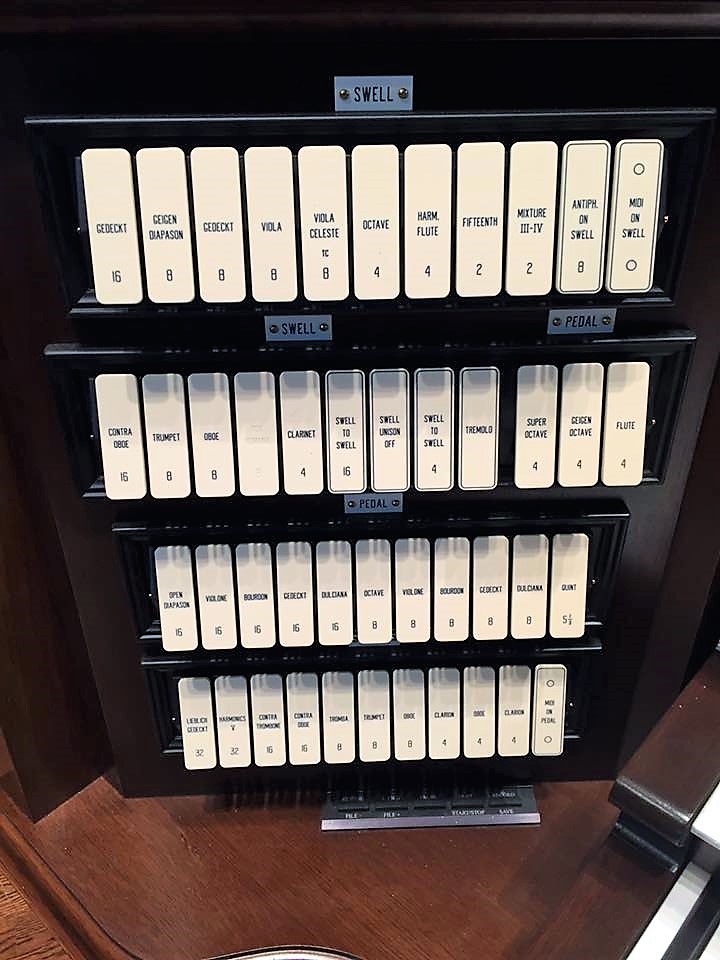

2016-12-05 - Left stopjamb (Photograph by Katherine Esterly Organ, Quimby Pipe Organs Op. 72, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

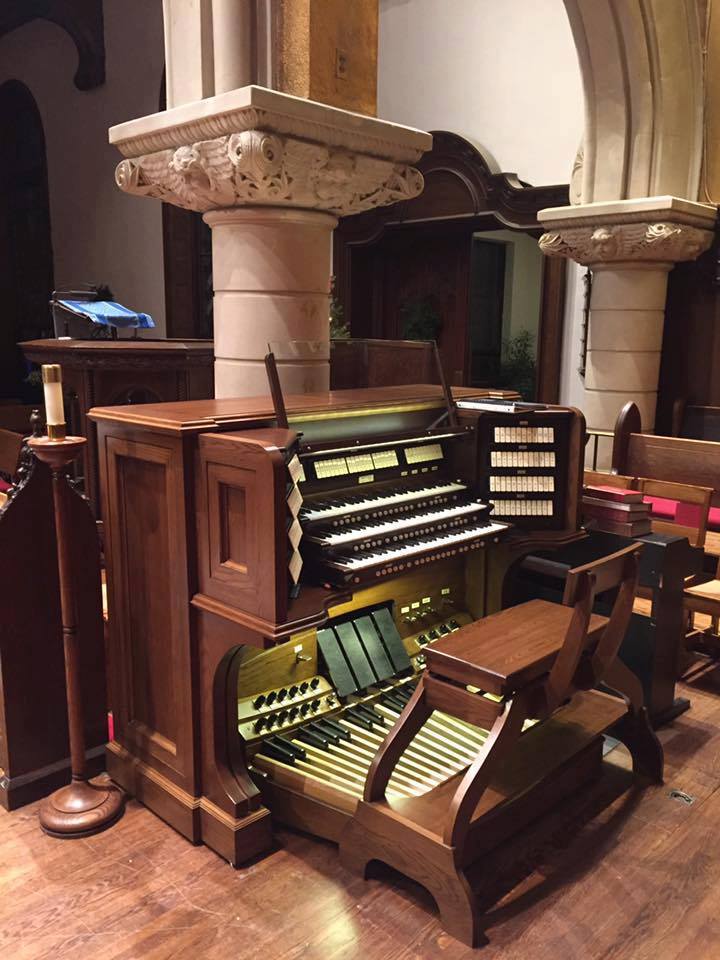

2016-12-05 - Console (Photograph by Katherine Esterly Organ, Quimby Pipe Organs Op. 72, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

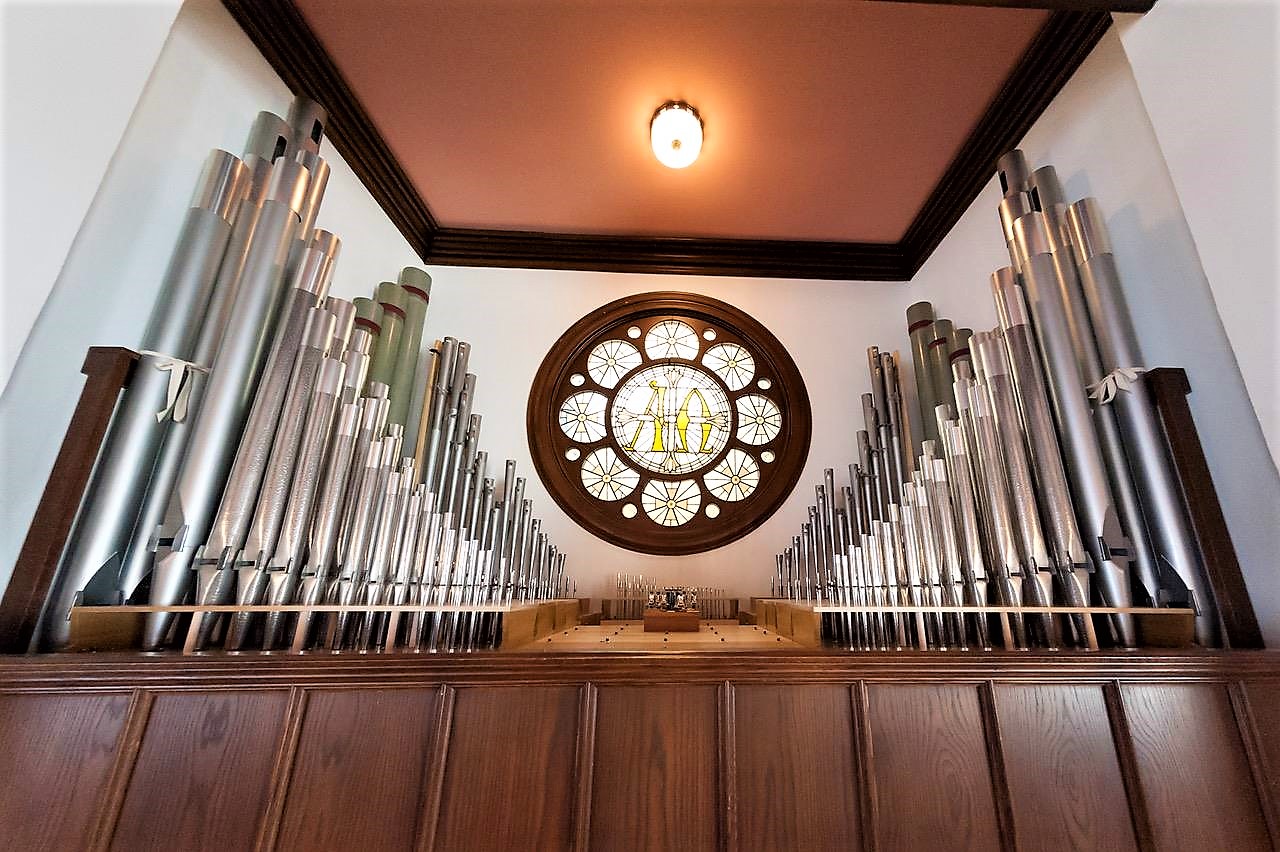

2017-09-24 - Antiphonal (Photograph by Katherine Esterly Organ, Quimby Pipe Organs Op. 72, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

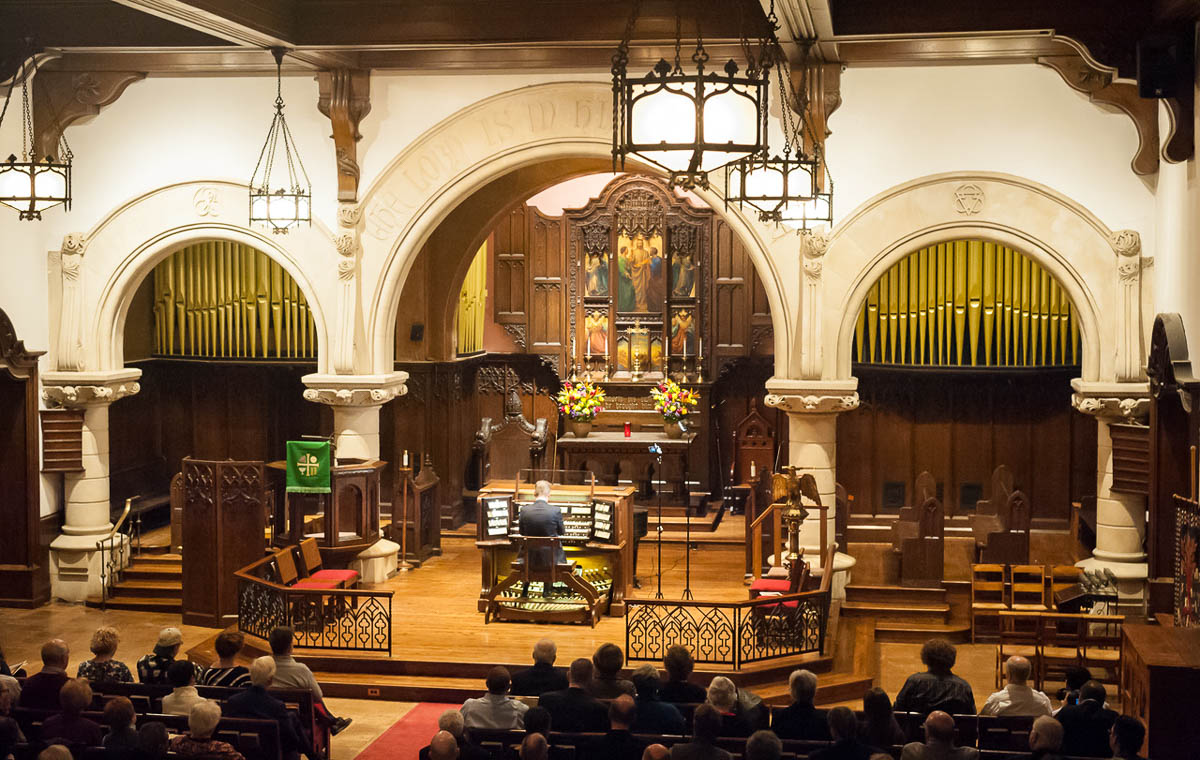

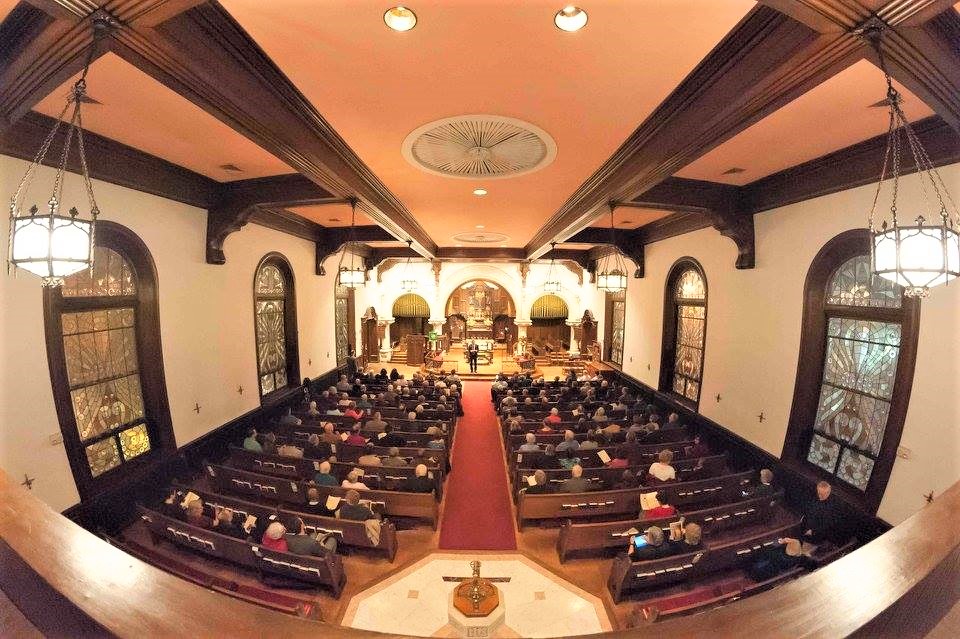

2017-02-26 - Church nterior (Photograph by Katherine Esterly Organ, Quimby Pipe Organs Op. 72, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
Unknown - Console (Photograph by David Price (January 2017)/Database Manager)

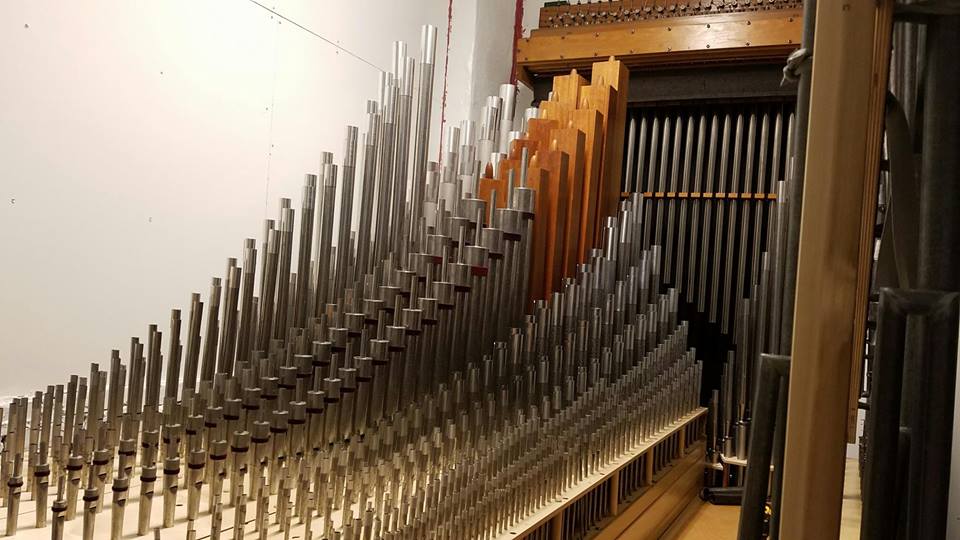

Unknown - Choir Division Pipes (Photograph by Brian Seever (January 2017)/Database Manager)
2017-02-25 - Organ Dedication - Ken Cowan, Organist (Photograph by Ken Francis/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 3 manuals
- 37 stops
- 78 registers
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2017-05-07 - Incorporates selected ranks from M.P. Möller, Op. 7114, 1945) built for St. Andrew's Episcopal Church, Wilmington, Delaware. -Database Manager
2017-02-11 - Service of Dedication on February 19, 2017. Inaugural Recital by Ken Cowan on February 25, 2017. -Database Manager
Stoplist
Typed specification. Corrected Nazard in Antiphonal (unified) Source: Builder's website 2016
Wilmington, Delaware
The Episcopal Church of Saints Andrew and Matthew
Quimby Pipe Organs, Inc. Opus 72 2016 3 manuals, 37 stops, 45 ranks
________________________________________________________________________________
GREAT ORGAN (enclosed) SWELL ORGAN
16' Violone 73 16' Gedeckt (13-73 new) 73
8' Open Diapason 61 * 8' Geigen Diapason 61
8' Hohl Flute 61 * 8' Gedeckt (fr. 16') --
8' Violoncello (fr. 16') -- 8' Viola 61 *
4' Octave 61 * 8' Viola Celeste (TC) 49 *
4' Stopped Flute 61 * 4' Octave 61
2' Super Octave 61 4' Harmonic Flute 61 *
1 1/3' Mixture III-IV 232 * 2' Fifteenth (fr. Mixt.) --
16' Contra Oboe (Sw) -- 2' Mixture III-IV 232 *
8' Trumpet 85 * 16' Contra Oboe 73 *
8' Clarinet (Ch) -- 8' Trumpet 73 *
4' Clarion (fr. Tpt) -- 8' Oboe (fr. 16') --
Tremolo 8' Vox Humana pf
8' Harmonic Trumpet 61 in Gallery 4' Clarion 61 *
8' Cromorne (TC) pf in Gallery Tremolo
Great to Great 16' Swell to Swell 16'
Great Unison Off Swell Unison Off
Great to Great 4' Swell to Swell 4'
MIDI on Great MIDI on Swell
Antiphonal on Great Antiphonal on Swell
CHOIR ORGAN PEDAL ORGAN (enc. with Great)
16' Dulciana (1-12 elec.) 73 32' Lieblich Gedeckt (ext) dg
8' Chimney Flute 61 * 16' Open Diapason 56
8' Gamba pf 16' Violone (Gt) --
8' Dulciana (fr. 16') -- 16' Bourdon 56
8' Unda Maris (TC) 49 16' Gedeckt (Sw) --
4' Principal 61 * 16' Dulciana (Ch) --
4' Night Horn 61 8' Octave (fr. Op.Diap) --
4' Dulcet (fr. 16') -- 8' Violone (Gt) --
2 2/3' Nazard 61 * 8' Bourdon (fr. 16') --
2' Flageolet 61 * 8' Gedeckt (Sw) --
1 3/5' Tierce 61 * 8' Dulciana (Ch) --
1' Mixture III 183 * 5 1/3' Quint (fr. Bdn) --
8' Clarinet 61 * 4' Super Octave (fr. OD) --
8' English Horn 61 4' Geigen Octave (Gt Vln) --
8' Trumpet (Gt) -- 4' Flute (fr. Bdn) --
4' Clarion (Gt) -- 32' Harmonics V (derived) --
8' Harmonic Trumpet (Gt) -- 16' Contra Trombone (Gt) 12
Tremolo 16' Contra Oboe (Sw) --
Harp pf 8' Tromba (Gt) --
Choir to Choir 16' 8' Trumpet (Sw) --
Choir Unison Off 8' Oboe (Sw) --
Choir to Choir 4' 4' Clarion (Sw) --
MIDI on Choir 4' Oboe (Sw.) --
Antiphonal on Choir 4' Clarinet (Ch.) --
MIDI on Pedal
ANTIPHONAL ORGAN
8' Diapason 85 * ANTIPHONAL PEDAL
8' Stopped Diapason 97 16' Stopped Bass (ext) 12
4' Octave 73 * 8' Diapason (Ant) --
4' Spill Flute 61 * 8' Stopped Diapason (Ant) --
2 2/3' Nazard -- 4' Octave (Ant) --
2' Fifteenth (fr. Diap) --
2' Flute (fr. St. Diap) --
1 1/3' Larigot (fr. St. Diap) --
Tremolo * New pipes by Quimby
COMBINATION ACTION (256 levels) COUPLERS
Swell 1-8 (thumb) Great to Pedal 8 4
Great 1-8 (thumb) Swell to Pedal 8 4
Choir 1-8 (thumb) Choir to Pedal 8 4
Pedal 1-8 (thumb & toe) Antiph. to Pedal 8
General 1-18 (thumb) Swell to Great 16 8 4
1-6 (dup. on toe) Swell to Choir 16 8 4
19-24 (toe only) Choir to Great 16 8 4
Set (thumb) Choir to Swel 8
General Cancel (thumb) Great to Choir 8
Piston Sequencer - Next Pedal to Choir 8
Piston Sequencer - Previous Manual Transfer
All Swells to Swell
REVERSIBLES
Great to Pedal (thumb & toe paddle) EXPRESSION
Swell to Pedal (thumb & toe paddle) Balanced Pedal - Great
Choir to Pedal (thumb & toe paddle) Balanced Pedal - Swell
Swell to Great (thumb & toe paddle) Balanced Pedal - Choir
Choir to Great (thumb) General Crescendo Pedal
Swell to Choir (thumb)
Sforzando (thumb & toe paddle)
Manual Transfer (thumb)
All Swells to Swell (thumb)
[Received from Steven E. Lawson 2017-02-11]
