Residence: Belcourt Castle (Tinney Estate): Ballroom; gallery
Bellevue Avenue
Newport, RI
Note: Not playable. (in this location)
Images
2023 - Organ in gallery (Photograph from an archival source: Belcourt Facebook page, submitted by Andrew Scanlon/Andrew Scanlon)

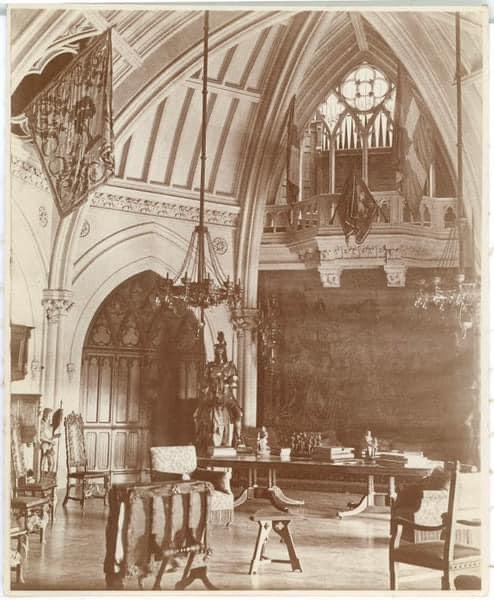

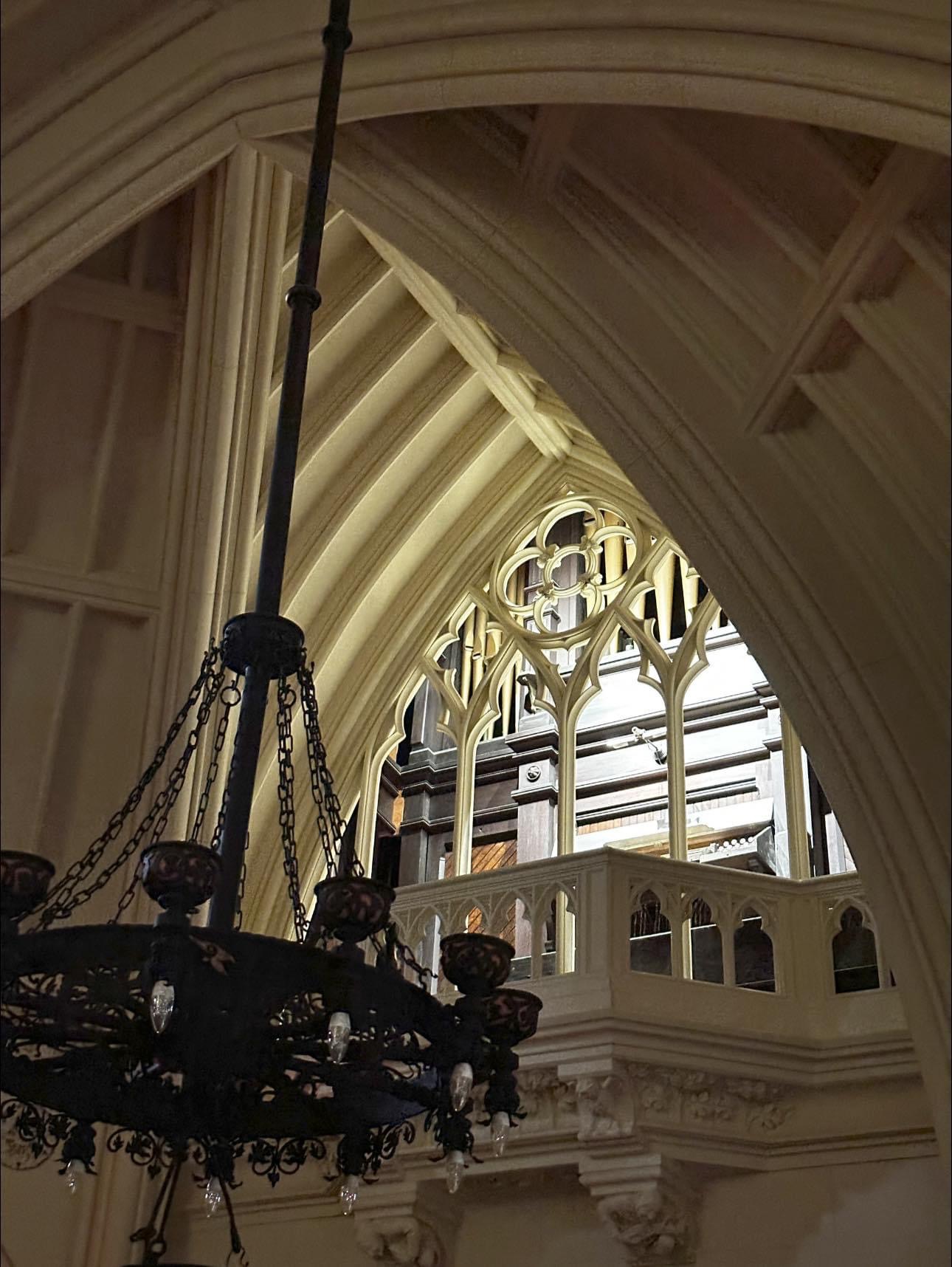

Unknown - Ballroom/hall showing organ gallery (Photograph from an archival source: Belcourt Facebook page, submitted by Andrew Scanlon/Andrew Scanlon)

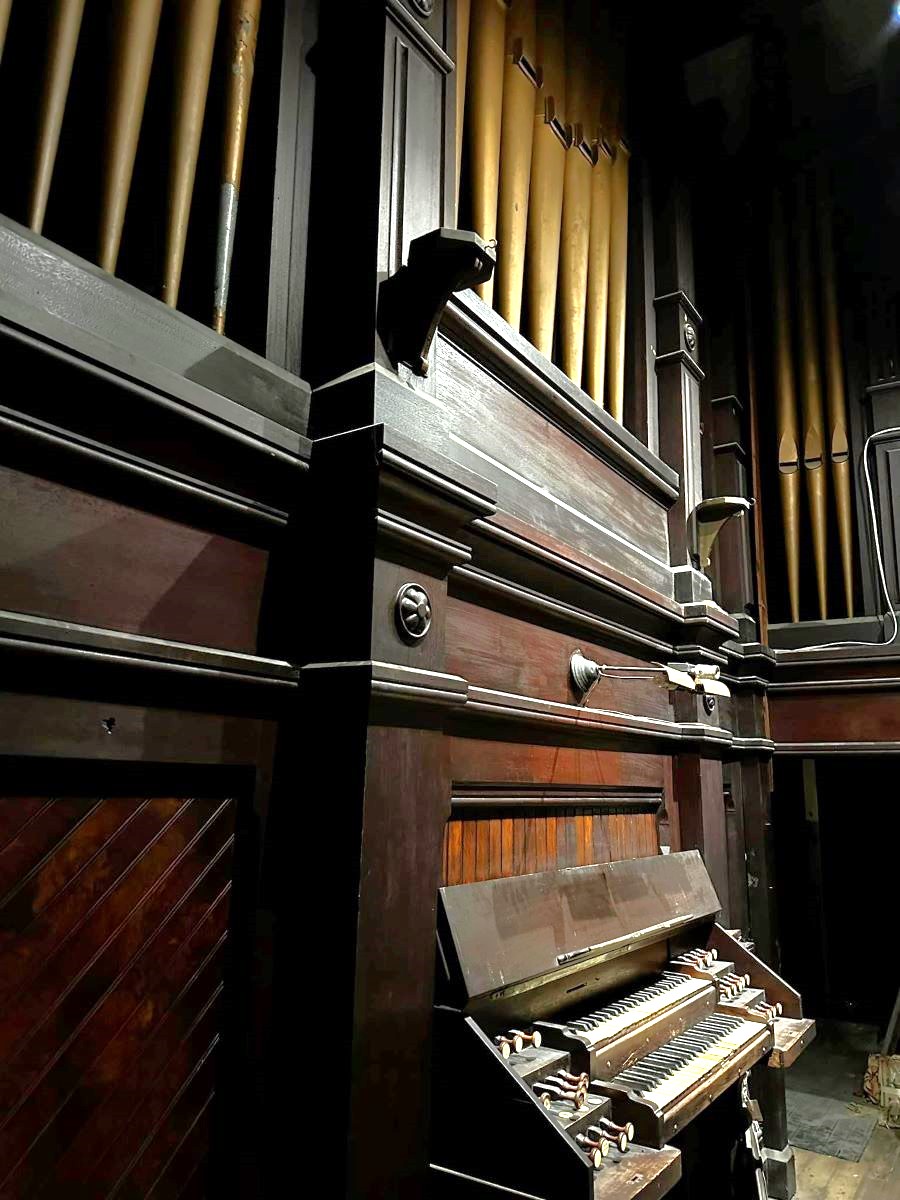

2023 - Keydesk and lower part of façade (Photograph from an archival source: Belcourt Facebook page, submitted by Andrew Scanlon/Andrew Scanlon)

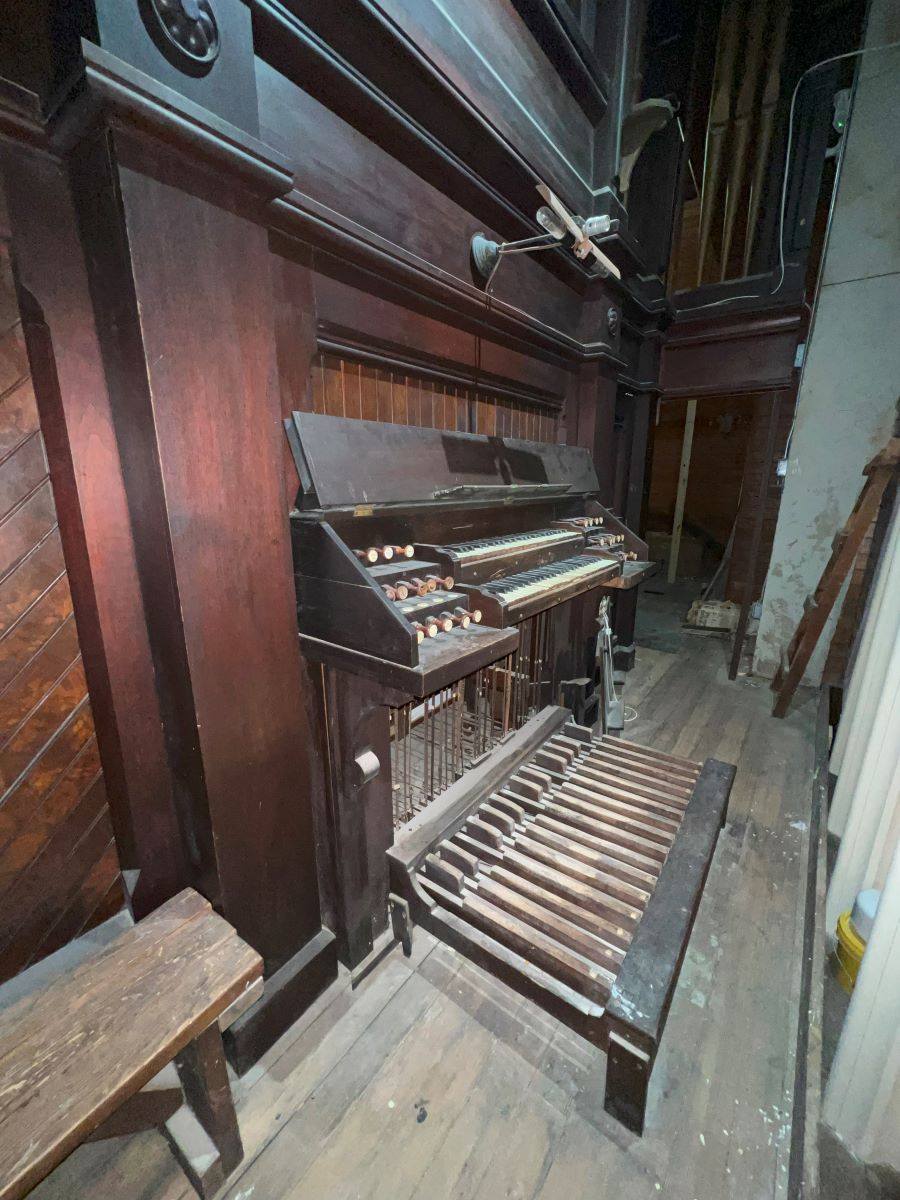

2024-12-08 - Keydesk and pedalboard (John Panning/Jim Stettner)
2024-12-08 - Keydesk and pedalboard (John Panning/Jim Stettner)
2024-12-08 - Keydesk: Right stopjamb (John Panning/Jim Stettner)

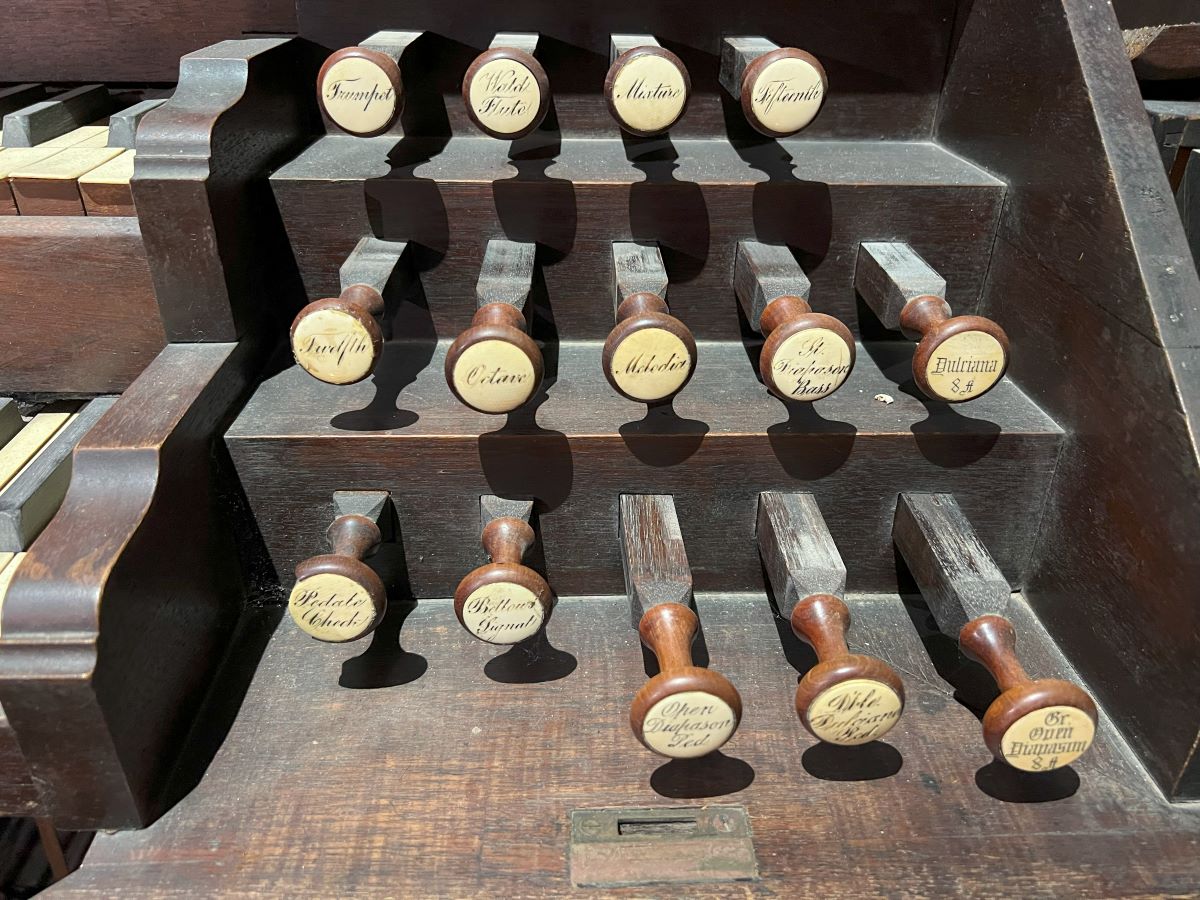

2024-12-08 - Keydesk: Left stopjamb (John Panning/Jim Stettner)

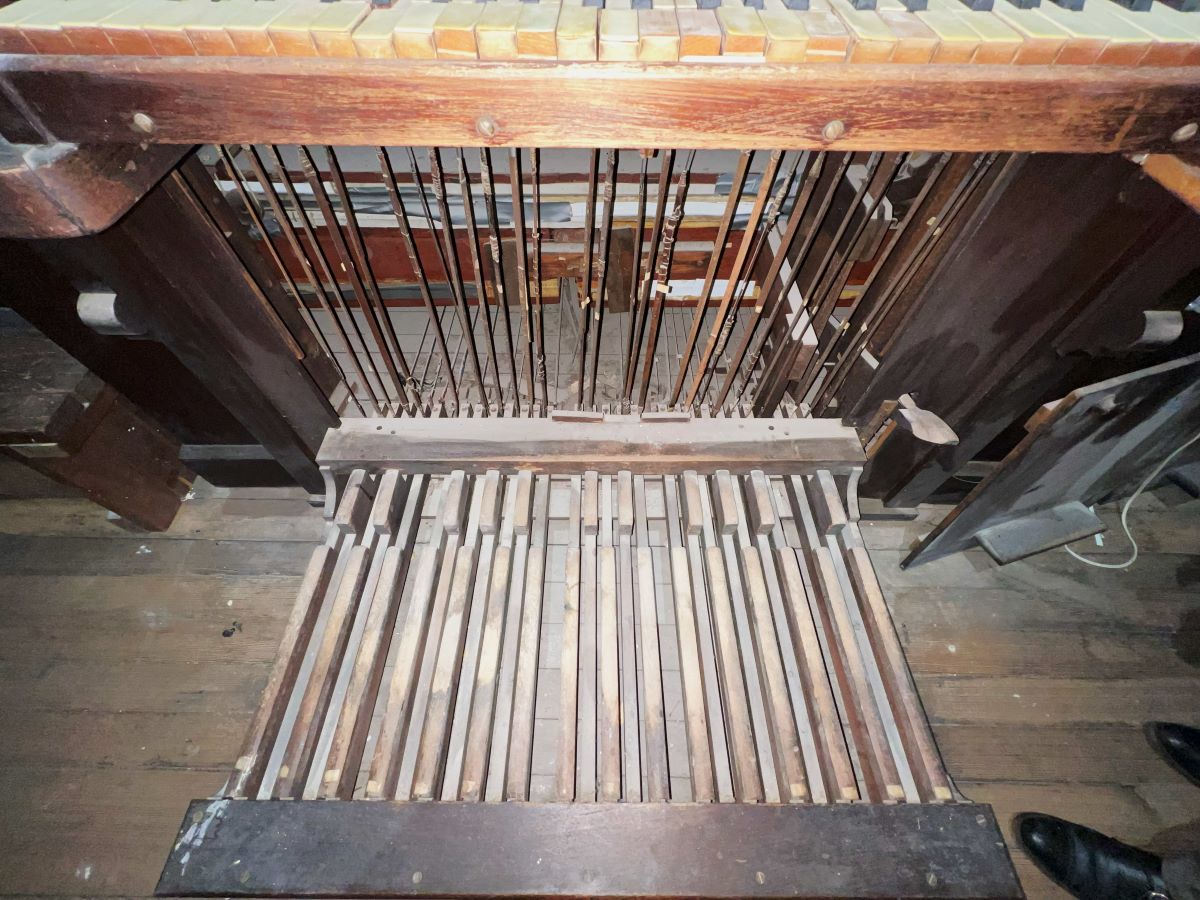

2024-12-08 - Pedalboard and Pedale action (John Panning/Jim Stettner)

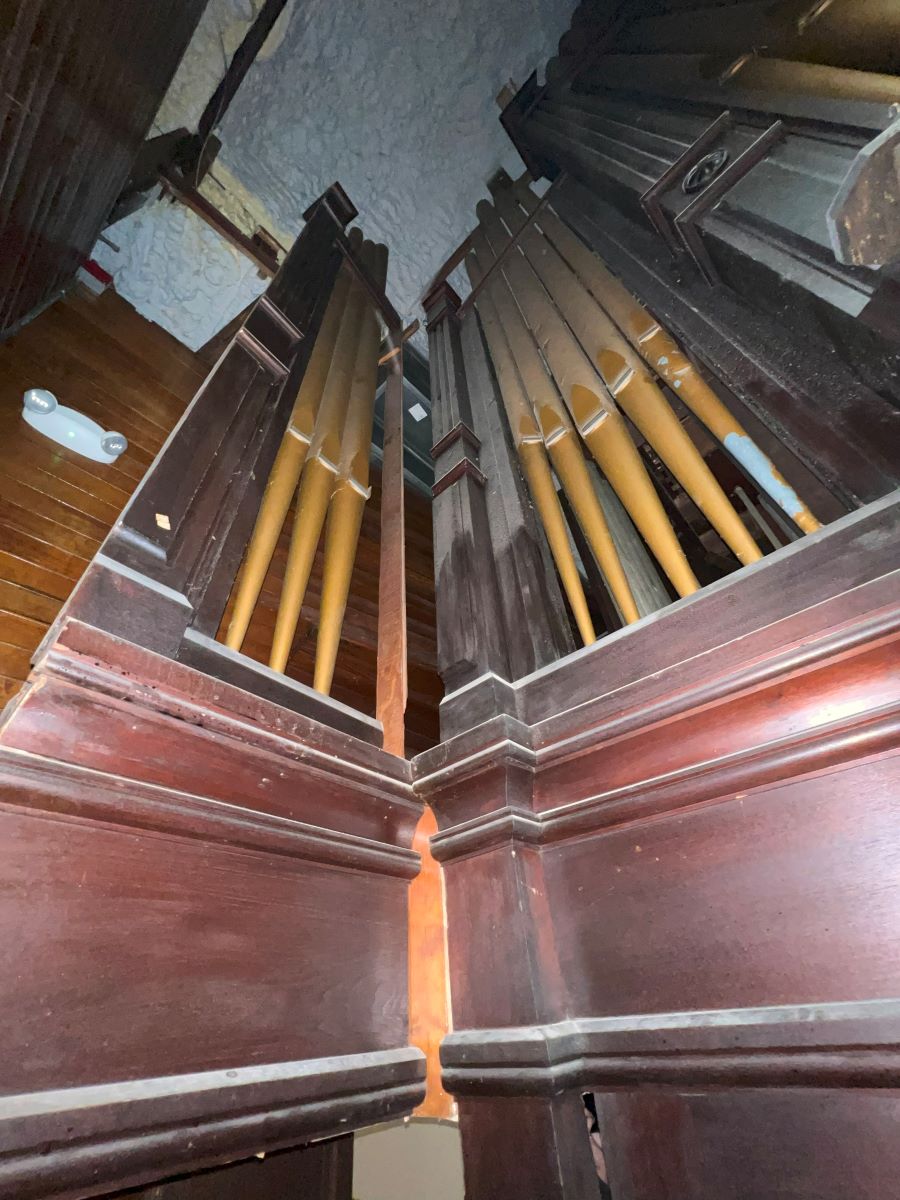

2024-12-08 - Casework, bass end (John Panning/Jim Stettner)

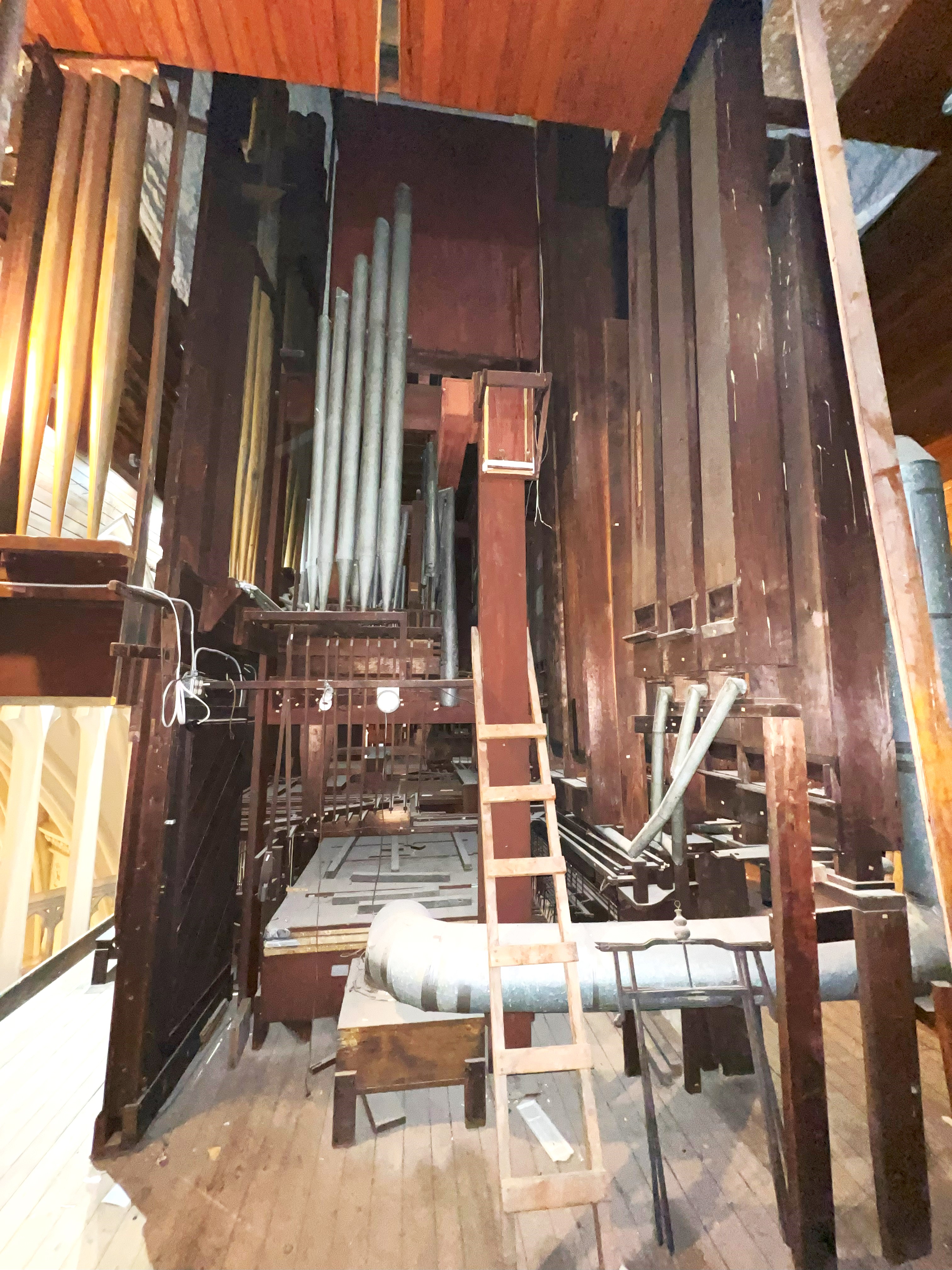

2024-12-08 - Behind the facade; treble end. Great windchest and trundle arms. Swell wind trunk. Pedale at the rear. (John Panning/Jim Stettner)
2024-12-08 - Double-rise regulator; Great trundle arm stop action (John Panning/Jim Stettner)

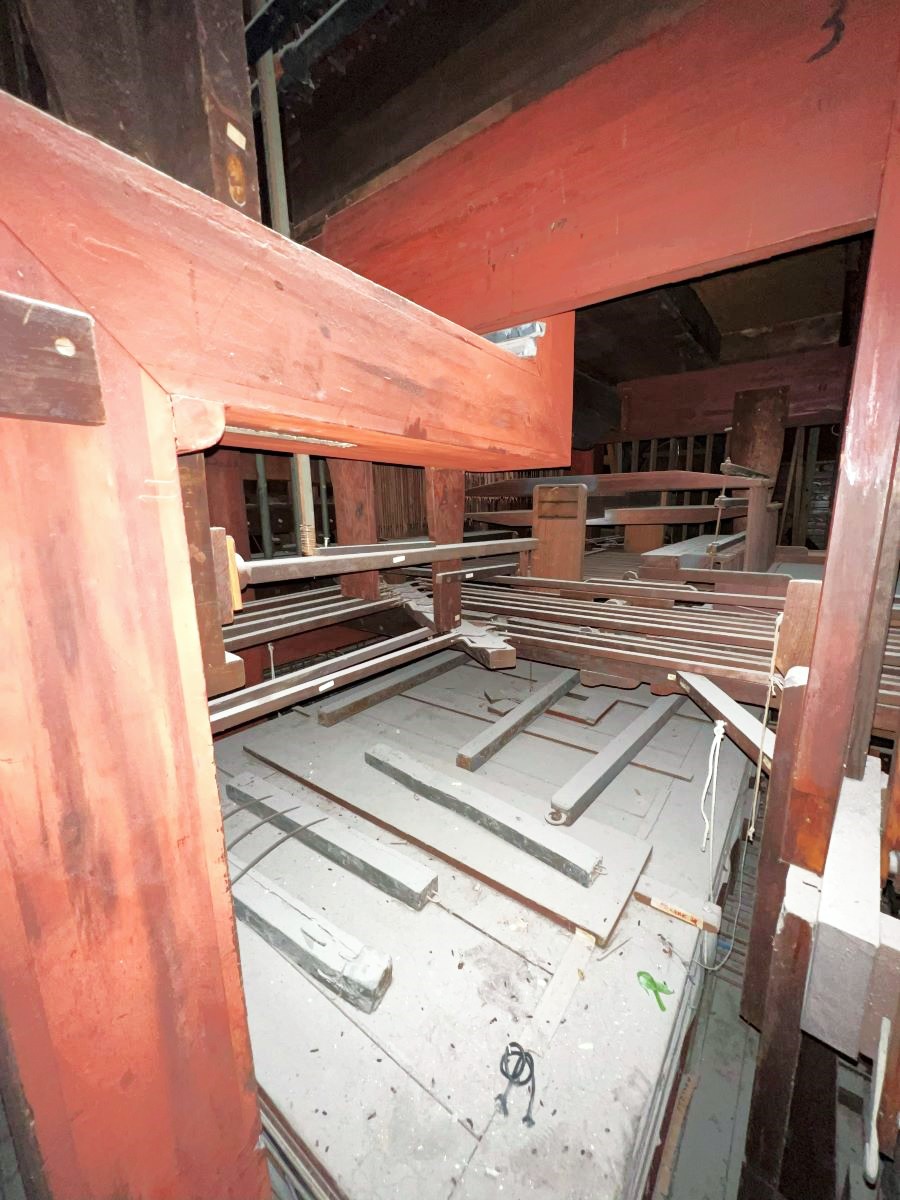

2024-12-08 - Great windchest, pipework, and stop action (John Panning/Jim Stettner)
2024-12-08 - Double-rise reguator, Great wind trunk, Swell stop action (John Panning/Jim Stettner)

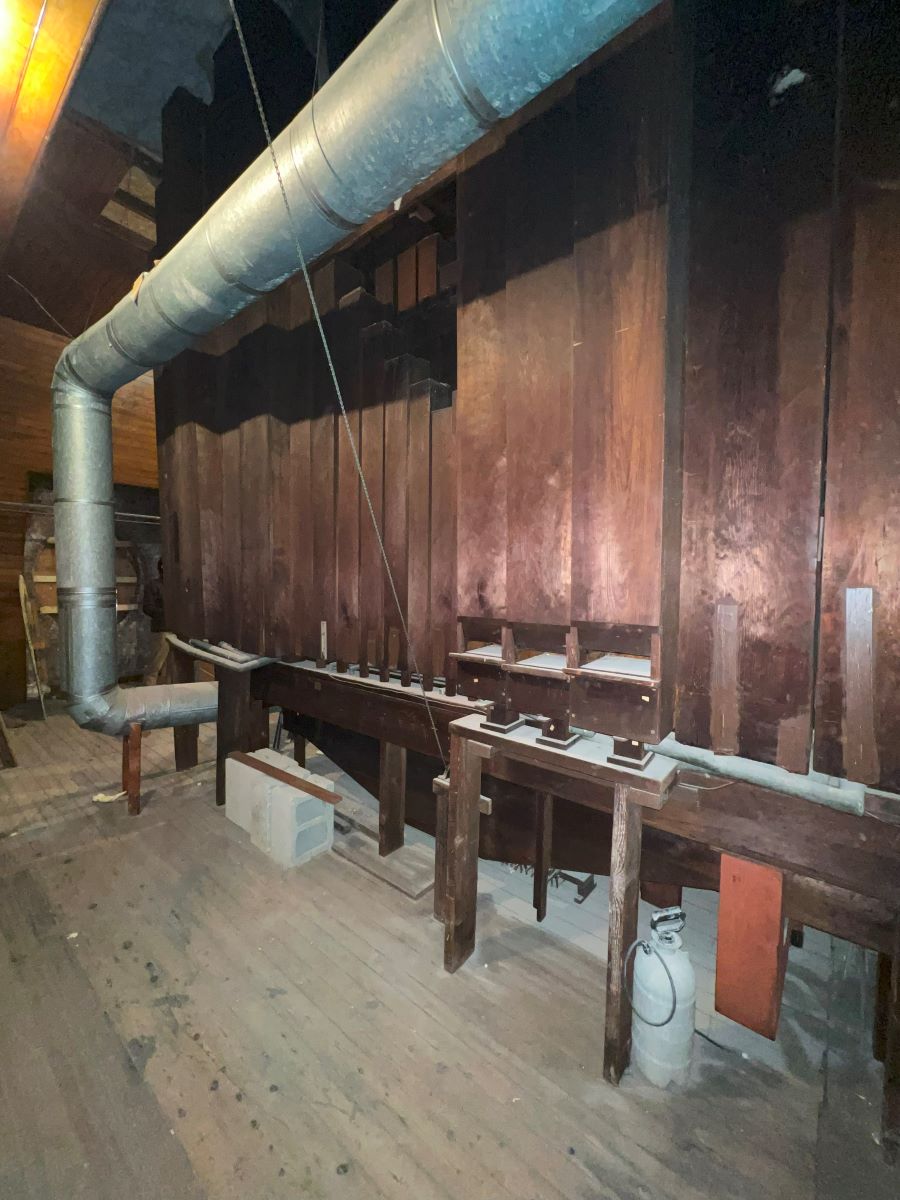

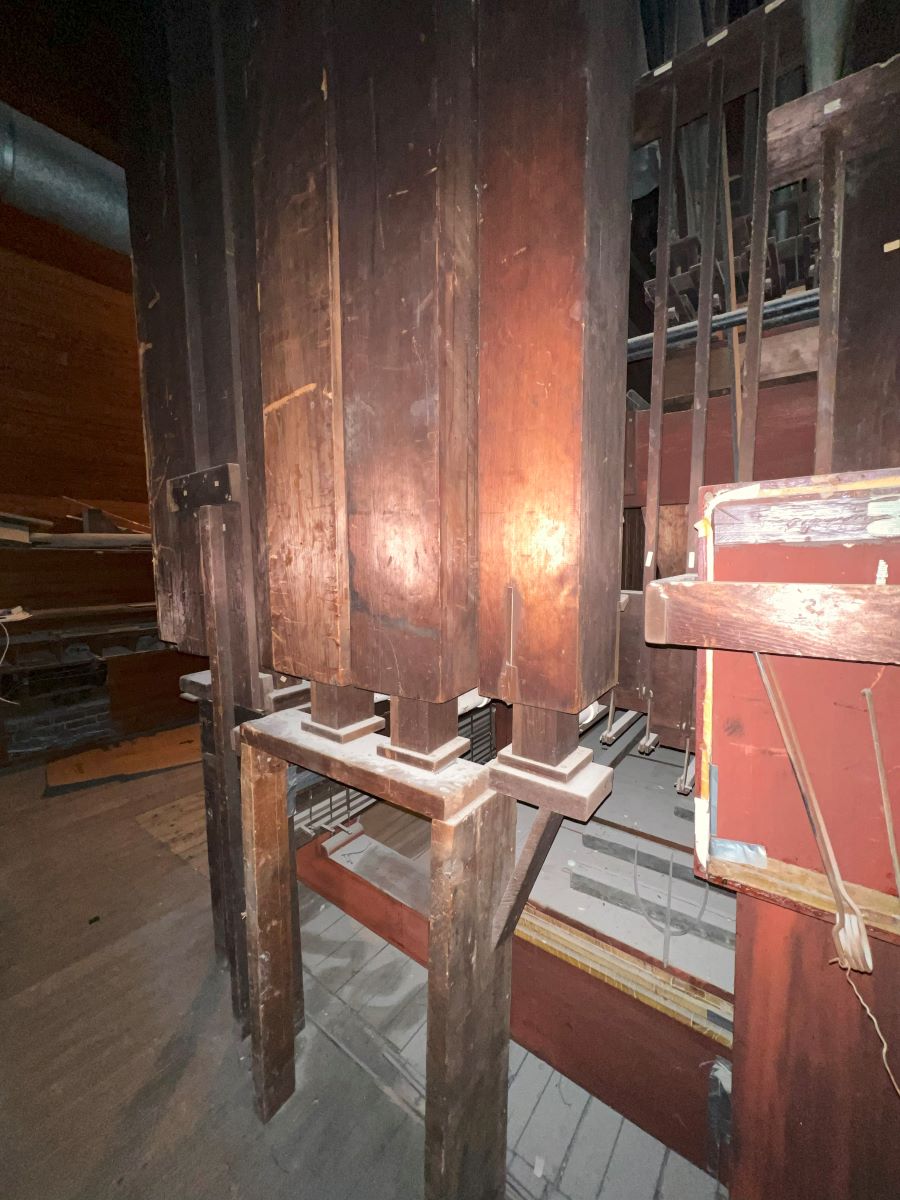

2024-12-08 - Pedale 16 ft Double Open at the back (John Panning/Jim Stettner)

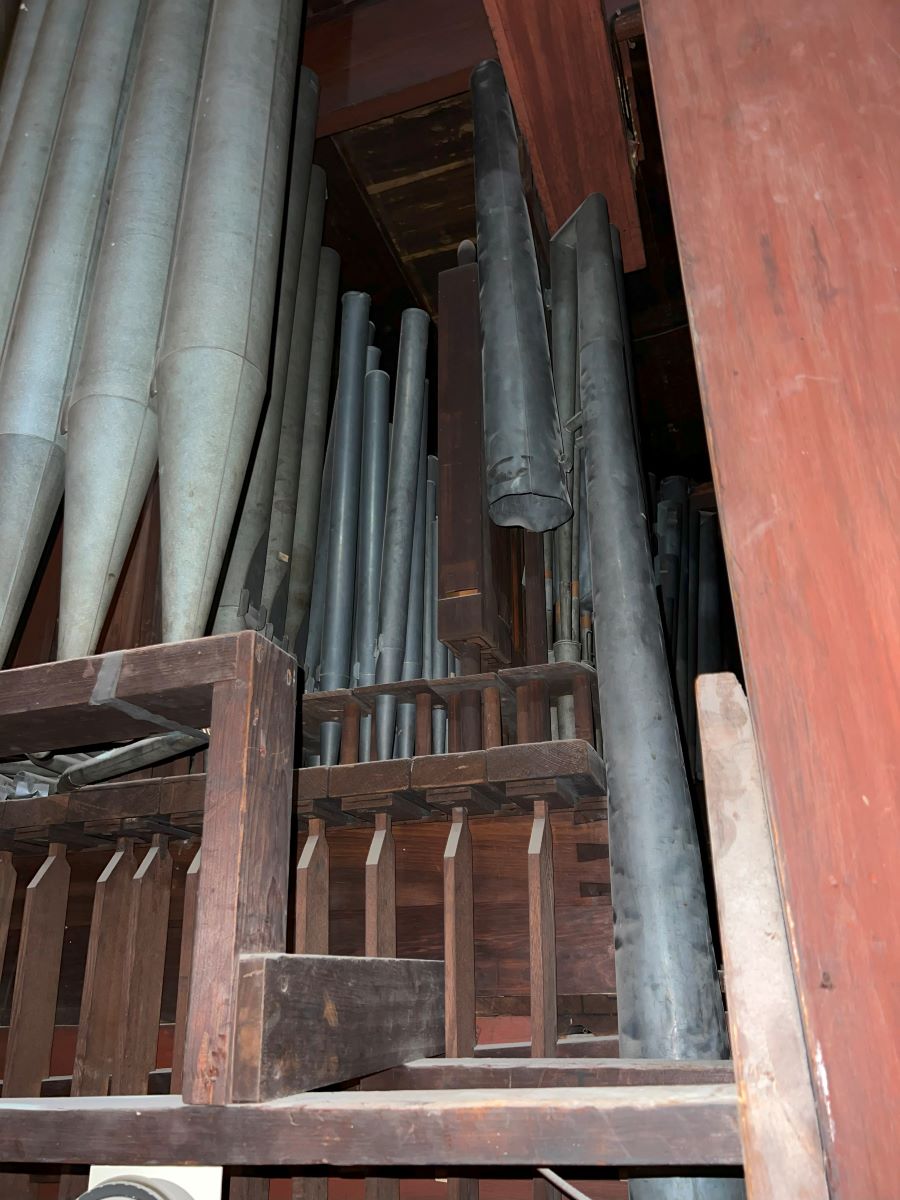

2024-12-08 - Pedale pipework (John Panning/Jim Stettner)

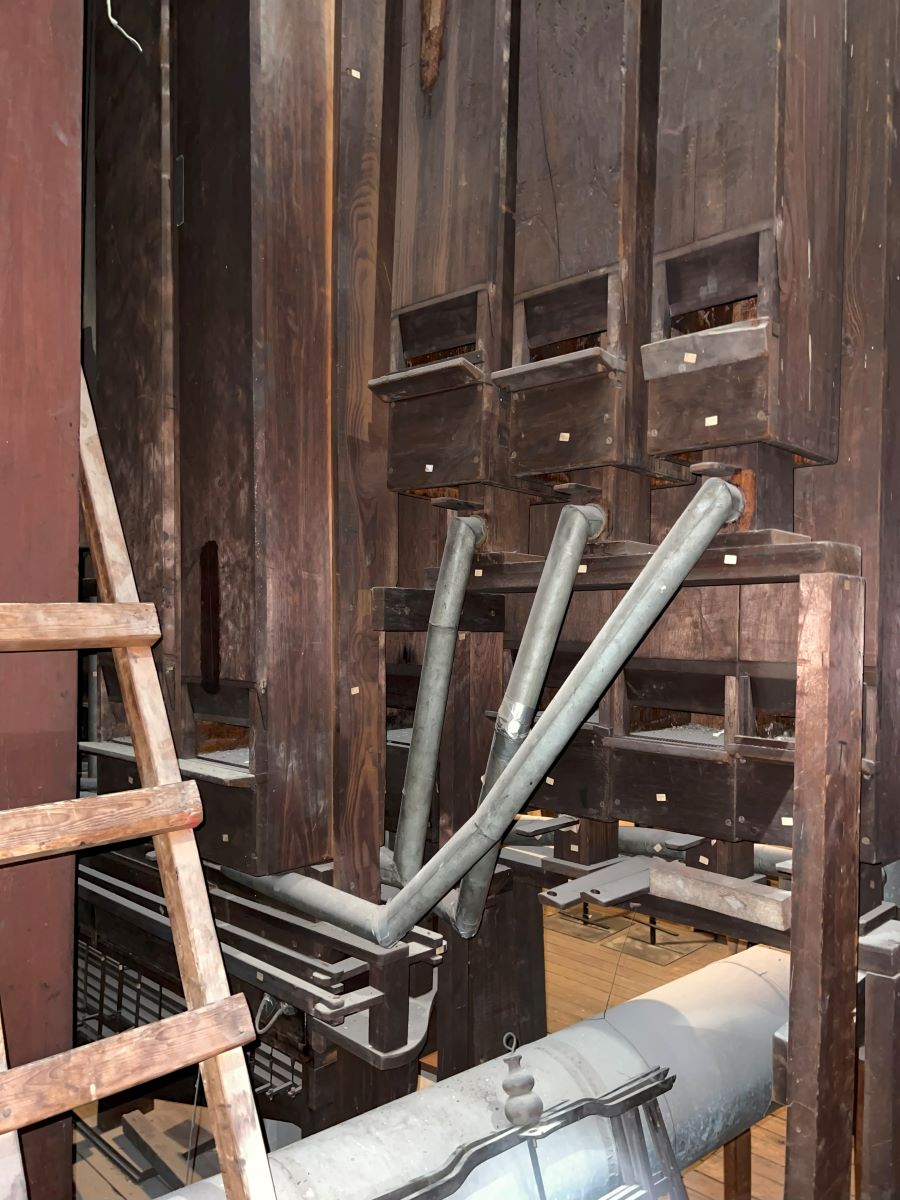

2024-12-08 - Offset Pedale pipework (John Panning/Jim Stettner)

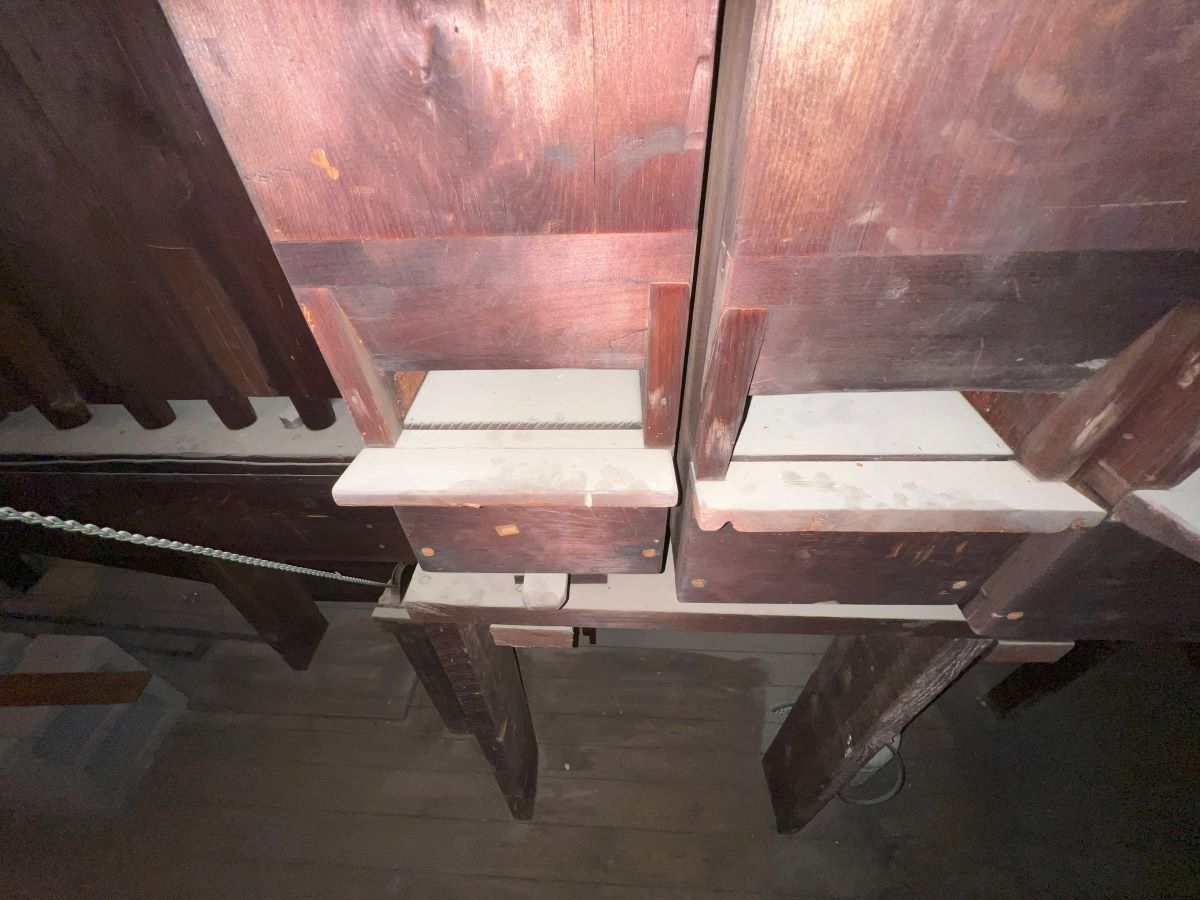

2024-12-08 - Pedale 16 ft Double Open pipes (John Panning/Jim Stettner)

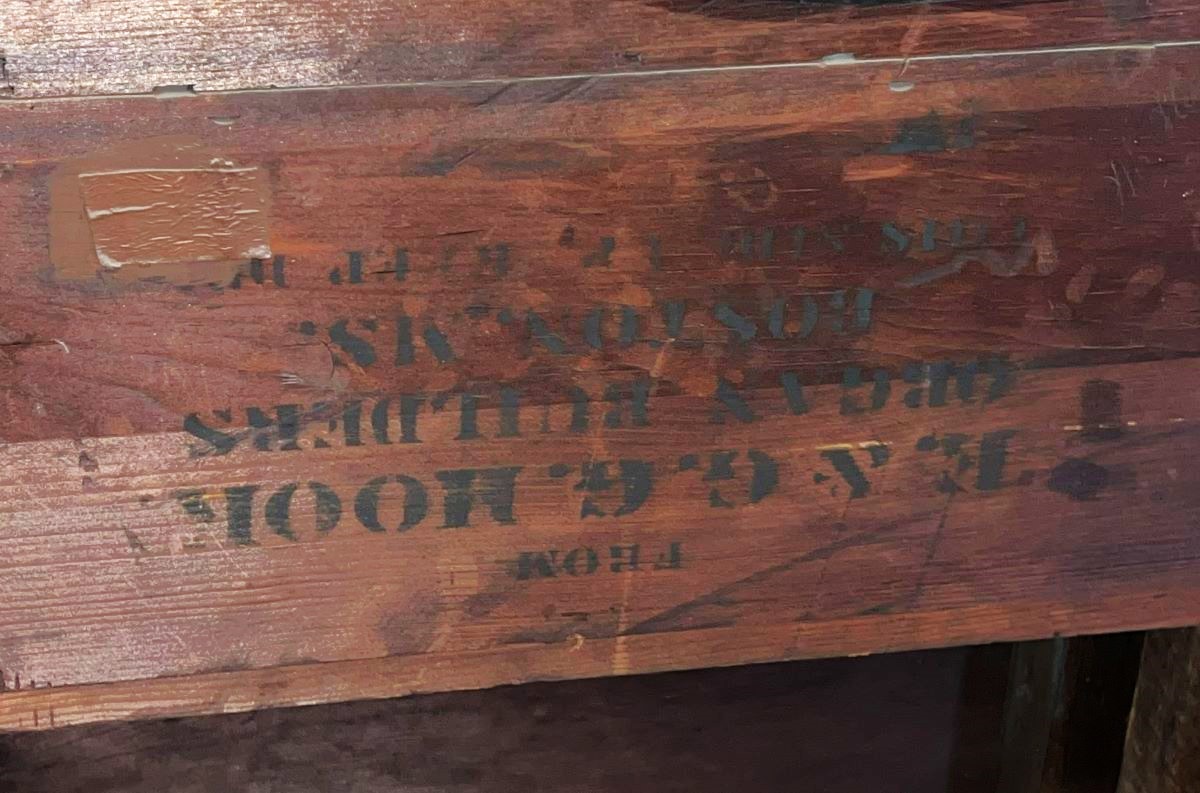

2024-12-08 - Builder's stencil on a Pedale windchest (John Panning/Jim Stettner)

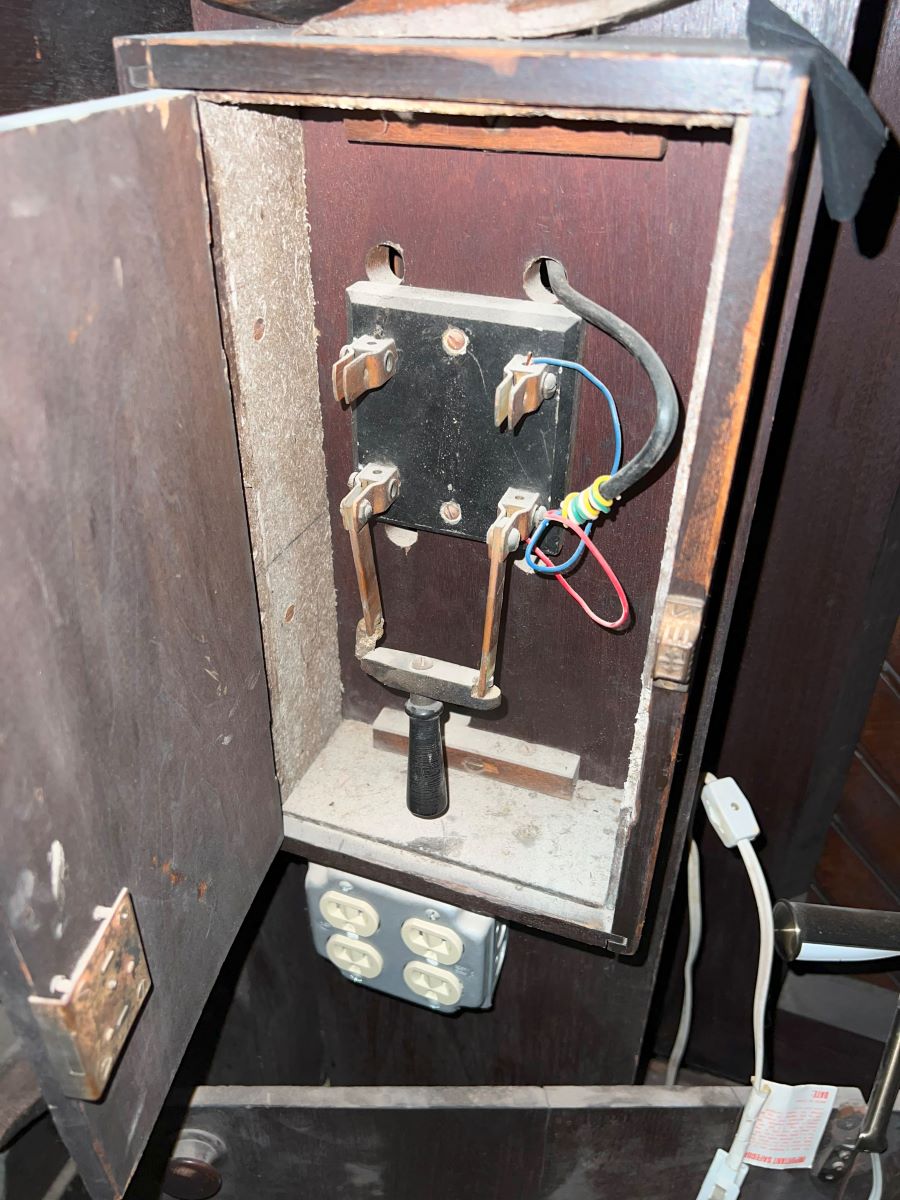

2024-12-08 - Organ Power (John Panning/Jim Stettner)
Consoles
Main
- Organ type: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
- Console position: Keydesk Attached
- 2 manuals
- 19 stops
- 21 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 56 notes
- Pedal compass: 27 notes
- Pedal Type: Flat Straight
- Expression Type: Trigger/Hitch-Down Expression
- Combination action: None
Notes
2004-10-30 - This entry represents the installation of a used organ. Relocated from Brown St. Baptist (later, Faith Community Parish) in Providence, RI. -Database Manager
2004-10-30 - Relocated from Faith Community Parish (originally Brown St. Baptist), Providence, RI. Stop list. -Database Manager
2010-05-09 - Updated through on-line information from Harle Tinney. -- Swell organ Great Organ -Database Manager
Stoplist
ACCESSORIES: Pedale Check, Bellows Signal; PEDAL MOVEMENTS: Swell Expression (hitch-down) Source: Copied from November 2024 keydesk photos
Great Gr. 8 ft Open Diapason (Non-original label), [8 ft] Melodia, [4 ft] Wald Flute, [4 ft] Octave, [8 ft] St. Diapason Bass, [3 ft] Twelfth, [2 ft] Fifteenth, [4 rks] Mixture, [8 ft] Trumpet, 8 ft Dulciana (Non-original label)
Swell Sw. [16 ft] Bourdon, Sw. [8 ft] Keraulophon, Sw. [8 ft] Op. Diapason, Sw. [8 ft] Vox Celeste (Non-original. Likely the original 8 ft Bassoon drawknob), Sw. [8 ft] St. Diapᵑ Treble., Sw. [4 ft] Octave, Sw. [8 ft] St. Diapᵑ Bass., Sw. [3 rks] Mixture, Sw. [8 ft] Oboe, Tremulo [sic]
Pedale Ped. [16 ft] Open Diapason, Ped. [16 ft] Dble. Dulciana
Swell to Pedale 8 (Coupler Swell & Pedale) (Non-original label), Great to Pedale 8 (Great to Pedale), Swell to Great 8 (Swell to Great)
