St. Luke's Memorial Episcopal Church
320 Broad St. NW
Cleveland, TN
Images
2021-06-14 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Church interior to rear (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Stained-glass window (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Console and stenciled façade pipes (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Builder nameplates (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Pedal stop tablets (Photograph by Jeff Scofield/Jeff Scofield)

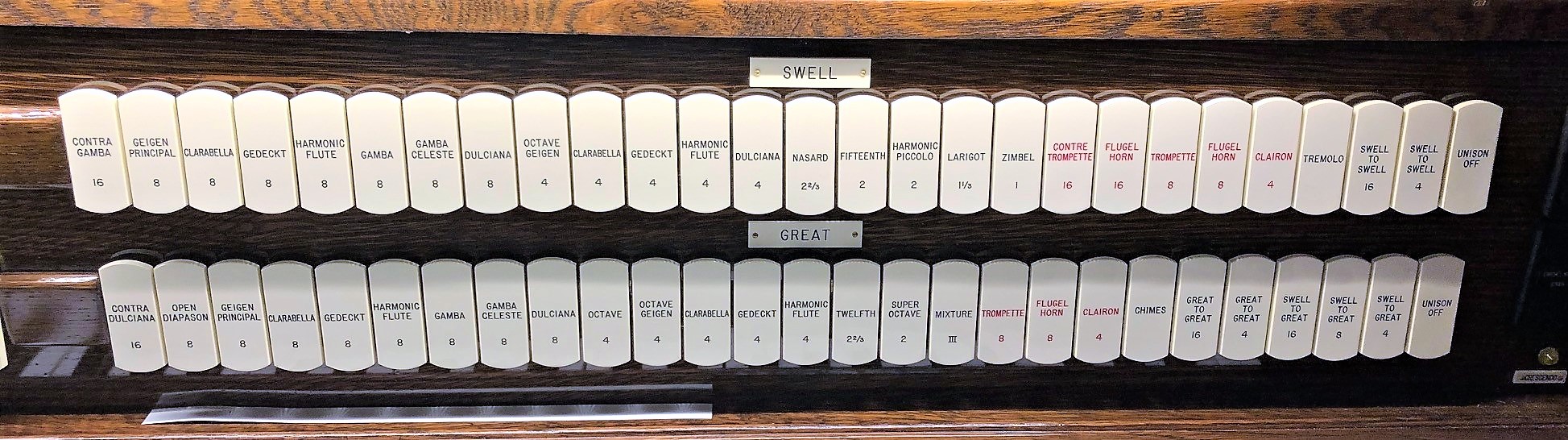

2021-06-14 - Great and Swell stop tablets (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Console (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Chancel and façade pipes (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)
2021-06-14 - Stenciled façade pipes (Photograph by Jeff Scofield/Jeff Scofield)
2019-06-11 - Stenciled facade pipes (Photograph by David Cooper via Barger & Nix Organs/Database Manager)
2019-06-11 - Console (Photograph by David Cooper via Barger & Nix Organs/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 2 manuals
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2019-08-17 - This was a rebuild and enlargement of the existing 6-rank, 1956/1982 Moller. According to the August 16, 2019 article in the Chattanooga <i>Times Free Press</i> , "The console we [Barger & Nix] installed is in a Moller cabinet that was built for The Asheville School, Asheville NC, in 1928. Then it was installed some years ago at First Baptist Church of Pigeon Forge, Tennessee. When the Baptists stopped using it, they sold it to Lee University for parts. Then Lee donated it to St. Luke's." The facade pipes are also replacements for the original 1886 Pilcher pipes. The new facade pipes were stenciled like the originals. -Database Manager
Stoplist
Source: Stoplist courtesy of Barger & Nix Organs Date not recorded
St. Luke's Memorial Episcopal Church
Cleveland, Tennessee
Möller Op. 8878 1956 2/6
Möller Op. A-8878 1982 2/6
Barger & Nix 2019 2/12
_______________________________________________________________________
GREAT SWELL PEDAL
16' Contra Dulciana (a) 16' Contra Gamba (b) 32' Resultant Principal
8' Open Diapason 8' Geigen Principal 16' Geigen Principal
8' Geigen Principal 8' Clarabella 16' Gedeckt
8' Clarabella 8' Gedeckt 10 2/3' Sub Quint
8' Gedeckt 8' Harmonic Flute 8' Diapason
8' Harmonic Flute 8' Gamba 8' Geigen rincipal
8' Gamba 8' Gamba Celeste tc 8' Clarabella
8' Gamba Celeste 8' Dulciana 8' Gedeckt
8' Dulciana 4' Octave Geigen 8' Gamba
4' Octave 4' Clarabella 8' Dulciana
4' Octave Geigen 4' Gedeckt 5 1/3' Twelfth
4' Clarabella 4' Harmonic Flute 4' Principal
4' Gedeckt 4' Dulciana 4' Octave Geigen
4' Harmonic Flute 2 2/3' Nasard 4' Harmonic Flute
2 2/3' Twelfth 2' Fifteenth 4' Gedeckt
2' Super Octave 2' Harmonic Piccolo 2' Super Octave
III Mixture 1 1/3' Larigot II Rauschquint
8' Trompette 1' Zimbel 32' Trompette Cornet
8' Flugel Horn 16' Contre Trompette 16' Contre Trompette
4' Clairon 16' Flugel Horn (c) 16' Flugel Horn
Sub 8' Trompette 8' Trompette
Unison Off 8' Flugel Horn 8' Flugel Horn
Super 4' Clairon 4' Clairon
Chimes Tremolo Zimbelstern
SW-GT 16-8-4 Sub GT-PED 8-4
Unison Off SW-PED 8-4
Super
RESOURCES
1. Open Diapason 8' exposed CC-61; 1-17 original Pilcher pipes; 18-61 new
2. Octave 4' exposed C-73; present Möller Diapason pipes C-61; 62-73 new
3. Dulciana 8' exposed C-61; 1-11 original Pilcher case pipes; 62-73 new
4. Geigen Principal 16' CCC-97; 8' CC-12 present Möller Diapason pipes;
CCC-12 and 4' C - 97 new
5. Gedeckt 16' CCC-97; existing Möller pipes
6. Gamba 8' C; existing Möller pipes
7. Gamba Celeste 8' tc C-49; existing Möller pipes
8. Harmonic Flute 4' C-73; new pipes
9. Clarabella 8' CC-73; vintage pipes, source unknown
10. Twelfth 2 2/3' C-61; new pipes
11. Trompette 16' CCC-85; new pipes; full-length basses
12. Flugel Horn 8' CC-61; new pipes (1-12 prepared-for and half-length)
a. 16' octave resultant; top octave of SW Dulciana 4' breaks back
b. 16' octave resultant
c. Planned to be a 16' CCC-73 pipes stop; presently 1-12 are playing
a derived resultant, so the 16' Flugel Horn stops on both the Swell
and Pedal play with this derived resultant for notes 1-12
[Received from Jeff Scofield August 28, 2019]
