Better Pipe Organ Database

Cornel Zimmer Organ Builders Opus 148 (2016ca.)

Westminster Presbyterian Church
101 Colville Road
Charlotte, NC

Images

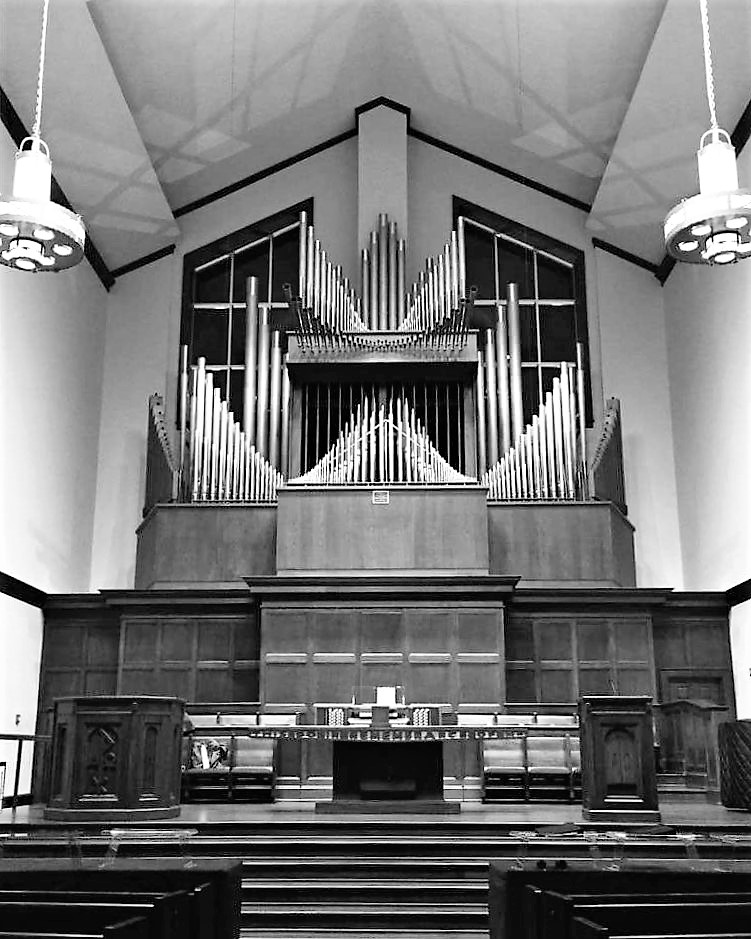

2016 - Chancel, console and organ (Photograph by Cornel Zimmer Organ Builders website, submitted by Jeff Scofield/Jeff Scofield)

2019-08-15 - Church interior to rear (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

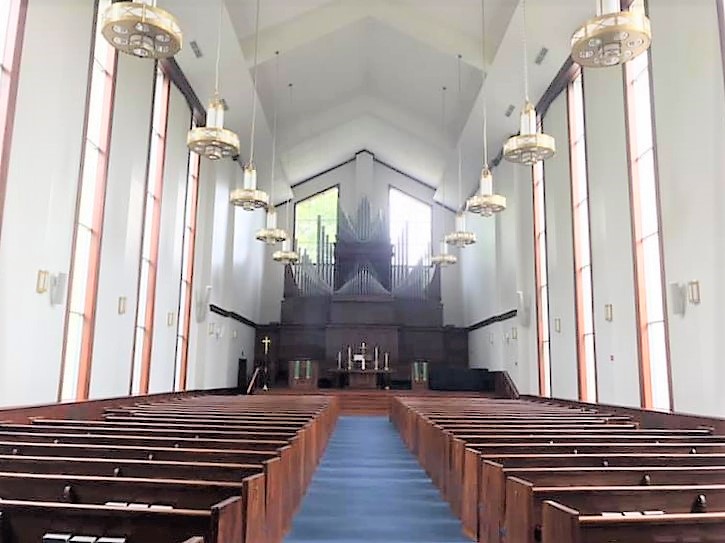

2019-08-15 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

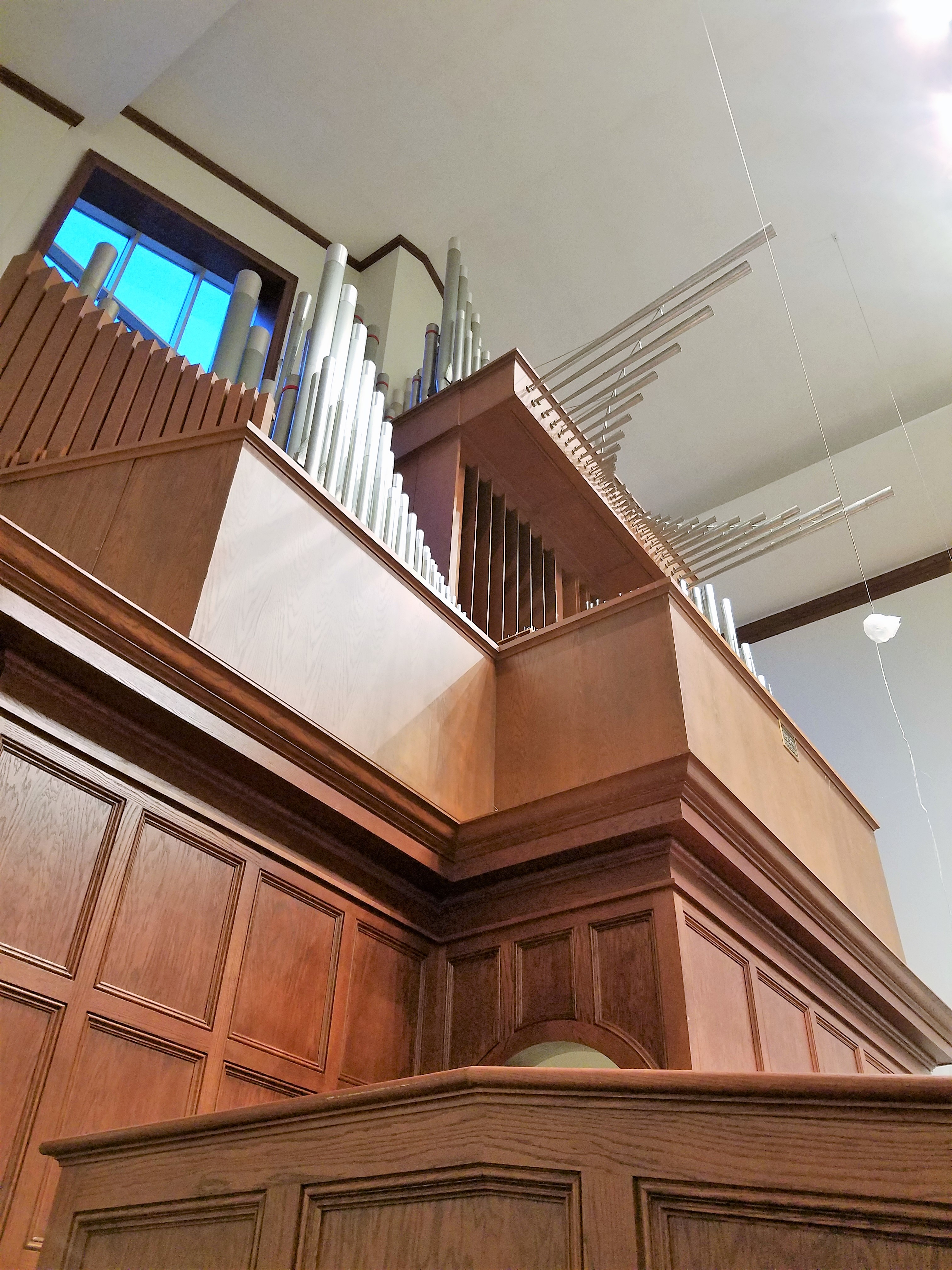

2016 - Organ and exposed pipes (Photograph by Cornel Zimmer Organ Builders website, submitted by Jeff Scofield/Jeff Scofield)

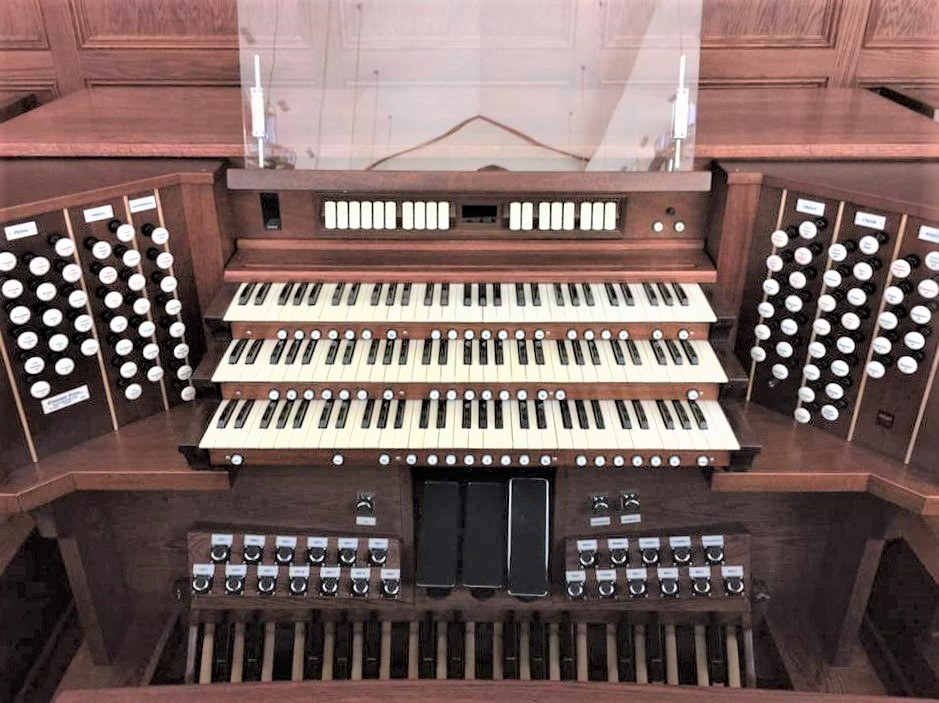

2016 - Console (Photograph by Cornel Zimmer Organ Builders website, submitted by Jeff Scofield/Jeff Scofield)

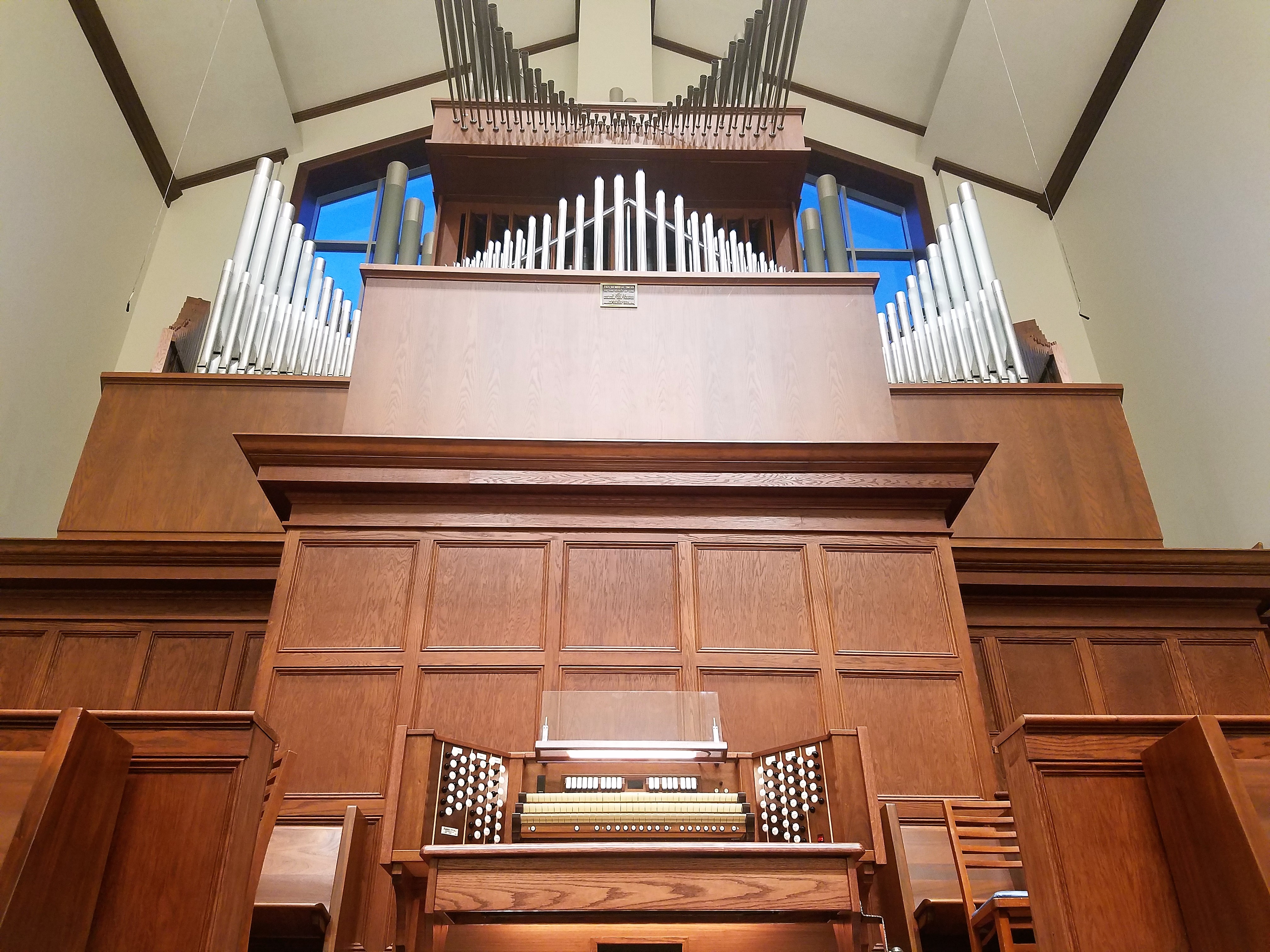

2016 - Console and exposed pipes (Photograph by Cornel Zimmer Organ Builders website, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
3 manuals
38 stops
38 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital

Stoplist

Source: Cornel Zimmer Organ Builders website

       Charlotte, North Carolina
       Westminster Presbyterian Church

       Casavant        Op. 2995   1968   3/51
       Cornel Zimmer              2016
       ________________________________________________

       Console stoplist; prepared-for stops were not
       indicated on the website; pipecounts are from
       the Casavant Op. 2995 factory specifications.

       GREAT (II)                   SWELL (III)
   16' Quintaden         61      8' Rohrflöte       61
    8' Prinzipal         61      8' Salizional      61
    8' Bordun            61      8' Vox Coelestis   54
    4' Oktav             61      4' Spitzflöte      61
    4' Rohrgedackt       61      4' Nachthorn       61
    2' Waldflöte         61      2' Prinzipal       61
   II  Rauschquint      122     IV  Scharf   2/3'  244
   IV  Mixture   1 1/3' 244     16' Fagott          61
       Unison Off                8' Oboe            61
    8' Trompette-en-Cham 61      4' Klarine         61
  * 8' Trompette Harmonique         Tremulant
    8' French Horn       CH         Sub
    8' Clarinet          CH         Unison Off
                               * 8' Trompette Harmonique
       CHOIR (floating)
   16' Dulciana                     ANTIPHONAL (floating)
    8' Geigen Principal          8' Prinzipal
    8' Hohlflöte                 8' Lieblichflöte
    8' Dulciana                  8' Echo Salizional
    8' Unda Maris                4' Oktav
    4' Gemshorn                  4' Offenflöte
    4' Traversflöte                 Tremulant
    2' Flageolet                    Super
    8' Cornopean                 8' Trompette Harmonique
    8' French Horn
    8' Clarinet                     PEDAL
       Tremulant                32' Untersatz
       Sub                      16' Prinzipal       32
       Unison Off               16' Subbass         32
       Super                    16' Dulciana        CH
       Chimes                    8' Oktav           32
                                 8' Gedacktpommer   32
       POSITIV (I)               8' Dulciana        CH
    8' Gedackt           61      4' Oktav           32
    4' Prinzipal         61      4' Rohrflöte       32
    4' Koppelflöte       61      2' Blockflöte      32
    2' Gemshorn          61     IV  Mixture  2'    128
1 1/3' Quintflöte        61     32' Kontra Posaune
   II  Sesquialtera     122     16' Posaune         32
  III  Zimbel  1/3'     183     16' Tromba          CH
    8' Krummhorn         61      8' Trompete        32
       Unison Off                4' Schalmei        32
  * 8' Trompette Harmonique

    *  non-coupling

       [Received from Jeff Scofield May 6, 2021]

Related Pipe Organ Database Entries

#47462 - Casavant Frères Ltée. Opus 2995 (1969)
