Better Pipe Organ Database

Keates Organ Co. (1968)

St. Paul's-Trinity/Nelson United Church
602 Silica St.
Nelson, BC, CA

Images

2020-07-05 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

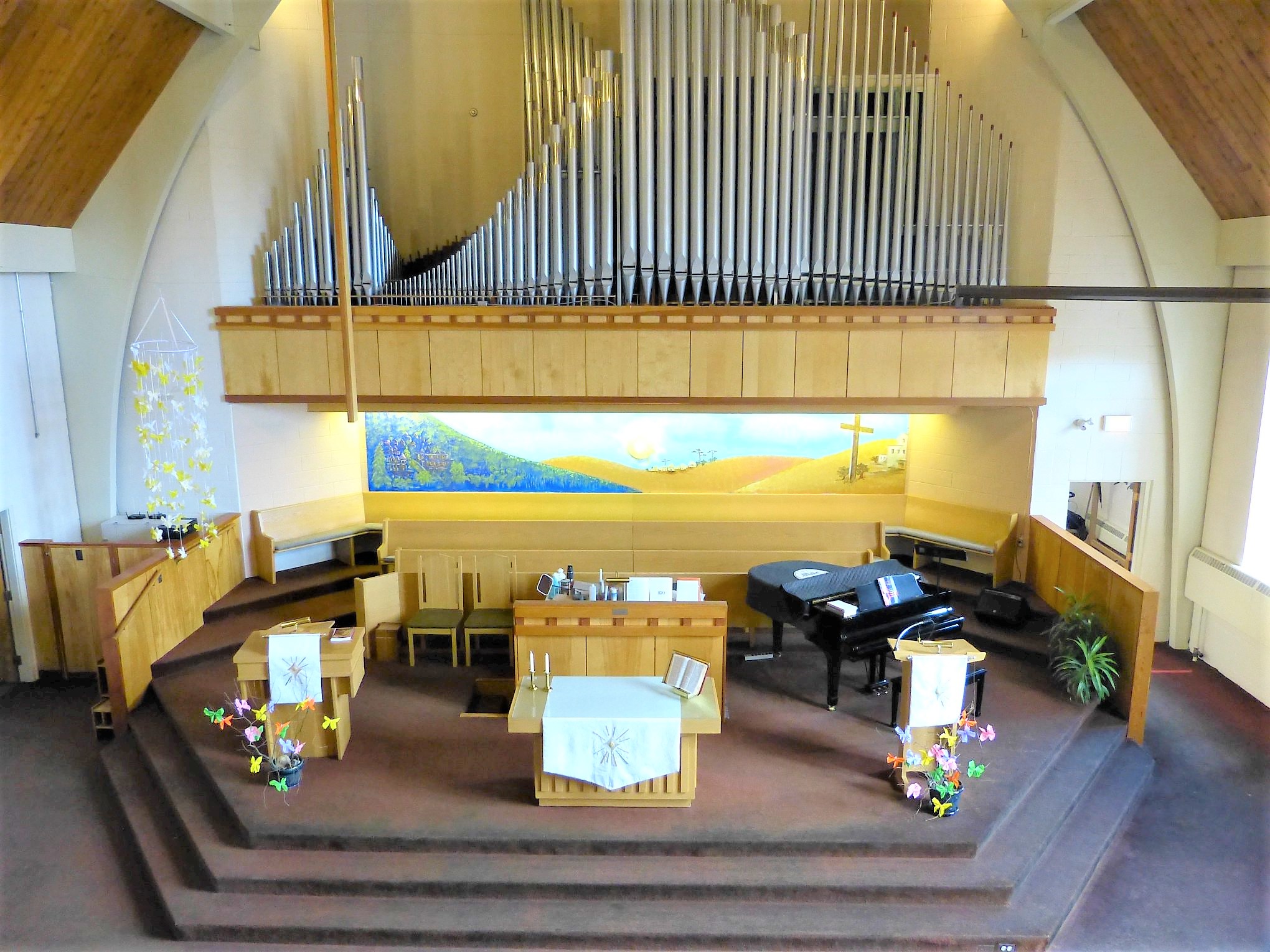

2018-04-04 - Chancel, exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
20 stops
30 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)

Stoplist

Source: From THE DIAPASON September 1968

    Nelson, British Columbia
    St. Paul's-Trinity United Church

    Keates   1968   2/27
    ___________________________________________

    GREAT                 SWELL
16' Spitzgedeckt 61    8' Rohrflöte          61
 8' Principal    61    8' Salicional         61
 8' Spitzflöte   61    8' Celeste            56
 8' Salicional   SW    4' Principal          61
 4' Octave       61    4' Blockflöte         61
 4' Gedeckt      24    2' Italian Principal  61
 2' Flachflöte   61   II  Sesquialter       122
IV  Mixture     244   IV  Scharf            244
 8' Trumpet      61   16' Contra Oboe        61
    Chimes             8' Trompette          61
                          Tremulant
    PEDAL
32' Resultant    --
16' Contra Bass  32
16' Bourdon      32
16' Spitzgedeckt GT
 8' Octave Bass  12
 8' Bass Flute   12
 4' Choralbass   32
 4' Gedeckt      GT
 2' Super Octave 12
16' Posaune      12 SW
16' Fagotto      SW

[Received from Jeff Scofield September 1, 2021]
