St. John's Episcopal Church
500 N. Roan St.
Johnson City, TN
Images

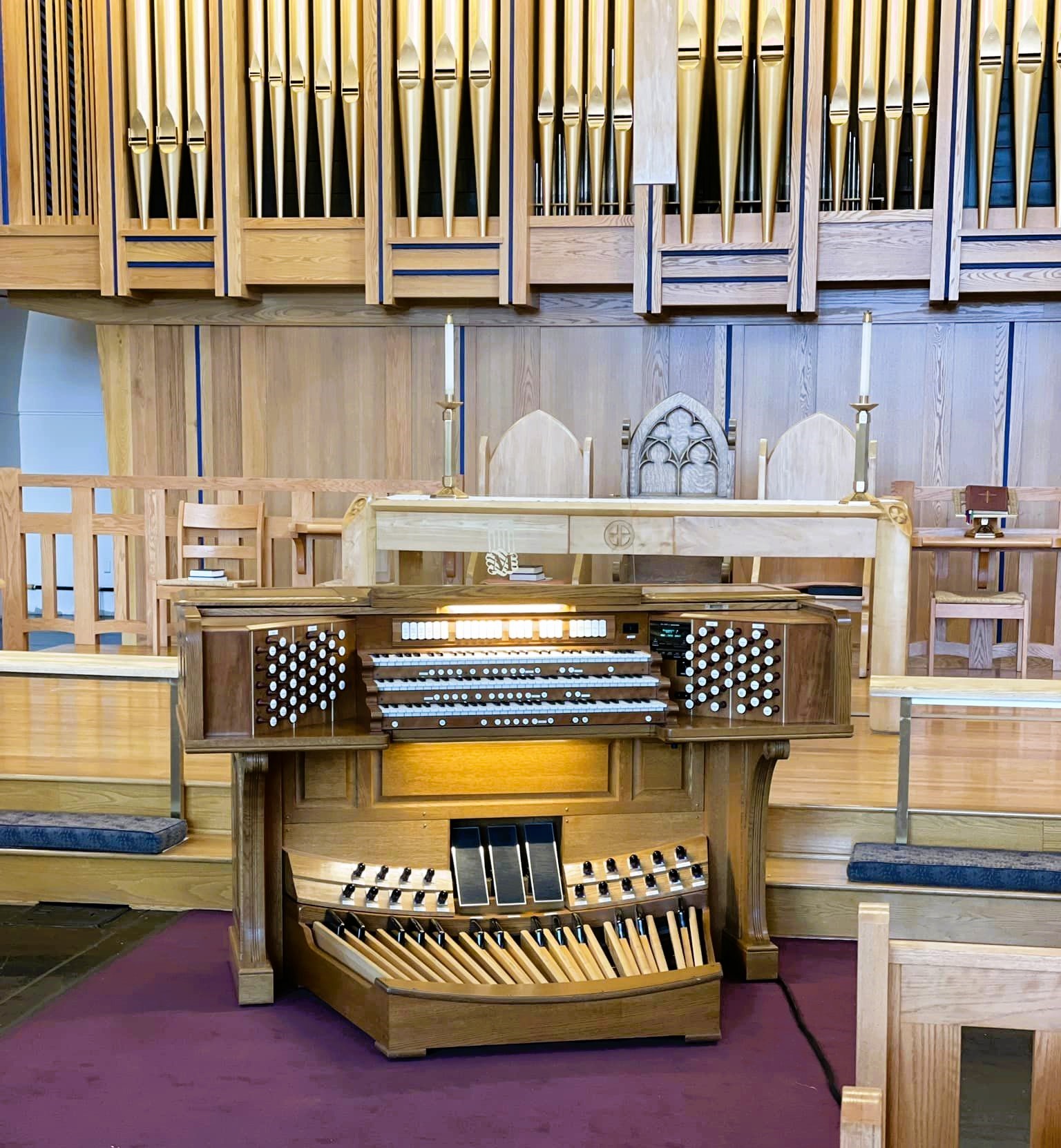

2023-09-08 - Console/Casework (Photograph by Nick Andrews/Nick Andrews)
2023 - Right stopjamb (Photograph by Courtesy of Patrick Murphy, submitted by Jeff Scofield/Jeff Scofield)
2023 - Left stopjamb (Photograph by Courtesy of Patrick Murphy, submitted by Jeff Scofield/Jeff Scofield)
2023 - Church interior and organ case (Photograph by Courtesy of Patrick Murphy, submitted by Jeff Scofield/Jeff Scofield)
2023-09-07 - Church interior and organ case (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2023 - Console (Photograph by Courtesy of Patrick Murphy, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 3 manuals
- 36 stops
- 448 registers
- 4 divisions
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
Stoplist
Source: Copied from drawknob photos by Patrick Murphy
Johnson City, Tennessee
St. John's Episcopal Church
Patrick J Murphy 2023
______________________________________________
GREAT SWELL
16' Gemshorn 16' Lieblich Gedackt
16' Lieblich Gedackt SW 8' Diapason
8' Principal 8' Gedackt
8' Harmonic Flute 8' Viola
8' Bourdon 8' Viola Celeste
8' Gemshorn 4' Principal
4' Octave 4' Flute Harmonic
4' Flute 2' Flautino
2 2/3' Twelfth III-IV Plein Jeu
2' Fifteenth 16' Contra Trumpet
IV Mixture 8' Trumpet
8' Tromba CH 8' Oboe
8' Trumpet CH 8' Vox Humana
8' Trumpet SW Tremulant
Super Sub
Unison Off
CHOIR Super
8' Geigen
8' Concert Flute PEDAL
8' Viola 32' Dbl Open Diapason
8' Dulciana 32' Contra Bourdon
8' Unda Maris 16' Open Diapason
4' Fugara 16' Principal
4' Nachthorn 16' Bourdon
2 2/3' Nazard 16' Violone
2' Block Flute 16' Gemshorn GT
1 3/5' Tierce 16' Lieblich Gedackt SW
II-III Sharff 8' Octave
8' Tromba 8' Bourdon
8' Trumpet 8' Gemshorn GT
8' Clarinet 8' Gedackt SW
Tremulant 4' Choralbass
Sub III Mixture
Unison Off 32' Contra Trombone CH
Super 16' Trombone CH
Blank 16' Contra Trumpet SW
8' Trumpet CH
4' Clarion CH
[Received from Jeff Scofield September 11, 2023]
