Trinity Episcopal Church-on-the-Green
230 Temple Street
New Haven, CT
Images
2020-02-26 - Right stopjamb (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2019-07-19 - Church interior and gallery organ case (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

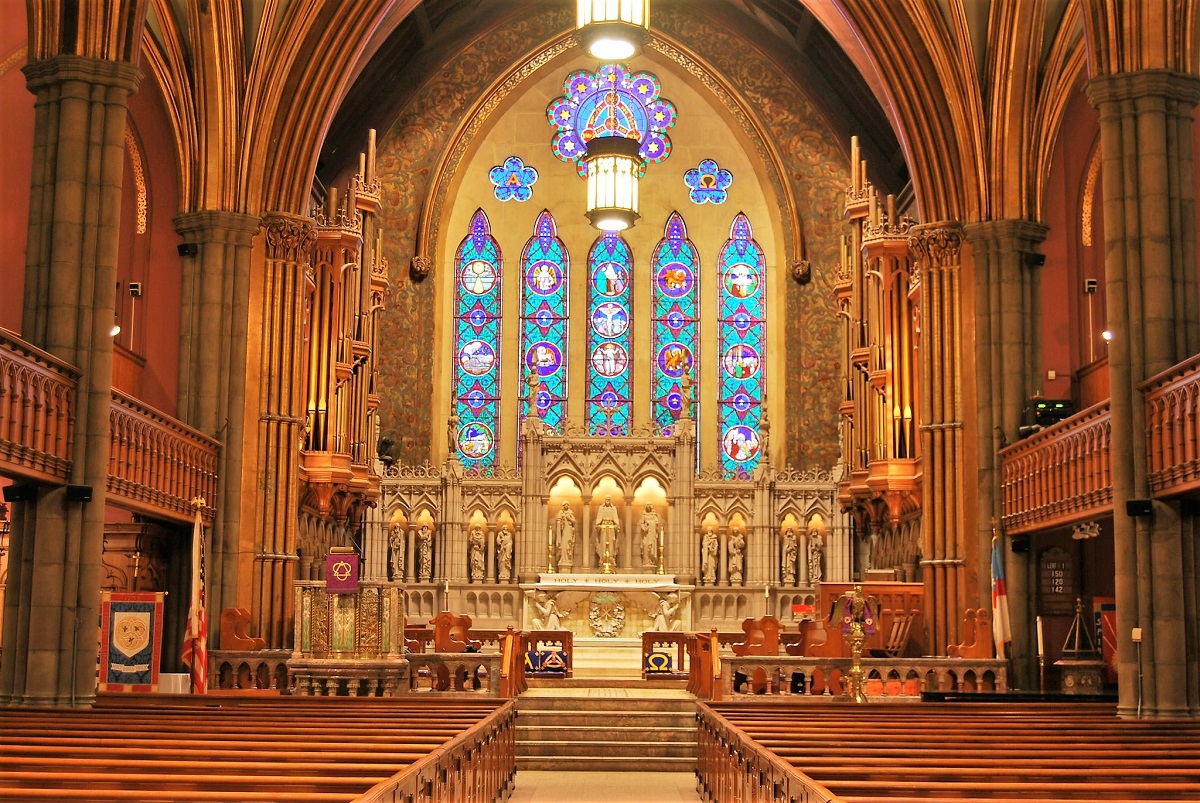

2017-04-16 - Chancel and organ cases (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2019-02-04 - Church interior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2013-02-15 - Sanctuary interior (Photograph by Stephen Schnurr/Database Manager)
Unknown - Gallery Facade (Photograph by Jerry Mead (2016)/Database Manager)
2009-02-16 - Gallery facade (Photo by Len Levasseur/Database Manager)
2009-02-16 - Nave facade and console (Photo by Len Levasseur/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 61 stops
- 73 registers
- 6 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
Notes
2004-10-30 - Status Note: There 1996 -Database Manager
2004-10-30 - Altered Anthony Mican, 2-10. As of 1996, church scheduled for demolition, with no plan to salvage the organ. -Database Manager
2004-10-30 - Status Note: There 1994. -Database Manager
2004-10-30 - Nave and Chancel divisions. Restored 1983 by A. Thompson-Allen Co. -Database Manager
2006-01-29 - Updated through online information from Nathan Smith. -- Two chancel divisions are located in matching cases hanging from the chancel side walls. -Database Manager
2006-11-24 - Updated through information adapted from <i>E. M. Skinner/Aeolian-Skinner Opus List</i>, by Sand Lawn and Allen Kinzey (Organ Historical Society, 1997), and included here through the kind permission of Sand Lawn: <br><i>Retained 1904 Hall casework; Chancel organ rebuilt in 1948, 1927-A; further additions from 1957 through 1975; restoration work by A. Thompson Allen in 1993-4.</i> -Database Manager
2013-11-02 - Updated through online information from Andrew Kotylo. -Database Manager
Stoplist
Typed stoplist Source: From Allen Kinzey Date not recorded
New Haven, Connecticut
Trinity Church-on-the-Green, Episcopal
Aeolian-Skinner Organ Co., Inc. Opus 927 1935 3 manuals, 61 stops, 74 ranks
_________________________________________________________________________________
GREAT ORGAN SWELL ORGAN
16' Sub Principal 61 16' Lieblich Gedeckt 73
8' Principal 61 8' Geigen Principal 73
8' Diapason 61 8' Stopped Diapason 73
8' Bourdon 61 8' Viol de Gambe 73
8' Gemshorn 61 8' Voix Celeste 73
4' Octave 61 8' Flute Celeste 134
4' Gemshorn 61 4' Octave Giegen 73
2 2/3' Quint 61 4' Flute Harmonique 73
2' Super Octave 61 2' Fifteenth 61
1 3/5' Tierce 61 Plein Jeu VI 366
Fourniture IV 244 16' Bombarde 73
8' Trumpet 61 8' Trompette 73
4' Clarion 61 8' Oboe 73
Chimes (enc. in CH) 8' Vox Humana 73
Tremolo
CHOIR ORGAN
16' Contra Gemshorn 73 PEDAL ORGAN
8' Spitzflöte 73 32' Soubasse 12
8' Lieblich Gedeckt 73 16' Principal 32
8' Dulciana 73 16' Sub Principal GT
8' Unda Maris (TA) 64 16' Bourdon 32
4' Gemshorn 73 16' Violone 32
4' Lieblich Flöte 73 16' Contra Gemshorn CH
2 2/3' Nazard 61 16' Lieblich Gedeckt SW
2' Piccolo 61 8' Octave 32
1 3/5' Tierce 61 8' Flute Ouverte 32
Sesquialtera V pf 8' Gemshorn CH
8' Trompette 73 8' Still Gedeckt SW
8' English Horn 73 5 1/3' Quint 32
8' Clarinet 73 4' Super Octave 32
Tremolo 4' Flute Harmonique 32
2' Blockflöte pf
Mixture IV pf
16' Bombarde 32
8' Trompette 32
4' Clarion 32
Chimes GT
CHANCEL ORGAN (Opus 927-A)
GREAT ORGAN CHOIR ORGAN
8' Rohrflöte 61 8' Stopped Diapason 61
8' Erzähler 61 8' Salicional 61
4' Octave 61 4' Prestant 61
2' Fifteenth (fr. Fourniture) Mixture III 183
Fourniture IV 244 8' Trompette 61
8' Trumpet 61 Tremolo
PEDAL ORGAN
16' Bourdon 12 CH
8' Principal 12
8' Viola CH
4' Choralbass 12
16' Fagotto 32
[Received from Steven E. Lawson 2017-06-02]
