Daniel Jaeckel Inc. Opus 19 (1992)

Moravian Church
323 South Fifth Avenue
Sturgeon Bay, WI

Images

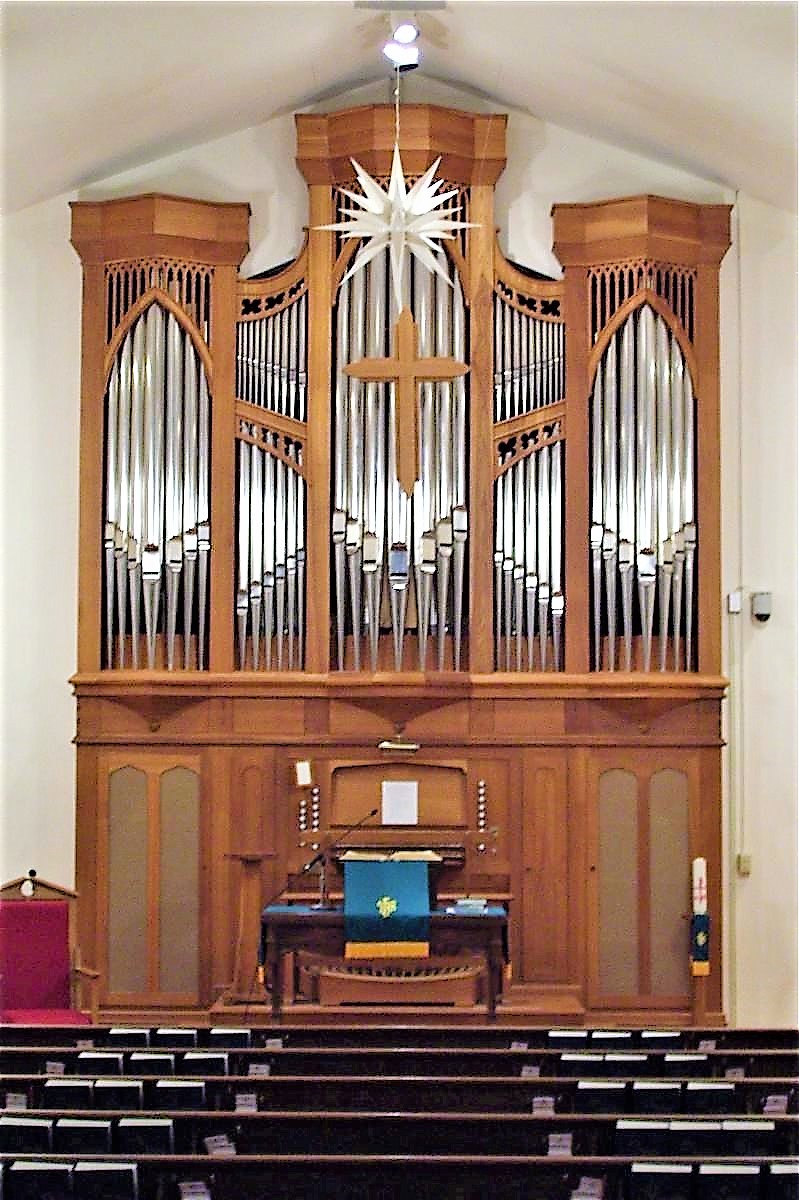

Unknown - Organ Case (Photograph (ca. 2010) by Robert Nickel/Database Manager)

Consoles

Main

Console position: Keydesk Attached, Manuals Set Into Case
2 manuals
19 stops
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 30 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Combination action: Fixed Mechanical

Notes

2004-10-30 - Status Note: There 1993 -Database Manager

2004-10-30 - Kellner temperament. [Replaced 1930's Maxey-Barton theatre organ.] -Database Manager

2013-08-16 - Updated through online information from Richard C Greene. -Database Manager

2015-01-08 - Updated through online information from Robert Nickel. -Database Manager

Stoplist

Specification from builder's web site Source: Source not recorded Date not recorded

Sturgeon Bay, Wisconsin
Sturgeon Bay Moravian Church

Jaeckel Organs   Opus 19   1992             2 manuals, 19 stops, 23 ranks
_________________________________________________________________________

         GREAT ORGAN                          SWELL ORGAN
      8' Principal          56             8' Gamba              56
      8' Rohrflöte          56             8' Gedackt            56
      4' Octave             56             4' Principal          56
      4' Hohlflöte          56             4' Waldflöte          56
      2' Octave             56             2' Blockflöte         56
  1 1/3' Mixtur IV         224         2 2/3' Cornet I-II         ?
      8' Trompete           56         1 1/3' Quint              56
                                           8' Oboe               56
         PEDAL ORGAN
     16' Subbass            30                COUPLERS
      8' Principal          30                Swell to Great
      4' Choralbass         30                Great to Pedal
     16' Posaune            30                Swell to Pedal

         Tremulant
         2 pre-set mechanical combination pedals
         1 mechanical Cancel pedal


[Received from Steven E. Lawson  2014-12-15]

Websites

Sturgeon Bay Moravian Church: Music Ministries - Photograph, stoplist (Check Internet Archive, archive.is)
