Joseph Chapline, (Organs) (1986)

Images

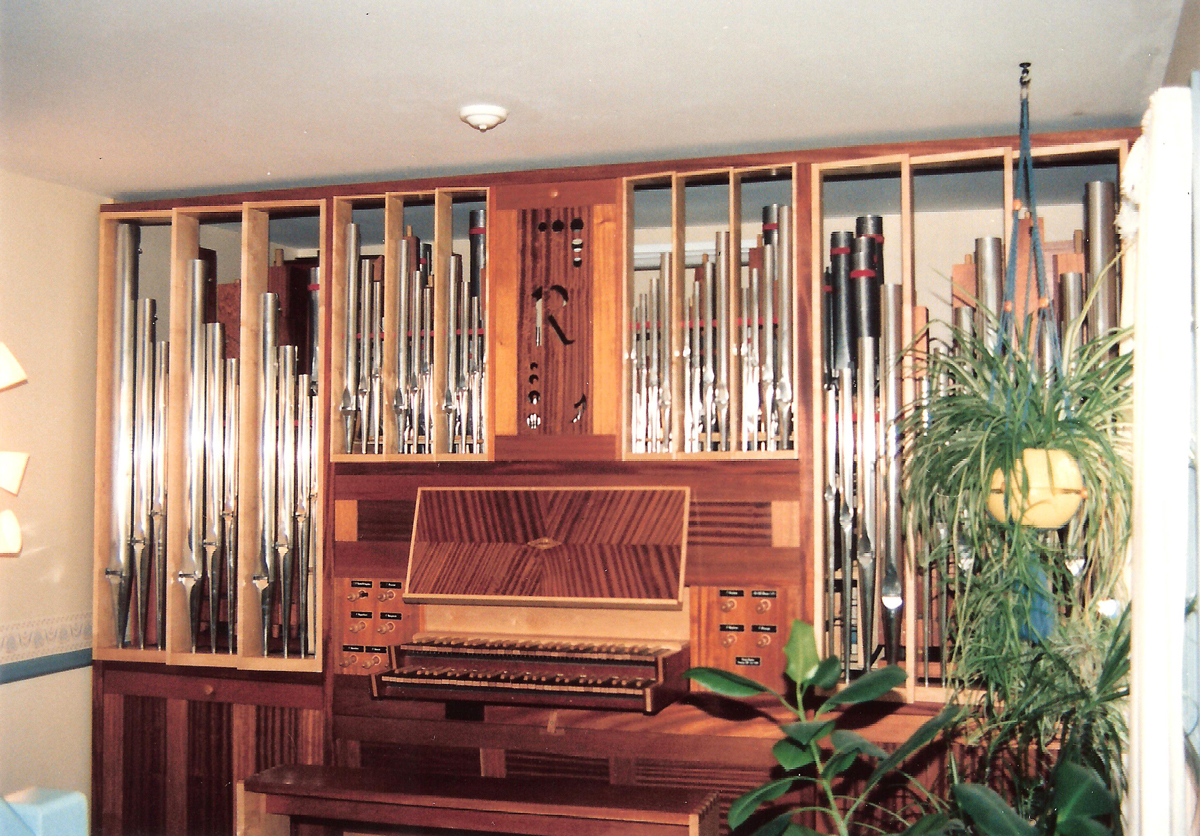

2012-01-15 - Façade and keydesk (Photograph by Gregory Rettew/Database Manager)

2012-01-15 - Keydesk (Photograph by Gregory Rettew/Database Manager)

Consoles

Main

• Organ type: Traditional Without Cover
• Console position: Keydesk Attached
• 2 manuals
• 11 stops
• 14 registers
• 3 divisions
• Key action Type: Mechanical (Balanced Tracker)
• Stop action Type: Mechanical
• Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
• Manual compass: 56 notes
• Pedal compass: 30 notes
• Pedal Type: Concave Radiating (Not Meeting AGO Standards)
• Expression Type: No Enclosed Divisions
• Combination action: None
• Has hitchdown couplers

Notes

2004-10-30 - Status Note: There 1993 -Database Manager

2004-10-30 - 1 3/4" wind pressure. [ed. 2024-03-18 per April 2024 Crescendo article] -Database Manager

2012-01-14 - Updated through online information from Gregory Rettew. -Database Manager

Stoplist

Source: Received from Greg Rettew 2012-01-15

Manual I RohrFloete 8, Prinzipal 4, Mixture III, Gemshorn 2

Manual II HolzGedeckt 8, KoppelFloete 4, Prinzipal 2, Sesquialtera II (2 2/3 can play by itself)

Pedal Gedeckt 8, Subbass 16, Choralbass 4

Manual I to Pedal 8, Manual II to Pedal 8, Manual II to Manual I 8
