Note: Not extant. Not playable. (in this location)
2004-10-30 - Status Note: There 1990. -Database Manager
2004-10-30 - "Designed by Lynnwood Farnham. Chancel organ was rebuilt from the church's previous Hutchings 1890 Op. 216, 3-52. Offered for sale through the Organ Clearing House in 2004." -Database Manager
2009-10-19 - Updated through online information from James R. Stettner. -- The organ was relocated to Gulangyu Island in China where it resides in an organ museum -- the former villa of a wealthy Chinese merchant -- along with a Norman & Beard relocated from England. The organ(s) were purchased by piano collector Hu Youyin. The Casavant was shipped in 2007. -Database Manager
2010-11-29 - Updated through online information from Jeff Scofield. -- 52-rank gallery organ located in cases to each side of the gallery window; the 63-rank chancel organ is located in chambers in the front; the 5-rank chapel organ is playable from the Swell manual. -Database Manager
2012-08-07 - Updated through online information from Henry Lachance. -- I occasionally attend this church to hear their Sunday morning Bach Cantata program. -Database Manager
2014-09-16 - Updated through online information from John Buckwalter. -- Moved to China in 2007. Installation (with changes) scheduled for 2017. -Database Manager
Stoplist copied from the factory specificaitons Source: Source not recorded Date not recorded
Boston, Massachusetts
Emmanuel Episcopal Church

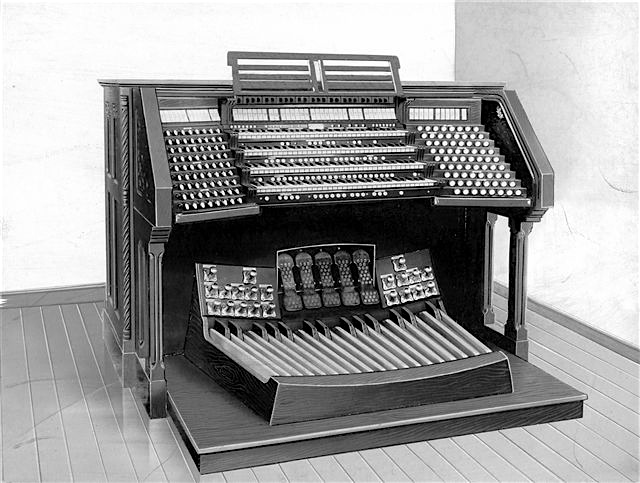

Casavant Op. 700 1917 4/120
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
_______________________________________________
* retained from Geo. S. Hutchings Op. 216 (1890)
and Op. 444 (1899)
GALLERY ORGAN
GREAT CHOIR (encl with Solo)
16' Contra Gamba 61 8' Stentorphone 73
16' Bourdon 61 8' Gross Flute 73
8' Open Diapason 1 61 8' Viole d'Orchestre 73
8' Open Diapason 2 61 8' Viole Celeste 73
8' Stopped Flute 61 8' Gemshorn 73
8' Harmonic Flute 61 8' Quintadena 73 *
5 1/3' Quint 61 4' Harmonic Flute 73
4' Octave 61 2' Harmonic Piccolo 61
4' Harmonic Flute 61 8' Orchestral Oboe 61
3 1/5' Tierce 61 Tremulant (CH/SO)
2 2/3' Twelfth 61 Sub
2' Fifteenth 61 Super
1 3/5' Tierce 61
1 1/7' Septième 61 SOLO
IV Mixture 244 8' Tuba Mirabilis 73
16' Trombone 61 8' Cor Anglais 61
8' Tromba 61 Sub
4' Clarion 61 Super
Celesta 61
SWELL Celesta Sub
16' Bourdon 73
8' Open Diapason 73 PEDAL
8' Viole di Gamba 73 32' Bourdon 7 *
8' Voix Céleste 63 16' Open Flute 32
8' Stopped Flute 73 16' Open Metal 32
8' Dolce 73 16' Gamba GT
4' Gemshorn 73 16' Bourdon GT
4' Traverse Flute 73 16' Echo Bourdon SW
2' Flautino 61 8' Open Flute 12
III Sesquialtera 183 8' Octave Metal 12
16' Double Trumpet 73 8' Bourdon GT
8' Trumpet 73 8' Echo Bourdon SW
8' Oboe 73 4' Open Flute 12
8' Vox Humana 61 * 32' Contra Trombone 12 GT
4' Clarion 73 16' Trombone 32
Tremulant 16' Small Trombone GT
Sub 16' Echo Trombone SW
Super 8' Tromba 12
4' Clarion 12
CHANCEL ORGAN
* new pipework; all other is retained Hutchings pipework
** partly new
GREAT SWELL
16' Dbl Open Diap 61 16' Bourdon 73
8' Open Diapason 1 61 * 8' Violin Diapason 73
8' Open Diapason 2 61 8' Spitz Flute 73
8' Open Diapason 3 61 8' Salicional 73
8' Double Flute 61 8' Voix Céleste 61
8' Stopped Flute 61 * 8' Stopped Flute 73
4' Octave 61 8' Aeoline 73
4' Harmonic Flute 61 4' Octave 73
2 2/3' Twelfth 61 4' Violina 73
2' Fifteenth 61 4' Traverse Flute 73
III Mixture 183 2' Piccolo 61
IV Mixture 244 * IV Mixture 244 *
16' Trombone 61 ** 16' Contra Bassoon 73
8' Trumpet 61 * 8' Cornopean 73
4' Clarion 61 * 8' Oboe 73
8' Vox Humana 61 *
PEDAL 4' Clarion 73 *
32' Bourdon 5 ** Tremulant
16' Open Flute 32 Sub
16' Open Metal GT Super
16' Violone 32
16' Bourdon 32 CHOIR
16' Echo Bourdon SW 16' Dulciana 61 **
16' Dulciana CH 8' Open Diapason 61 *
8' Open Flute 12 8' Gemshorn 61
8' Violoncello 12 8' Viola di Gamba 61
8' Bourdon 12 ** 8' Melodia 61
8' Echo Bourdon SW 8' Lieblich Gedackt 61 *
8' Dulciana CH 8' Dulciana 61
4' Super Octave 32 8' Unda Maris 49 *
4' Bourdon 12 4' Gemshorn 61
32' Bombarde 5 GT ** 4' Violina 61 **
16' Bombarde 32 * 4' Wood Flute 61 **
16' Trombone GT 2 2/3' Twelfth 61 *
16' Bassoon SW 2' Piccolo 61 *
8' Tromba 12 * 1 3/5' Tierce 61 *
4' Clarion 12 * 8' Trumpet 61 *
8' Clarinet 61 *
CHAPEL (playable on SW) 8' Musette 61 *
8' Open Diapason 61 4' Clarion 61 *
8' Salicional 61 Tremulant
8' Melodia 61 Sub
4' Octave 61 Super
16' Pedal Bourdon 27
