Better Pipe Organ Database

Daniel Jaeckel Inc. Opus 11 (1988)

Pilgrim Congregational Church, UCC
2310 East Fourth Street
Duluth, MN

Images

2015-06-16 - Pedalboard and Foot Levers (Photograph by Ryan D. Hulshizer/Database Manager)

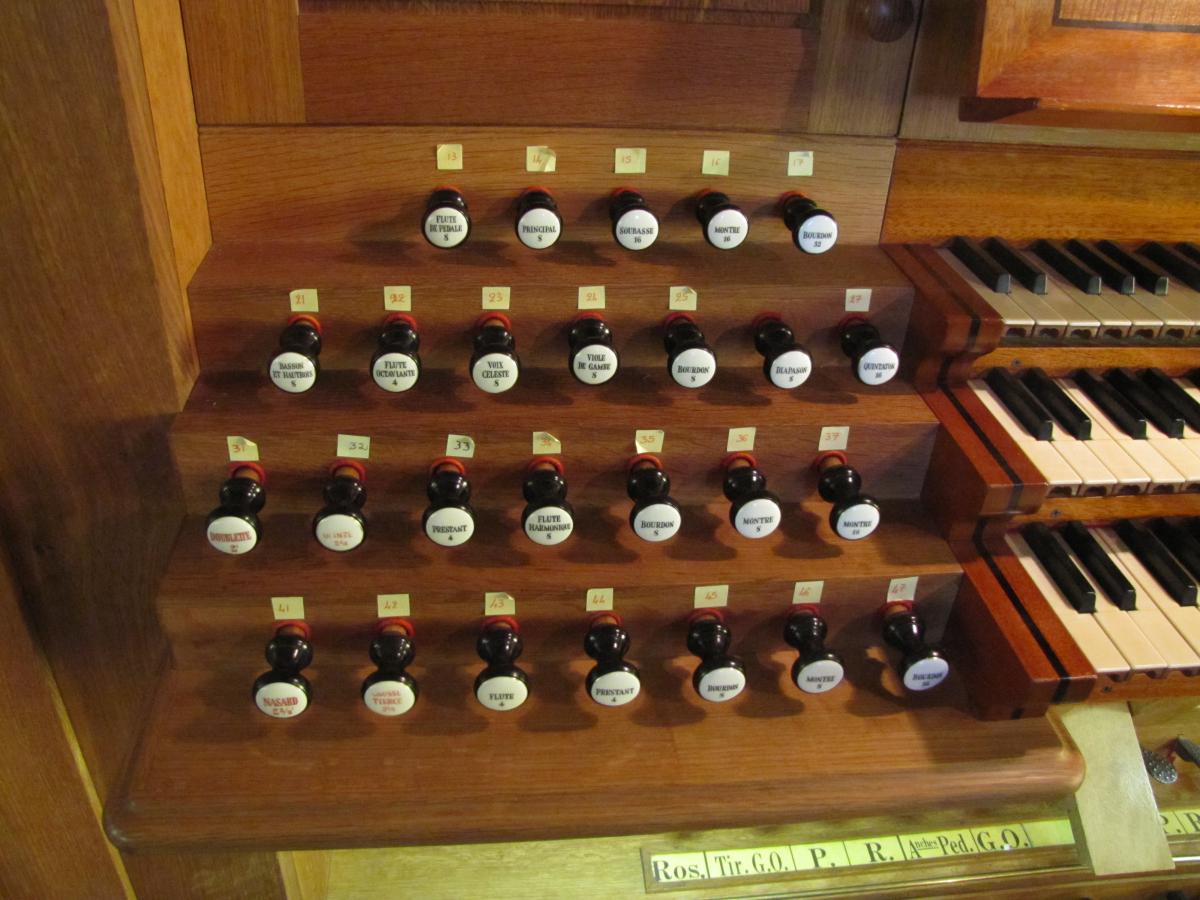

2015-06-16 - Left Stop Jamb (Photograph by Ryan D. Hulshizer/Database Manager)

2015-06-16 - Right Stop Jamb (Photograph by Ryan D. Hulshizer/Database Manager)

2015-06-16 - Organ Cases (Photograph by Ryan D. Hulshizer/Database Manager)

2015-06-16 - Rueckpositiv Case and Main Case (Photograph by Ryan D. Hulshizer/Database Manager)

2013-10-02 - Console (Photograph by Ryan D. Hulshizer/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached, Manuals Set Into Case
3 manuals
49 stops
4 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical

Notes

2004-10-30 - Status Note: There 1997 -Database Manager

2004-10-30 - Suspended key action. Gallery installation. -Database Manager

2009-02-27 - Updated through online information from Richard C Greene. -Database Manager

2012-06-19 - Updated through online information from Richard C Greene. -Database Manager

2022-06-04 - The organ of Pilgrim Congregational Church was build by Jaeckel, Inc., of Duluth and was installed between October, 1987, and May, 1988. The organ replaced a seventy-year-old instrument that was located in the chancel area of the sanctuary. That organ, built in 1917 by J. W. Steere & Son Organ Company (Opus 693), of Springfield, Mass., was sold to the Irving Park Baptist Church of Chicago, Ill. Three stops from the Steere organ were used in the Jaeckel instrument. -- from church website -Paul R. Marchesano

Stoplist

Specification from builder's web site Source: Source not recorded Date not recorded

Duluth, Minnesota
Pilgrim Congregational Church

Jaeckel Organs   Opus 11   1988                    3 manuals, 49 stops, 67 ranks
________________________________________________________________________________

         GRAND-ORGUE (II)                        RÉCIT EXPRESSIF (III)
           *Jeux de Fonds*                         *Jeux de Fonds*
     16' Montre                  56          16' Quintaton              56
      8' Montre                  56           8' Diapason               56
      8' Bourdon                 56           8' Viole de gambe         56
      8' Flûte harmonique        56           8' Bourdon                56
      4' Prestant                56           8' Voix céleste (from tc) 44
           *Jeux de Combinaison*              4' Flûte octaviante       56
  2 2/3' Quinte                  56           8' Basson-Hautbois        56
      2' Doublette               56           8' Voix humaine           56
      2' Grosse Fourniture II   112                *Jeux de Combinaison*
      1' Fourniture IV          224           4' Cornet IV (from c')   128
    1/2' Cymbale III            168           2' Octavin                56
      8' Cornet V (from c')     160       2 2/3' Carillon I-III          ?
      8' Trompette               56          16' Basson                 56
      4' Clairon                 56           8' Trompette harmonique   56
                                              4' Clairon harmonique     56
         POSITIF (I)
           *Jeux de Fonds*                       PÉDALE
     16' Bourdon                 56                *Jeux de Fonds*
      8' Montre                  56          32' Bourdon                30
      8' Bourdon                 56          16' Montre                 30
      4' Prestant                56          16' Soubasse               30
      4' Flûte                   56           8' Principal              30
           *Jeux de Combinaison*              8' Flûte de pédale        30
  3 1/5' Grosse tierce           56           4' Flûte                  30
  2 2/3' Nasard                  56                *Jeux de Combinaison*
      2' Doublette               56          32' Contre Bombarde        30
  1 3/5' Tierce                  56          16' Bombarde               30
  1 1/3' Larigot                 56           8' Trompette              30
      1' Plein-jeu IV           224
      8' Trompette               56
      8' Cromorne                56

         PÉDALES DE COMBINAISON                  COMMENTS
         Rossignol                               All-mechanical key (suspended)
         Tirasse Grand-Orgue                       and stop actions
         Tirasse Positif                         No electric or pneumatic assists
         Tirasse Récit                             for key, coupler or stopactions
         Anches Pédale                           Valotti tuning
         Anches Grand-Orgue
         Anches Positif
         Anches Récit
         Fonds Grand-Orgue
         Expression Récit
         Récit sur Grand-Orgue
         Positif sur Grand-Orgue
         Récit sure Positif
         Tremolo du Récit/Positif


[Received from Steven E. Lawson  2014-12-15]

Websites

Pilgrim Congregational Church Duluth, MN - Photograph, stoplist (Check Internet Archive, archive.is)
