Casavant Frères Ltée. Opus 3620 (1986)

First Christian Reformed Church
1010 Front Street
Lynden, WA

Images

2021-08-04 - Casavant console right before replacement. (Photograph by Rene Marceau, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

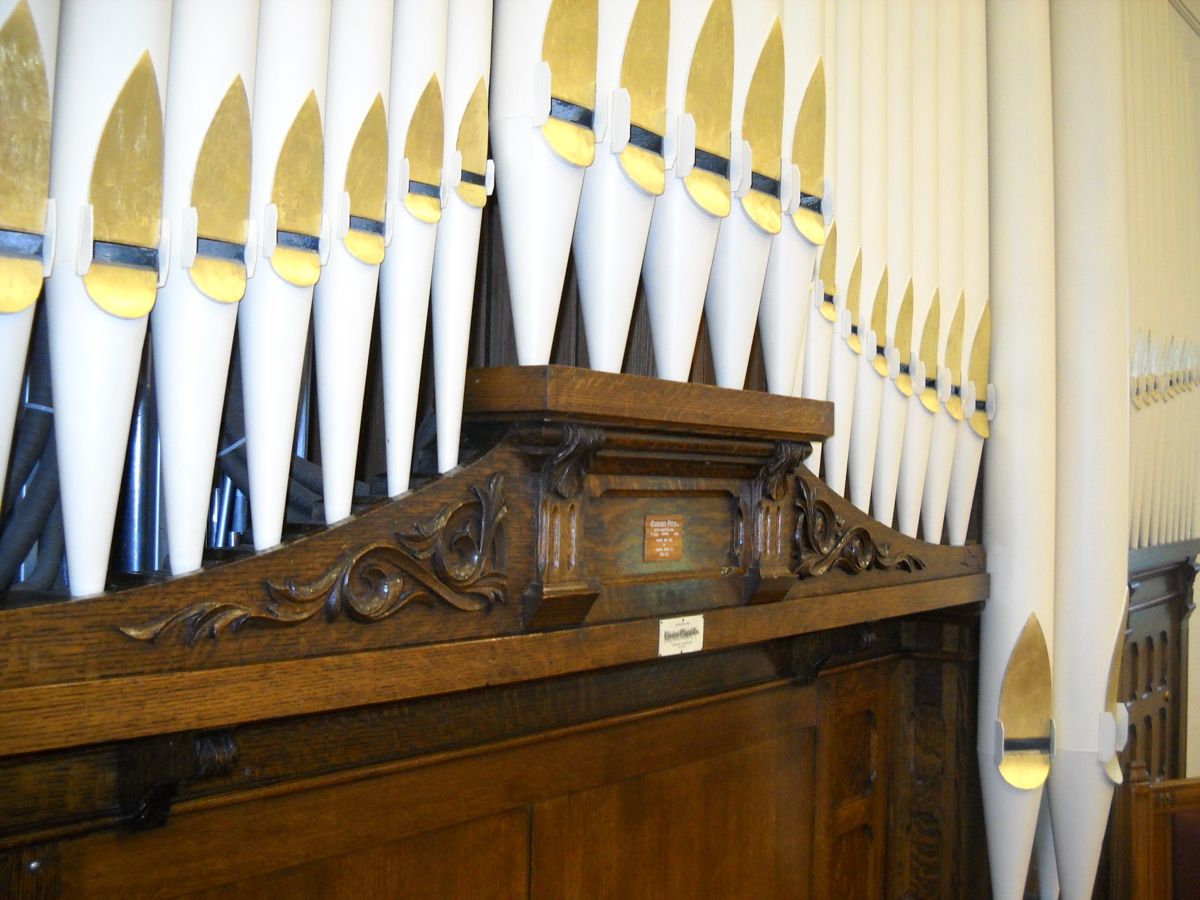

2011-06-23 - Detail of Facade Pipes and Case (Photograph by Lee Van Beek/Database Manager)

2011-06-23 - Chancel and Pipe Facade (Photograph by Lee Van Beek/Database Manager)

Unknown - Builder (Photograph by Lee Van Beek/Database Manager)

2011-06-23 - Console (Photograph by Lee Van Beek/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
18 stops
22 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 30 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons

Notes

2005-12-30 - Identified through online information from James R. Stettner. -- This is a new organ, incorporating some extant pipework from the original Hinners, which had been electrified in 1958 by Balcom and Vaughan of Seattle. The entire 1958 organ was shipped to the Casavant factory in 1984. It was returned to the church after 13 months of work in September 1985. It took four people 2-1/2 6-day weeks to complete reinstallation, which was followed by two weeks of tonal regulation and finishing by two Casavant voicers. The project cost $127,000.00. The new instrument was dedicated on Friday, May 15, 1986 by Joan Ringerwole, Professor of Organ at Dordt College in Sioux Center, Iowa. -Database Manager

2011-06-24 - Updated through online information from Lee Van Beek. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Lynden, Washington
       First Christian Reformed Church

       Casavant   Op. 3620   1986   2/21

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada

       HOOFDWERK                 ZWELWERK
    8' Praestant   56 *       8' Holpijp    56
    8' Roerfluit   56         8' Celeste    44 tc
    4' Octaaf      56         4' Woudfluit  56
    4' Speelfluit  56         2' Octaaf     56
2 2/3' Nasard      56     1 1/3' Quint      56
    2' Vlakfluit   56         8' Klarinet   56
1 3/5' Terts       56
   IV  Mixtuur    224            PEDAAL
    8' Trompet     56        16' Subbass    12 HW *
       Glocken     pf         8' Praestant  18 HW *
                              8' Holpijp    ZW
    *  1-12 existing          4' Octaaf     12
                             16' Bazuin     12 HW full-length
                              8' Trompet    HW

[Received on line from Jeff Scofield April 03, 2010.]

Stoplist copied from the console June 21, 1999 Source: Source not recorded Date not recorded

Lynden, Washington
First Christian Reformed Church

CASAVANT FRÈRES, LTÈE., No. 3620, 1986 - Original Specifications


HOOFDWERK                                    COUPLERS
8     Prestant                   44          ZW / Ped
8     Roerfluit                  56          HW / Ped
4     Octaaf                     56
4     Speelfluit                 56          ZW / HW
2-2/3 Nasard                     56
2     Vlakfluit                  56
1-3/5 Terts                      56
IV    Mixtuur   [19-22-26-29]   224          FINGER PISTONS
8     Trompet                    56          General                       1 – 8
      Glocken  (Deagan;         (2_)         ZW./Ped.                      (rev)
                                             HW./Ped.                      (rev)
                                             Cancel

ZWELWERK (Expressive)
8     Holpijp                    56
8     Gemshoorn                  44          TOE STUDS
4     Woudfluit                  56          General                       1 – 8
2     Octaaf                     56          ZW./Ped.                      (rev)
1-1/3 Quint                      56          HW./Ped.                      (rev)
8     Klarinet                   56
      Tremulant

                                             PEDAL MOVEMENTS
                                             Zwelwerk Expression          (bal.)
PEDAAL                                       Crescendo                    (bal.)
16    Subbass                    30
8     Prestant                   30
8     Holpijp              (ZW)  --
4     Octaaf                     12
16    Bazuin                     30
8     Trompet              (HW)  --



ACTION: E-P primary      VOICES: 18      STOPS: 22      RANKS: 21      PIPES: 1,086
            & unit                    (inc. glocken)

 [Received from James R. Stettner 2011-10-26.]

Documents

History and description -Database Manager
