Better Pipe Organ Database

Peebles-Herzog; Peebles-Herzog, Inc. (2004)

St. Edward Roman Catholic Church
785 Newark-Granville Road
Granville, OH

Images

2014-07-01 - Organ Case and Keydesk (Photograph by Susan Brattain/Database Manager)

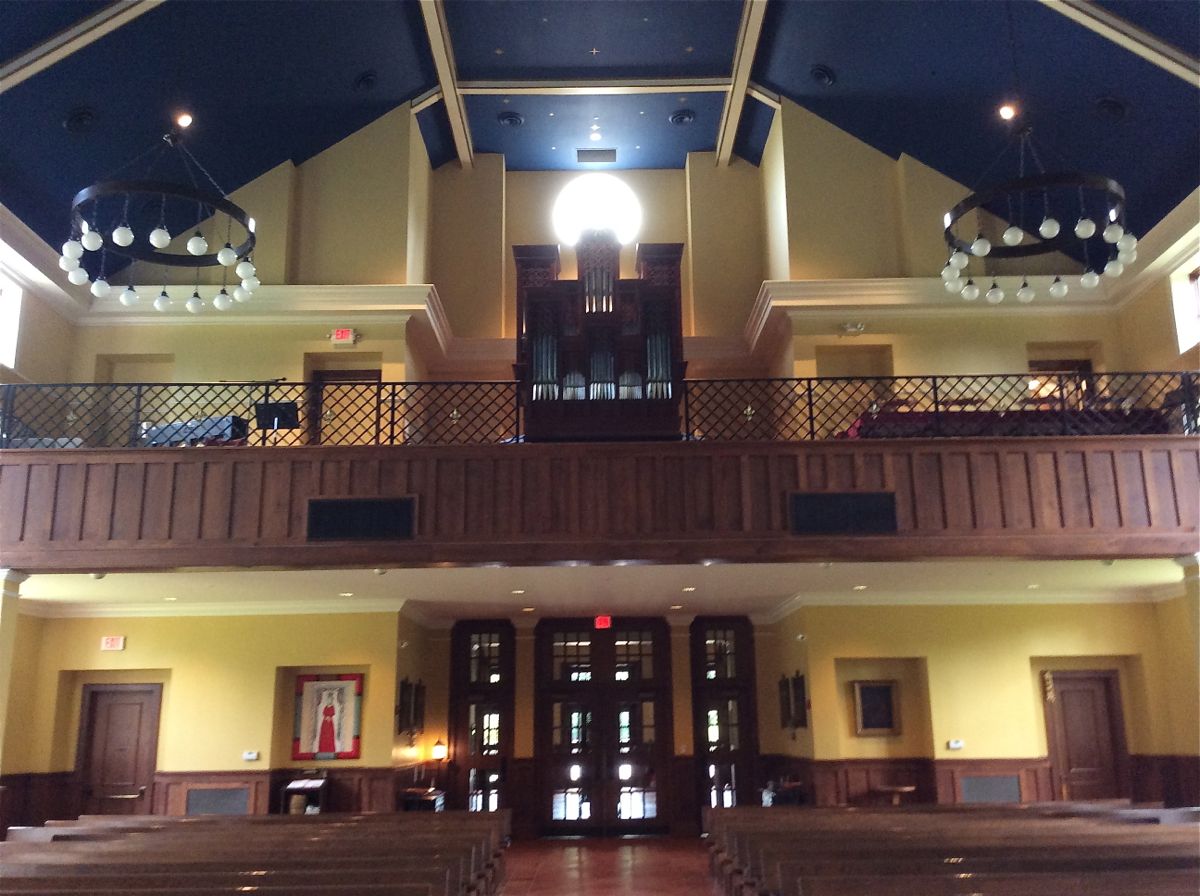

2014-07-01 - Nave, Balcony, and Organ Case (Photograph by Susan Brattain/Database Manager)

Consoles

Main

Console position: Keydesk Attached, Manuals Set Into Case
2 manuals
17 stops
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2006-02-15 - Identified through online information from Robert Wantz. The original installation was in the Presbyterian Church of Williamsburg, Virginia (1975). Removed in 2004 and installed here. -Database Manager

2008-04-21 - Updated through online information from Robert Wantz. -Database Manager

2011-11-17 - Updated through online information from Matthew Nadalin. -Database Manager

2014-08-07 - Updated through online information from Hal Gober. -- Peebles-Herzog, in relocating organ, lengthened RP trackers to provide greater distance between main case and Ruckpositiv than in the organ's original location; they also subsequently replaced the original P Trompete 8' with a Fagott 16' with conical half-length resonators.<br>Hal Gober revoiced the organ in 2014, raising the cutups of most pipes below 2' pitch while raising the original windpressure (60mm in all three divisions) to 70mm in the Hauptwerk and Pedal only. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Granville, Ohio
       St. Edward the Confessor R. C. Church

       Casavant   Op. 3275   1975   2/22

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada

       Moved by Peebles Herzog in 2004 from
       Williamsburg, VA, Presbyterian Church
       _________________________________________________________

       HAUPTWERK           RUCKPOSITIV              PEDAL
    8' Prinzipal 49     8' Gedackt         56   16' Subbass   32
      (1-7 from         4' Prinzipal       56    8' Prinzipal 32
       Hohlflöte)       4' Rohrflöte       56    4' Oktave    32
    8' Hohlflöte 56     2' Oktave          56    8' Trompete  32
    4' Oktave    56    II  Sesquialtera tc 88
2 2/3' Nasat     56   III  Scharf         168
    2' Waldflöte 56
  III  Mixtur   168
    8' Dulzian   56

      [Received online from Jeff Scofield January 22, 2011]

Related Pipe Organ Database Entries

#2161†* - Casavant Frères Ltée. Opus 3275 (1975)
