St. John's Episcopal Church: Sanctuary; front
2827 Wheat St.
Columbia, SC
Images
2023-09-04 - Console (Photograph by Monty Bennett, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
Date unknown - church exterior (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Date unknown - Antiphonal Tromba (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Date unknown - Antiphonal Tromba (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

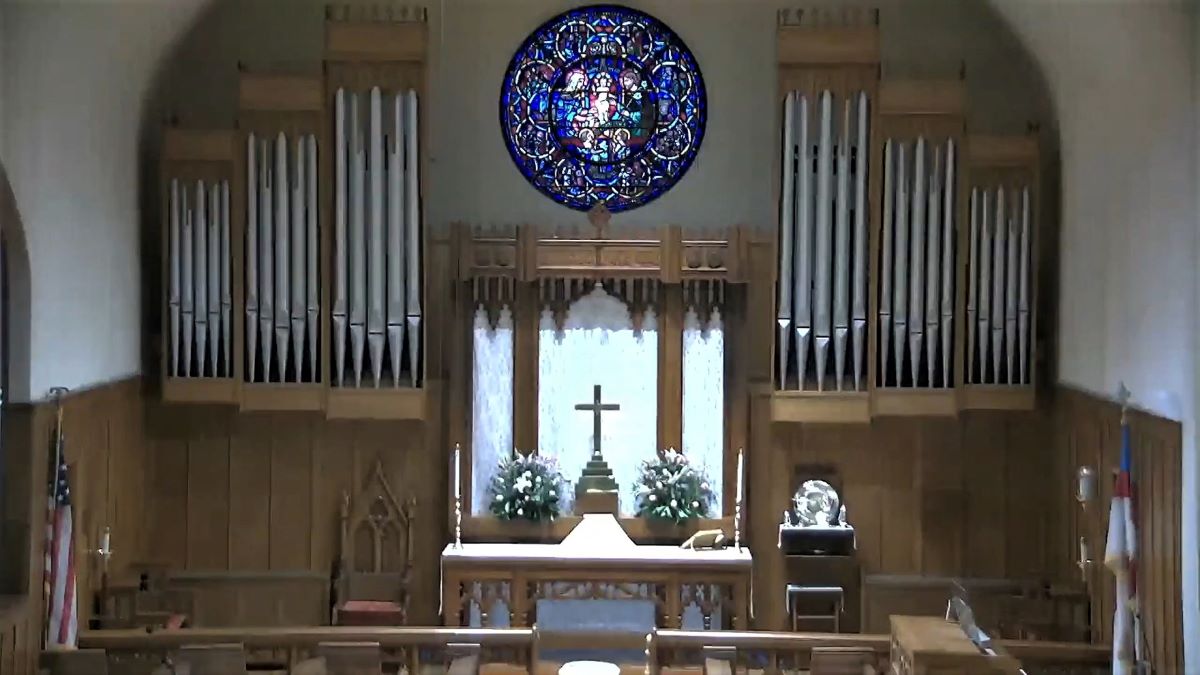

2023-04-23 - Chancel and casework from the rear (Photograph from an archival source: Church Facebook page (still capture from video), submitted by Jim Stettner/Jim Stettner)
Date unknown - Chancel with organ casework in front (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Date unknown - Chancel with organ in front (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Date unknown - Casework in front (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Date unknown - Nave interior with casework in front (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Date unknown - Exposed pipes in front with Swell chamber grilles at left (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Right
- 3 manuals
- 23 stops
- 51 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Stoplist
Source: Stoplist courtesy of consultant David Lowry
Columbia, South Carolina
St. John's Episcopal Church
M.P. Möller, Opus 4625, 1926 - Original Organ
Tellers, Opus 1077, 1968 - New; retaining 1 Moller rank
Unknown, 1988 - Added Antiphonal
Lincoln Pipe Organs, LLC., 2016
GREAT – Manual II
16 Gedackt (Sw) --
8 Principal 61
8 Chimney Flute 49
4 Octave 61
4 Stopt Diapason 61
2 2/3 Twelfth 61
2 Fifteenth 61
2 Piccolo 61
1 3/5 Seventeenth 61
IV Mixture 244
8 Cromorne 61
8 Tromba (Antiph) --
SWELL (Expressive – Manual III)
16 Gedackt 61
8 Koppel Gedackt 49
8 Viol 61
8 Erzähler 61
8 Celeste (tc) 49
4 Geigen Principal 61
4 Rohr Gedackt 12
2 2/3 Nazard 61
2 Ottavino (Pl Jeu) --
1 3/5 Tierce (fr Cel) --
III Plein Jeu 183
16 Basson (new) 12
8 Trumpet 61
8 Oboe 61 1926 Moller
Tremulant
CHOIR – Manual I: Composite
8 Gedackt (Sw) -- (from 16’ Ged)
8 Erzähler (Sw) --
8 Celeste (Sw) --
4 Flute (Sw) --
2 Gemshorn (Sw) --
8 Cromorne (GT) --
Chimes (__)
Zimbelstern
8 Tromba (Antiph) 61
PEDAL
32 Acoustic Bass --
16 Contrebasse 32
16 Bourdon 32
16 Gedackt (Sw) --
8 Principal 12
8 Bourdon 12
8 Gedackt (Sw) --
8 Erzähler (Sw) --
4 Choral Bass 12
4 Bourdon 12
2 Principal 12
II Rauschquint --
16 Bass Trombone 32
16 Basson (Sw) --
8 Trombone 12
4 Cromorne (Gt) --
COUPLERS
Swell to Pedal ??
Great to Pedal ??
Choir to Pedal ??
Swell to Great ??
Swell to Choir 16,8,4
Great to Choir 16,8,4
FINGER PISTONS
Not documented
TOE STUDS
Not Documented
PEDAL MOVEMENTS
Swell Expression (bal.)
Crescendo (bal.)
ACTION:
VOICES: 23
STOPS: 51; inc. chimes & zimbelstern
RANKS: 28
PIPES:
[Submitted by David Lowry April 28, 2023.]
